Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#3897) — 267 parça

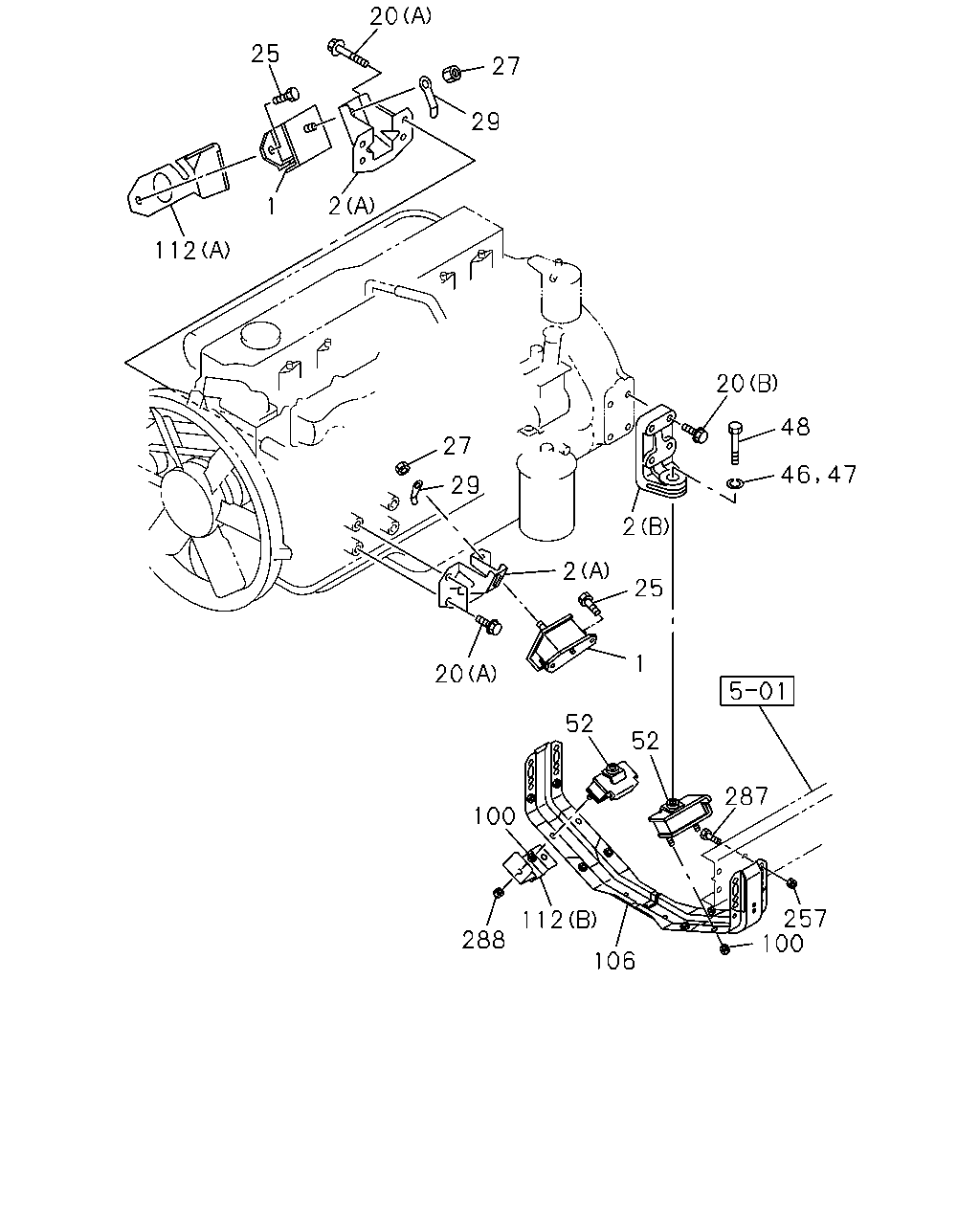

20 25 27 29 2 1 112 20 48 27 29 2 2 25 1 20 52 52 287 100 257 100 112 288 106 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9601-9806	●
1	RUBBER; ENG FOOT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53215-172-0	02	1	9601-9806		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9807-0004	●		●
1	RUBBER; ENG FOOT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53215-172-0	02	1	9807-0004		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0005-0607	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0608-	●	●		●
1	RUBBER; ENG FOOT,FRT CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53215-187-0	02	1	9601-0004		●
1	RUBBER; ENG FOOT,FRT A/T<X9D>	1-53215-131-2	02	1	0005-					●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9601-0004					●	●
1	RUBBER; ENG FOOT,FRT EXC. A/T<X9D>	1-53215-132-2	02	1	0005-					●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94395-942-0	01	1	9710-9710	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94395-941-0	01	1	9710-9710	●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9601-9806	●	●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9807-0004	●	●	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0005-0607	●	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0608-	●	●		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9601-9607	●	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	8-94394-543-1	01	1	9608-9702	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9608-9702		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9703-9709	●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94394-543-1	01	1	9710-9710	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-543-1	01	1	9710-9710	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9710-9710		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9711-9806	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9807-0004	●	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0005-0607	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0608-	●	●		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9601-9607	●	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	8-94394-544-2	01	1	9608-9702	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9608-9702		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9703-9709	●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94394-544-2	01	1	9710-9710	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-544-2	01	1	9710-9710	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9710-9710		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9711-9806	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9807-0004	●	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0005-0607	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0608-	●	●		●
2	FOOT; ENG (C)	1-11771-172-0	02	1	9601-					●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9601-9806	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9807-0004	●	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0607	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0608-	●	●		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9601-9806	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9807-0004	●	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0005-0607	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0608-	●	●		●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	9601-					●	●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	9601-					●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X30 FLANGE	0-28081-230-0	04	1	9601-9606	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9607-9806	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	9807-0004	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0512	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-0607	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0608-	●	●		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12	9-99110-512-0	02	1	9601-9606	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9607-9806	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9807-0004	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0005-0602	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-0607	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0608-	●	●		●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-418-0	02	1	9601-9802					●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9803-0512					●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-					●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9601-9806	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9807-0004	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0005-0607	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0608-	●	●		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9601-					●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0607	●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0608-	●	●		●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0605					●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-					●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9601-9806	●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9807-0004	●	●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	0005-0009	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9601-0009					●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9601-9806	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9807-0004	●	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	0005-0512	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-0607	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0608-	●	●		●
48	BOLT; CUSHION RUBBER TO ENG M22X60	1-09020-143-0	02	1	9601-9604					●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9605-					●	●
52	RUBBER; CUSHION,ENG MTG,RR WHEEL BASE 3900MM(39W)	1-53225-316-0	02	1	0907-					●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9601-9806	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-314-1	01	1	9601-9806		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9807-0004	●		●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-314-1	01	1	9807-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0005-0607	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0608-	●	●		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9601-9806	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-313-1	01	1	9601-9806		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9807-0004	●		●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-313-1	01	1	9807-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0005-0607	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0608-	●	●		●
52	RUBBER; CUSHION,ENG MTG,RR CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53225-307-0	01	1	9601-0004		●
52	RUBBER; CUSHION,ENG MTG,RR CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53225-306-0	01	1	9601-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	9601-0906					●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0907-						●
52	RUBBER; CUSHION,ENG MTG,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6200MM(62W)	1-53225-302-0	02	1	0907-					●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9601-9806	●	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9807-0004	●	●	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0005-0602	●	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-0607	●	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0608-	●	●		●
106	MEMBER; MTG,RR	1-53221-192-0	01	1	9601-9806	●	●
106	MEMBER; MTG,RR	1-53221-192-0	01	1	9807-0004	●	●	●
106	MEMBER; MTG,RR	1-53221-192-0	01	1	0005-0607	●	●
106	MEMBER; MTG,RR	1-53221-192-0	01	1	0608-	●	●		●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9601-9806	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9807-0004	●	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0005-0607	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0608-	●	●		●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9601-9806	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9807-0004	●	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0005-0607	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0608-	●	●		●
112	PROTECTOR; HEAT (C)	1-53219-754-0	01	1	9601-					●	●
257	NUT; MEMBER M12	9-99110-512-0	08	1	9601-9606	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9607-9806	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	9807-0004	●	●	●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	0005-0602	●	●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0603-0607	●	●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0608-	●	●		●
287	BOLT; MEMBER M12X35 FLANGE	0-28081-235-0	08	1	9601-9606	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9607-9806	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	9807-0004	●	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	0005-0512	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0601-0607	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0608-	●	●		●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9601-9806	●	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	9807-0004	●	●	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	0005-0602	●	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91180-212-0	02	1	0603-0607	●	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91180-212-0	02	1	0608-	●	●		●

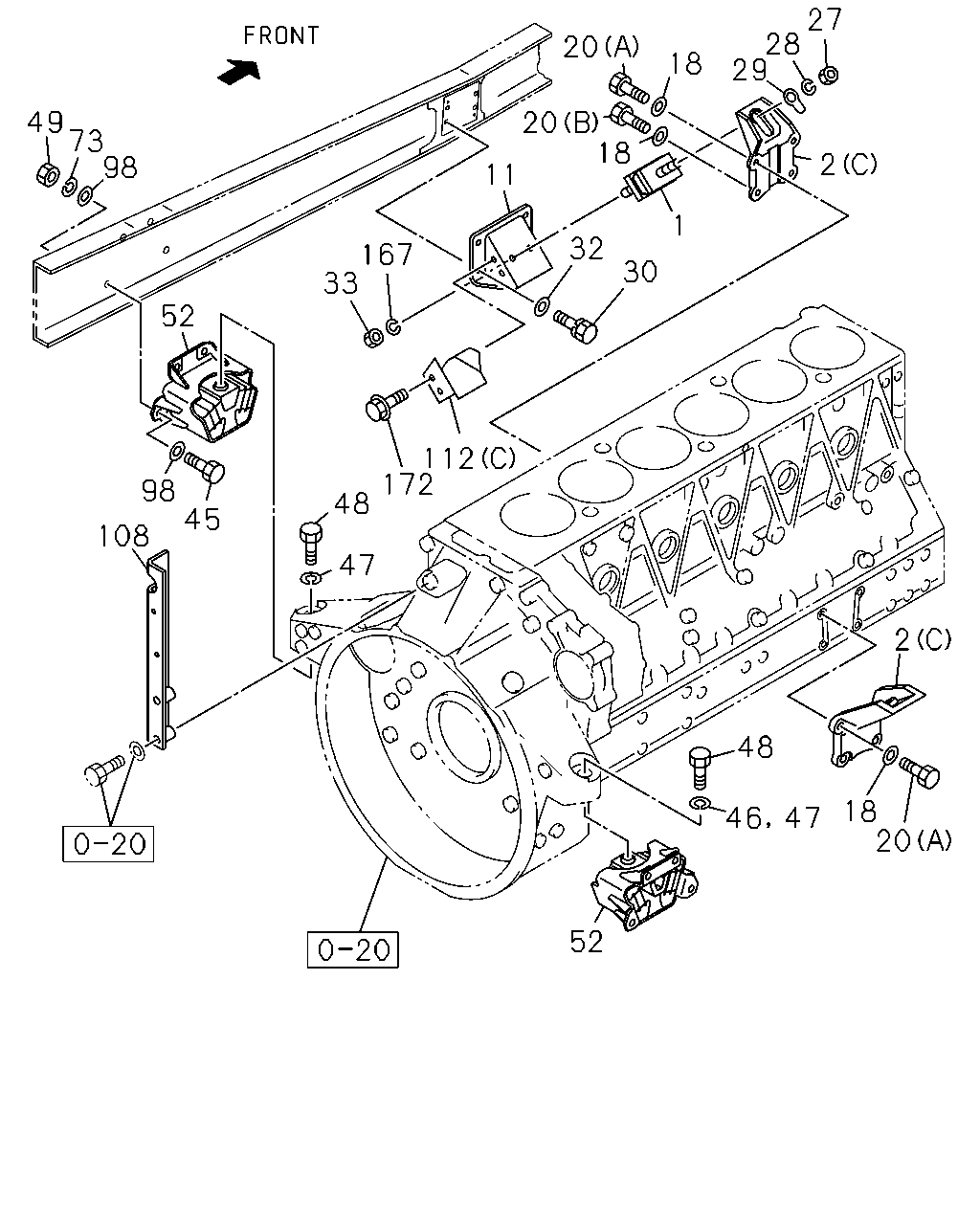

27 28 29 20 18 20 18 49 73 98 2 11 1 32 167 33 30 52 112 172 98 45 48 108 47 2 48 18 20 52 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9601-9806	●
1	RUBBER; ENG FOOT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53215-172-0	02	1	9601-9806		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	9807-0004	●		●
1	RUBBER; ENG FOOT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53215-172-0	02	1	9807-0004		●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0005-0607	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0608-	●	●		●
1	RUBBER; ENG FOOT,FRT CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53215-187-0	02	1	9601-0004		●
1	RUBBER; ENG FOOT,FRT A/T<X9D>	1-53215-131-2	02	1	0005-					●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	9601-0004					●	●
1	RUBBER; ENG FOOT,FRT EXC. A/T<X9D>	1-53215-132-2	02	1	0005-					●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94395-942-0	01	1	9710-9710	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94395-941-0	01	1	9710-9710	●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9601-9806	●	●
2	FOOT; ENG (A)	8-94393-491-0	02	1	9807-0004	●	●	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0005-0607	●	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0608-	●	●		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9601-9607	●	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	8-94394-543-1	01	1	9608-9702	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9608-9702		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9703-9709	●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94394-543-1	01	1	9710-9710	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-543-1	01	1	9710-9710	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9710-9710		●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9711-9806	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	9807-0004	●	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0005-0607	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0608-	●	●		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9601-9607	●	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	8-94394-544-2	01	1	9608-9702	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9608-9702		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9703-9709	●	●
2	FOOT; ENG EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94394-544-2	01	1	9710-9710	●
2	FOOT; ENG EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-544-2	01	1	9710-9710	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9710-9710		●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9711-9806	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	9807-0004	●	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0005-0607	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0608-	●	●		●
2	FOOT; ENG (C)	1-11771-172-0	02	1	9601-					●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-226-0	02	1	9601-					●	●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	9601-					●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9601-9806	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	9807-0004	●	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0607	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0608-	●	●		●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9601-9806	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	9807-0004	●	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0005-0607	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0608-	●	●		●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	9601-					●	●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	9601-					●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12	9-99110-512-0	02	1	9601-9606	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9607-9806	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	9807-0004	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0005-0602	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-0607	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0608-	●	●		●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-418-0	02	1	9601-9802					●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	9803-0512					●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-					●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	9601-0603					●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0604-					●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9601-9806	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	9807-0004	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0005-0607	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0608-	●	●		●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	9601-					●	●
30	BOLT; BRKT TO FRAME M12X40	9-92061-240-0	08	1	9601-0512					●	●
30	BOLT; BRKT TO FRAME M12X40	0-20951-240-0	08	1	0601-					●	●
32	WASHER; PL,BRKT TO FRAME ID=12.5	1-09503-171-0	08	1	9601-					●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	9601-0512					●	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0601-					●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	9601-0512					●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0601-					●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0607	●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0608-	●	●		●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0605					●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-					●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9601-9806	●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	9807-0004	●	●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	0005-0009	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	9601-0009					●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9601-9806	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	9807-0004	●	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	0005-0512	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0601-0607	●	●
48	BOLT; CUSHION RUBBER TO ENG M16X60	0-10956-660-0	02	1	0608-	●	●		●
48	BOLT; CUSHION RUBBER TO ENG M22X60	1-09020-143-0	02	1	9601-9604					●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	9605-					●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	9601-0512					●	●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0601-					●	●
52	RUBBER; CUSHION,ENG MTG,RR WHEEL BASE 3900MM(39W)	1-53225-316-0	02	1	0907-					●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9601-9806	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-314-1	01	1	9601-9806		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	9807-0004	●		●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-314-1	01	1	9807-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0005-0607	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0608-	●	●		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9601-9806	●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-313-1	01	1	9601-9806		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	9807-0004	●		●
52	RUBBER; CUSHION,ENG MTG,RR EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53225-313-1	01	1	9807-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0005-0607	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0608-	●	●		●
52	RUBBER; CUSHION,ENG MTG,RR CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53225-307-0	01	1	9601-0004		●
52	RUBBER; CUSHION,ENG MTG,RR CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-53225-306-0	01	1	9601-0004		●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	9601-0906					●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0907-						●
52	RUBBER; CUSHION,ENG MTG,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6200MM(62W)	1-53225-302-0	02	1	0907-					●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	9601-0202					●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0203-0603					●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0604-					●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	9601-1201					●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	8-98010-627-1	16	1	1202-					●	●
108	HANGER; ENG FLYWHEEL HSG	1-11777-208-0	01	1	9601-0209					●	●
108	HANGER; ENG FLYWHEEL HSG	1-11777-268-0	01	1	0210-					●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9601-9806	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	9807-0004	●	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0005-0607	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0608-	●	●		●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9601-9806	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	9807-0004	●	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0005-0607	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0608-	●	●		●
112	PROTECTOR; HEAT (C)	1-53219-754-0	01	1	9601-					●	●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-614-0	04	1	9601-0202					●	●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-514-0	04	1	0203-0603					●	●
167	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-514-0	04	1	0604-					●	●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9601-0512					●	●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
