9-01 — TOOLS (#38969) — 107 parça

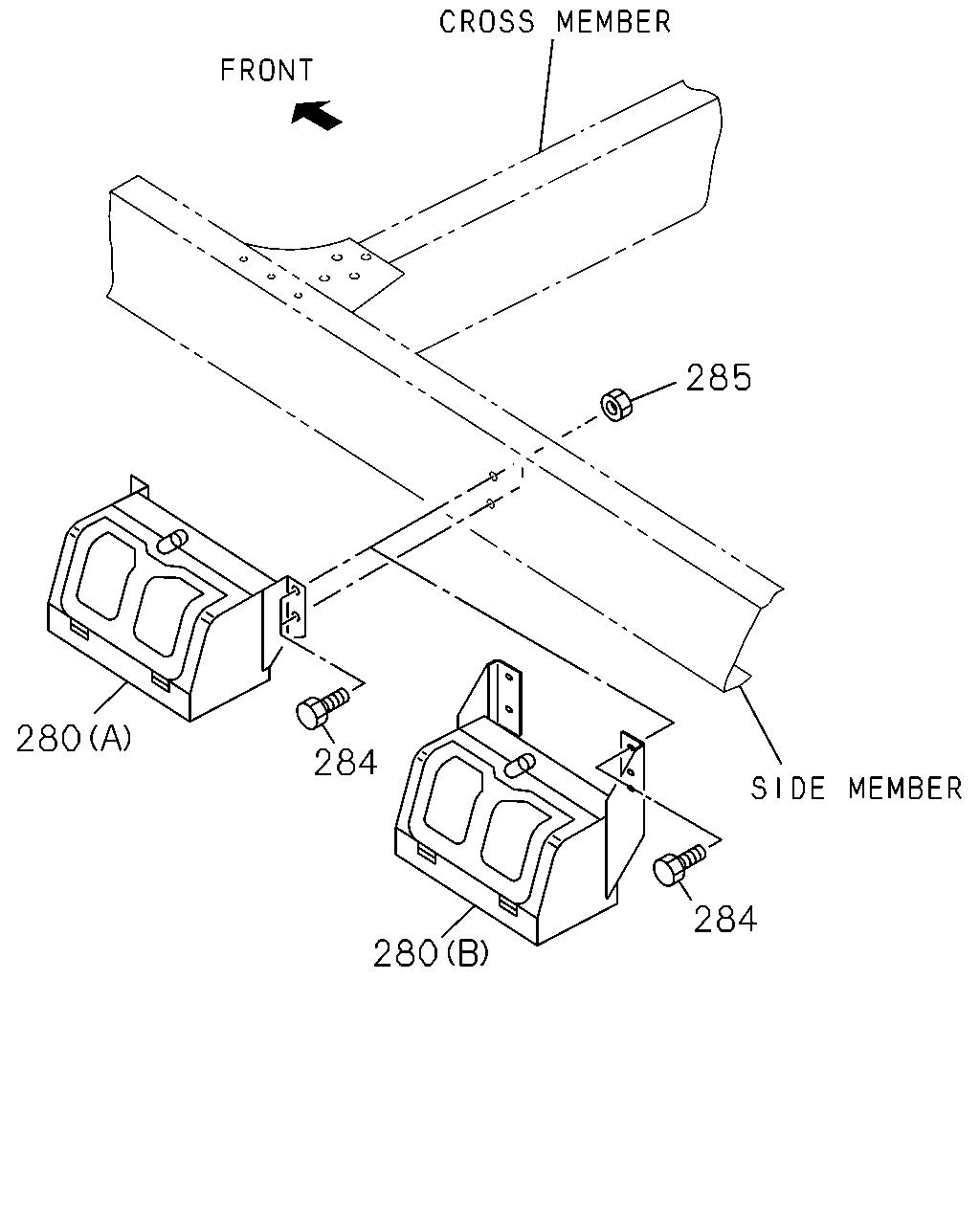

285 280 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0211-	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) (B)	8-94123-034-1	01	1	0502-				●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512	●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●	●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501	●	●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501			●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602	●	●		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602		●	●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●	●		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

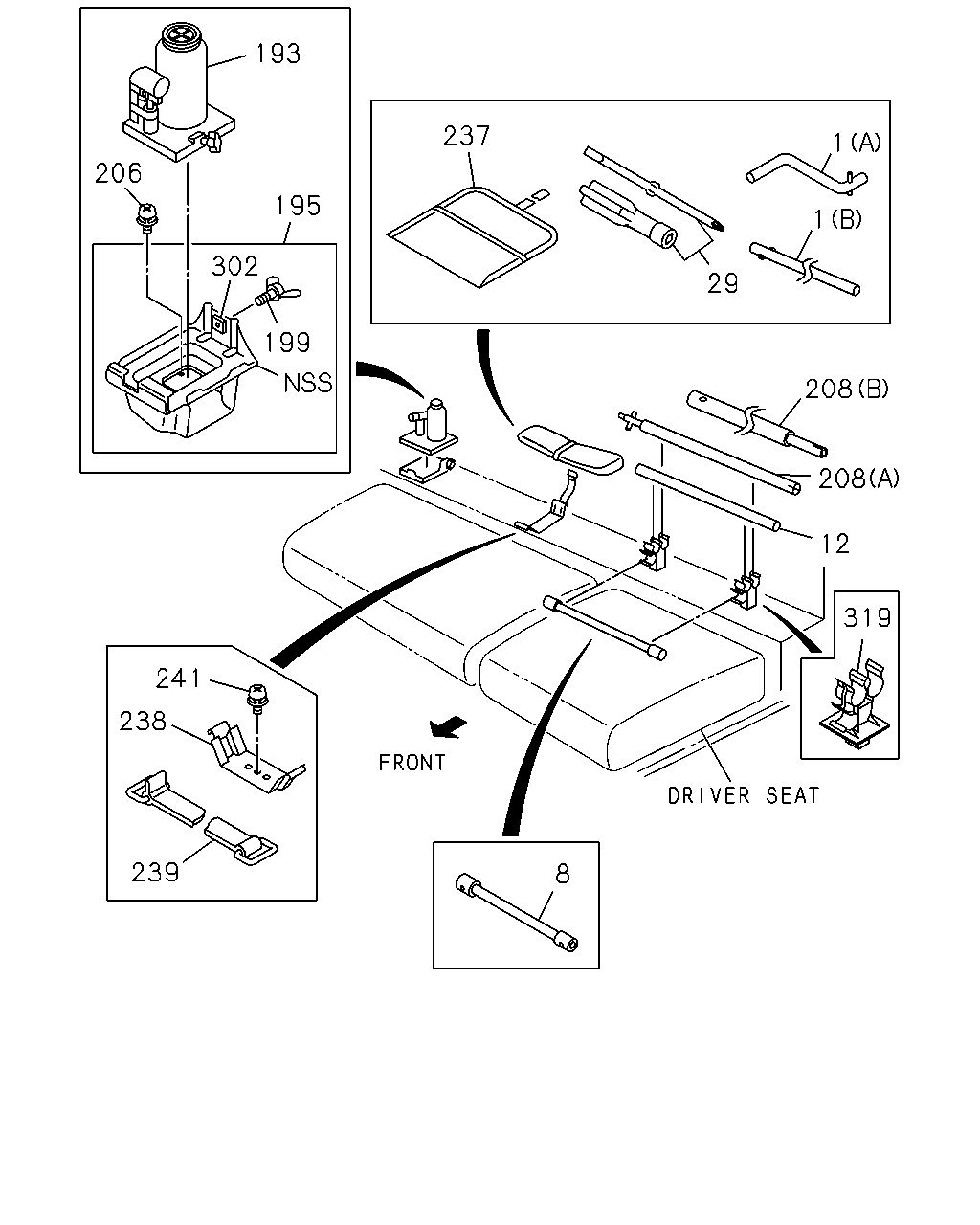

193 237 1 206 195 1 302 29 199 208 208 12 319 241 238 239 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0211-0501	●		●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0211-0501		●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0502-	●		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0502-		●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0211-		●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	0211-	●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) B=41X19 L=330	8-94386-490-1	01	1	0211-		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0211-0501		●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0211-0501			●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0502-		●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0502-			●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0211-0501	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0211-0501		●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0502-1001	●		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0502-1001		●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-	●		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-		●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0211-0501	●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0502-	●	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97131-076-2	01	1	0211-0305	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR 7.5-16-14 DISC 6.0 0GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GULF(BQQ),FRT& RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT (BUM),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97131-076-2	01	1	0211-0305		●
193	08.820 JACK ASM FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) 5TON	8-97131-076-2	01	1	0211-0305			●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0306-0501	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR 7.5-16-14 DISC 6.0 0GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GULF(BQQ),FRT& RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT (BUM),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0306-0501		●
193	08.820 JACK ASM FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) 5TON	8-97371-124-0	01	1	0306-0501			●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0502-0505	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR 7.5-16-14 DISC 6.0 0GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT GULF(BQQ),FRT& RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT (BUM),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0502-0505		●
193	08.820 JACK ASM FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) 5TON	8-97371-124-0	01	1	0502-0505			●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) 5TON	8-97371-124-0	01	1	0502-0505				●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0506-0706	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),F RT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GU LF(BXQ),FRT&RR 225/85R16 16X6K-128(CNY) ,FRT&RR 215/85R16 16X6K-128(CSC) 5TON	8-97371-124-0	01	1	0506-0706		●
193	08.820 JACK ASM FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 2 25/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5-16-10 6GSX1 6-127 DISC 6-WHL/NUT (97V) 5TON	8-97371-124-0	01	1	0506-0706				●
193	08.820 JACK ASM FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0707-0804	●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16- 12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0707-0804		●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) 5TON	8-97371-124-0	01	1	0707-0804				●
193	08.820 JACK ASM FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-97371-124-0	01	1	0805-0805	●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16- 12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) 5TON	8-97371-124-0	01	1	0805-0805		●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 225/85R16 16X 6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) 5TON	8-97371-124-0	01	1	0805-0805				●
193	08.820 JACK ASM FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) 5TON	8-98114-047-0	01	1	0806-	●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16- 12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) 5TON	8-98114-047-0	01	1	0806-		●
193	08.820 JACK ASM FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 225/85R16 16X 6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) 5TON	8-98114-047-0	01	1	0806-				●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) 4TON	8-97131-075-2	01	1	0211-0305		●	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) 4TON	8-97371-123-0	01	1	0306-0504		●	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) 4TON	8-98012-285-0	01	1	0505-0505		●	●
193	08.820 JACK ASM FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) 4TON	8-98012-285-0	01	1	0506-0604	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) 4TON	8-98012-285-0	01	1	0506-0604		●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) 4TON	8-98012-285-0	01	1	0506-0604			●
193	08.820 JACK ASM FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) 4TON	8-98012-285-0	01	1	0605-0706	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 205/85R16DISC 16-5.5J-116.5(CSB) 4TON	8-98012-285-0	01	1	0605-0706		●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON	8-98012-285-0	01	1	0605-0706			●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON	8-98012-285-0	01	1	0707-0804		●	●
193	08.820 JACK ASM FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) 4TON	8-98012-285-0	01	1	0805-	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 205/85R16 RIB16X5.5J-116.5 SILVER(CUA) 4TON	8-98012-285-0	01	1	0805-		●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON	8-98012-285-0	01	1	0805-			●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) 5TON	8-97131-077-2	01	1	0211-0805		●	●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) 5TON	8-98114-045-0	01	1	0806-		●	●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0211-0501	●	●	●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0502-0805	●	●	●	●
195	08.820 BRACKET; JACK FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA)	8-97856-997-4	01	1	0806-	●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 205/85R16 RIB16X5.5J-116.5 SILVER(CUA)	8-97856-997-4	01	1	0806-		●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)	8-97856-997-4	01	1	0806-			●
195	08.820 BRACKET; JACK FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ)	8-97856-994-3	01	1	0806-	●
195	08.820 BRACKET; JACK FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16- 12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT &RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP)	8-97856-994-3	01	1	0806-		●
195	08.820 BRACKET; JACK FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP)	8-97856-994-3	01	1	0806-			●
195	08.820 BRACKET; JACK FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 225/85R16 16X 6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V)	8-97856-994-3	01	1	0806-				●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0211-0501	●	●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0502-0805	●	●	●	●
199	08.820 BOLT; JACK FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) M8X50 WING	8-94279-136-0	01	1	0806-	●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 205/85R16 RIB16X5.5J-116.5 SILVER(CUA) M8X50 WING	8-94279-136-0	01	1	0806-		●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING	8-94279-136-0	01	1	0806-			●
199	08.820 BOLT; JACK FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) M8X30 WING	8-94279-018-1	01	1	0806-	●
199	08.820 BOLT; JACK FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR TIRE 7.5R-16- 12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT &RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M8X30 WING	8-94279-018-1	01	1	0806-		●
199	08.820 BOLT; JACK FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) M8X30 WING	8-94279-018-1	01	1	0806-			●
199	08.820 BOLT; JACK FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 225/85R16 16X 6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) M8X30 WING	8-94279-018-1	01	1	0806-				●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0501	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0502-0612	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0211-0501	●		●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0211-0501		●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0502-	●		●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0502-		●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0211-		●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0211-0501	●	●	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0502-	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0211-0501	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0502-	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0211-0501	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0502-	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0501	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0502-0612	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0211-0501	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0502-	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0211-0501	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0502-	●	●	●	●
