8-80 — WINDSHIELD WIPER AND WASHER (#38967) — 144 parça
çizim 21017
27 196 40 34 25 30 206 25 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0211-0501 ● ● ●
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0502- ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0211-0501 ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0502- ● ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0211-0501 ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0502- ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0211-0501 ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0502- ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 0211-0501 ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502- ● ● ● ●
196 16.065 TANK; WASHER 8-97855-066-6 01 1 0211-0501 ● ● ●
196 16.065 TANK; WASHER 8-97855-066-6 01 1 0502- ● ● ● ●
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 0211-0501 ● ● ●
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 0502- ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0211-0501 ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0502-0512 ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ● ● ●

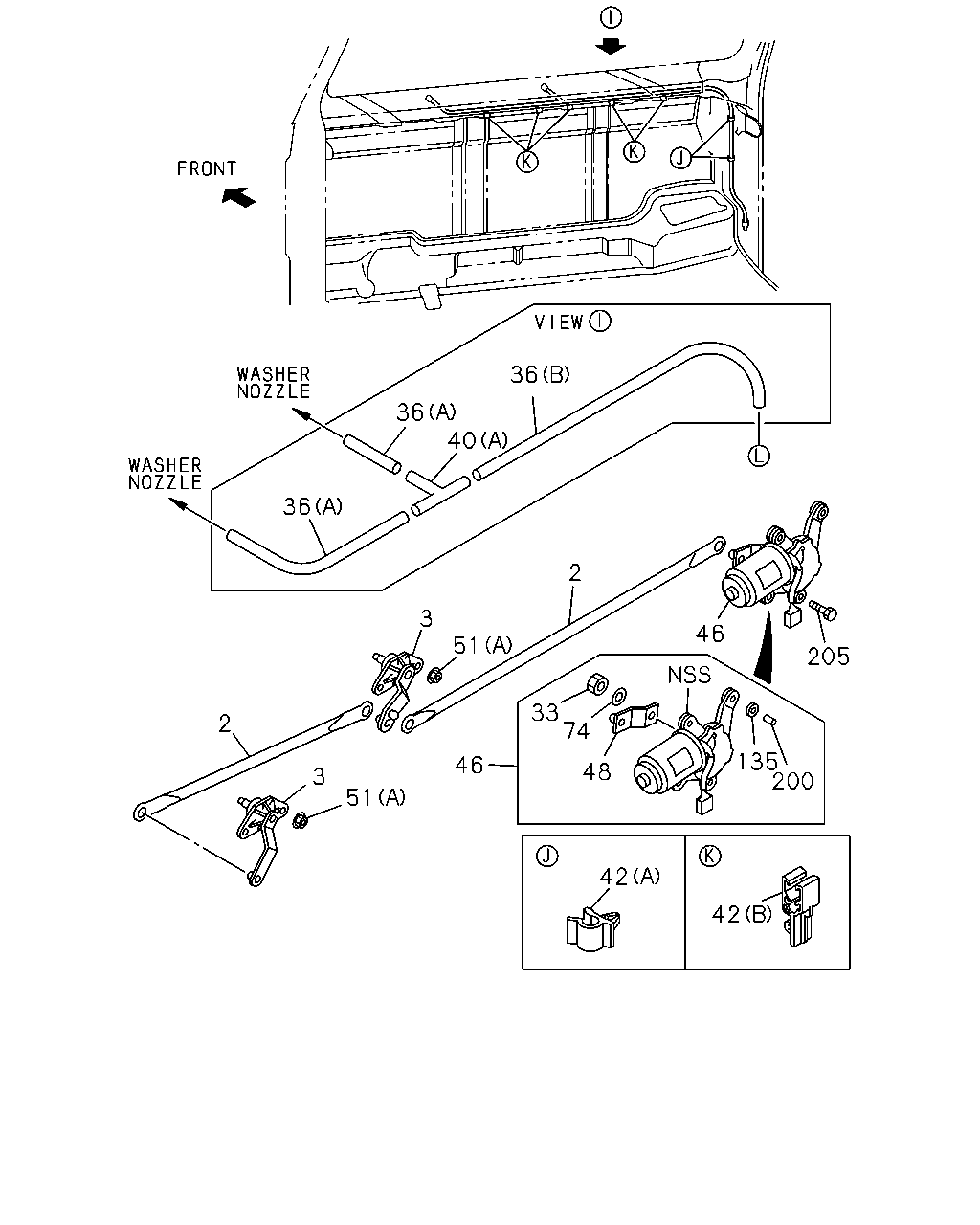

çizim 74916
36 36 40 36 2 3 46 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.063 LINK; FRT WIPER
MOTOR TO PIVOT 		8-97855-152-0 01 1 0211-0501 ● ● ●
2 16.063 LINK; FRT WIPER
MOTOR TO PIVOT 		8-97855-152-0 01 1 0502- ● ● ● ●
2 16.063 LINK; FRT WIPER
PIVOT TO PIVOT L=791 W/CAP 		8-97855-154-0 01 1 0211-0501 ● ● ●
2 16.063 LINK; FRT WIPER
PIVOT TO PIVOT L=791 W/CAP 		8-97855-154-0 01 1 0502- ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-97855-148-0 01 1 0211-0407 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98003-074-0 01 1 0408-0501 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98003-074-0 01 1 0502- ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
CENTER 		8-97855-147-1 01 1 0211-0501 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
CENTER 		8-97855-147-1 01 1 0502- ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0211-0501 ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0502- ● ● ● ●
36 16.065 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
10.155 (A) L=2300 AND L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
10.155 (A) L=2300 AND L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 0502- ● ● ● ●
36 16.065 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502- ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0502- ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 0502- ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-376-1 01 1 0211-0501 ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-376-1 01 1 0502- ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 0211-0501 ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 0502- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0502-0611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (A) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0502- ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0211-0501 ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0502- ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0211-0501 ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0502- ● ● ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0211-0501 ● ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0502- ● ● ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 0211-0501 ● ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 0502- ● ● ● ●

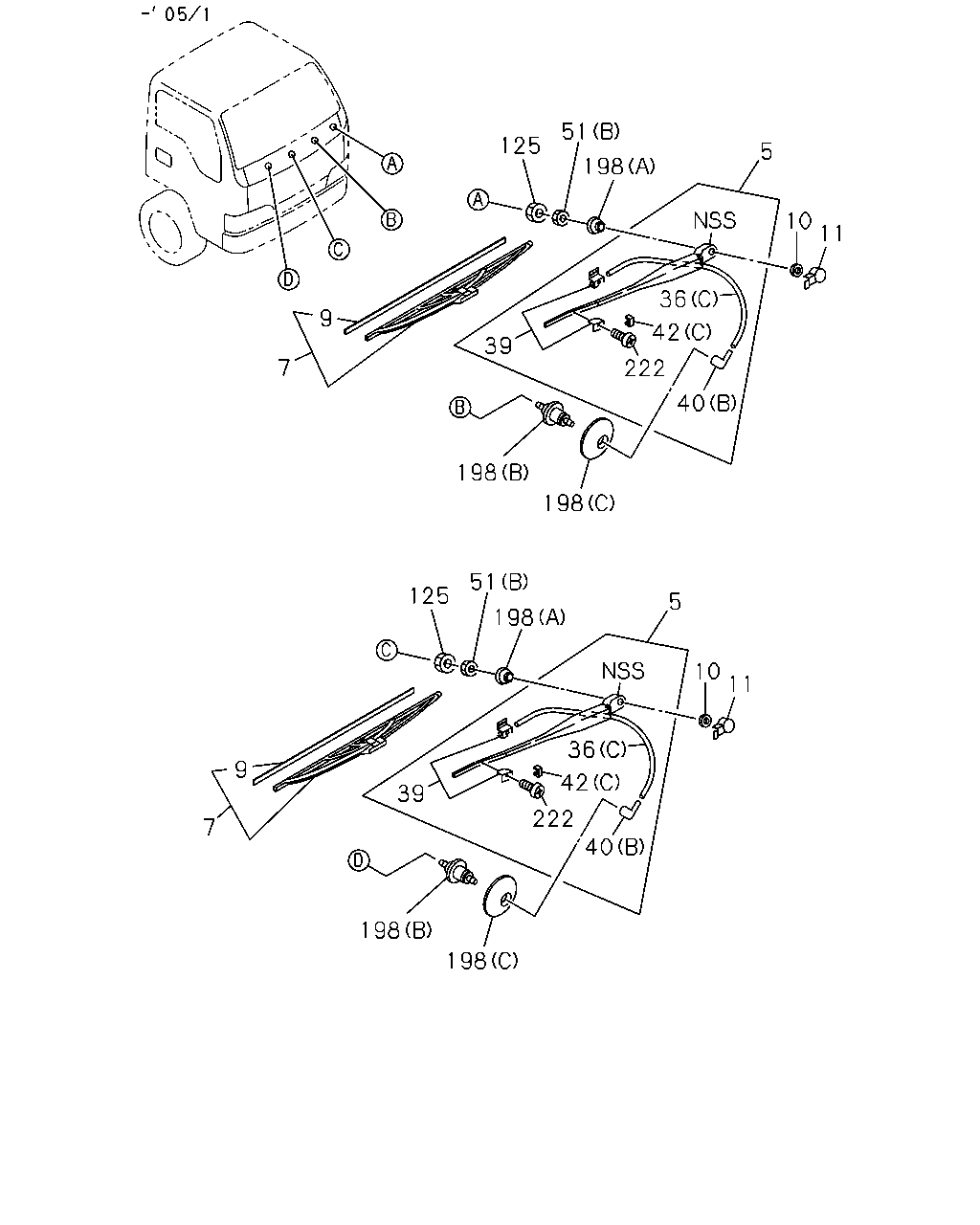

çizim 75488
51 125 5 198 10 11 36 9 42 39 7 222 40 198 198 51 125 5 198 10 11 36 9 42 39 222 40 7 198 198
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.063 ARM; WIPER 8-97223-546-1 02 1 0211-0501 ● ● ●
5 16.063 ARM; WIPER 8-97226-887-0 01 1 0502- ● ● ● ●
5 16.063 ARM; WIPER 8-97226-888-0 01 1 0502- ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0211-0501 ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 01 1 0502-0504 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 01 1 0502-0504 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0505- ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0211-0501 ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0505- ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 0211-0501 ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 0502-0512 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 0601- ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0211-0501 ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0502- ● ● ● ●
36 16.065 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
10.155 (A) L=2300 AND L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
10.155 (A) L=2300 AND L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 0502- ● ● ● ●
36 16.065 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0211-0501 ● ● ●
36 16.065 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0502- ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 0211-0501 ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 0502-0502 ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502- ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0211-0501 ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502- ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0502- ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0211-0501 ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 0502- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0502-0611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (A) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0502- ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0211-0501 ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0502- ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0211-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0211-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 0211-0305 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0502- ● ● ● ●
222 16.064 SCREW; WASHER NOZZLE 8-97216-113-0 04 1 0211-0501 ● ● ●
çizim 75975
51 125 198 10 11 5 9 7 39 199 51 125 198 10 11 5 9 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.063 ARM; WIPER 8-97223-546-1 02 1 0211-0501 ● ● ●
5 16.063 ARM; WIPER 8-97226-887-0 01 1 0502- ● ● ● ●
5 16.063 ARM; WIPER 8-97226-888-0 01 1 0502- ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0211-0501 ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 01 1 0502-0504 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 01 1 0502-0504 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0505- ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0211-0501 ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0505- ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 0211-0501 ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 0502-0512 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 0601- ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0211-0501 ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0502- ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 0211-0501 ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 0502-0502 ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0502- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 0502-0611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (A) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0211-0501 ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0502- ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0211-0501 ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0502- ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0211-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0211-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 0211-0305 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306-0501 ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0502- ● ● ● ●
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 0502- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
