Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#38959) — 135 parça

14 206 66 4 210 46 14 1 49 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	0502-	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0501		●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0501			●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0502-0512	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501		●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501			●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0502-0805	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●	●
14	09.171 BOLT; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0501		●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0501			●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE	0-28080-890-0	04	1	0502-0512	●	●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0601-	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0501		●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0501			●
49	09.171 COLLAR; BRKT,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	0211-0501		●
49	09.171 COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	0211-0501			●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501		●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501			●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0211-0501		●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0211-0501			●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0502-0512	●	●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0601-	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0302		●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0302				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501		●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505	●	●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501		●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501			●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-	●	●	●	●

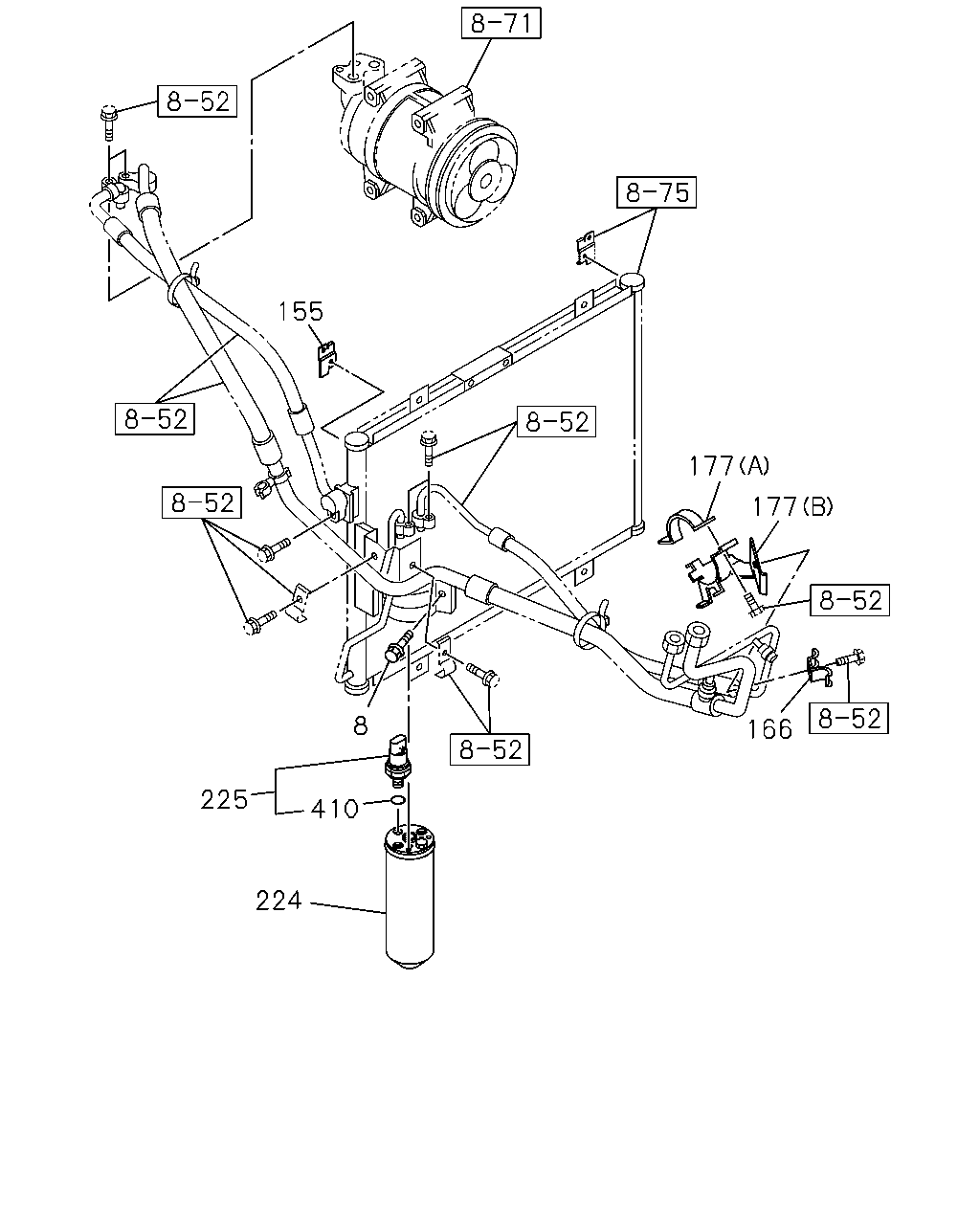

155 177 177 8 166 225 410 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0502-0512	●	●	●	●
8	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-	●	●	●	●
155	09.242 BRACKET; COOLER 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97039-996-3	01	1	0509-			●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0211-0501		●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0502-0611	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98029-613-0	01	1	0612-1009	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98151-264-0	01	1	1010-	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	0211-0404		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97358-576-0	01	1	0405-0501		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97358-576-0	01	1	0502-	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-771-0	01	1	0211-0404		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0405-0501		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0502-	●	●	●	●
224	09.195 TANK ASM; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97367-088-0	01	1	0502-	●	●	●	●
225	09.172 SWITCH; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97366-963-0	01	1	0502-	●	●	●	●
410	09.172 GASKET; PRESSURE SWITCH AIR CONDITIONER MANUAL CONT(C60) 09.190	8-94154-048-0	01	1	0502-	●	●	●	●

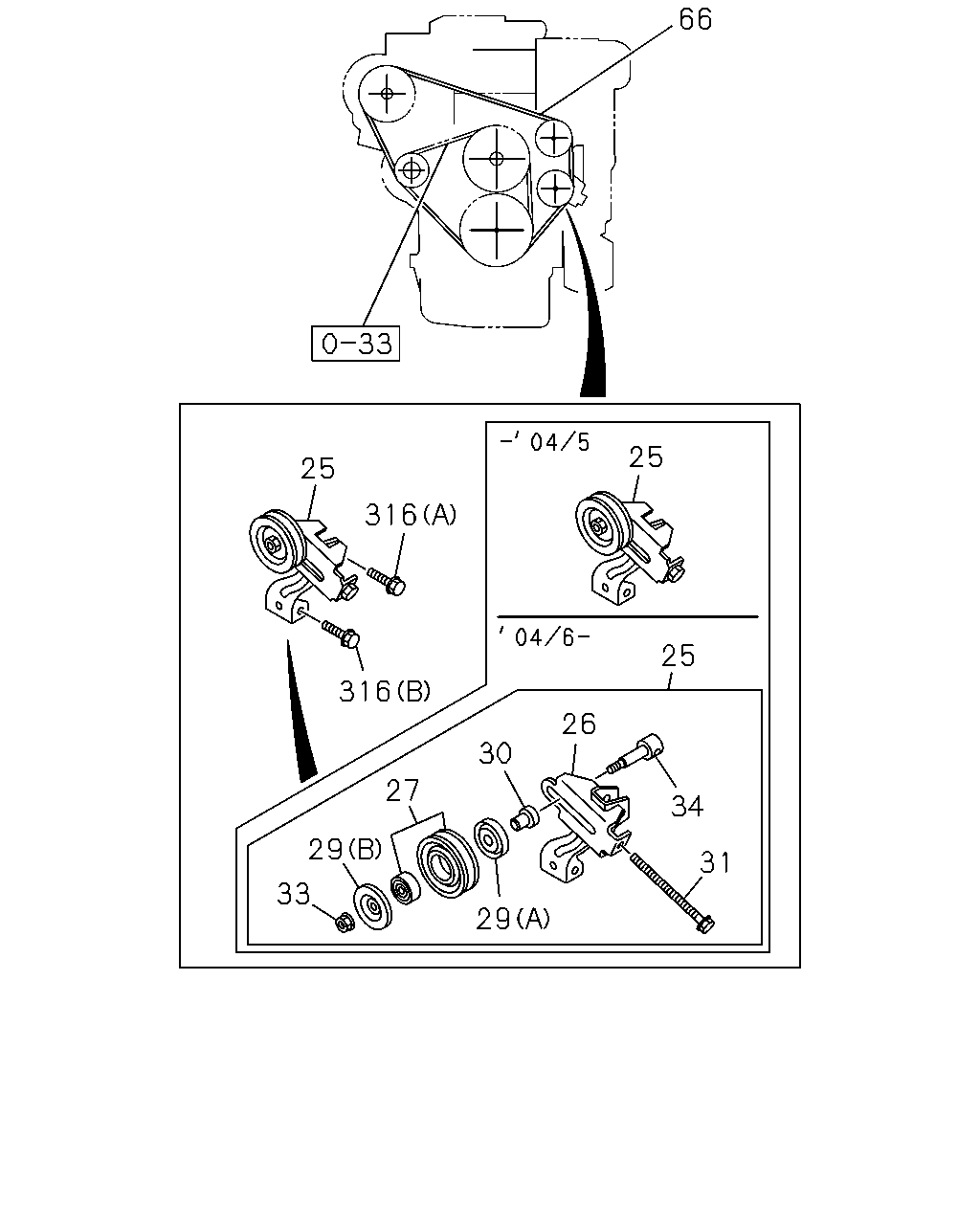

66 25 25 316 25 316 26 30 27 34 29 31 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0211-0501		●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0211-0501			●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0502-	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0211-0501		●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0211-0501			●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0502-	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0211-0501		●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0211-0501			●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0502-	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0211-0501		●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0211-0501			●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0502-	●	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0211-0501		●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0211-0501			●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0502-	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0211-0501		●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0211-0501			●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0502-	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0211-0501		●
31	09.181 BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0211-0501			●
31	09.181 BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0502-	●	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0211-0501		●
33	09.181 NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0211-0501			●
33	09.181 NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0502-	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0211-0501		●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0211-0501			●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0502-	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501		●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501			●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0502-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501		●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501			●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0502-0512	●	●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501		●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501			●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0502-	●	●	●	●

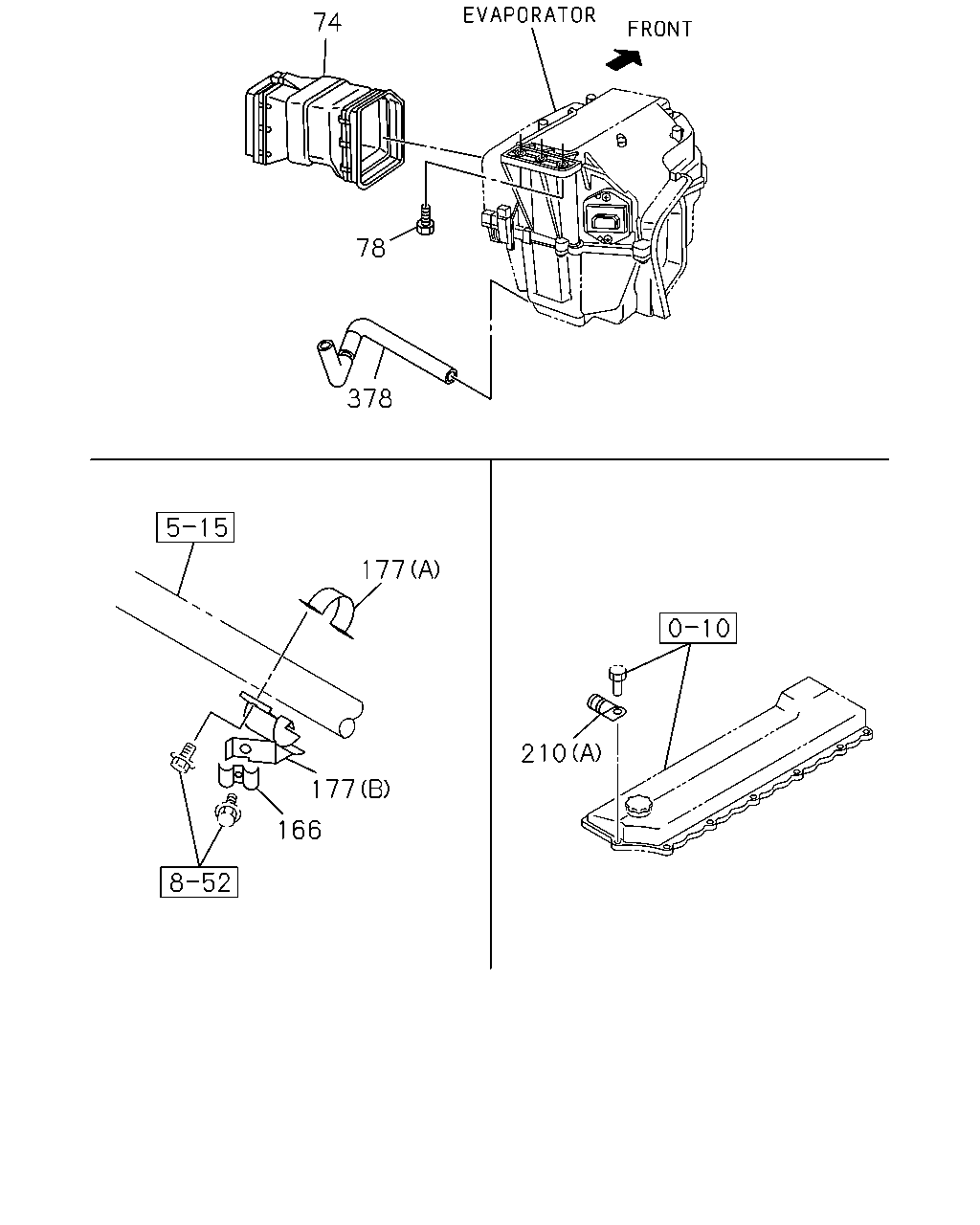

74 78 378 177 210 177 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97262-806-0	01	1	0211-0501		●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97262-806-0	01	1	0502-	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501		●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501		●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0211-0501		●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	0502-0611	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98029-613-0	01	1	0612-1009	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98151-264-0	01	1	1010-	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	0211-0404		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97358-576-0	01	1	0405-0501		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97358-576-0	01	1	0502-	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-771-0	01	1	0211-0404		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0405-0501		●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97358-577-0	01	1	0502-	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0302		●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0302				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501		●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0303-0501				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505	●	●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0505				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0506-0801				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-				●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501		●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501			●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	0211-0501		●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	0502-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
