8-45 — HEATER PIPING (#38958) — 66 parça

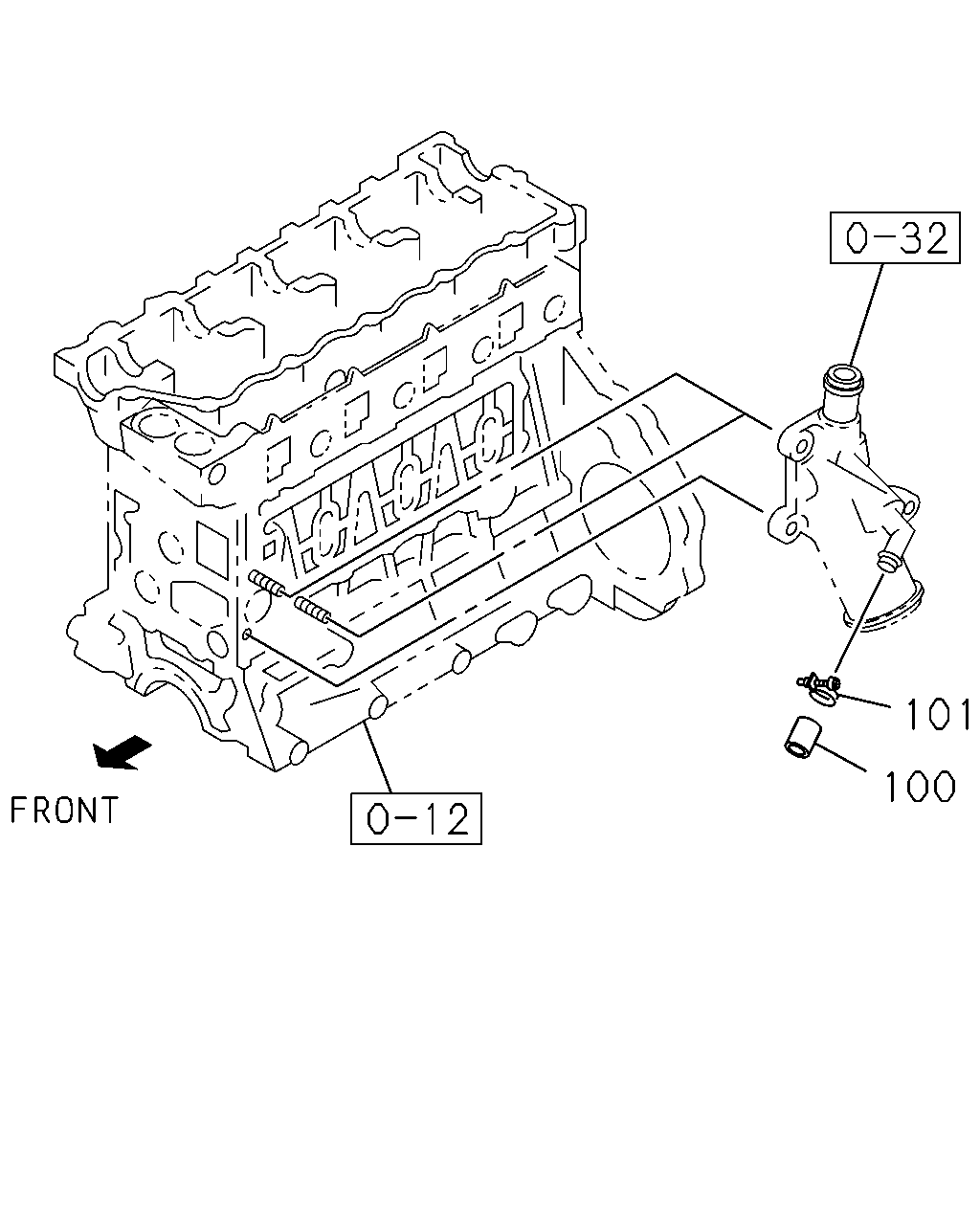

çizim 74588
101 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
100 08.846 CAP; RUBBER,WATER PIPE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),VEHICLE CATEGORY NQR<7NQ> 01.166 		8-94107-793-0 02 1 0211-0501 ●
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0211-0501 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0502- ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),VEHICLE CATEGORY NQR<7NQ> 01.166 ID=25 		8-94233-115-0 02 1 0211-0501 ●
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0211-0501 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0502- ● ● ● ●

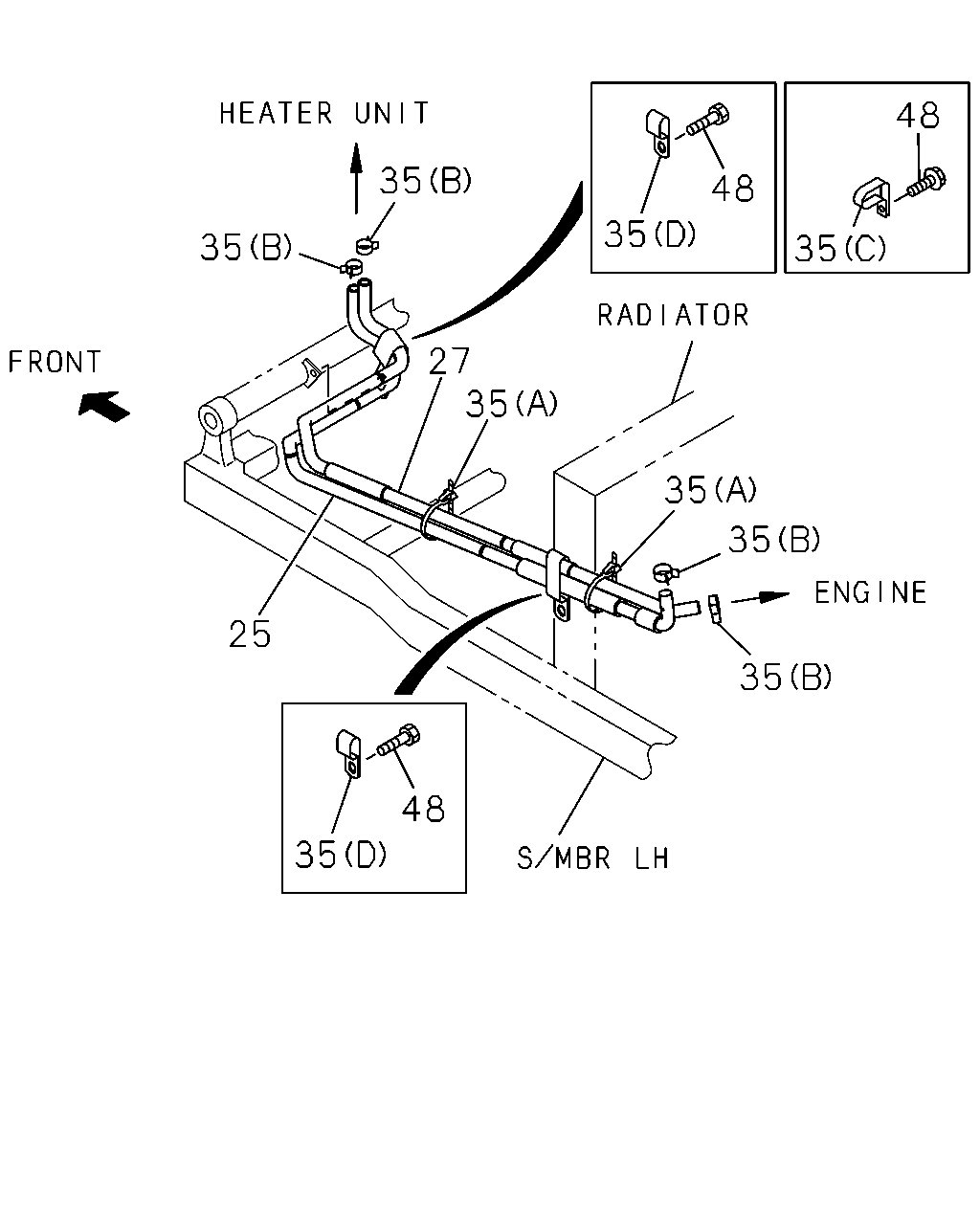

çizim 75257
48 35 48 35 35 35 27 35 35 35 25 35 48 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-224-1 01 1 0211-0306 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-224-1 01 1 0211-0306 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 		8-97129-224-1 01 1 0211-0306 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97370-623-0 01 1 0307-0501 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97370-623-0 01 1 0307-0501 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 		8-97370-623-0 01 1 0307-0501 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97384-094-0 01 1 0502- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97384-094-0 01 1 0502- ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97384-094-0 01 1 0502- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-223-2 01 1 0211-0501 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-223-2 01 1 0211-0501 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 		8-97129-223-2 01 1 0211-0501 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-223-2 01 1 0502- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-223-2 01 1 0502- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97129-223-2 01 1 0502- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0211-0501 ● ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 08.846 (C) 		5-83574-006-0 01 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (C) 		5-83574-006-0 01 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0502- ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0502- ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0502- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0502-0610 ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0611- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 02.559 (A) L=250 		5-09707-030-1 02 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0502-0610 ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		8-97359-144-0 01 1 0611- ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		8-97359-144-0 01 1 0611- ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (D) B=18 		8-97359-144-0 01 1 0611- ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 08.846 (B) ID=22 		8-94382-401-0 04 1 0211-0501 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0502-0610 ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0502-0610 ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0502-0610 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		8-98029-677-0 01 1 0611- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		8-98029-677-0 01 1 0611- ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		8-98029-677-0 01 1 0611- ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.846 (C) 		8-98029-677-0 01 1 0611- ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0502-0512 ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
48 09.262 BOLT; CLIP FIX
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ●
48 09.262 BOLT; CLIP FIX
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ●
