8-28 — CHASSIS ELECTRICAL (#38956) — 102 parça

361 45 72 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	0211-0501	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	0502-	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	0211-0501	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	0502-	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-1	01	1	0211-0501	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-1	01	1	0502-	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0211-0501	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0502-1004	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1005-	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-0501	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0211-0501		●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 03.008 L=80	5-22439-006-0	01	1	0211-0501			●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0502-		●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0211-0501	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0502-	●	●	●	●

29 22 574 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
11	02.485 RELAY; DIMMER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
22	02.679 RELAY; STOP LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
29	02.815 RELAY; HORN 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0303-0501		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-		●

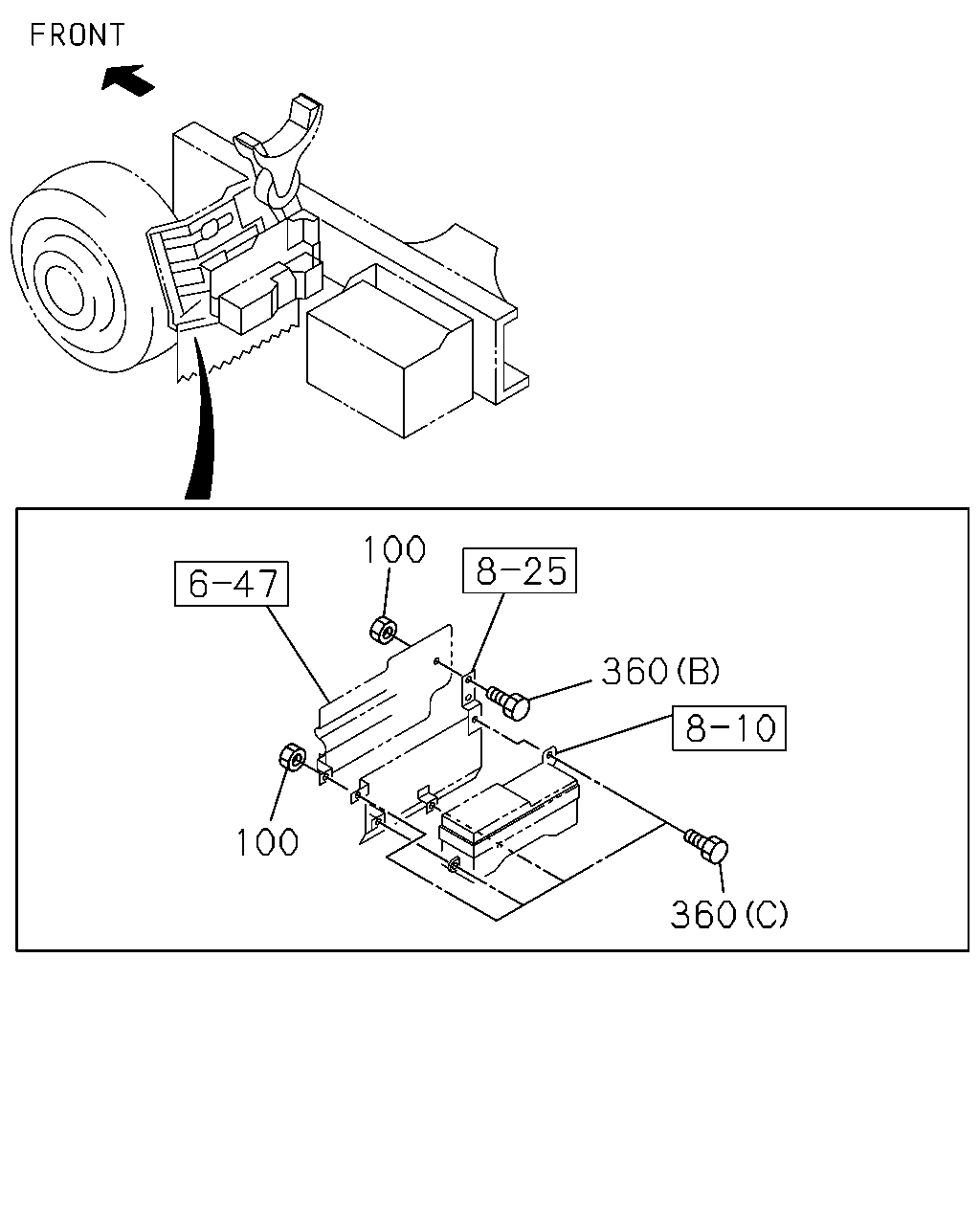

100 360 100 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
100	09.277 NUT; RELAY BOX COVER 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
100	09.277 NUT; RELAY BOX COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
100	09.277 NUT; RELAY BOX COVER 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●			●
100	09.277 NUT; RELAY BOX COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
100	09.277 NUT; RELAY BOX COVER 4HF1-S ENG(RLS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●			●
100	09.277 NUT; RELAY BOX COVER EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●
100	09.277 NUT; RELAY BOX COVER TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0602			●
100	09.277 NUT; RELAY BOX COVER TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501	●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0211-0501	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0502-	●	●	●	●
360	02.483 BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512			●
360	02.483 BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●

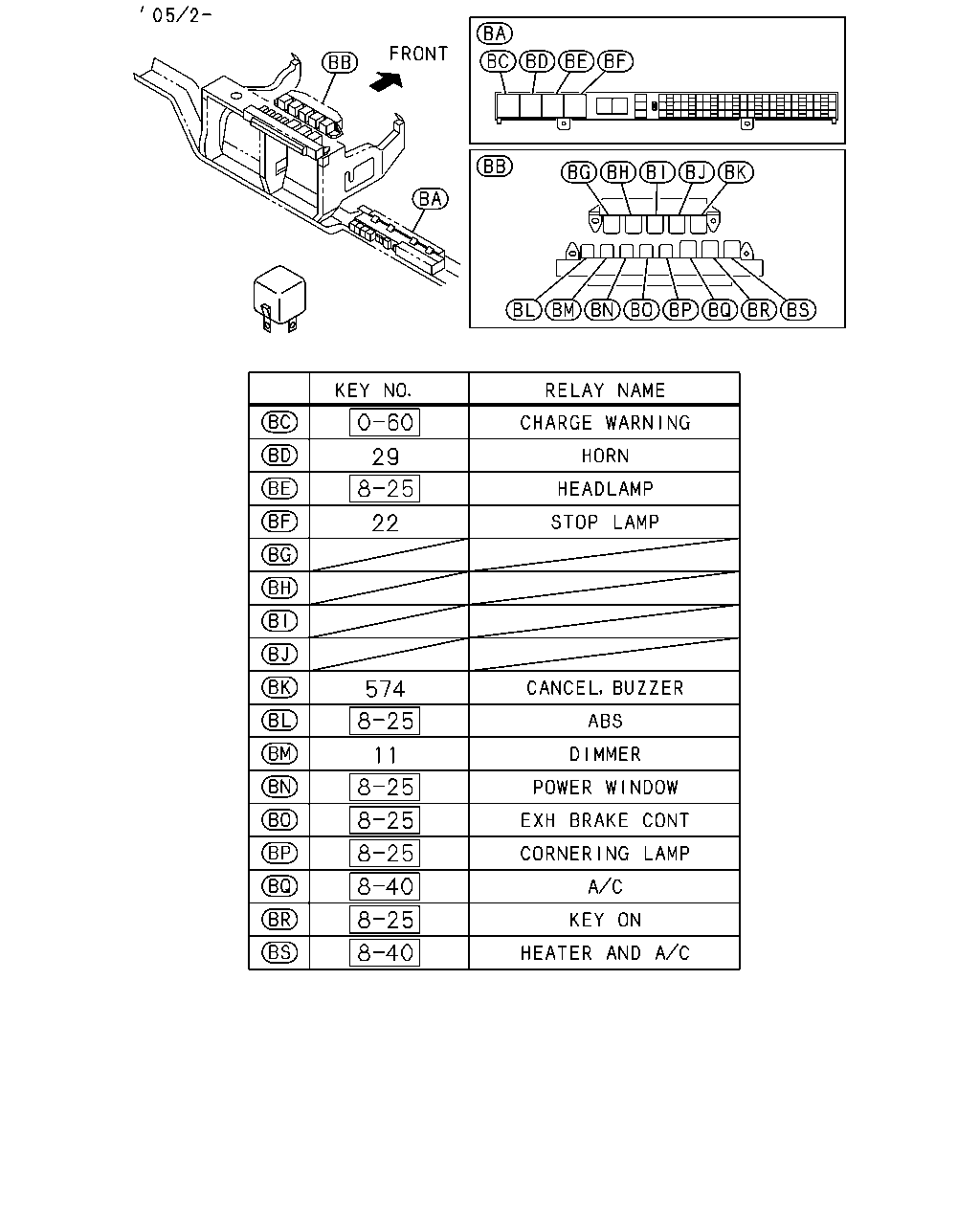

22 11 29 574

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
11	02.485 RELAY; DIMMER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
22	02.679 RELAY; STOP LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●
29	02.815 RELAY; HORN 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0303-0501		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-		●

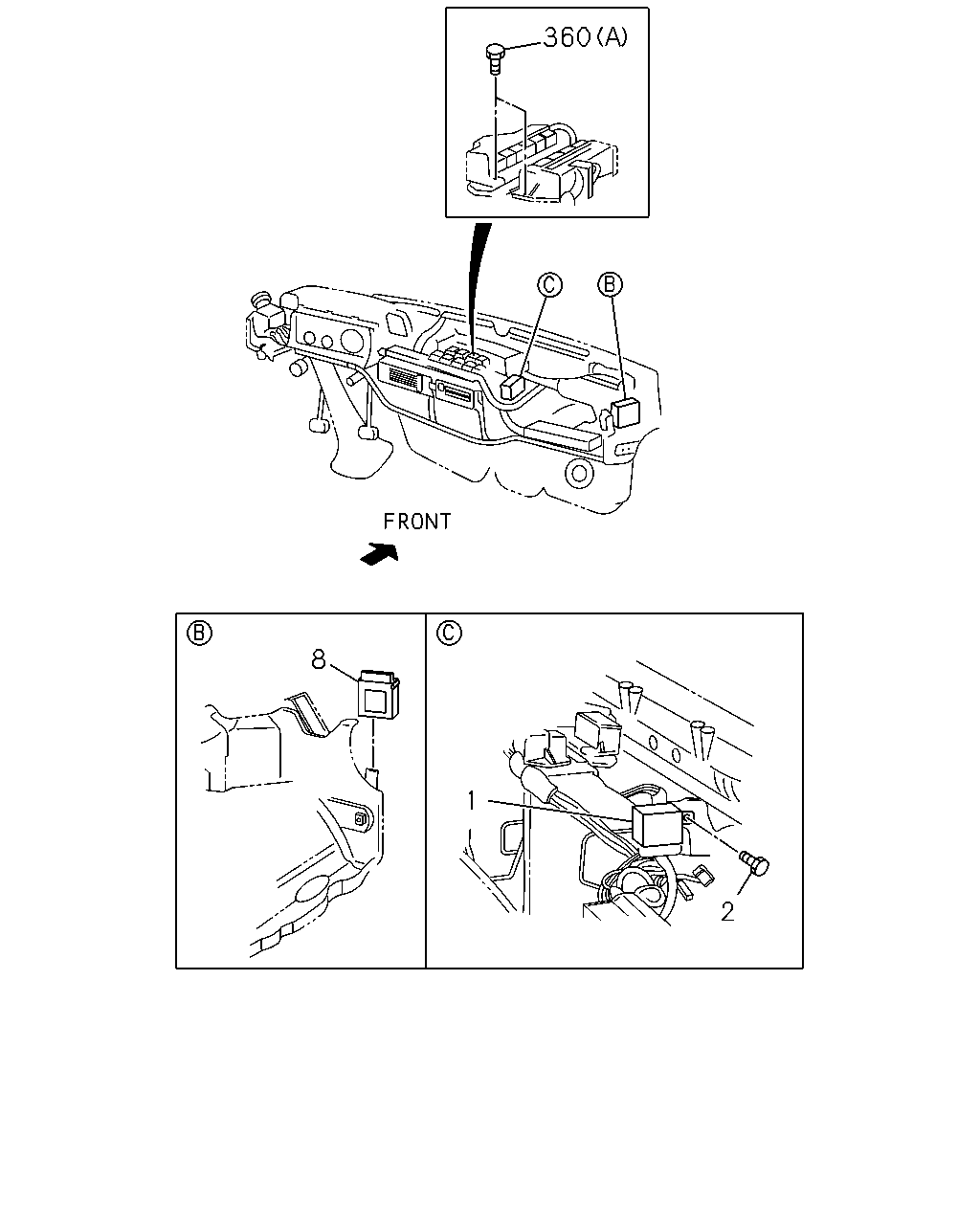

360 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER	8-97086-508-1	01	1	0211-0211	●	●	●
1	02.575 UNIT; FLASHER	8-97360-084-0	01	1	0212-0501	●	●	●
1	02.575 UNIT; FLASHER	8-97360-084-1	01	1	0502-	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0211-0501	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0502-	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	0211-0301	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97363-983-0	01	1	0302-0501	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97363-983-0	01	1	0502-	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501	●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0502-0512			●
360	02.483 BOLT; RELAY BOX 4HF1-S ENG(RLS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●			●
360	02.483 BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0211-0501	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0502-	●	●	●	●
360	02.483 BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0512			●
360	02.483 BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-			●
