◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#38955) — 64 parça

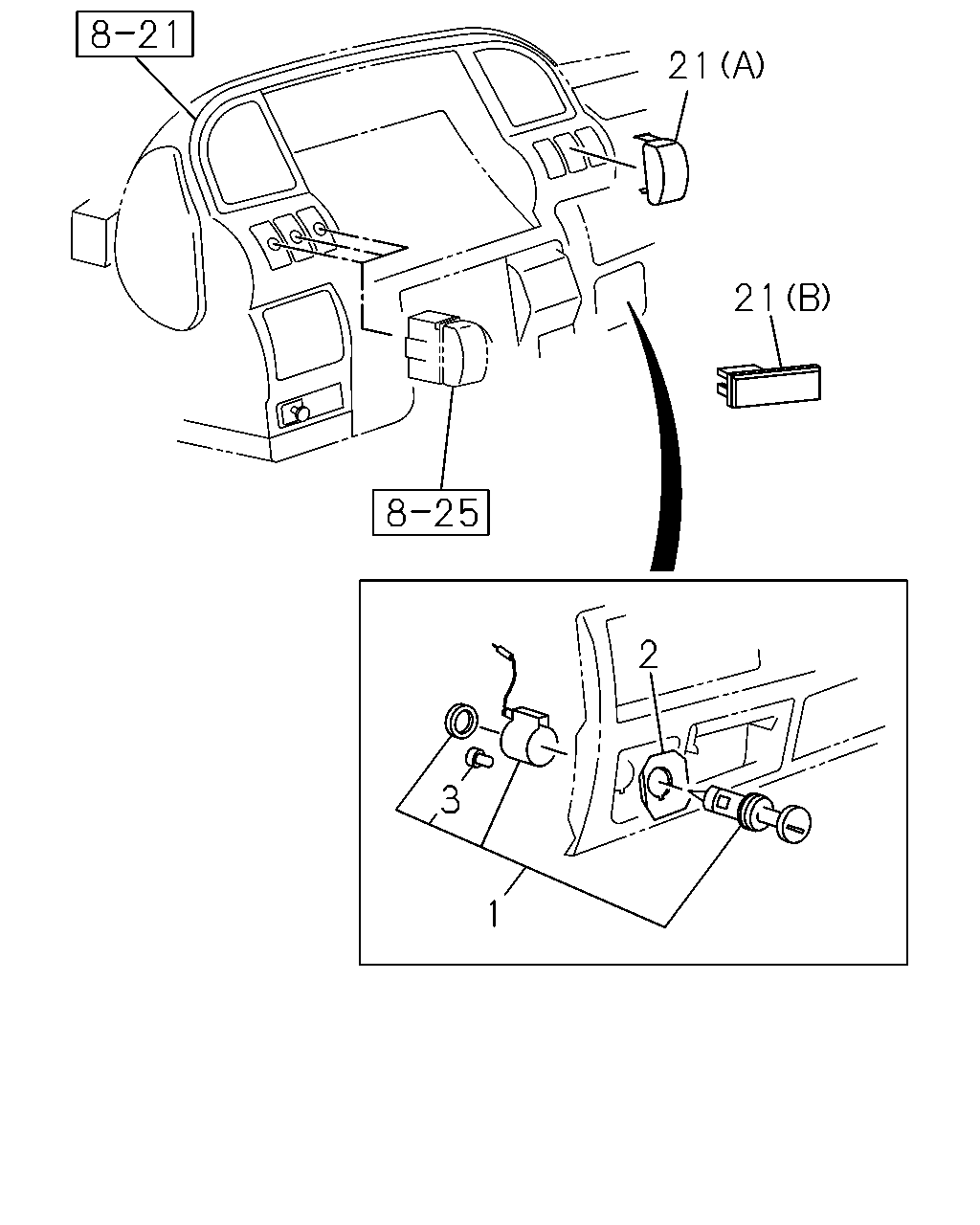

çizim 75465
21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211-0501 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0502- ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0501 ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0502-0706 ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211-0501 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0502- ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH) (A) 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0502- ● ● ● ●
21 09.744 COVER; HOLE
4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0502- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0502- ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH) (A) 		8-97136-694-0 01 1 0502- ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ●

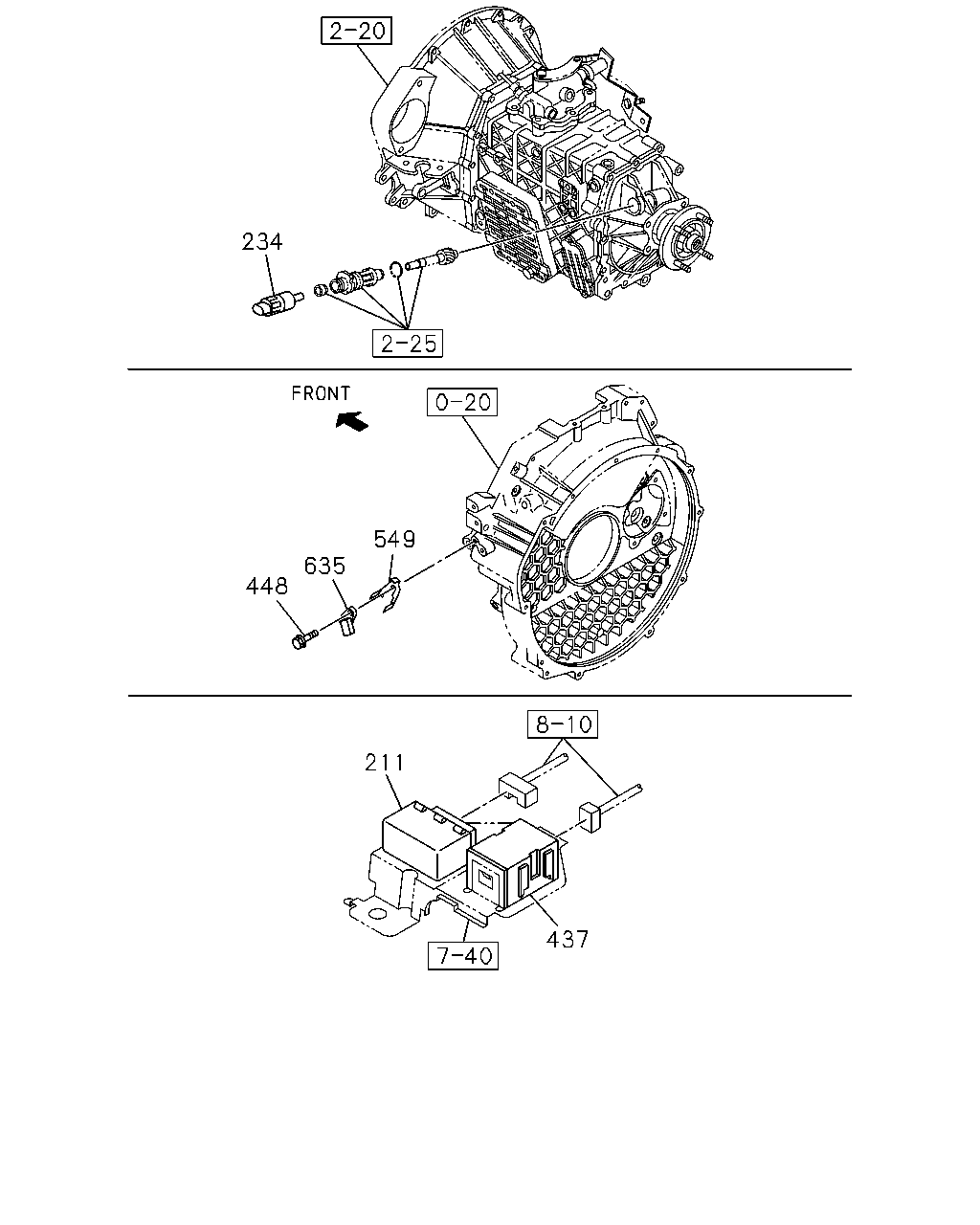

çizim 75831
234 549 635 448 211 437
BalonParca AdiParca NoAdetTipApplied Date A B C D
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0502- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HF1-S ENG(RLS) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ●
234 03.682 SENSOR; VEHICLE SPD
4HG1 ENG(RJH) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> KOITO 		8-97359-129-0 01 1 0502- ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0302 ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0302 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0303-0501 ●
448 02.500 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0303-0501 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0303-0501 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0505 ● ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0505 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0505 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0512 ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0512 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0512 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0512 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
549 02.510 SHEET
4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0211-0302 ● ●
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 0211-0302 ●
549 02.510 SHEET
4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0303-0501 ●
549 02.510 SHEET
09.743 		8-97161-633-2 01 1 0303-0501 ●
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 0303-0501 ●
549 02.510 SHEET
4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0502-0505 ● ● ●
549 02.510 SHEET
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 09.743 		8-97161-633-2 01 1 0502-0505 ●
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 0502-0505 ●
549 02.510 SHEET
4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0506- ● ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> 09.743 		8-97161-633-2 01 1 0506- ●
549 02.510 SHEET
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> 09.743 		8-97161-633-2 01 1 0506- ●
549 02.510 SHEET
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> 09.743 		8-97161-633-2 01 1 0506- ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0302 ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0302 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0303-0501 ●
635 09.750 SENSOR; TACHOMETER
CALSONIC KANSEI 		8-97163-104-0 01 1 0303-0501 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 0303-0501 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0502-0505 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> CALSONIC KANSEI 		8-97163-104-0 01 1 0502-0505 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 0502-0505 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0506- ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ> CALSONIC KANSEI 		8-97163-104-0 01 1 0506- ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8> CALSONIC KANSEI 		8-97163-104-0 01 1 0506- ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> CALSONIC KANSEI 		8-97163-104-0 01 1 0506- ●
