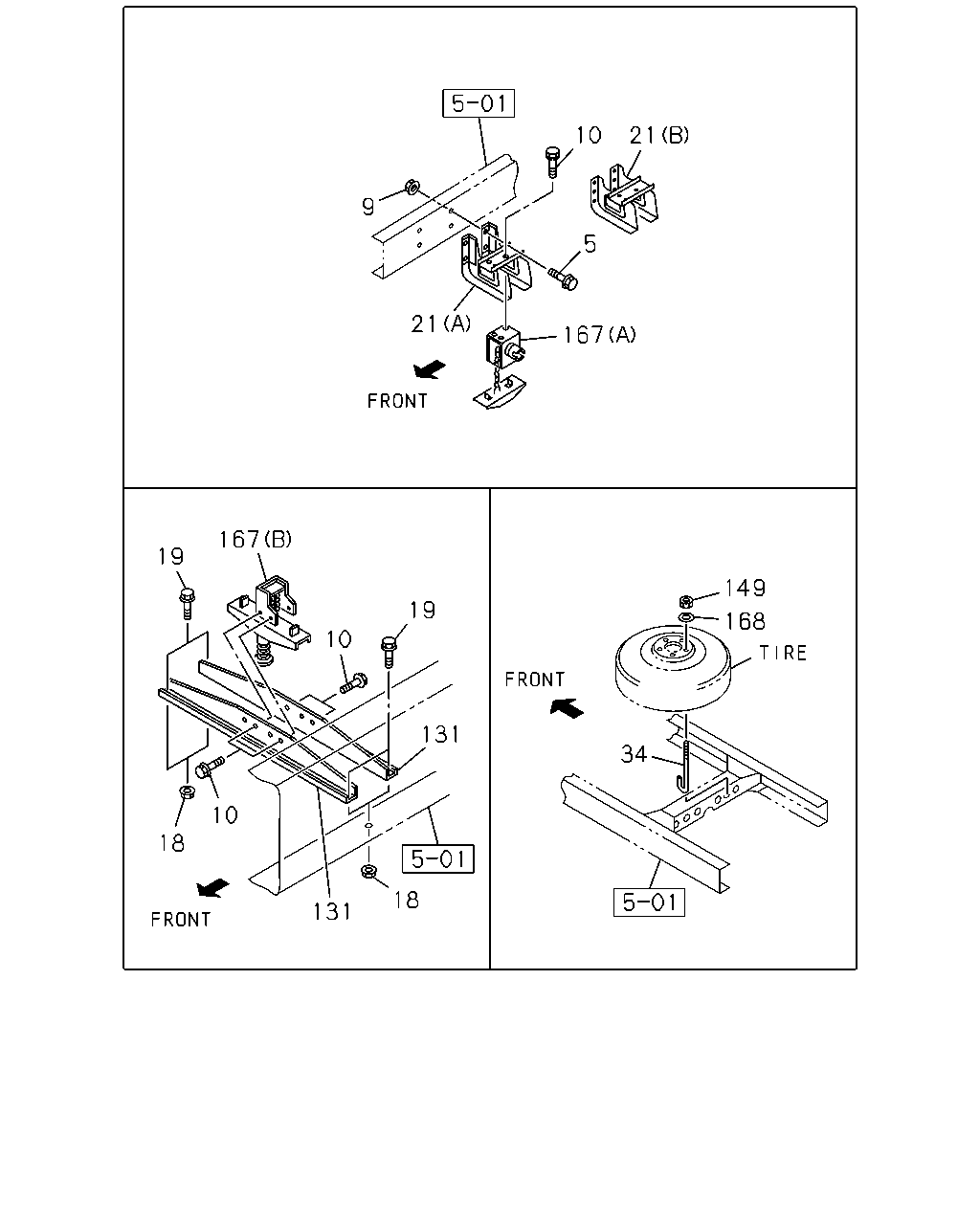

5-30 — SPARE TIRE CARRIER AND COVER (#38950) — 73 parça

10 21 9 5 21 167 167 19 149 19 168 10 131 34 10 18 18 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-		●
5	07.632 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-			●	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903					●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903		●
5	07.632 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0806-0903			●	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-					●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 4400MM(44W) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-		●
5	07.632 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0904-			●	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-		●
9	07.633 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-			●	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-					●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-		●
9	07.633 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0806-			●	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0710-					●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 4100MM(41W) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 4400MM(44W) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0710-		●
10	07.632 BOLT; TIRE HANGER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0710-			●	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-		●			●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
10	07.632 BOLT; TIRE HANGER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-						●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-		●			●
18	07.633 NUT; MEMBER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-	●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-						●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-		●			●
19	07.632 BOLT; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-	●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-						●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) (A)	8-98072-378-1	01	1	0710-0711					●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) (A)	8-98072-378-1	01	1	0710-0711	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4400MM(44W) (A)	8-98072-378-1	01	1	0710-0711		●
21	07.629 BRACKET; SPARE TIRE HANGER (A)	8-98072-378-1	01	1	0710-0711			●	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) (A)	8-98072-378-2	01	1	0712-					●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) (A)	8-98072-378-2	01	1	0712-	●
21	07.629 BRACKET; SPARE TIRE HANGER (A)	8-98072-378-2	01	1	0712-			●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4400MM(44W) (B)	8-98036-085-2	01	1	0712-		●
21	07.629 BRACKET; SPARE TIRE HANGER (B)	8-98036-085-2	01	1	0712-				●
34	07.629 BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	0710-	●	●	●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W)	8-98024-842-2	02	1	0710-					●
131	07.629 CROSSMEMBER; SPARE TIRE	8-98024-842-2	02	1	0710-						●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-98035-827-1	02	1	0710-	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W)	8-98035-827-1	02	1	0710-		●
149	07.629 NUT; CARRIER 05.002 M12	0-91110-512-0	02	1	0710-	●	●	●	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B)	8-98036-383-0	01	1	0710-	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) (B)	8-98036-383-0	01	1	0710-		●
167	07.629 HANGER; TIRE WHEEL BASE 4100MM(41W) F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) (A)	8-97010-955-1	01	1	0710-	●
167	07.629 HANGER; TIRE WHEEL BASE 4400MM(44W) (A)	8-97010-955-1	01	1	0710-		●
167	07.629 HANGER; TIRE F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) (A)	8-97010-955-1	01	1	0710-			●
167	07.629 HANGER; TIRE (A)	8-97010-955-1	01	1	0710-				●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) (A)	8-94382-875-1	01	1	0710-0908					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (A)	8-94382-875-1	01	1	0909-0909					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) (A)	8-94382-875-1	01	1	0909-0910					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) (A)	8-94382-875-1	01	1	0911-					●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) (B)	8-98036-384-0	01	1	0710-0908					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B)	8-98036-384-0	01	1	0710-0908	●
167	07.629 HANGER; TIRE (B)	8-98036-384-0	01	1	0710-0908						●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B)	8-98036-384-0	01	1	0909-0909					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B)	8-98036-384-0	01	1	0909-0909	●
167	07.629 HANGER; TIRE FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B)	8-98036-384-0	01	1	0909-0909						●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) (B)	8-98036-384-0	01	1	0909-0910					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) (B)	8-98036-384-0	01	1	0909-0910	●
167	07.629 HANGER; TIRE FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) (B)	8-98036-384-0	01	1	0909-0910						●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) (B)	8-98036-384-0	01	1	0911-					●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) (B)	8-98036-384-0	01	1	0911-	●
167	07.629 HANGER; TIRE (B)	8-98036-384-0	01	1	0911-						●
168	07.633 WASHER; SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0710-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
