Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#38946) — 431 parça

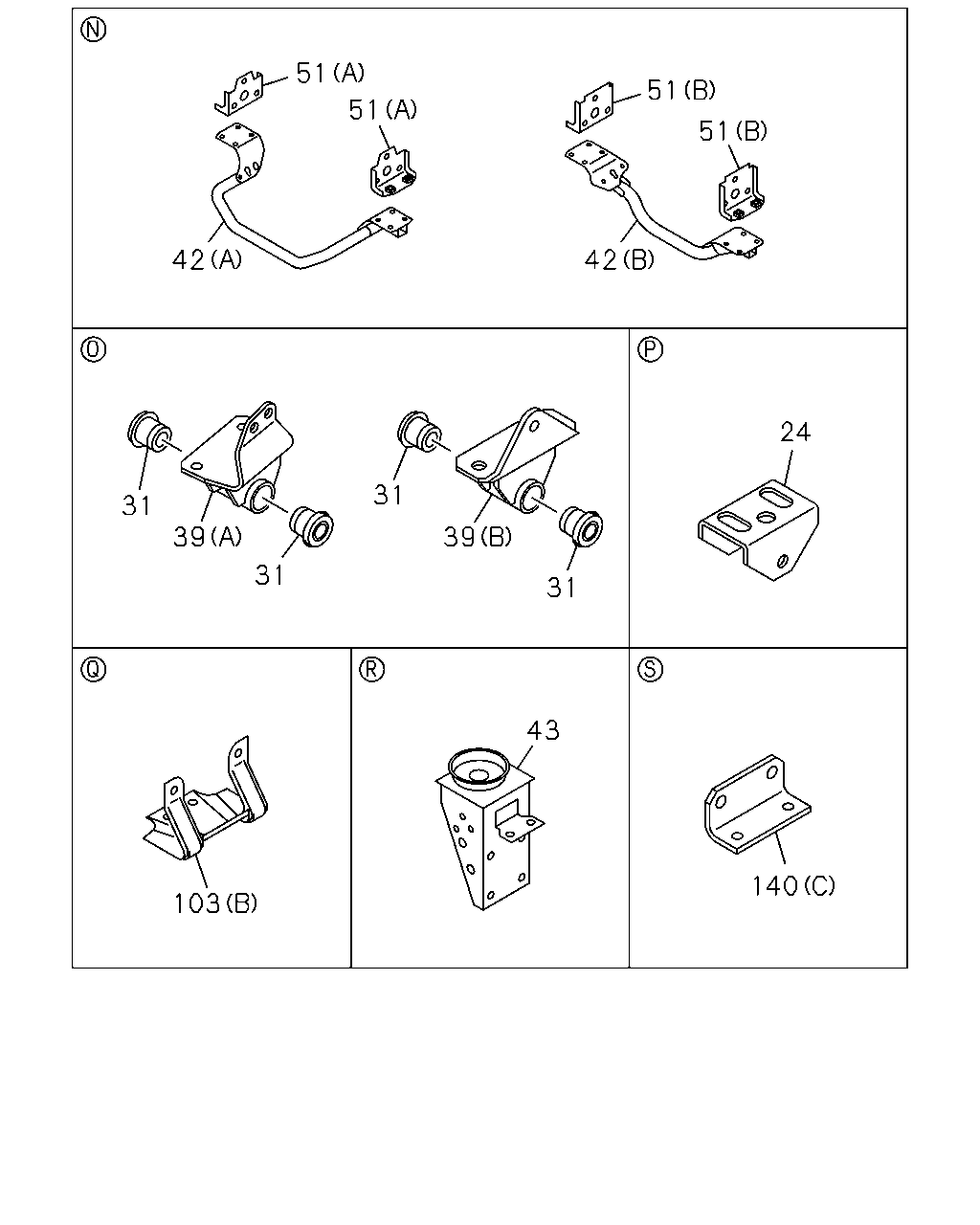

51 51 51 51 42 42 24 31 31 39 39 31 31 43 140 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	07.105 BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	0710-	●	●	●	●	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0710-	●	●	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR (A)	8-98064-729-0	01	1	0710-	●			●
39	07.112 BRACKET; FRT SPR,RR (A)	8-98064-731-0	01	1	0710-	●			●
39	07.112 BRACKET; FRT SPR,RR (B)	8-98014-125-0	02	1	0710-		●	●		●	●
42	07.011 MEMBER; CROSS,ENG MTG (A)	8-98049-111-0	01	1	0710-	●			●
42	07.011 MEMBER; CROSS,ENG MTG (B)	8-98032-389-0	01	1	0710-		●	●		●	●
43	09.003 BRACKET; CAB MTG,RR	8-98061-560-1	01	1	0710-				●	●	●
43	09.003 BRACKET; CAB MTG,RR	8-98061-561-1	01	1	0710-				●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER (A)	8-98032-390-0	02	1	0710-	●			●
51	07.011 BRACKET; ENG SUPPORT,OUTER (B)	8-98034-961-0	02	1	0710-		●	●		●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	0710-	●	●	●	●	●	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	0710-	●	●	●	●	●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-98000-587-1	02	1	0710-	●			●
140	07.112 BRACKET; S/ABS,RR (B)	8-97080-884-0	02	1	0710-		●	●		●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-97302-511-0	02	1	0710-	●	●	●	●	●	●

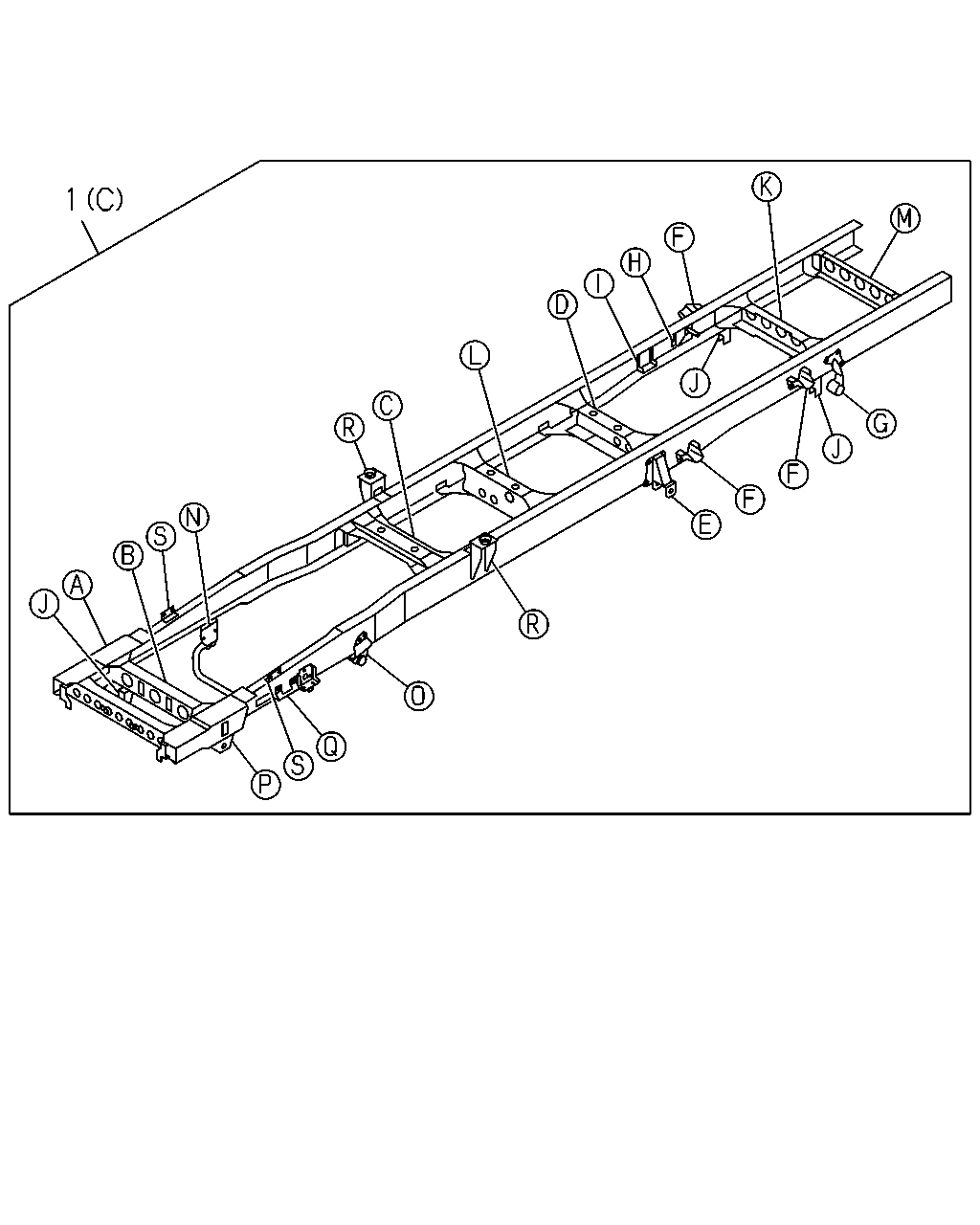

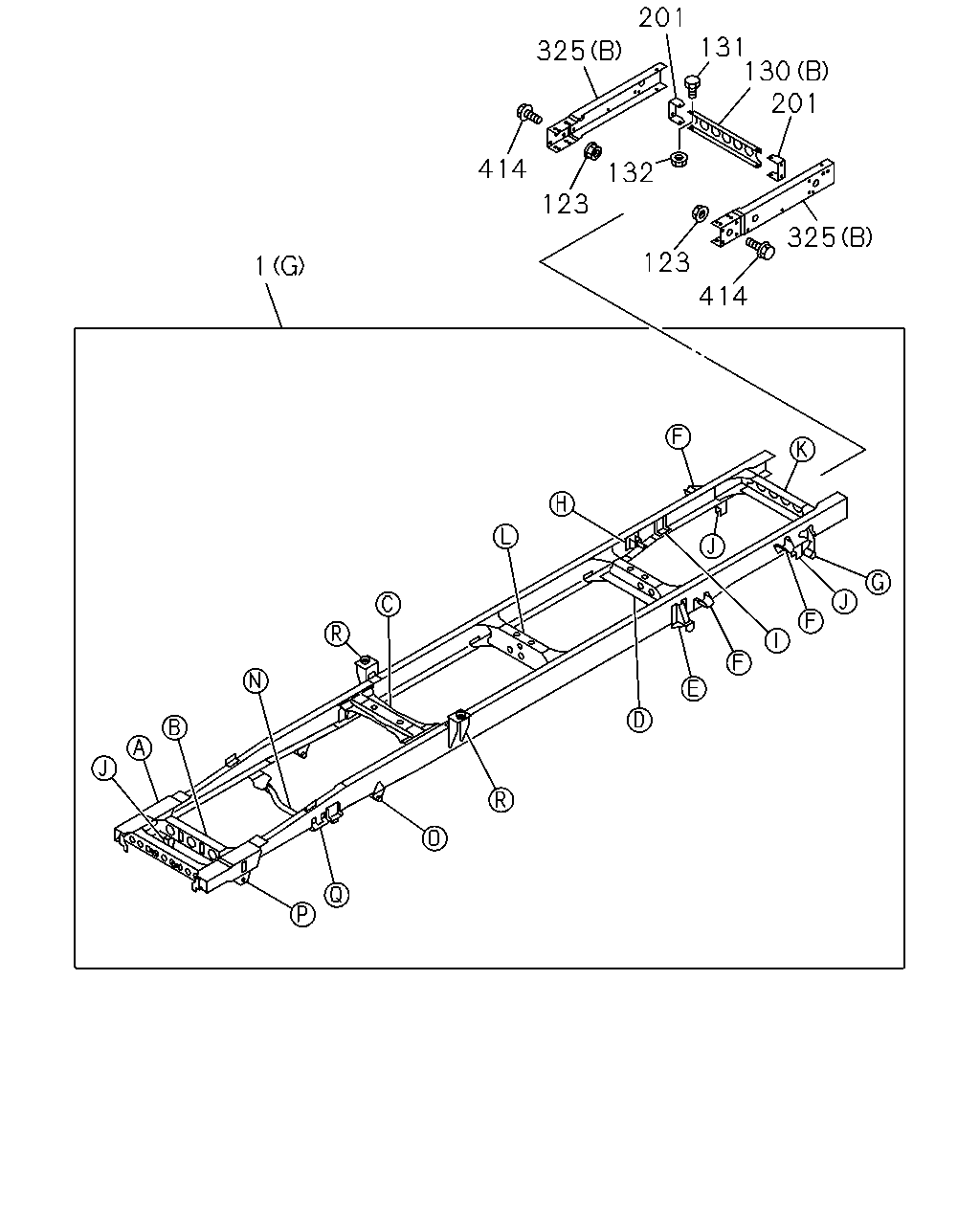

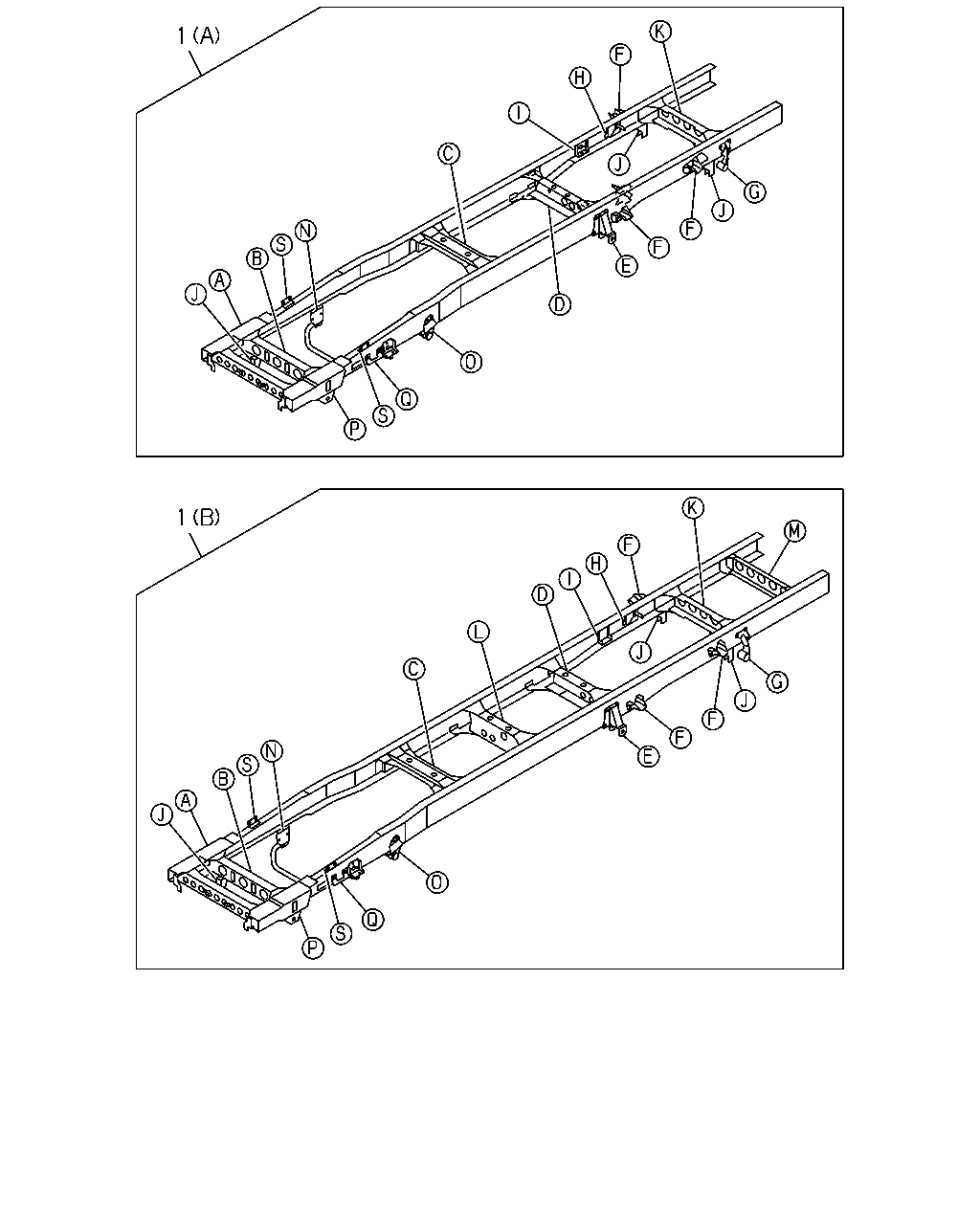

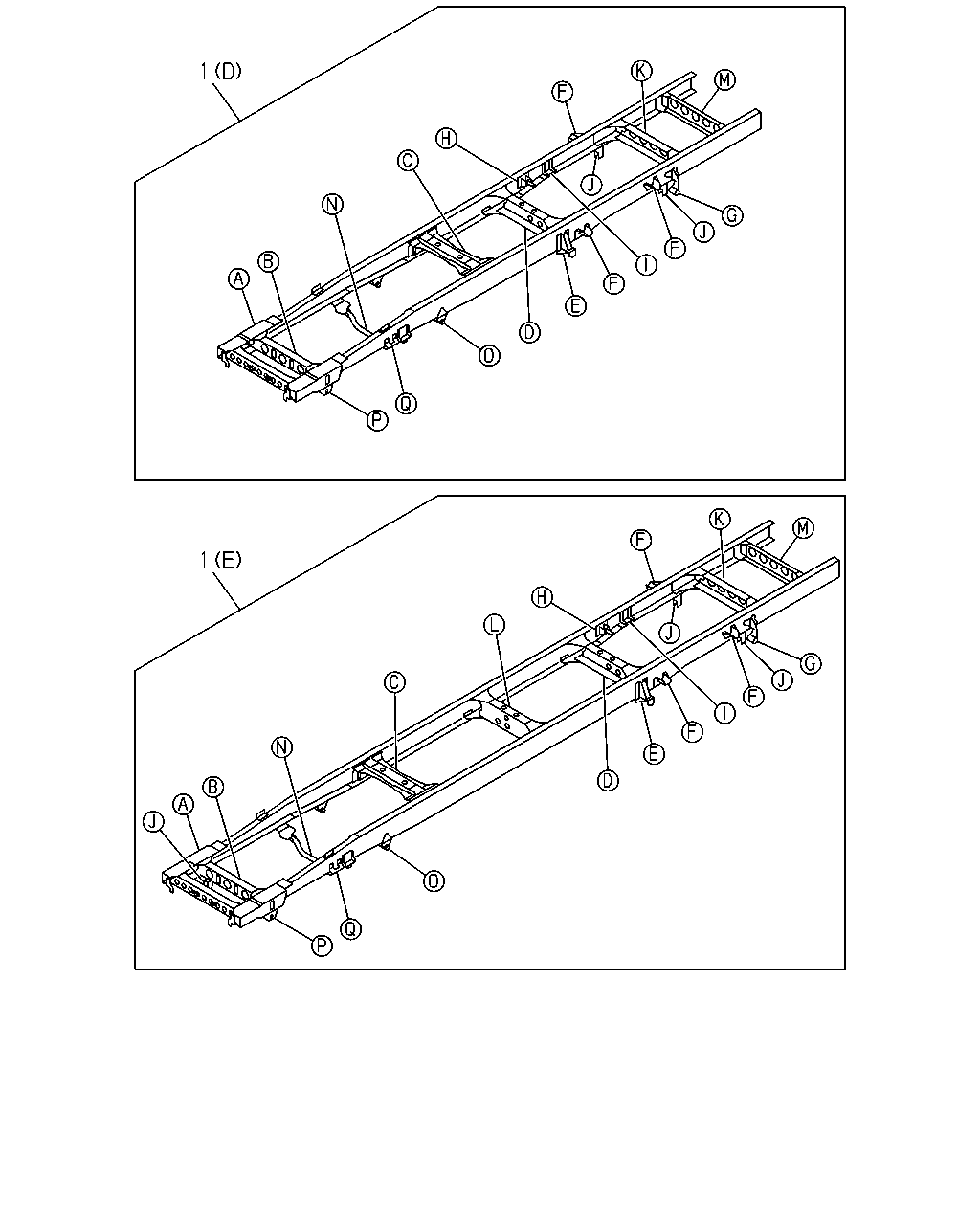

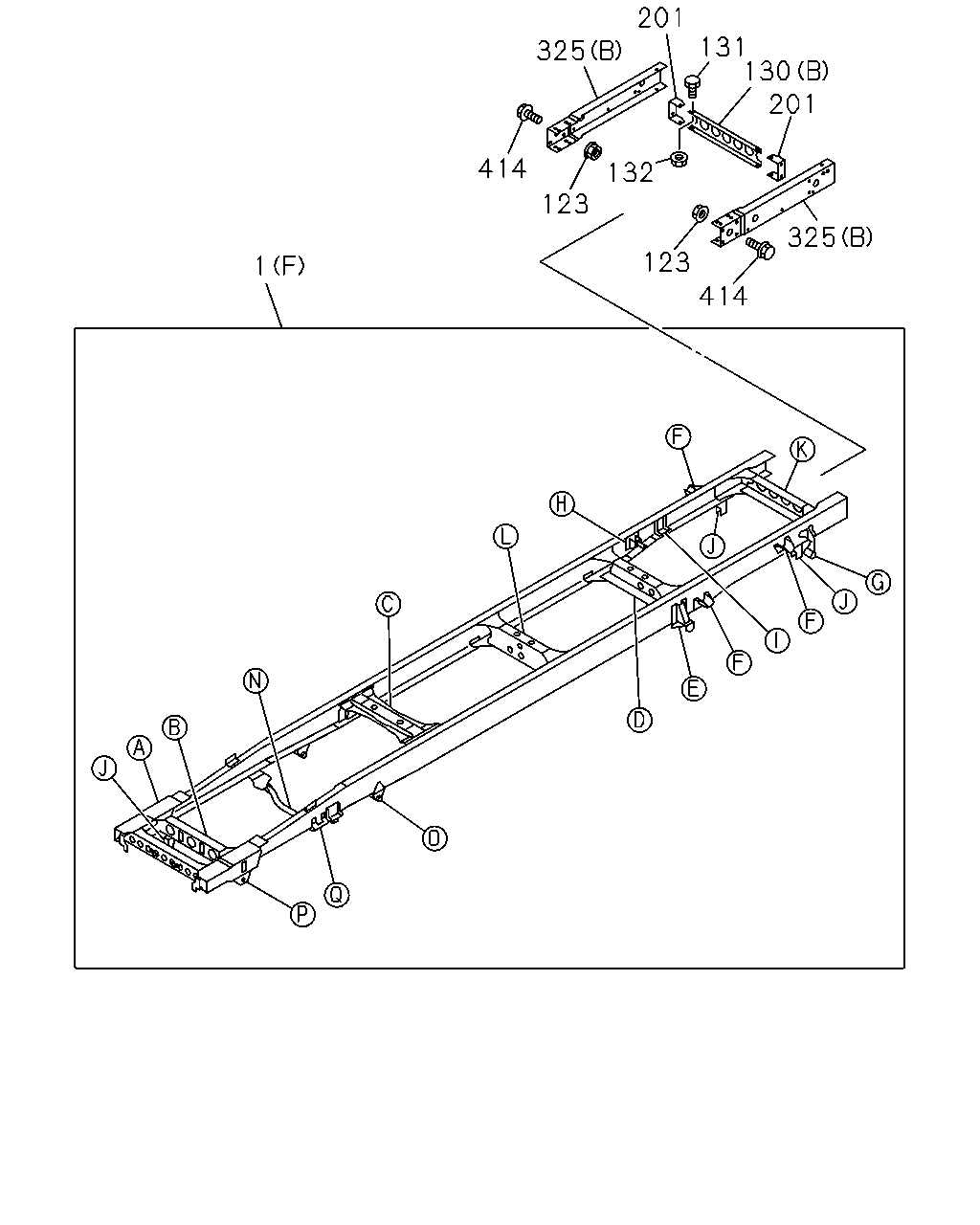

201 131 130 201 325 132 414 123 325 123 1 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-511-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-510-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-518-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-517-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-516-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-515-1	01	1	0710-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-611-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-610-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-609-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-608-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-618-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-617-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-616-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-615-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-655-6	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-627-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-626-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98088-796-1	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98088-797-1	01	1	0710-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98071-530-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98071-529-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98071-528-1	01	1	0710-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98071-667-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98071-666-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98088-799-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98088-798-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98071-625-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-575-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-624-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-574-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98101-573-3	01	1	0711-		●
123	07.039 NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12	8-97360-126-0	12	1	0710-0710		●	●
123	07.039 NUT 07.395 M12	8-97360-126-0	12	1	0710-0710					●	●
123	07.039 NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12	8-97360-126-0	16	1	0710-		●	●
123	07.039 NUT 07.395 M12	8-97360-126-0	16	1	0710-					●	●
130	07.014 MEMBER; CROSS,END (A)	8-98000-492-0	01	1	0710-	●			●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0710-		●	●
130	07.014 MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0710-					●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97080-872-0	01	1	0710-		●	●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0710-		●	●
131	07.014 BOLT; END C/MBR 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0710-					●	●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0710-		●	●
132	07.014 NUT; END C/MBR 03.162 M10 FLANGE	0-91180-110-0	08	1	0710-					●	●
201	07.039 GUSSET; C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97096-871-0	04	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	04	1	0710-0710					●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-0710	●			●
201	07.039 GUSSET; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97096-871-0	02	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-	●	●	●	●	●	●
325	07.039 EXTENSION; FRAME (A)	8-98045-169-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME (A)	8-98045-170-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-348-1	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-349-0	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-891-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-892-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-752-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-753-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0711-		●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0711-		●
414	07.011 BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0710-		●	●
414	07.011 BOLT 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0710-					●	●

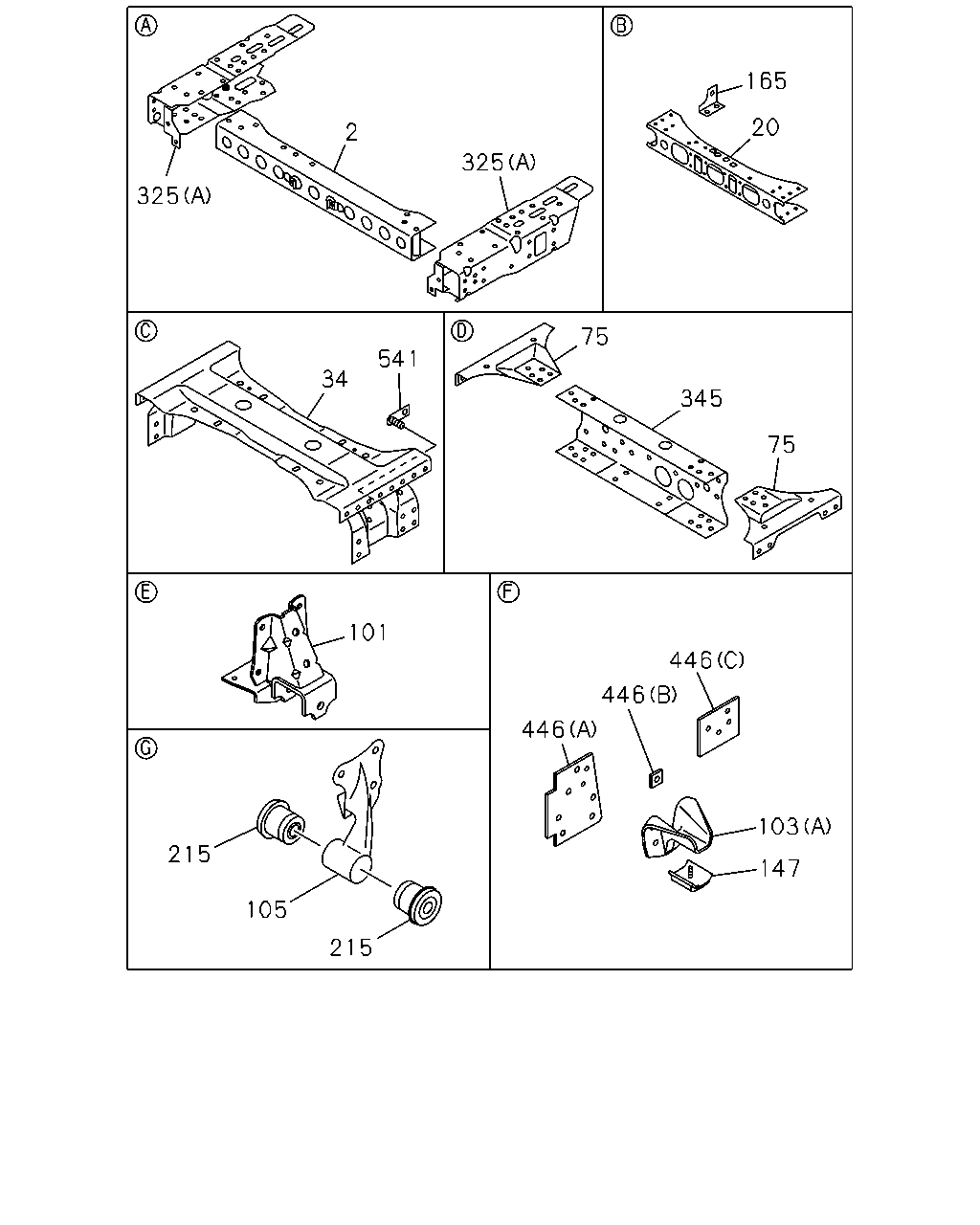

165 20 2 325 325 75 541 34 345 75 101 446 446 446 103 215 147 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.010 MEMBER; CROSS,1ST	8-97387-866-4	01	1	0710-	●	●	●	●	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98066-045-4	01	1	0710-	●			●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98080-335-0	01	1	0710-	●			●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-6	01	1	0710-		●	●		●	●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98008-947-4	01	1	0710-	●			●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98000-489-3	01	1	0710-	●			●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-639-3	01	1	0710-		●			●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-640-1	01	1	0710-		●			●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98014-078-3	01	1	0710-			●			●
34	07.012 MEMBER; CROSS,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98072-038-0	01	1	0710-			●			●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-585-1	02	1	0710-	●			●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-586-1	02	1	0710-	●			●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-98000-583-0	02	1	0710-		●	●		●	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-98000-584-0	02	1	0710-		●	●		●	●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0710-	●	●	●	●	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	0710-	●	●	●	●	●	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	0710-	●	●	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	0710-	●	●	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	0710-	●	●	●	●	●	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0710-	●	●	●	●	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0710-	●	●	●	●	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0710-	●	●	●	●	●	●
325	07.039 EXTENSION; FRAME (A)	8-98045-169-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME (A)	8-98045-170-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-348-1	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-349-0	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-891-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-892-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-752-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-753-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0711-		●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0711-		●
345	07.012 MEMBER; CROSS,5TH	8-98000-490-2	01	1	0710-	●			●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	0710-		●	●		●	●
446	07.112 STIFFENER; SPRING STOPPER (B)	8-97122-173-0	02	1	0710-		●			●
446	07.112 STIFFENER; SPRING STOPPER (A)	8-98014-080-1	02	1	0710-		●	●		●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 4100MM(41W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-97170-790-0	02	1	0710-0802		●
446	07.112 STIFFENER; SPRING STOPPER (C)	8-97170-790-0	02	1	0710-0802			●			●
446	07.112 STIFFENER; SPRING STOPPER (C)	8-97170-790-0	02	1	0803-			●			●
541	07.112 PLATE; STUD BOLT 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98061-650-0	01	1	0710-	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 221 221 176 176 296 535 536 118 222 67 537 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-	●			●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	14	1	0710-0710		●			●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	0711-		●			●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	11	1	0710-0710			●			●
67	07.011 NUT; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.085 M10 FLANGE	0-91180-210-0	18	1	0711-0711		●
67	07.011 NUT; C/MBR WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE	0-91180-210-0	18	1	0711-0711		●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	13	1	0710-0710			●			●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	11	1	0711-0711			●			●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	15	1	0711-			●			●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	13	1	0711-0711			●			●
67	07.011 NUT; C/MBR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	17	1	0711-			●			●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0710-	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0710-	●			●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0710-0710		●	●		●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0711-0711			●		●	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0711-		●	●		●	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0711-0711		●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0711-		●	●		●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●	●	●	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711	●		●	●	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0711		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0711-0805	●			●
221	01.270 BOLT; RAD MTG BRKT,FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-				●
221	01.270 BOLT; RAD MTG BRKT,FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-0711		●
221	01.270 BOLT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-0711		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-0805		●	●		●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0806-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0806-		●	●		●	●
222	07.039 NUT; RAD MTG BRKT,FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.540 M8 FLANGE	0-91180-208-0	02	1	0710-0710	●			●
222	07.039 NUT; RAD MTG BRKT,FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-0711	●	●		●
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-0711		●
222	07.039 NUT; RAD MTG BRKT,FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-0901	●			●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-0901		●	●		●	●
222	07.039 NUT; RAD MTG BRKT,FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.540 M8 FLANGE	0-91180-208-0	02	1	0902-	●			●
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.540 M8 FLANGE	0-91180-208-0	02	1	0902-		●
222	07.039 NUT; RAD MTG BRKT,FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> 01.540 M8 FLANGE	0-91180-208-0	02	1	0902-		●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	0902-					●	●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0710-		●	●		●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.006 (M) D12X32 TAPER END	9-06751-232-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0710-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (O) D12X40 TAPER END	9-06751-240-0	AR	1	0710-	●	●	●	●	●	●
535	01.270 BOLT; FRAME UPPER 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	0710-	●
535	01.270 BOLT; FRAME UPPER WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	0710-	●
535	01.270 BOLT; FRAME UPPER WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	08	1	0710-	●
535	01.270 BOLT; FRAME UPPER 00.029 M10X30 FLANGE	0-28651-030-0	08	1	0710-				●
536	01.270 BOLT; FRAME LOWER 00.029 M10X30 FLANGE	0-28651-030-0	08	1	0710-	●			●
537	01.270 NUT; FRAME LOWER 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-	●			●
538	01.270 NUT; FRAME UPPER 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0710-	●
538	01.270 NUT; FRAME UPPER WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-	●
538	01.270 NUT; FRAME UPPER WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-	●
538	01.270 NUT; FRAME UPPER 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-				●

140 140 196 217 198 139 139 198 198 198 74 201 344 130 74 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-585-1	02	1	0710-	●			●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-586-1	02	1	0710-	●			●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER	8-98000-583-0	02	1	0710-		●	●		●	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER	8-98000-584-0	02	1	0710-		●	●		●	●
130	07.014 MEMBER; CROSS,END (A)	8-98000-492-0	01	1	0710-	●			●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0710-		●	●
130	07.014 MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0710-					●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97080-872-0	01	1	0710-		●	●
139	07.012 MEMBER; CROSS,6TH (A)	8-98000-491-0	01	1	0710-	●			●
139	07.012 MEMBER; CROSS,6TH (B)	8-97107-384-0	01	1	0710-0901		●	●		●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B)	8-97107-384-0	01	1	0902-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> (B)	8-97107-384-0	01	1	0902-		●
139	07.012 MEMBER; CROSS,6TH (B)	8-97107-384-0	01	1	0902-			●		●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97326-394-0	01	1	0902-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19> (B)	8-97326-394-0	01	1	0902-		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98000-587-1	02	1	0710-	●			●
140	07.112 BRACKET; S/ABS,RR (B)	8-97080-884-0	02	1	0710-		●	●		●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-97302-511-0	02	1	0710-	●	●	●	●	●	●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	0710-0710	●			●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	0711-0711	●			●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	04	1	0711-0711		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19>	8-98033-523-0	04	1	0711-0711		●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	0711-0802	●		●	●	●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	04	1	0711-0802		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-98033-523-0	04	1	0711-0802		●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	04	1	0803-	●		●	●	●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	04	1	0803-		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W)	8-98033-523-0	04	1	0803-		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19>	8-98033-523-0	04	1	0803-		●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0710-0710		●	●		●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W)	8-98033-523-0	02	1	0711-0711		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0711-0711		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19>	8-98033-523-0	02	1	0711-0711		●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0711-0711			●		●	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0711-0901		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0902-		●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FUEL TANK 140 LITTER<N19>	8-98033-523-0	02	1	0902-		●
198	07.039 GUSSET; 6TH C/MBR (A)	8-98009-044-1	02	1	0710-	●			●
198	07.039 GUSSET; 6TH C/MBR (B)	8-98014-079-1	02	1	0710-		●	●		●	●
201	07.039 GUSSET; C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97096-871-0	04	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	04	1	0710-0710					●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-0710	●			●
201	07.039 GUSSET; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97096-871-0	02	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-	●	●	●	●	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0710-	●	●	●	●	●	●
344	07.012 MEMBER; CROSS,4TH	8-98000-490-2	01	1	0710-	●			●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	0710-		●	●		●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-511-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-510-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-518-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-517-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-516-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-515-1	01	1	0710-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-611-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-610-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-609-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-608-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-618-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-617-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-616-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-615-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-655-6	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-627-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-626-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98088-796-1	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98088-797-1	01	1	0710-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98071-530-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98071-529-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98071-528-1	01	1	0710-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98071-667-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98071-666-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98088-799-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98088-798-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98071-625-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-575-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-624-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-574-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98101-573-3	01	1	0711-		●

201 131 130 201 325 132 414 123 325 123 1 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-511-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-510-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-518-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-517-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-516-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-515-1	01	1	0710-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-611-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-610-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-609-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-608-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-618-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-617-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-616-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-615-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-655-6	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-627-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-626-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98088-796-1	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98088-797-1	01	1	0710-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98071-530-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98071-529-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98071-528-1	01	1	0710-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98071-667-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98071-666-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98088-799-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98088-798-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98071-625-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-575-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-624-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-574-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98101-573-3	01	1	0711-		●
123	07.039 NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12	8-97360-126-0	12	1	0710-0710		●	●
123	07.039 NUT 07.395 M12	8-97360-126-0	12	1	0710-0710					●	●
123	07.039 NUT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12	8-97360-126-0	16	1	0710-		●	●
123	07.039 NUT 07.395 M12	8-97360-126-0	16	1	0710-					●	●
130	07.014 MEMBER; CROSS,END (A)	8-98000-492-0	01	1	0710-	●			●
130	07.014 MEMBER; CROSS,END WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97205-394-0	01	1	0710-		●	●
130	07.014 MEMBER; CROSS,END (B)	8-97205-394-0	01	1	0710-					●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97080-872-0	01	1	0710-		●	●
131	07.014 BOLT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0710-		●	●
131	07.014 BOLT; END C/MBR 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0710-					●	●
132	07.014 NUT; END C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	08	1	0710-		●	●
132	07.014 NUT; END C/MBR 03.162 M10 FLANGE	0-91180-110-0	08	1	0710-					●	●
201	07.039 GUSSET; C/MBR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97096-871-0	04	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	04	1	0710-0710					●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-0710	●			●
201	07.039 GUSSET; C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97096-871-0	02	1	0710-0710		●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-	●	●	●	●	●	●
325	07.039 EXTENSION; FRAME (A)	8-98045-169-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME (A)	8-98045-170-2	01	1	0710-	●			●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-348-1	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-348-1	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-349-0	01	1	0710-		●	●
325	07.039 EXTENSION; FRAME (A)	8-98073-349-0	01	1	0710-					●	●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-891-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-891-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4100MM(41W) (B)	8-97222-892-1	01	1	0710-		●
325	07.039 EXTENSION; FRAME (B)	8-97222-892-1	01	1	0710-					●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-752-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-752-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME WHEEL BASE 4400MM(44W) (B)	8-97128-753-3	01	1	0710-			●
325	07.039 EXTENSION; FRAME (B)	8-97128-753-3	01	1	0710-						●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-344-1	01	1	0711-		●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0710-0710		●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98073-345-0	01	1	0711-		●
414	07.011 BOLT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0710-		●	●
414	07.011 BOLT 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0710-					●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-511-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-510-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-518-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-517-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-516-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-515-1	01	1	0710-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-611-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-610-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-609-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-608-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-618-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-617-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-616-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-615-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-655-6	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-627-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-626-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98088-796-1	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98088-797-1	01	1	0710-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98071-530-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98071-529-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98071-528-1	01	1	0710-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98071-667-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98071-666-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98088-799-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98088-798-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98071-625-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-575-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-624-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-574-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98101-573-3	01	1	0711-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98071-511-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98071-510-2	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98071-518-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98071-517-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-516-1	01	1	0710-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-515-1	01	1	0710-	●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98071-611-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98071-610-2	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-609-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98071-608-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-618-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-617-3	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-616-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-615-4	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-655-6	01	1	0710-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98071-627-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98071-626-2	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98088-796-1	01	1	0710-			●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98088-797-1	01	1	0710-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98071-530-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98071-529-1	01	1	0710-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98071-528-1	01	1	0710-				●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98071-667-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98071-666-2	01	1	0710-					●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98088-799-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98088-798-1	01	1	0710-						●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98071-657-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0710-0710		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98071-656-2	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98071-625-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-575-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98071-624-2	01	1	0710-0710			●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL TANK 140 LITTER<N19> (F)	8-98101-574-3	01	1	0711-		●
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98101-573-3	01	1	0711-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
