4-80 — ROAD WHEEL (#38945) — 84 parça

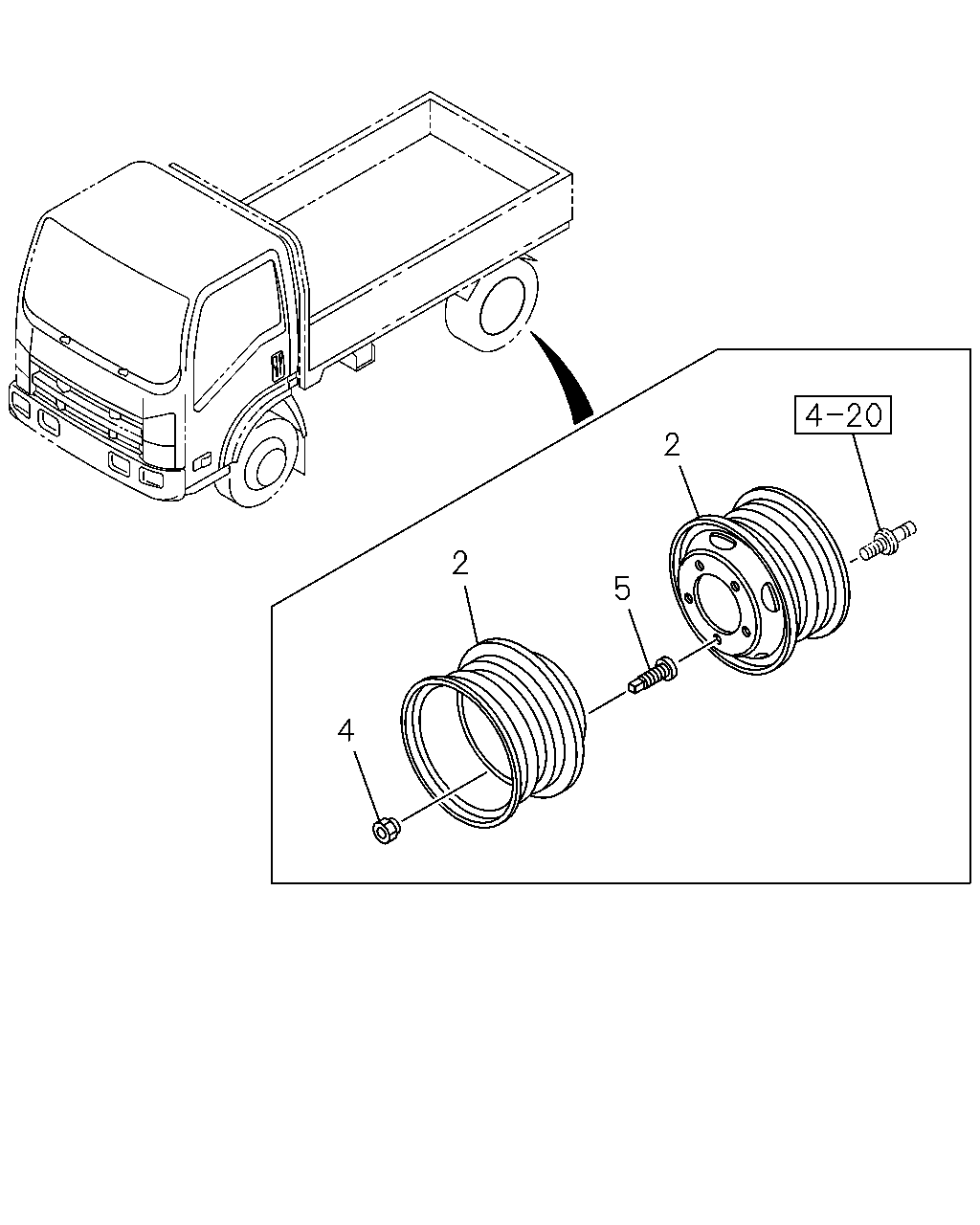

çizim 34621
2 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 01 1 0710- ● ●
2 05.803 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 04 1 0710- ● ●
2 05.803 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-0 02 1 0710- ● ●
2 05.803 WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0908 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0908 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0909-0910 ● ● ●
2 05.803 WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0911- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0911- ●
2 05.803 WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0908 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0908 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0909-0910 ● ● ●
2 05.803 WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0911- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0911- ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) M30 RH THREAD 		8-97359-809-0 06 1 0710- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0710- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) M30 LH THREAD 		8-97359-810-0 06 1 0710- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0710- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0710-0908 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) M27 RH THREAD 		8-98007-824-0 05 1 0710-0908 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) M27 RH THREAD 		8-98007-824-0 05 1 0909-0910 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0911- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) M27 RH THREAD 		8-98007-824-0 05 1 0911- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0710-0908 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) M27 LH THREAD 		8-98007-825-0 05 1 0710-0908 ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) M27 LH THREAD 		8-98007-825-0 05 1 0909-0910 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0911- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) M27 LH THREAD 		8-98007-825-0 05 1 0911- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0710- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0710- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0710- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0710- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0710-0908 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0710-0908 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0909-0910 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0911- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0911- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0710-0908 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0710-0908 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0909-0910 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0911- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0911- ●

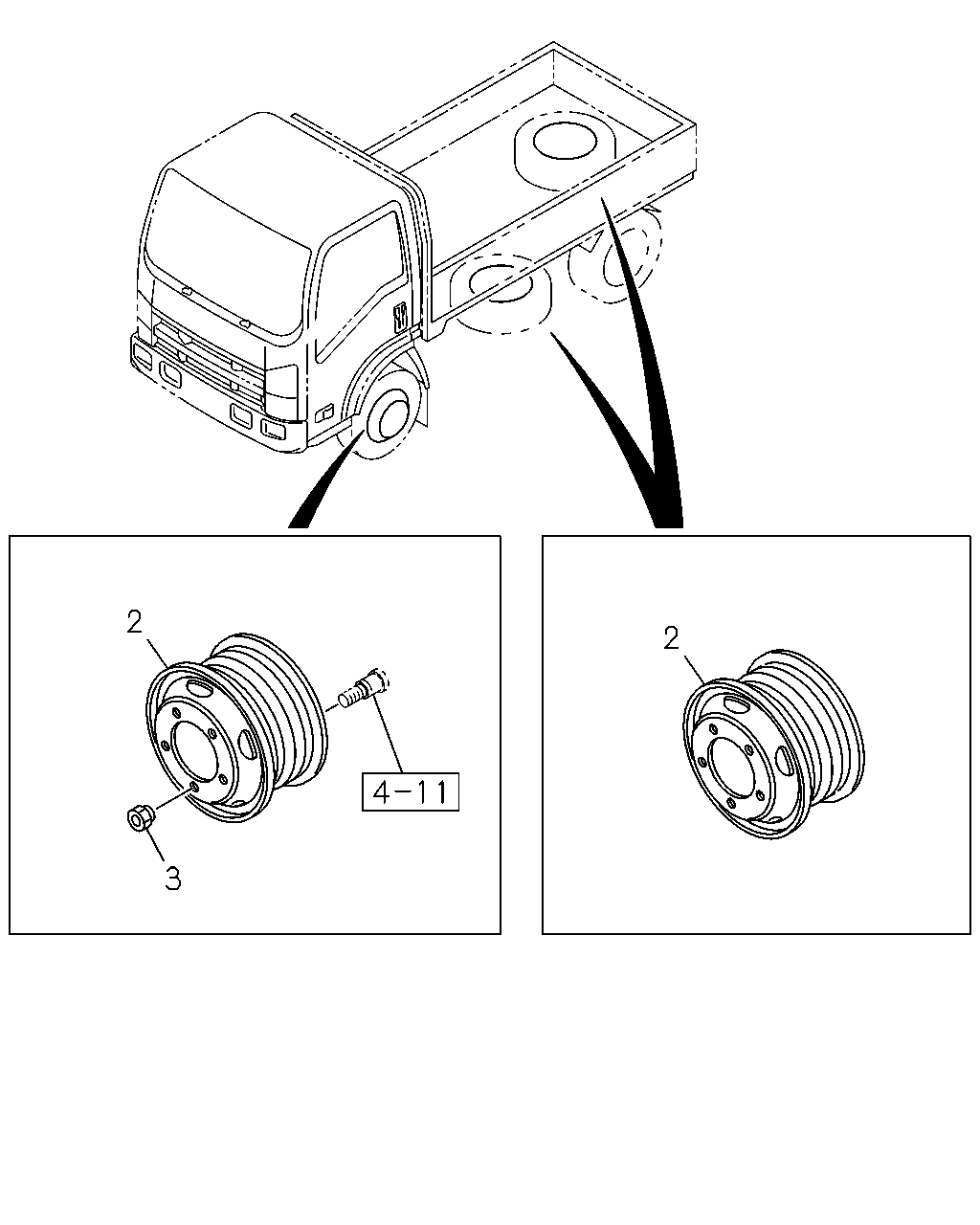

çizim 99942
2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 01 1 0710- ● ●
2 05.803 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 04 1 0710- ● ●
2 05.803 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-0 02 1 0710- ● ●
2 05.803 WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0908 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0908 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0909-0910 ● ● ●
2 05.803 WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0911- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0911- ●
2 05.803 WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0908 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0908 ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0909-0910 ● ● ●
2 05.803 WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0911- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0911- ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0710-1010 ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) M20 RH THREAD 		8-97359-807-0 06 1 0710- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0710- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV) M20 LH THREAD 		8-97359-808-0 06 1 0710- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0710- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0710-0908 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) M18 RH THREAD 		8-98007-907-0 05 1 0710-0908 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) M18 RH THREAD 		8-98007-907-0 05 1 0909-0910 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0911- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) M18 RH THREAD 		8-98007-907-0 05 1 0911- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0710-0908 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) M18 LH THREAD 		8-98007-908-0 05 1 0710-0908 ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) M18 LH THREAD 		8-98007-908-0 05 1 0909-0910 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0911- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS) M18 LH THREAD 		8-98007-908-0 05 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
