Sayfa 0-14 - Isuzu EPC

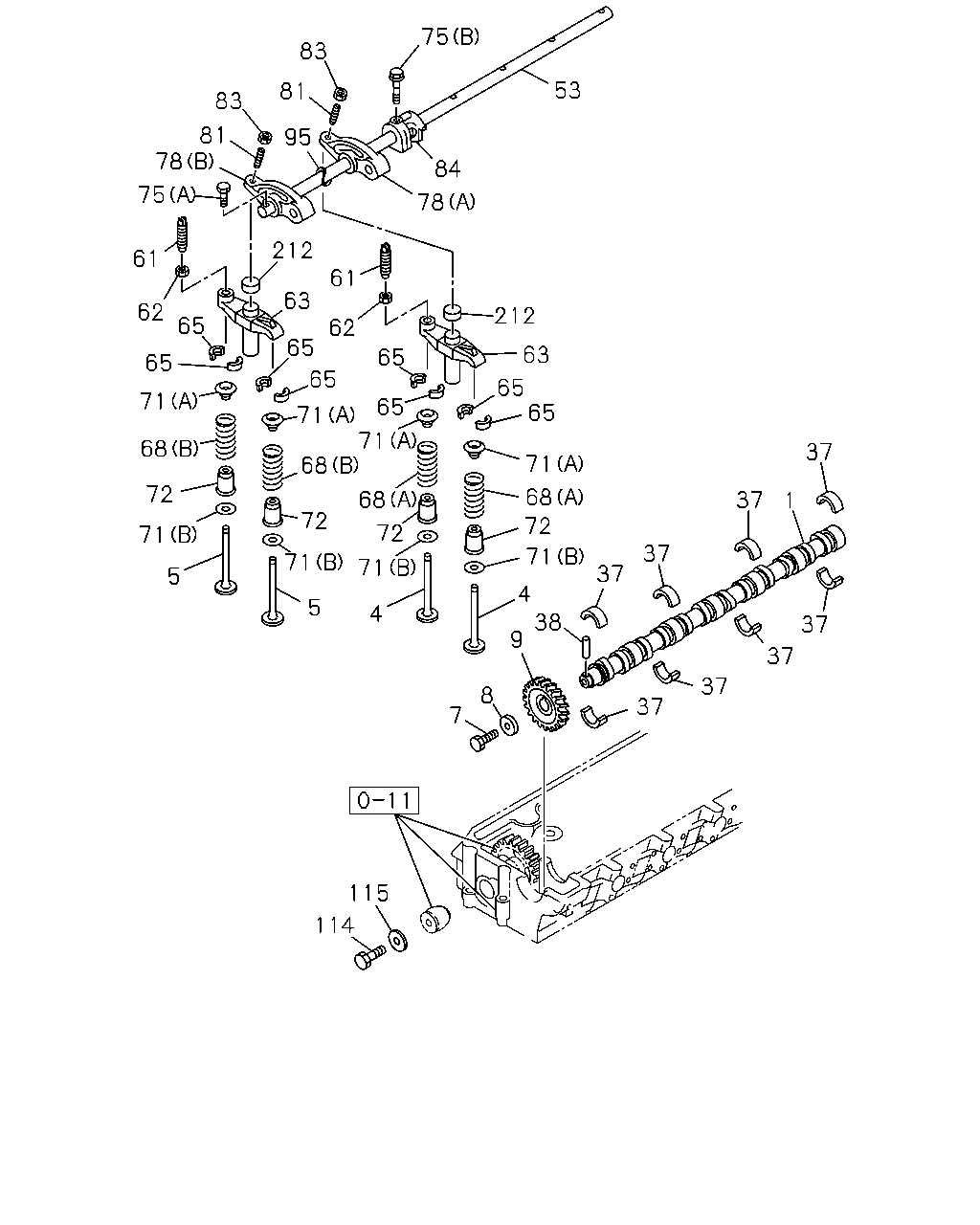

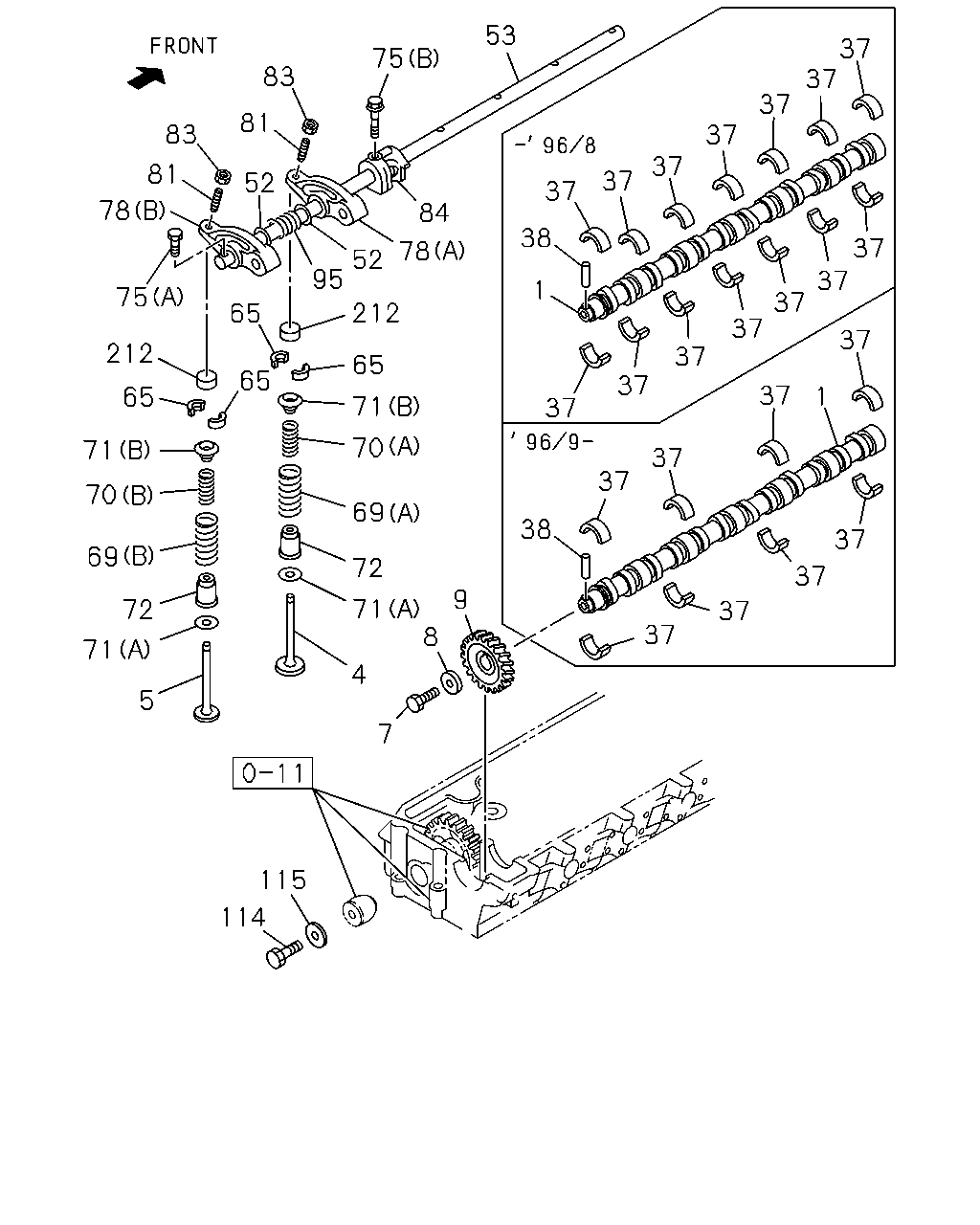

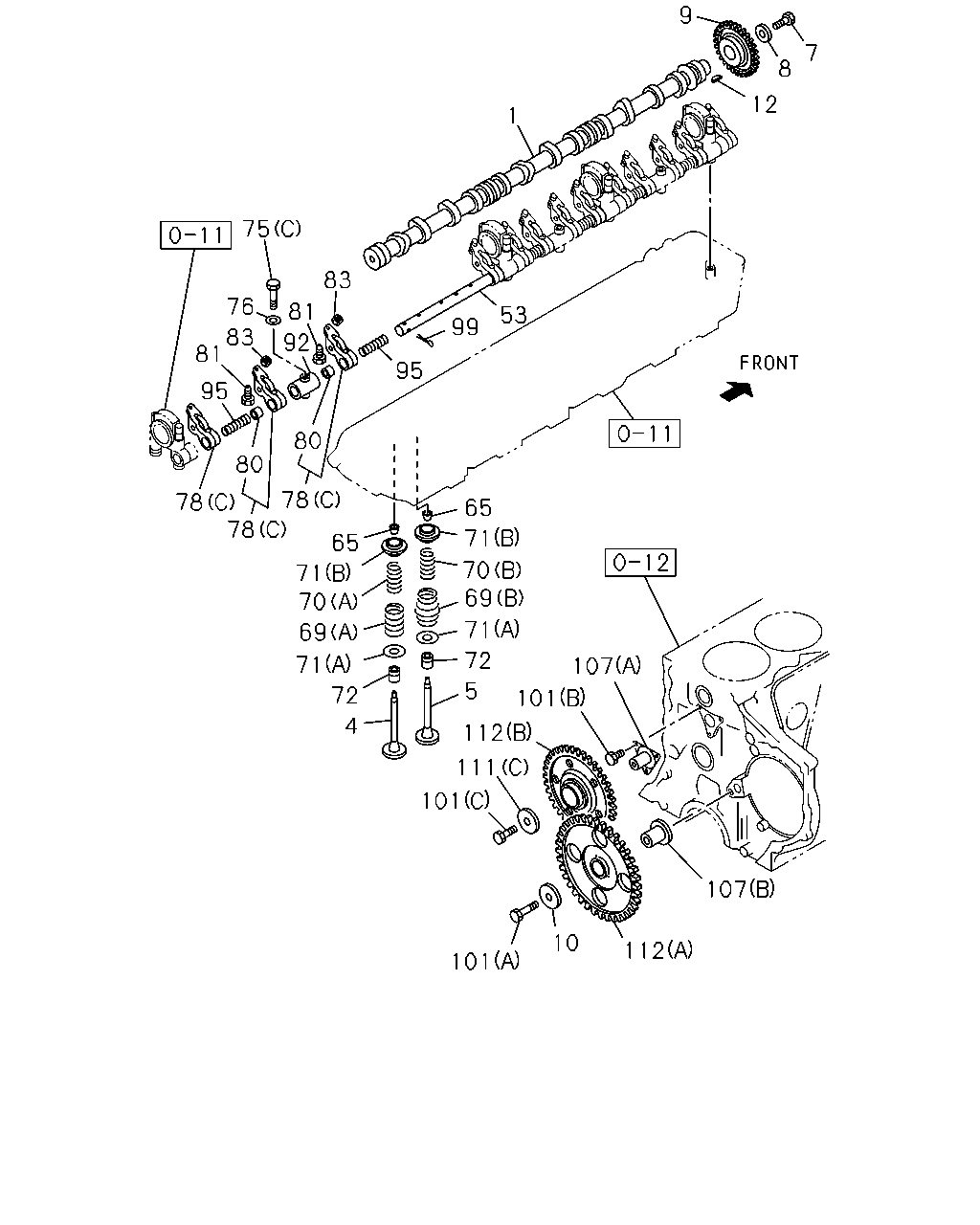

0-14 — CAMSHAFT AND VALVE (#3894) — 684 parça

9 7 8 12 1 75 83 76 81 92 53 99 83 81 95 95 80 80 78 78 78 65 71 65 70 69 71 70 71 69 72 71 107 5 72 101 4 112 111 101 107 10 112 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94395-758-2	01	1	9601-9806	●
1	CAMSHAFT	8-94395-758-2	01	1	9807-0004	●	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-1311	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●
1	CAMSHAFT	8-94395-576-2	01	1	9601-1311			●
1	CAMSHAFT	8-98227-259-1	01	1	1312-			●
1	CAMSHAFT	1-12511-254-1	01	1	9601-				●
1	CAMSHAFT	1-12511-249-1	01	1	9601-					●
1	CAMSHAFT	8-94390-469-1	01	1	0608-1311						●
1	CAMSHAFT	8-98227-260-1	01	1	1312-						●
4	VALVE; INL	8-94395-113-1	06	1	9601-9806	●
4	VALVE; INL	8-94395-113-1	06	1	9807-0004	●	●
4	VALVE; INL	8-94395-113-1	06	1	0005-	●
4	VALVE; INL	8-94394-160-2	06	1	9601-			●
4	VALVE; INL	1-12551-158-3	06	1	9601-				●
4	VALVE; INL	1-12551-126-1	06	1	9601-0204					●
4	VALVE; INL	1-12551-161-4	06	1	0205-					●
4	VALVE; INL	8-94395-882-2	12	1	0608-						●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9806	●		●
5	VALVE; EXH	8-94395-462-0	06	1	9807-0004	●	●	●
5	VALVE; EXH	8-94395-462-2	06	1	0005-	●		●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●	●
5	VALVE; EXH	1-12552-108-2	06	1	9903-				●	●
5	VALVE; EXH	8-97209-876-4	12	1	0608-						●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9806	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9807-0004	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0607	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-	●		●			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9806	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9807-0004	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0607	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-	●		●	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9806	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9807-0004	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0607	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-	●		●			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●	●
10	PLATE; THRUST ID=24.5 OD=62	1-12535-021-1	01	1	9601-				●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9601-				●	●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0608-0610						●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-						●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9806	●		●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9807-0004	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	0005-	●		●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0608-						●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9806	●		●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9807-0004	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-	●		●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●	●
69	SPRING; VLV,OUTER (B)	8-94393-310-0	06	1	9601-9806	●		●
69	SPRING; VLV,OUTER (B) MARK YELLOW	8-94393-310-0	06	1	9807-0004	●	●	●
69	SPRING; VLV,OUTER (B) MARK YELLOW	8-94393-310-0	06	1	0005-	●		●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	9601-9806	●		●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	9807-0004	●	●	●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	0005-0111	●		●
69	SPRING; VLV,OUTER (A) MARK PINK	8-97120-912-0	06	1	0112-	●		●
69	SPRING; VLV,OUTER (B)	1-12561-052-0	06	1	9601-				●
69	SPRING; VLV,OUTER (A)	1-12561-051-0	06	1	9601-				●	●
69	SPRING; VLV,OUTER (B)	1-12561-072-0	06	1	9601-					●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	9601-9806	●		●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	9807-0004	●	●	●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	0005-0111	●		●
70	SPRING; VLV,INNER (A) MARK PINK	8-97120-911-0	06	1	0112-	●		●
70	SPRING; VLV,INNER (B)	8-94397-500-0	06	1	9601-9806	●		●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	9807-0004	●	●	●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	0005-	●		●
70	SPRING; VLV,INNER (B)	1-12562-033-0	06	1	9601-				●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	9601-				●	●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	9601-					●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0608-						●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0608-						●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9601-9806	●		●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9807-0004	●	●	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	12	1	0005-	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9806	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9807-0004	●	●	●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-	●		●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●	●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●	●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●	●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0608-0707						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9601-9806	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9807-0004	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-						●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9806	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9807-0004	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9806	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9807-0004	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0607	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0608-	●		●			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●	●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	9601-				●	●
78	ARM; ROCKER (B) INLET	8-97306-421-3	06	1	0608-						●
78	ARM; ROCKER (A) EXHAUST	8-97306-424-3	06	1	0608-						●
78	ARM; ROCKER (B)	8-97014-258-1	06	1	9601-9806	●		●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	9807-0004	●	●	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	06	1	0005-	●		●
78	ARM; ROCKER (A)	8-97074-614-0	06	1	9601-9806	●		●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	9807-0004	●	●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	06	1	0005-	●		●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●	●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	9601-				●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9806	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9807-0004	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0607	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0608-	●		●			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9705	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9806	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9807-0004	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0512	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-0607	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0608-	●		●			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●	●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	9601-				●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0608-						●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9601-9806	●		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9807-0004	●	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-	●		●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	9601-0606				●	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	0-81122-025-0	02	1	0607-				●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9601-9611	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9709	●		●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9710-0607	●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-						●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9601-9709	●		●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	9710-9806	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9710-9806			●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	9807-0004	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9807-0004		●	●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	0005-0512	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0512			●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	0-16956-460-0	01	1	0601-1102	●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-1102			●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	1103-	●		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9601-9806	●		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9807-0004	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0512	●		●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-0607	●		●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0608-	●		●			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9710-9806	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9807-0004	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0512	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0607	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0608-	●		●			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9601-				●	●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9601-				●	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9601-				●	●

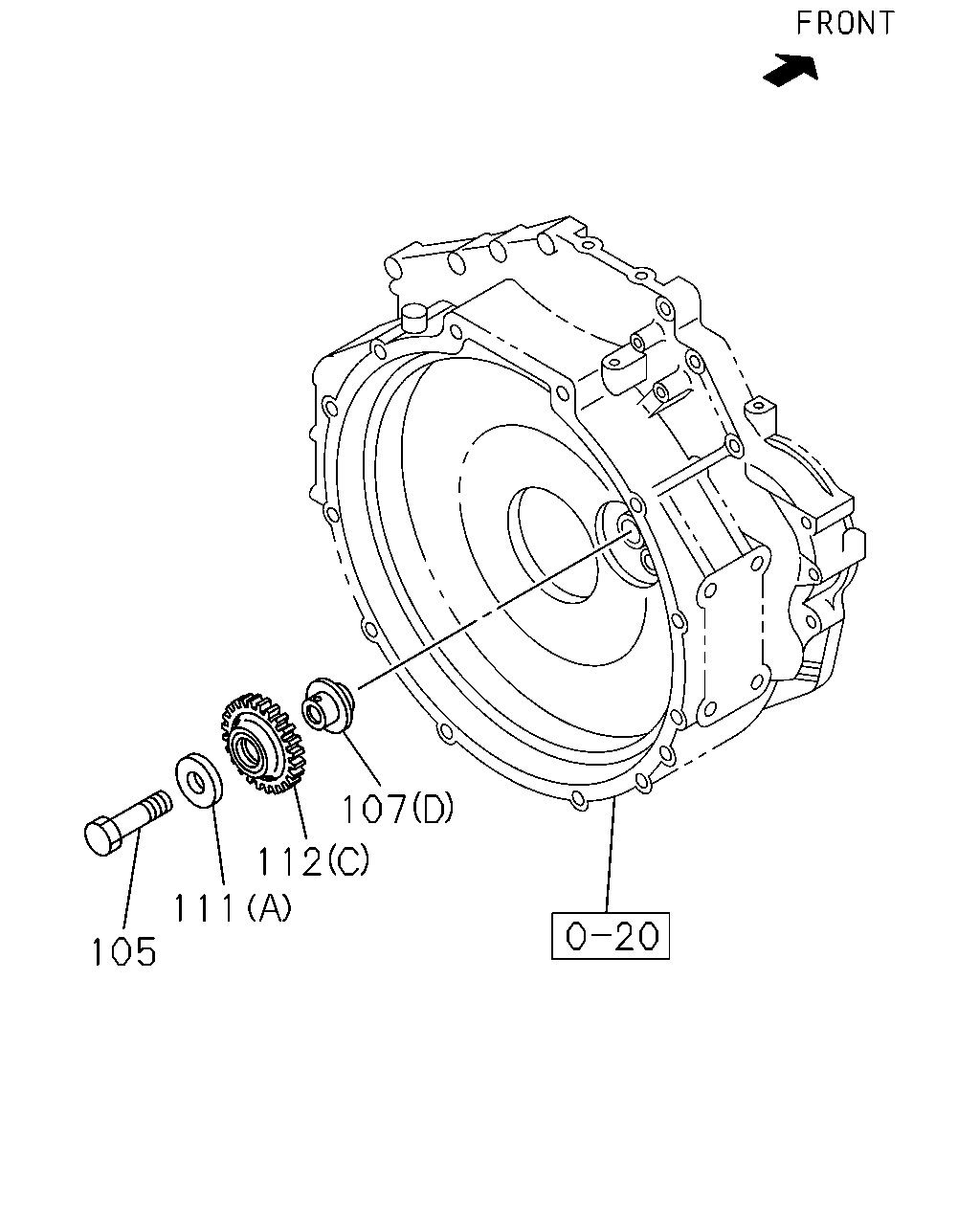

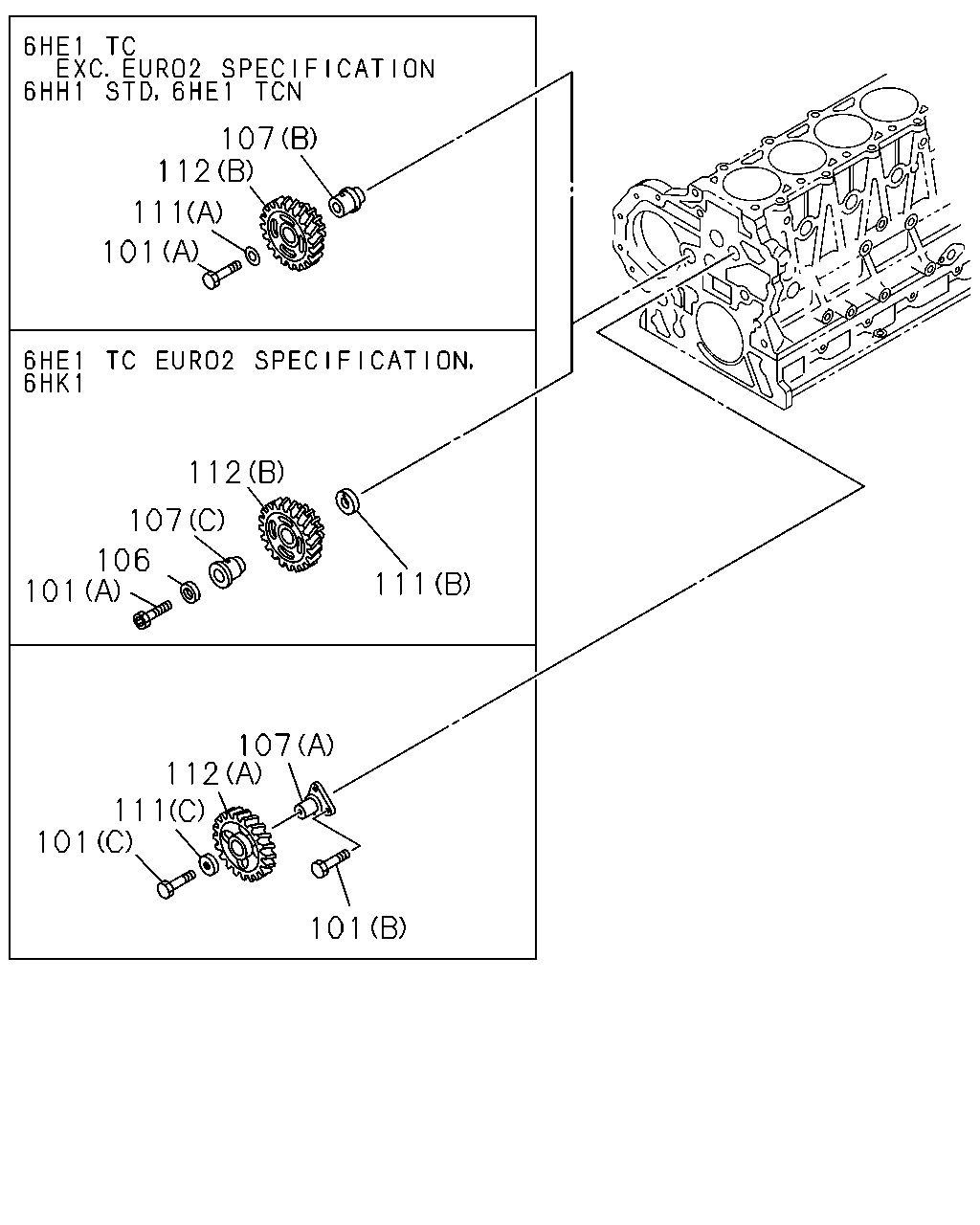

107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	9710-0205	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0206-0607	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0608-	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0608-						●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	9710-0304	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9601-9805	●		●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9601-9709	●		●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9710-9806	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9710-9806			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9807-0004	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9807-0004		●	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0005-0609	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0609			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-98060-780-0	01	1	0610-1102	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-1102			●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1103-	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-9806	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9807-0004	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0607	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0608-	●		●			●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-				●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9601-9709	●		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	9710-0607	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0608-						●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9710-9806	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9807-0004	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●		●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	9601-0306				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0608-				●	●	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-4	01	1	0608-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0608-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	9710-	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9710-9806	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9807-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0005-0609	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0609			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-97227-074-0	01	1	0610-1102	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-1102			●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9710-9806	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9807-0004	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-2	01	1	0005-1102	●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-1102			●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	9601-0011				●	●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-				●	●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	9601-0011				●	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-				●	●

53 37 37 75 83 37 81 83 37 37 81 37 52 37 84 38 37 37 78 52 95 1 75 37 37 212 65 37 212 37 65 65 37 37 1 65 71 37 71 37 37 38 37 72 37 9 71 8 72 37 37 71 4 5 7 115 114 69 70 70 69 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94395-758-2	01	1	9601-9806	●
1	CAMSHAFT	8-94395-758-2	01	1	9807-0004	●	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-1311	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●
1	CAMSHAFT	8-94395-576-2	01	1	9601-1311			●
1	CAMSHAFT	8-98227-259-1	01	1	1312-			●
1	CAMSHAFT	1-12511-254-1	01	1	9601-				●
1	CAMSHAFT	1-12511-249-1	01	1	9601-					●
1	CAMSHAFT	8-94390-469-1	01	1	0608-1311						●
1	CAMSHAFT	8-98227-260-1	01	1	1312-						●
4	VALVE; INL	8-94395-113-1	06	1	9601-9806	●
4	VALVE; INL	8-94395-113-1	06	1	9807-0004	●	●
4	VALVE; INL	8-94395-113-1	06	1	0005-	●
4	VALVE; INL	8-94394-160-2	06	1	9601-			●
4	VALVE; INL	1-12551-158-3	06	1	9601-				●
4	VALVE; INL	1-12551-126-1	06	1	9601-0204					●
4	VALVE; INL	1-12551-161-4	06	1	0205-					●
4	VALVE; INL	8-94395-882-2	12	1	0608-						●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9806	●		●
5	VALVE; EXH	8-94395-462-0	06	1	9807-0004	●	●	●
5	VALVE; EXH	8-94395-462-2	06	1	0005-	●		●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●	●
5	VALVE; EXH	1-12552-108-2	06	1	9903-				●	●
5	VALVE; EXH	8-97209-876-4	12	1	0608-						●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9806	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9807-0004	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0607	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-	●		●			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9806	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9807-0004	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0607	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-	●		●	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9806	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9807-0004	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0607	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-	●		●			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0608-						●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0607	●		●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0608-0706	●		●			●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●		●			●
37	METAL; CM/SHF	8-94393-380-0	14	1	9601-9608	●		●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9806	●		●
37	METAL; CM/SHF	8-94363-100-0	08	1	9807-0004	●	●	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206	●		●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●		●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9601-9806	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9807-0004	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0607	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0608-	●		●			●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9601-9806	●		●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9807-0004	●	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	0005-	●		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0608-0610						●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-						●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9806	●		●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9807-0004	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	0005-	●		●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0608-						●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9806	●		●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9807-0004	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-	●		●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●	●
69	SPRING; VLV,OUTER (B)	8-94393-310-0	06	1	9601-9806	●		●
69	SPRING; VLV,OUTER (B) MARK YELLOW	8-94393-310-0	06	1	9807-0004	●	●	●
69	SPRING; VLV,OUTER (B) MARK YELLOW	8-94393-310-0	06	1	0005-	●		●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	9601-9806	●		●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	9807-0004	●	●	●
69	SPRING; VLV,OUTER (A)	8-94394-996-0	06	1	0005-0111	●		●
69	SPRING; VLV,OUTER (A) MARK PINK	8-97120-912-0	06	1	0112-	●		●
69	SPRING; VLV,OUTER (B)	1-12561-052-0	06	1	9601-				●
69	SPRING; VLV,OUTER (A)	1-12561-051-0	06	1	9601-				●	●
69	SPRING; VLV,OUTER (B)	1-12561-072-0	06	1	9601-					●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	9601-9806	●		●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	9807-0004	●	●	●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	0005-0111	●		●
70	SPRING; VLV,INNER (A) MARK PINK	8-97120-911-0	06	1	0112-	●		●
70	SPRING; VLV,INNER (B)	8-94397-500-0	06	1	9601-9806	●		●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	9807-0004	●	●	●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	0005-	●		●
70	SPRING; VLV,INNER (B)	1-12562-033-0	06	1	9601-				●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	9601-				●	●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	9601-					●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0608-						●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0608-						●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9601-9806	●		●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9807-0004	●	●	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	12	1	0005-	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9806	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9807-0004	●	●	●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-	●		●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●	●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●	●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●	●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0608-0707						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9601-9806	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9807-0004	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-						●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9806	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9807-0004	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9806	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9807-0004	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0607	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0608-	●		●			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●	●
78	ARM; ROCKER (B) INLET	8-97306-421-3	06	1	0608-						●
78	ARM; ROCKER (A) EXHAUST	8-97306-424-3	06	1	0608-						●
78	ARM; ROCKER (B)	8-97014-258-1	06	1	9601-9806	●		●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	9807-0004	●	●	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	06	1	0005-	●		●
78	ARM; ROCKER (A)	8-97074-614-0	06	1	9601-9806	●		●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	9807-0004	●	●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	06	1	0005-	●		●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9806	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9807-0004	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0607	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0608-	●		●			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9705	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9806	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9807-0004	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0512	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-0607	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0608-	●		●			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0608-						●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9601-9806	●		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9807-0004	●	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	0005-	●		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0608-						●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9601-9806	●		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9807-0004	●	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-	●		●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9601-9806	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9807-0004	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0607	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0608-	●		●			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9601-9806	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9807-0004	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●		●			●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9601-9806	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9807-0004	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0607	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0608-	●		●			●

107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
105	BOLT; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	9710-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	9710-0205	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0206-0607	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0608-	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0608-						●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	9710-0304	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9601-9805	●		●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9601-9709	●		●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9710-9806	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9710-9806			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9807-0004	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9807-0004		●	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0005-0609	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0609			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-98060-780-0	01	1	0610-1102	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-1102			●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1103-	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-9806	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9807-0004	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0607	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0608-	●		●			●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-				●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9601-9709	●		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	9710-0607	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0608-						●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9710-9806	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9807-0004	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●		●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	9601-0306				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0608-				●	●	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-4	01	1	0608-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0608-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	9710-	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9710-9806	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9807-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0005-0609	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0609			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-97227-074-0	01	1	0610-1102	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-1102			●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9710-9806	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9807-0004	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-2	01	1	0005-1102	●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-1102			●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	9601-0011				●	●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-				●	●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	9601-0011				●	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-				●	●

75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 71 37 71 71 37 5 4 38 5 4 37 9 37 37 8 37 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	8-94395-758-2	01	1	9601-9806	●
1	CAMSHAFT	8-94395-758-2	01	1	9807-0004	●	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-1311	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●
1	CAMSHAFT	8-94395-576-2	01	1	9601-1311			●
1	CAMSHAFT	8-98227-259-1	01	1	1312-			●
1	CAMSHAFT	1-12511-254-1	01	1	9601-				●
1	CAMSHAFT	1-12511-249-1	01	1	9601-					●
1	CAMSHAFT	8-94390-469-1	01	1	0608-1311						●
1	CAMSHAFT	8-98227-260-1	01	1	1312-						●
4	VALVE; INL	8-94395-113-1	06	1	9601-9806	●
4	VALVE; INL	8-94395-113-1	06	1	9807-0004	●	●
4	VALVE; INL	8-94395-113-1	06	1	0005-	●
4	VALVE; INL	8-94394-160-2	06	1	9601-			●
4	VALVE; INL	1-12551-158-3	06	1	9601-				●
4	VALVE; INL	1-12551-126-1	06	1	9601-0204					●
4	VALVE; INL	1-12551-161-4	06	1	0205-					●
4	VALVE; INL	8-94395-882-2	12	1	0608-						●
5	VALVE; EXH	8-94395-462-0	06	1	9601-9806	●		●
5	VALVE; EXH	8-94395-462-0	06	1	9807-0004	●	●	●
5	VALVE; EXH	8-94395-462-2	06	1	0005-	●		●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9902				●	●
5	VALVE; EXH	1-12552-108-2	06	1	9903-				●	●
5	VALVE; EXH	8-97209-876-4	12	1	0608-						●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9601-9806	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9807-0004	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0607	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-	●		●			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-				●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9806	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9807-0004	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0607	●		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-	●		●	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9601-9806	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9807-0004	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0607	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-	●		●			●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9601-				●	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0608-						●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0607	●		●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0608-0706	●		●			●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●		●			●
37	METAL; CM/SHF	8-94393-380-0	14	1	9601-9608	●		●
37	METAL; CM/SHF	8-94363-100-0	08	1	9609-9806	●		●
37	METAL; CM/SHF	8-94363-100-0	08	1	9807-0004	●	●	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206	●		●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●		●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9601-9806	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9807-0004	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0607	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0608-	●		●			●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0608-0610						●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-						●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9601-9806	●		●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	9807-0004	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	0005-	●		●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9601-				●	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0608-						●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0608-						●
63	BRIDGE	8-94392-002-3	12	1	0608-						●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0608-						●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9601-9806	●		●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9807-0004	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-	●		●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-				●	●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0608-						●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0608-						●
71	SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	24	1	0608-						●
71	SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	24	1	0608-						●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9601-9806	●		●
71	SEAT; SPR (A) OD=38	8-94385-029-1	12	1	9807-0004	●	●	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	12	1	0005-	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9601-9806	●		●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	9807-0004	●	●	●
71	SEAT; SPR (B) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-	●		●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-0009				●	●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●	●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●	●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9601-				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0608-0707						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-						●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9601-9806	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9807-0004	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-				●	●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-						●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9601-9806	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9807-0004	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9601-9806	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9807-0004	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0607	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0608-	●		●			●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	9601-				●	●
78	ARM; ROCKER (B) INLET	8-97306-421-3	06	1	0608-						●
78	ARM; ROCKER (A) EXHAUST	8-97306-424-3	06	1	0608-						●
78	ARM; ROCKER (B)	8-97014-258-1	06	1	9601-9806	●		●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	9807-0004	●	●	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	06	1	0005-	●		●
78	ARM; ROCKER (A)	8-97074-614-0	06	1	9601-9806	●		●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	9807-0004	●	●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	06	1	0005-	●		●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	9601-				●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9601-9806	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9807-0004	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0607	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0608-	●		●			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9601-9705	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9806	●		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9807-0004	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0512	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-0607	●		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0608-	●		●			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-				●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0608-						●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9601-9806	●		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9807-0004	●	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	0005-	●		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0608-						●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9601-9806	●		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9807-0004	●	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-	●		●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-				●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9601-9806	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9807-0004	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0607	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0608-	●		●			●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9601-9806	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9807-0004	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●		●			●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9601-9806	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9807-0004	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0607	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0608-	●		●			●

107 112 101 112 107 106 101 111 107 112 101 101 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9601-9611	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9709	●		●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9710-0607	●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-						●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9601-9709	●		●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	9710-9806	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9710-9806			●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	9807-0004	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9807-0004		●	●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	0005-0512	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0512			●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	0-16956-460-0	01	1	0601-1102	●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-1102			●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	1103-	●		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9601-9806	●		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9807-0004	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0512	●		●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-0607	●		●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0608-	●		●			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9710-9806	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9807-0004	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0512	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0607	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0608-	●		●			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9601-				●	●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9601-				●	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9601-				●	●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	9710-0607	●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	0608-	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0608-						●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	9710-0205	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0206-0607	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0608-	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0608-						●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	9710-0304	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9601-9805	●		●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9601-9709	●		●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9710-9806	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9710-9806			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	9807-0004	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9807-0004		●	●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0005-0609	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0609			●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-98060-780-0	01	1	0610-1102	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-1102			●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1103-	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-9806	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9807-0004	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0607	●		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0608-	●		●			●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-0011				●	●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-				●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9601-9709	●		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	9710-0607	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0608-						●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9710-9806	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9807-0004	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●		●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	9601-0306				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607				●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0608-				●	●	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-4	01	1	0608-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9710-0607	●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0608-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0608-						●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	9710-	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9710-9806	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	9807-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0005-0609	●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0609			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-97227-074-0	01	1	0610-1102	●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-1102			●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9601-9709	●		●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9710-9806	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9710-9806			●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-1	01	1	9807-0004	●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9807-0004		●	●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-2	01	1	0005-1102	●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-1102			●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	1103-	●		●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	9601-0011				●	●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-				●	●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	9601-0011				●	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
