◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶

4-50 — FRONT SUSPENSION (#38937) — 133 parça

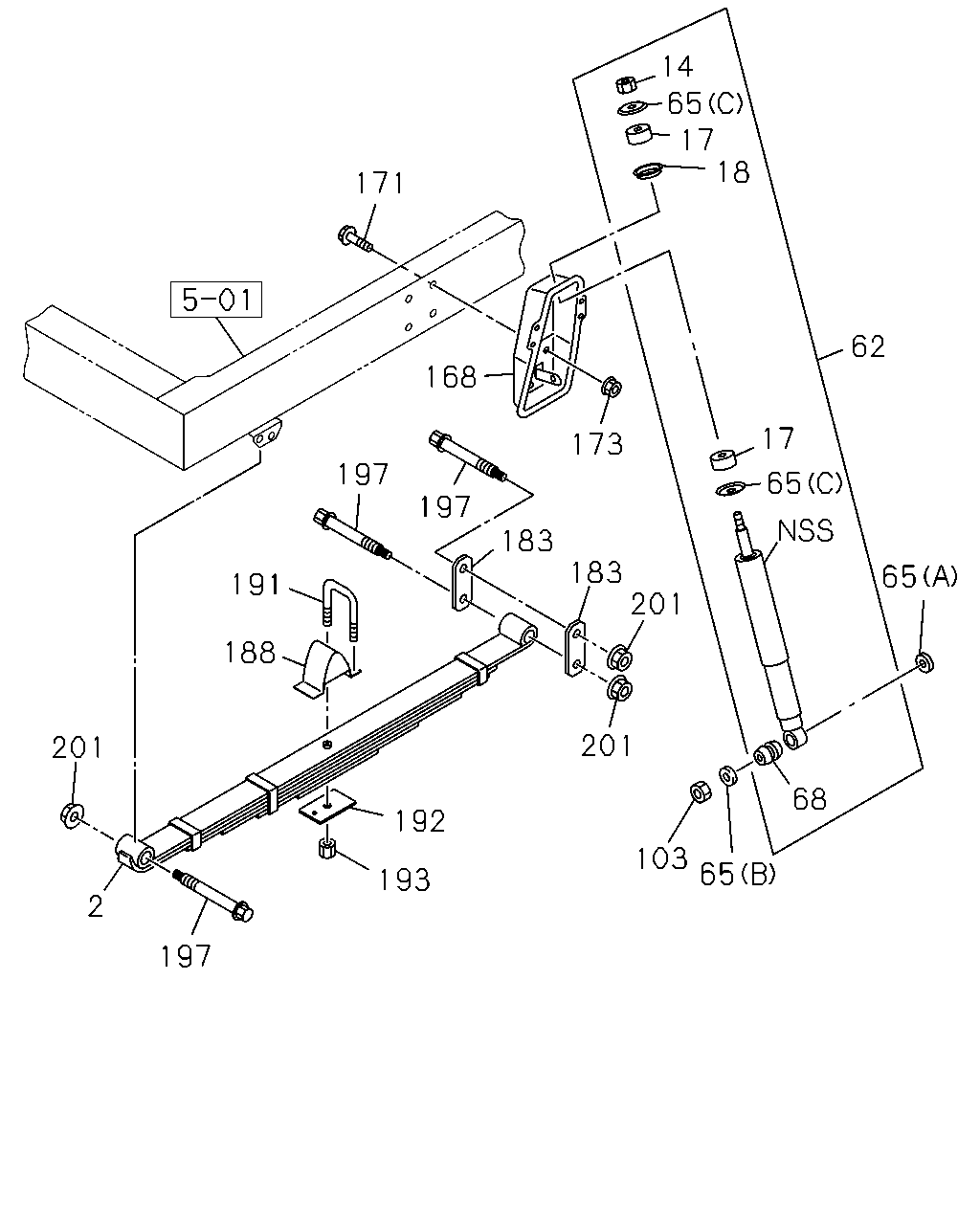

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98025-018-0	01	1	0710-	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98025-019-0	01	1	0710-	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-741-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-741-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-742-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-742-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-914-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-914-0	01	1	0710-0802				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-914-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-914-0	01	1	0803-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-916-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-916-0	01	1	0710-0802				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-916-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-916-0	01	1	0803-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-920-0	01	1	0710-0802					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-920-0	01	1	0803-					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-922-0	01	1	0710-0802					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-922-0	01	1	0803-					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0906			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0906			●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0710-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0710-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0710-	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97376-928-0	02	1	0710-	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97376-928-0	02	1	0710-			●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.5-8.0TON(RPY)	8-98080-130-0	02	1	0710-			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-130-0	02	1	0710-					●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0710-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0710-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0710-	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0710-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0710-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-958-1	01	1	0710-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-959-1	01	1	0710-	●	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0710-	●	●	●	●	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0710-	●	●	●	●	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0710-	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0710-0906	●	●	●	●	●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-3	04	1	0710-	●	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0710-					●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 5.5-6.0TON(RPU) L=125	8-94119-671-4	04	1	0710-0802			●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) L=125	8-94119-671-5	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=135	5-51171-015-3	04	1	0710-0802			●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-3	04	1	0710-0802				●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=135	5-51171-015-4	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> L=135	5-51171-015-4	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0803-				●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-554-1	02	1	0710-	●
192	07.436 PIECE; DIST	8-97093-554-1	02	1	0710-		●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0710-	●	●	●	●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0710-					●	●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0710-0805	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0806-0806	●	●	●	●		●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0806-0806					●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0806-	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0806-0806					●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0710-0805	●	●	●	●	●	●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0806-0806	●	●	●	●		●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0806-0806					●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0806-	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0806-0806					●

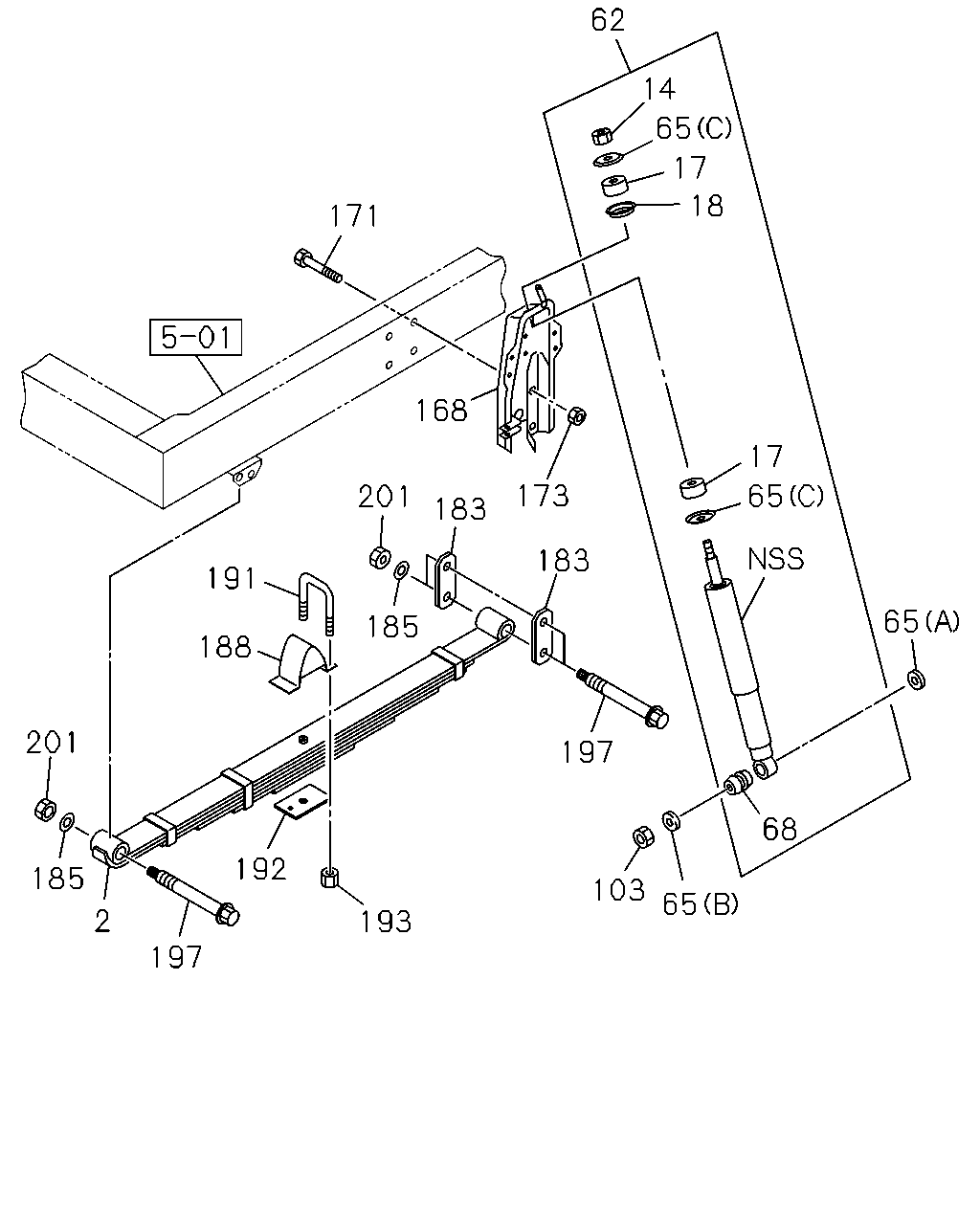

62 14 65 17 18 171 168 17 173 65 201 183 183 191 65 185 188 201 197 68 192 185 103 65 2 193 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98025-018-0	01	1	0710-	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98025-019-0	01	1	0710-	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-741-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-741-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-742-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF	8-98075-742-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-914-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-914-0	01	1	0710-0802				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-914-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-914-0	01	1	0803-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-916-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-916-0	01	1	0710-0802				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) 6-LEAF	8-98079-916-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-916-0	01	1	0803-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-920-0	01	1	0710-0802					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-920-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-920-0	01	1	0803-					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0710-0802			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-922-0	01	1	0710-0802					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) 6-LEAF	8-98079-922-0	01	1	0803-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-922-0	01	1	0803-					●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0906			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0906			●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0710-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0710-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0710-	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97376-928-0	02	1	0710-	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97376-928-0	02	1	0710-			●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.5-8.0TON(RPY)	8-98080-130-0	02	1	0710-			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-130-0	02	1	0710-					●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0710-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0710-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0710-	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0710-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0710-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-958-1	01	1	0710-	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-959-1	01	1	0710-	●	●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0710-	●	●	●	●	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0710-	●	●	●	●	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0710-	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0806-0806					●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0907-	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0710-0906	●	●	●	●	●	●
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-3	04	1	0710-	●	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0710-					●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 5.5-6.0TON(RPU) L=125	8-94119-671-4	04	1	0710-0802			●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) L=125	8-94119-671-5	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=135	5-51171-015-3	04	1	0710-0802			●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-3	04	1	0710-0802				●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=135	5-51171-015-4	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 7.5-8.0TON(RPY) EXC. FRONT STABILIZER SHAFT<F59> L=135	5-51171-015-4	04	1	0803-			●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0803-				●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-554-1	02	1	0710-	●
192	07.436 PIECE; DIST	8-97093-554-1	02	1	0710-		●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0710-	●	●	●	●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0710-					●	●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0710-0805	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0806-0806	●	●	●	●		●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0806-0806					●
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0806-	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0806-0806					●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0710-0805	●	●	●	●	●	●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0806-0806	●	●	●	●		●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0806-0806					●
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0806-	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0806-0806					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
