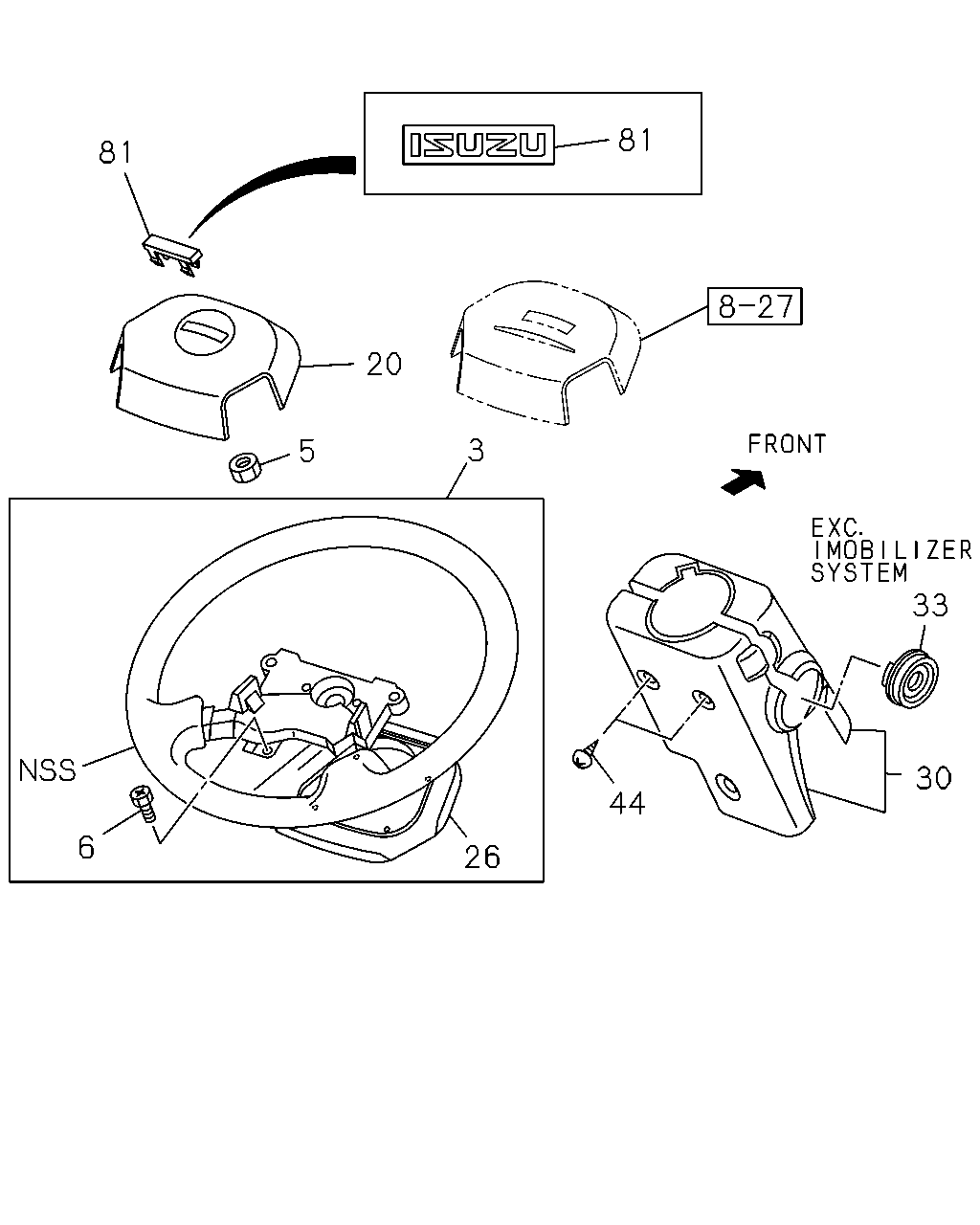

4-30 — STEERING WHEEL AND COWL (#38930) — 14 parça

81 81 20 3 5 33 30 44 6 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97412-556-0	01	1	0710-	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-726-1	01	1	0710-1006	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-977-0	01	1	1007-	●	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0710-	●	●	●	●	●	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0710-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0710-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0710-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0710-1006	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-	●	●	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0710-1110	●	●	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-	●	●	●	●	●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	0806-0806			●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0710-	●	●	●	●	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	0710-	●	●	●	●	●	●
