Sayfa 0-13 - Isuzu EPC

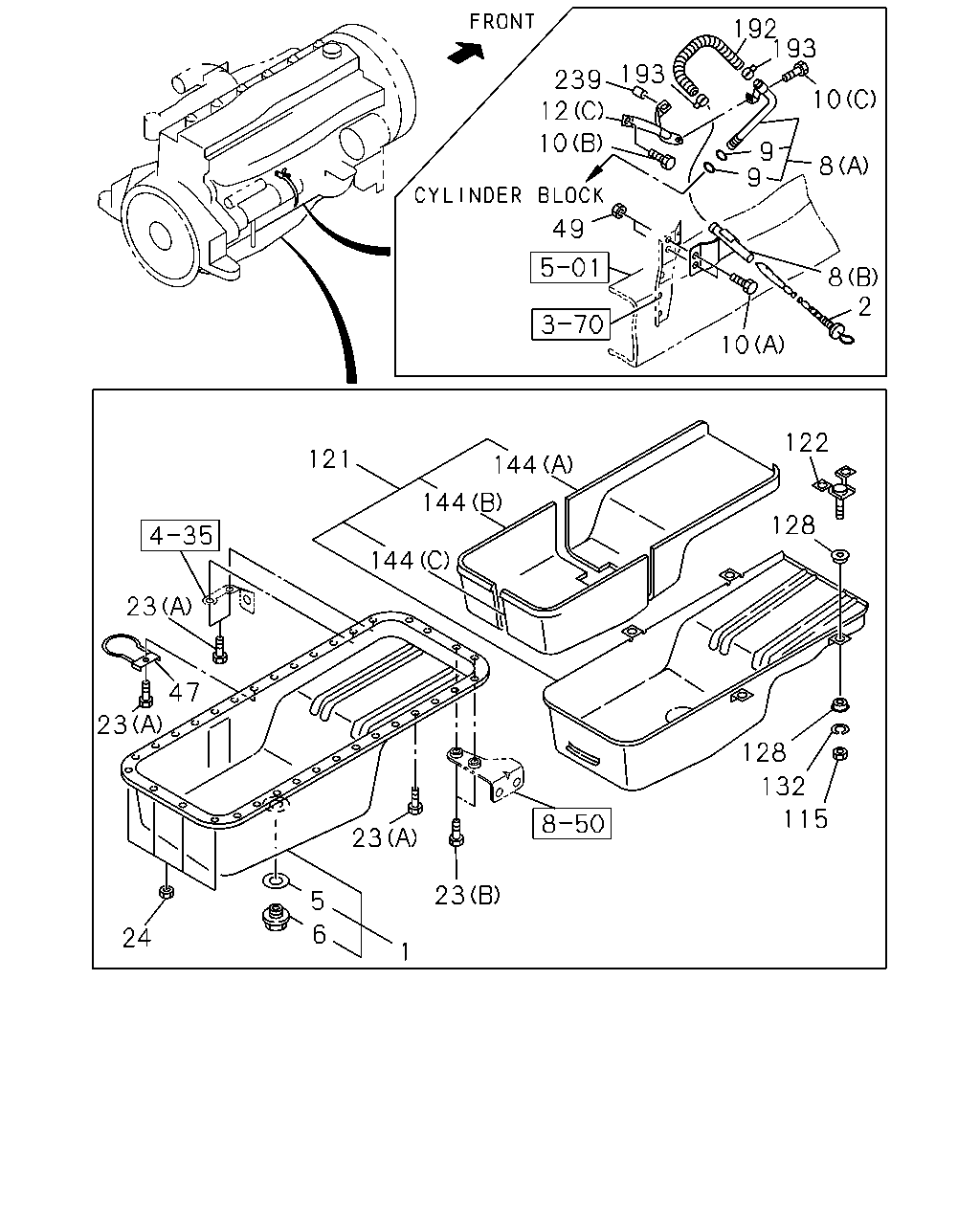

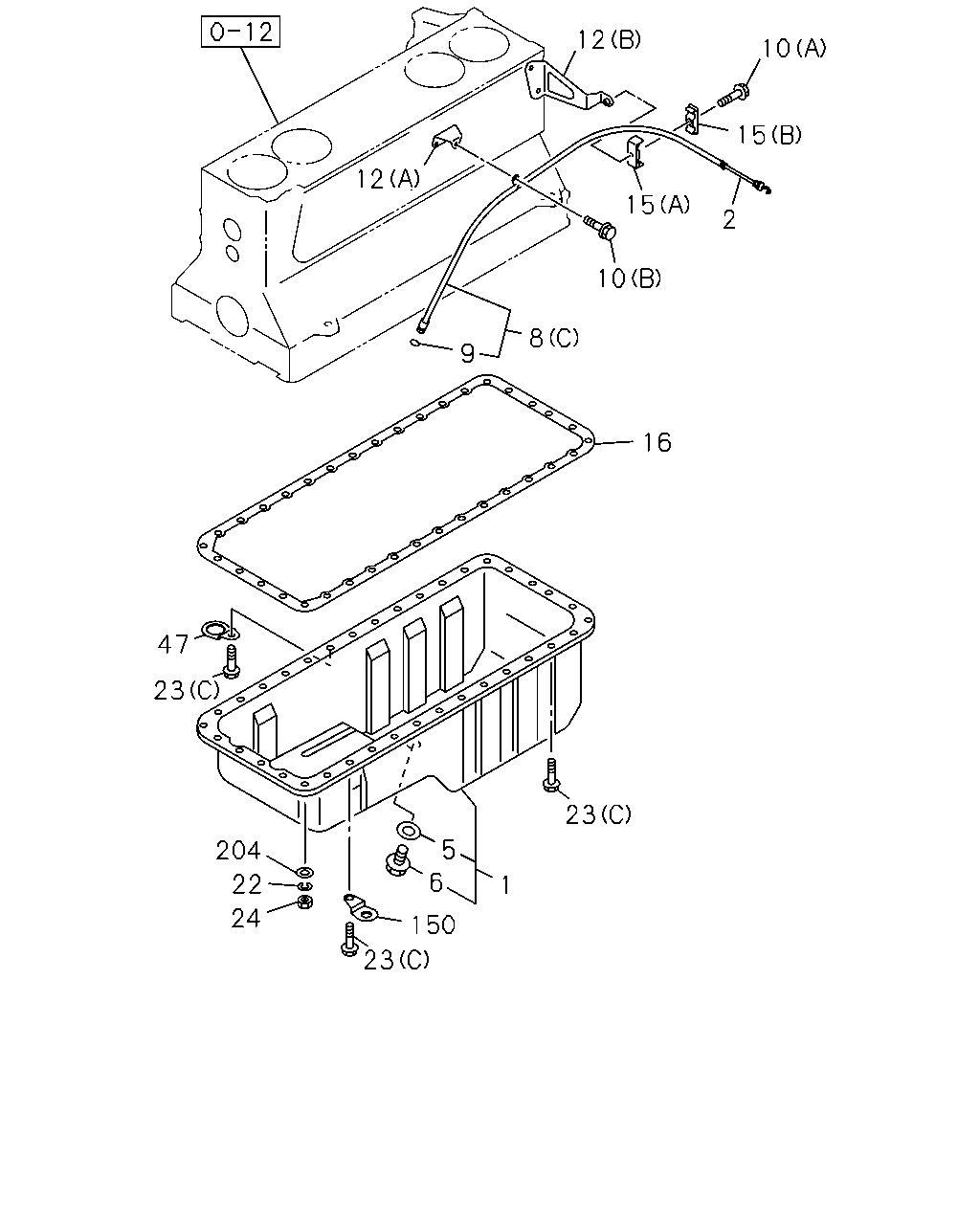

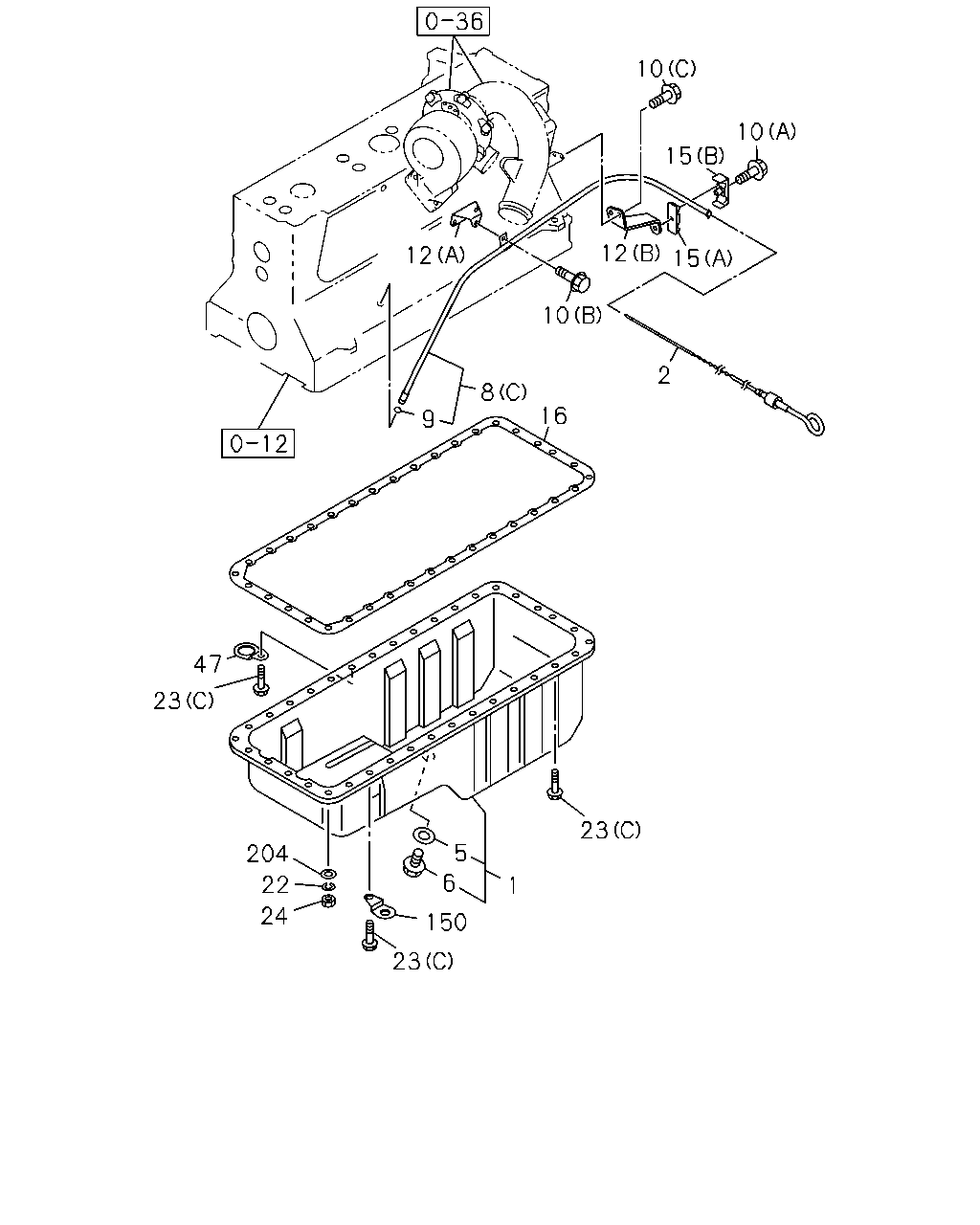

0-13 — OIL PAN AND LEVEL GAUGE (#3893) — 527 parça

10 10 15 12 12 15 10 2 8 16 9 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PAN ASM; OIL	8-94394-711-0	01	1	9601-9806	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9807-0004	●	●
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0607	●
1	PAN ASM; OIL	8-94394-711-2	01	1	0608-	●		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-608-2	01	1	9601-				●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-861-1	01	1	9601-				●
1	PAN ASM; OIL	1-11360-708-3	01	1	9601-					●	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9601-9806	●			●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9807-0004	●	●		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0005-0607	●			●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0608-	●		●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-					●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9601-9806	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9807-0004	●	●		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0607	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0608-	●		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-					●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9601-9806	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9807-0004	●	●		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0005-0607	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0608-	●		●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-0111					●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-					●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	0608-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	9601-0607	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0608-	●		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9601-9803	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9804-0004	●	●		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	9601-					●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9601-9803	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-0004	●	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0607	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0608-	●		●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-					●	●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607				●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9601-9709	●			●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	9710-0512	●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●			●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-0512	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●		●	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9710-9806	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9807-0004	●	●		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0605	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0606-	●		●	●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0512				●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512					●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94392-600-0	01	1	0608-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9601-9709	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9601-9709				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9710-9806	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9710-9806				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9807-0004	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9807-0004				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9807-0004		●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	0005-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	0005-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO2 SPECIFICATION<THN> (C)	8-94395-843-0	01	1	9710-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-903-0	01	1	9601-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9601-						●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-					●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	9601-					●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9601-					●	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-1	01	1	9601-					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9601-0205					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-1103					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-					●	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9601-0603					●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-					●	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-			●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709				●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60), EURO2SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004		●		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0005-0006				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0005-0006				●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-0906					●	●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-					●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9601-9806	●			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9807-0004	●	●		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0602	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0607	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0608-	●		●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-0512					●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-					●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9601-9806	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9807-0004	●	●		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0607	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0608-1506	●		●	●
47	CLIP; HOSE,AIR BREATHER	8-98303-447-0	01	1	1507-	●		●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-					●	●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	9601-						●
150	CLIP; WATER,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-11229-070-0	02	1	9601-					●	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9601-0605					●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-					●	●

12 10 15 12 15 2 10 8 9 16 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PAN ASM; OIL	8-94394-711-0	01	1	9601-9806	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9807-0004	●	●
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0607	●
1	PAN ASM; OIL	8-94394-711-2	01	1	0608-	●		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-608-2	01	1	9601-				●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-861-1	01	1	9601-				●
1	PAN ASM; OIL	1-11360-708-3	01	1	9601-					●	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9601-9806	●			●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9807-0004	●	●		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0005-0607	●			●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0608-	●		●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-					●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9601-9806	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9807-0004	●	●		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0607	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0608-	●		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-					●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9601-9806	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9807-0004	●	●		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0005-0607	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0608-	●		●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-0111					●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-					●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	0608-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	9601-0607	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0608-	●		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9601-9803	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9804-0004	●	●		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	9601-					●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9601-9803	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-0004	●	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0607	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0608-	●		●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-					●	●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607				●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9601-9709	●			●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	9710-0512	●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●			●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-0512	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●		●	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9710-9806	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9807-0004	●	●		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0605	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0606-	●		●	●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0512				●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512					●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94392-600-0	01	1	0608-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9601-9709	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9601-9709				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9710-9806	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9710-9806				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9807-0004	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9807-0004				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9807-0004		●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	0005-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	0005-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO2 SPECIFICATION<THN> (C)	8-94395-843-0	01	1	9710-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-903-0	01	1	9601-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9601-						●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-					●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	9601-					●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9601-					●	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-1	01	1	9601-					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9601-0205					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-1103					●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-					●	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9601-0603					●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-					●	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-			●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709				●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60), EURO2SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004		●		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0005-0006				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0005-0006				●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-0906					●	●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-					●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9601-9806	●			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9807-0004	●	●		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0602	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0607	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0608-	●		●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-0512					●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-					●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9601-9806	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9807-0004	●	●		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0607	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0608-1506	●		●	●
47	CLIP; HOSE,AIR BREATHER	8-98303-447-0	01	1	1507-	●		●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-					●	●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	9601-						●
150	CLIP; WATER,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-11229-070-0	02	1	9601-					●	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9601-0605					●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-					●	●

192 193 193 239 12 10 10 9 9 8 49 8 2 10 122 121 144 144 128 144 23 47 23 128 132 115 23 23 5 6 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PAN ASM; OIL	8-94394-711-0	01	1	9601-9806	●
1	PAN ASM; OIL	8-94394-711-1	01	1	9807-0004	●	●
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0607	●
1	PAN ASM; OIL	8-94394-711-2	01	1	0608-	●		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-608-2	01	1	9601-				●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-861-1	01	1	9601-				●
1	PAN ASM; OIL	1-11360-708-3	01	1	9601-					●	●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9601-9806	●			●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	9807-0004	●	●		●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0005-0607	●			●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0608-	●		●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-					●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9601-9806	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9807-0004	●	●		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0607	●			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0608-	●		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-					●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9601-9806	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	9807-0004	●	●		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0005-0607	●			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0608-	●		●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-0111					●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-					●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94392-176-1	01	1	0608-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	9601-0607	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0608-	●		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9601-9803	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-2	01	1	9804-0004	●	●		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-	●			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	9601-					●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9601-9803	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-0004	●	●		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0607	●			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0608-	●		●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-					●	●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28050-812-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X12 FLANGE	0-28080-812-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-0607				●
10	BOLT; GUIDE TUBE (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-			●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9601-9709				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9710-9806				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004				●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	01	1	9807-0004		●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	01	1	0005-0512				●
10	BOLT; GUIDE TUBE EXC. EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-	●
10	BOLT; GUIDE TUBE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9601-9709	●			●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28080-820-0	02	1	9710-0512	●
10	BOLT; GUIDE TUBE EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●			●
10	BOLT; GUIDE TUBE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-0512	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●			●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●		●	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9710-9806	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	9807-0004	●	●		●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-0605	●			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0606-	●		●	●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0512				●
10	BOLT; GUIDE TUBE ANTI NOISE EQUIPMENT ECE<SLK> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-0512					●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-					●	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512					●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94392-600-0	01	1	0608-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9601-9709	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9601-9709				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9710-9806	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9710-9806				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	9807-0004	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	9807-0004				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-150-0	01	1	9807-0004		●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO2 SPECIFICATION<THN> (C)	8-94395-150-0	01	1	0005-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-150-0	01	1	0005-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO2 SPECIFICATION<THN> (C)	8-94395-843-0	01	1	9710-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94394-903-0	01	1	9601-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9601-						●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-					●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	9601-					●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0704-			●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0407-0607				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0608-0703			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-				●
23	BOLT; OIL PAN (B) M8X28 FLANGE	0-28080-828-0	02	1	0704-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9601-9709				●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60), EURO2SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9710-9804				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9805-9806				●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908	●
23	BOLT; OIL PAN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9807-9908		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	9909-0004		●		●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN HEATER & DEFROSTER(C41) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE	0-28080-818-0	28	1	0005-0006				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9601-9709				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9710-9811				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9812-9901				●
23	BOLT; OIL PAN EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004	●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	9902-0004				●
23	BOLT; OIL PAN AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE	0-28080-828-0	02	1	0005-0006				●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-0906					●	●
23	BOLT; OIL PAN (C) M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-					●	●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9601-9806	●			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9807-0004	●	●		●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0602	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-0607	●			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0608-	●		●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-0512					●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-					●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9601-9806	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	9807-0004	●	●		●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0607	●			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0608-1506	●		●	●
47	CLIP; HOSE,AIR BREATHER	8-98303-447-0	01	1	1507-	●		●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-					●	●
49	NUT; GUIDE TUBE M8	9-09110-408-0	02	1	9601-9606	●			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9607-9806	●			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●		●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0005-0602	●			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-0607	●			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0608-	●		●	●
115	NUT; OIL PAN COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	04	1	9601-0209				●
121	COVER; OIL PAN ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-613-2	01	1	9601-0209				●
122	BRACKET; OIL PAN COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94396-827-0	04	1	9601-0209				●
128	RUBBER; MTG,OIL PAN ANTI NOISE EQUIPMENT ECE<SLK>	1-09337-024-0	08	1	9601-0209				●
132	WASHER; PL,OIL PAN COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22	9-09160-708-0	04	1	9601-0209				●
144	INSULATOR; OIL PAN ANTI NOISE EQUIPMENT ECE<SLK> (C)	8-94395-874-0	01	1	9601-0209				●
144	INSULATOR; OIL PAN ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94395-875-0	01	1	9601-0209				●
144	INSULATOR; OIL PAN ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94395-876-0	01	1	9601-0209				●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9601-9806	●			●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	9807-0004	●	●		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0005-0305	●			●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-0607	●			●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0608-	●		●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9601-9806	●			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	9807-0004	●	●		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0005-0607	●			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0608-	●		●	●
239	SPACER; BRKT EXC. FLYWHEEL HOUSING FC<E1R>,ANTI NOISE EQUIPMENT ECE<SLK>	8-94313-327-0	01	1	9601-0302				●
239	SPACER; BRKT EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94313-327-0	01	1	0303-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
