Sayfa 4-25 - Isuzu EPC

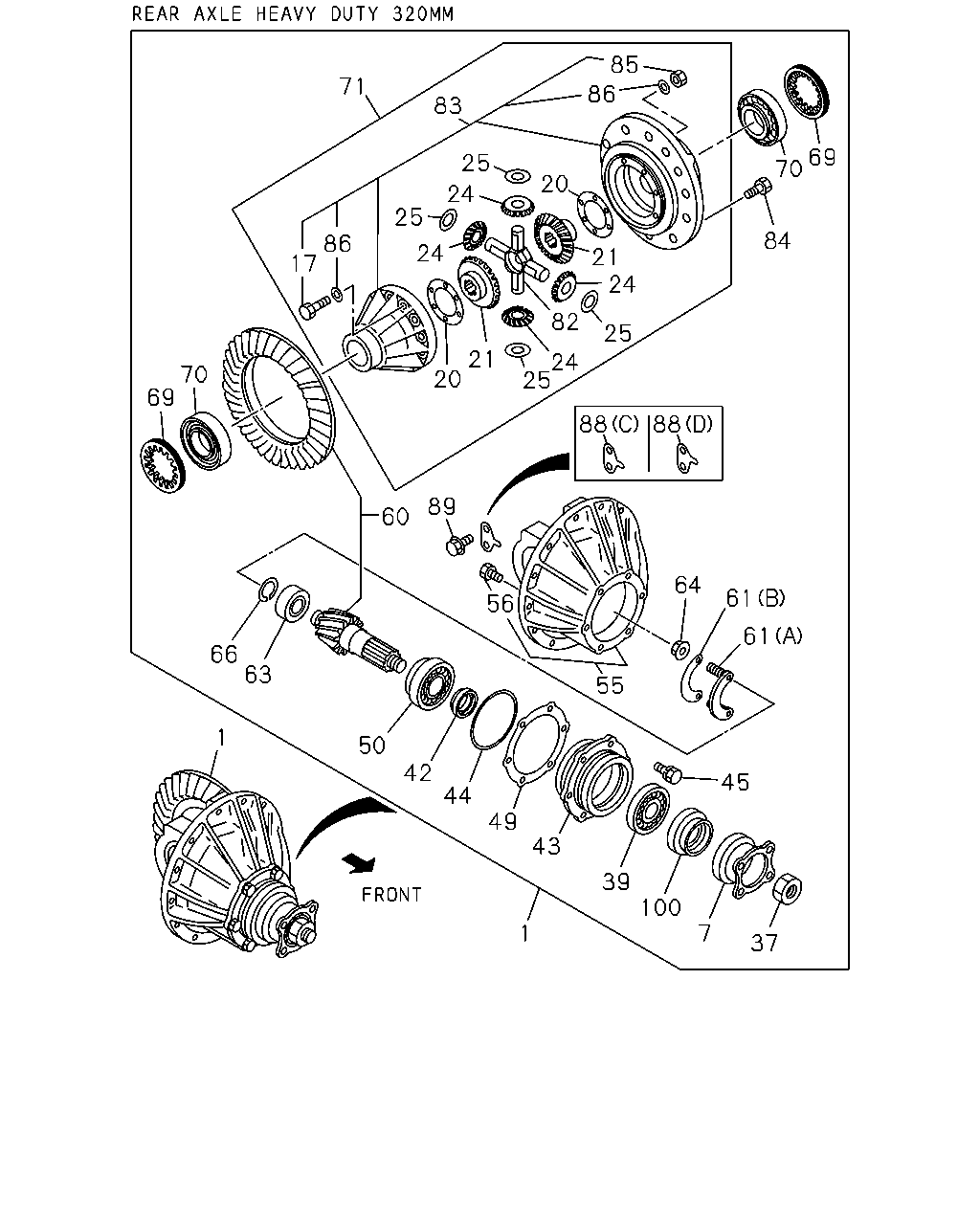

4-25 — REAR FINAL DRIVE (#38929) — 330 parça

85 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 88 88 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/9	8-98015-159-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/9	8-98015-137-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR 41/9	8-98015-137-0	01	1	0710-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	0710-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	0710-			●	●	●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0710-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0710-			●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0710-	●	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0710-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0710-			●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-0	02	1	0710-0710	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-0	02	1	0710-	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0710-1004			●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0710-1004			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0710-	●	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0710-			●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0710-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0710-			●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0710-1002			●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-			●	●	●	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-			●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0710-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0710-			●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0710-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0710-			●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0710-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0710-			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0710-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0710-0909			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0710-			●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0710-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0710-			●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0710-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/9	8-97319-156-0	01	1	0710-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0710-			●	●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-	●	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0710-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0710-			●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0710-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0710-			●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0710-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0710-			●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-1	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-0	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	0710-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0710-			●	●	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0710-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0710-1004			●	●	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-			●	●	●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0710-0710	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	0710-	●	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0710-			●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0710-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0710-			●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0710-0710	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	0710-	●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0710-			●	●	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0710-0710	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0710-			●	●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-			●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0710-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0710-			●	●	●	●

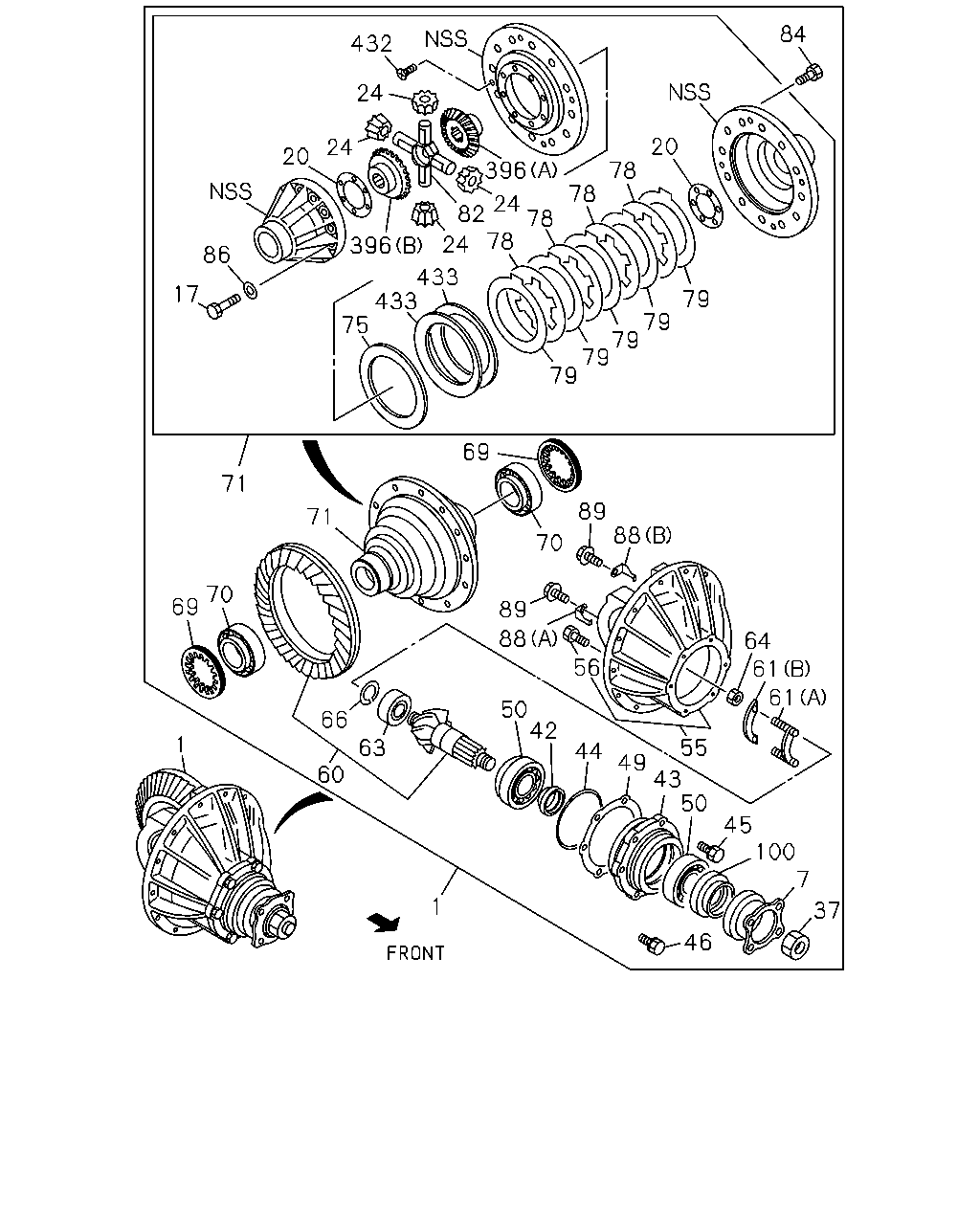

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 69 71 89 88 71 70 70 69 89 88 64 61 56 61 50 42 66 1 55 63 44 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/9	8-98015-159-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/9	8-98015-137-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR 41/9	8-98015-137-0	01	1	0710-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	0710-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	0710-			●	●	●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0710-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0710-			●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0710-	●	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0710-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0710-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0710-1004			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0710-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0710-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0710-			●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0710-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0710-			●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0710-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0710-			●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0710-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0710-			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0710-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0710-0909			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-			●	●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0710-0909	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0710-			●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0710-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0710-			●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0710-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/9	8-97319-156-0	01	1	0710-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0710-			●	●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-	●	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0710-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0710-			●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0710-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0710-			●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0710-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0710-			●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-1	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-0	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	0710-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0710-			●	●	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0710-0710	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0710-0710	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0710-0710	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0710-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0710-1004			●	●	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-			●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0710-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0710-			●	●	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0710-0710	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0710-			●	●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-			●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0710-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0710-			●	●	●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-599-0	01	1	0710-0710	●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-602-0	01	1	0710-0710	●	●
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0710-0710	●	●
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0710-0710	●	●

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 45 42 44 100 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/9	8-98015-159-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/9	8-98015-137-0	01	1	0710-0710	●	●
1	05.505 DRIVE ASM; FINAL,RR 41/9	8-98015-137-0	01	1	0710-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	0710-			●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	0710-			●	●	●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0710-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0710-			●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0710-0710	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0710-	●	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0710-0710	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0710-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0710-			●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0710-			●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-0	02	1	0710-0710	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-0	02	1	0710-	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0710-1004			●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0710-1004			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-			●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0710-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0710-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0710-			●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0710-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0710-			●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0710-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0710-			●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0710-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0710-			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0710-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0710-0909			●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-			●	●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0710-0909	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0710-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0710-			●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0710-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0710-			●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0710-			●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0710-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0710-			●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0710-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/9	8-97319-156-0	01	1	0710-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	0710-			●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0710-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0710-			●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0710-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0710-			●	●	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0710-			●	●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-	●	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0710-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0710-			●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0710-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0710-			●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0710-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0710-			●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-1	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-0	01	1	0710-0710	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	0710-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0710-			●	●	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0710-0710	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0710-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0710-1004			●	●	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-			●	●	●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0710-0710	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	0710-	●	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0710-			●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0710-0710	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0710-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0710-			●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0710-0710	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	0710-	●	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0710-	●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0710-			●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0710-			●	●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-			●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0710-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0710-			●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
