Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#38928) — 185 parça

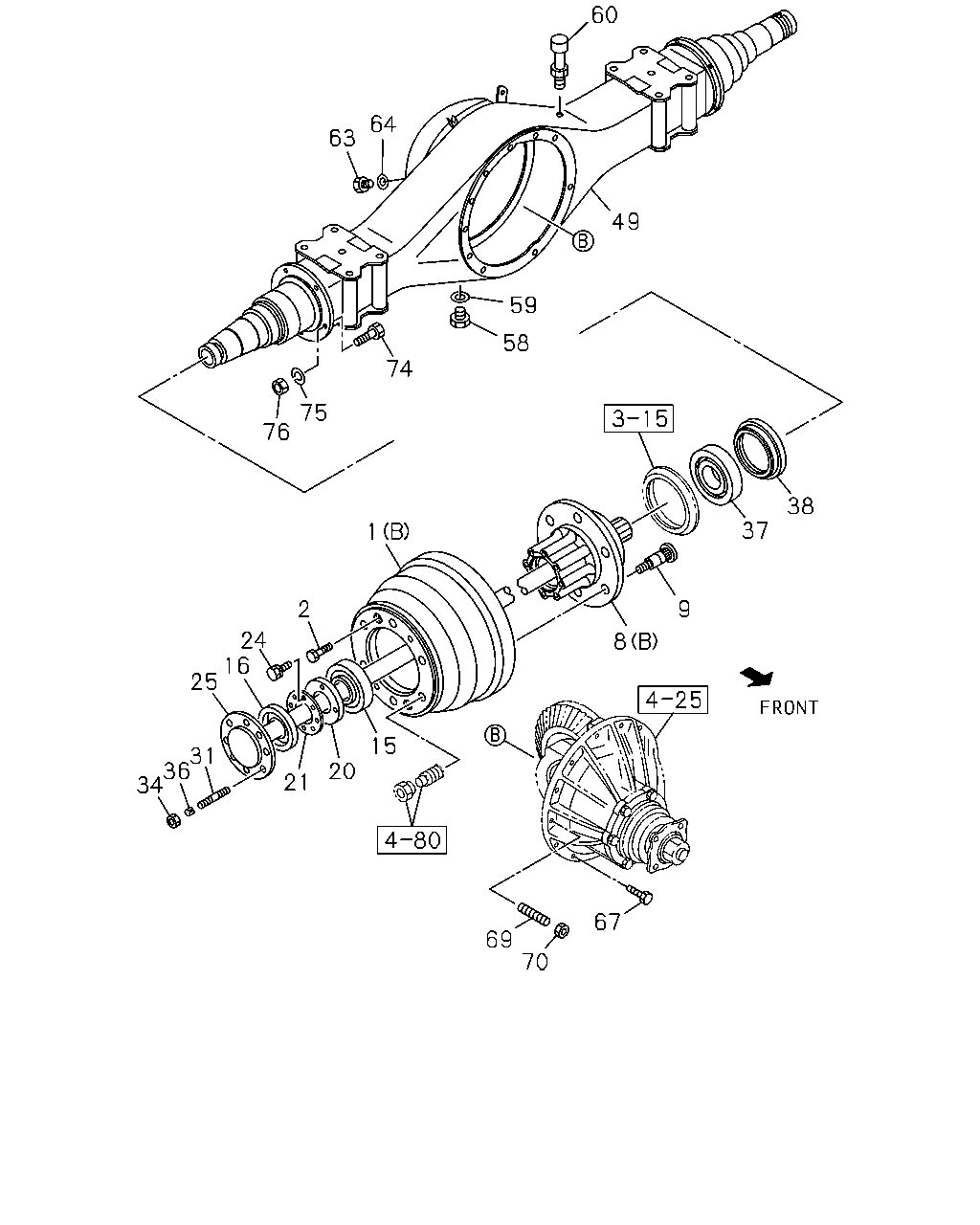

60 64 63 49 59 58 74 75 76 38 37 1 2 9 24 16 25 8 15 31 36 34 20 21 67 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.809 DRUM; BRK,RR (A)	8-97034-770-3	02	1	0710-	●	●
1	05.809 DRUM; BRK,RR G.V.W. 5.5-6.0TON(RPU) (A)	8-97036-367-1	02	1	0710-			●
1	05.809 DRUM; BRK,RR G.V.W. 6.5-7.0TON(RPW) (A)	8-97081-219-2	02	1	0710-			●
1	05.809 DRUM; BRK,RR (A)	8-97081-219-2	02	1	0710-				●
1	05.809 DRUM; BRK,RR G.V.W. 7.5-8.0TON(RPY) (A)	8-97102-001-3	02	1	0710-			●
1	05.809 DRUM; BRK,RR (B)	8-97331-291-4	02	1	0710-					●	●
2	05.812 BOLT; BRK DRUM M8X20	0-20850-820-0	04	1	0710-					●	●
8	05.809 HUB; RR AXLE (A)	8-97034-406-4	02	1	0710-	●	●
8	05.809 HUB; RR AXLE G.V.W. 5.5-6.0TON(RPU) (A)	8-97240-324-0	02	1	0710-			●
8	05.809 HUB; RR AXLE G.V.W. 6.5-7.0TON(RPW) (A)	8-97172-164-0	02	1	0710-			●
8	05.809 HUB; RR AXLE (A)	8-97172-164-0	02	1	0710-				●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	0710-			●
8	05.809 HUB; RR AXLE (B)	8-97207-044-1	02	1	0710-					●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0710-	●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0710-	●	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0710-				●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0710-				●
9	05.812 PIN; WHEEL,RR AXLE RH THREAD M20X67	8-97147-612-2	06	1	0710-					●	●
9	05.812 PIN; WHEEL,RR AXLE LH THREAD M20X67	8-97147-614-2	06	1	0710-					●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0710-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	0710-			●	●
15	05.855 BEARING; HUB OUTER,RR AXLE JTEKT	8-97023-965-1	02	1	0710-					●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	8-97188-223-0	02	1	0710-					●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1204-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1204-			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0710-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0710-1106	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-317-2	02	1	0710-			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-960-1	02	1	0710-1106			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER	8-97023-976-1	02	1	0710-					●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0710-	●	●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	0710-			●	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0710-	●	●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-0	02	1	0710-			●	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0710-	●	●	●	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	0710-	●	●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	0710-			●	●
25	05.420 SHAFT; AXLE,RR L=894.5	8-97350-603-0	02	1	0710-					●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0710-	●	●	●	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0710-	●	●	●	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0710-	●	●	●	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0710-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) NSK	9-00093-624-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-624-0	02	1	0710-				●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE	8-97188-222-0	02	1	0710-					●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0710-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0710-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) TKK	8-94336-316-1	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-316-1	02	1	0710-				●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) NOK	8-94367-958-0	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-958-0	02	1	0710-				●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) NOK	8-97122-937-0	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-97147-681-0	02	1	0710-					●	●
49	05.387 CASE; RR AXLE	8-97331-454-0	01	1	0710-0803					●	●
49	05.387 CASE; RR AXLE	8-98049-681-2	01	1	0804-					●	●
49	05.387 CASE; RR AXLE	8-97321-625-4	01	1	0710-	●	●
49	05.387 CASE; RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97302-439-2	01	1	0710-			●
49	05.387 CASE; RR AXLE	8-97302-439-2	01	1	0710-				●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	0710-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0710-	●	●	●	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0710-	●	●	●	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0710-	●	●	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0710-	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE	8-97359-821-0	01	1	0710-					●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0710-	●	●	●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0710-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	07	1	0710-0909			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50061-050-0	04	1	0710-0909			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-			●	●	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0710-	●	●	●	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0710-	●	●	●	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0710-	●	●		●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M12X32	8-97359-819-0	12	1	0710-			●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14X40	8-98007-879-0	12	1	0710-			●
74	05.002 BOLT; RR BRK ASM SETTING M14X40	8-98007-879-0	12	1	0710-					●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	0710-	●	●		●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 07.347 ID=12.2	0-91510-812-0	12	1	0710-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) 06.174 ID=14.2	0-91510-814-0	12	1	0710-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING 06.174 ID=14.2	0-91510-814-0	12	1	0710-					●	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0710-	●	●		●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M12	0-91110-512-0	12	1	0710-			●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) 07.833 M14	0-91110-514-0	12	1	0710-			●
76	05.002 NUT; RR BRK ASM SETTING 07.833 M14	0-91110-514-0	12	1	0710-					●	●

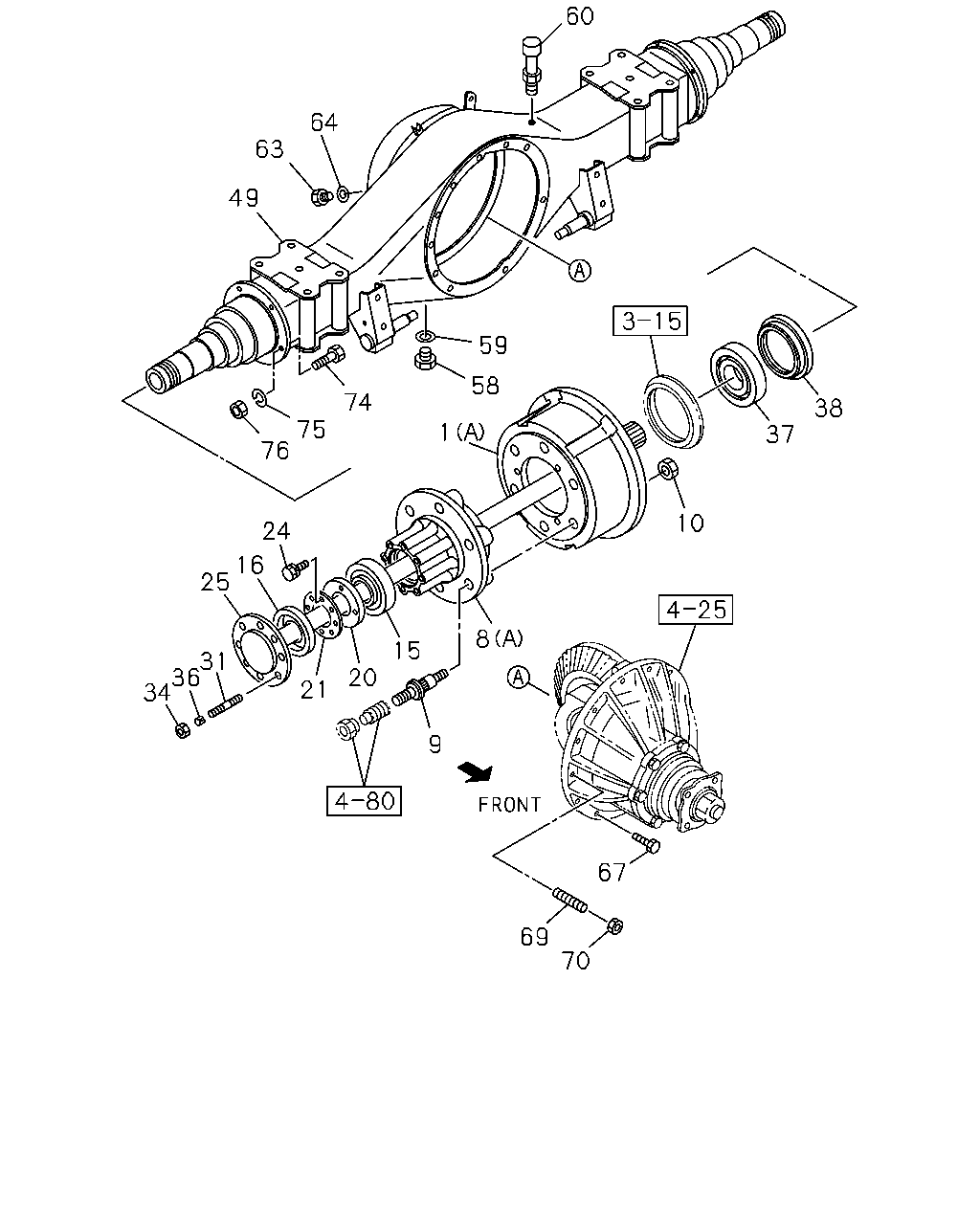

60 64 63 49 59 58 74 38 75 76 1 37 10 24 16 25 8 15 31 36 34 20 21 9 67 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.809 DRUM; BRK,RR (A)	8-97034-770-3	02	1	0710-	●	●
1	05.809 DRUM; BRK,RR G.V.W. 5.5-6.0TON(RPU) (A)	8-97036-367-1	02	1	0710-			●
1	05.809 DRUM; BRK,RR G.V.W. 6.5-7.0TON(RPW) (A)	8-97081-219-2	02	1	0710-			●
1	05.809 DRUM; BRK,RR (A)	8-97081-219-2	02	1	0710-				●
1	05.809 DRUM; BRK,RR G.V.W. 7.5-8.0TON(RPY) (A)	8-97102-001-3	02	1	0710-			●
1	05.809 DRUM; BRK,RR (B)	8-97331-291-4	02	1	0710-					●	●
8	05.809 HUB; RR AXLE (A)	8-97034-406-4	02	1	0710-	●	●
8	05.809 HUB; RR AXLE G.V.W. 5.5-6.0TON(RPU) (A)	8-97240-324-0	02	1	0710-			●
8	05.809 HUB; RR AXLE G.V.W. 6.5-7.0TON(RPW) (A)	8-97172-164-0	02	1	0710-			●
8	05.809 HUB; RR AXLE (A)	8-97172-164-0	02	1	0710-				●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	0710-			●
8	05.809 HUB; RR AXLE (B)	8-97207-044-1	02	1	0710-					●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0710-	●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0710-	●	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU) M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.5-6.0TON(RPU) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-3	06	1	0710-				●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0710-			●
9	05.812 PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-3	06	1	0710-				●
9	05.812 PIN; WHEEL,RR AXLE RH THREAD M20X67	8-97147-612-2	06	1	0710-					●	●
9	05.812 PIN; WHEEL,RR AXLE LH THREAD M20X67	8-97147-614-2	06	1	0710-					●	●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	0710-	●	●
10	05.813 NUT; WHEEL PIN,RR AXLE G.V.W. 5.5-6.0TON(RPU) 05.812 M20	0-91110-520-0	10	1	0710-			●
10	05.813 NUT; WHEEL PIN,RR AXLE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 07.172 M22	0-91110-522-0	12	1	0710-			●
10	05.813 NUT; WHEEL PIN,RR AXLE 07.172 M22	0-91110-522-0	12	1	0710-				●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0710-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	0710-			●	●
15	05.855 BEARING; HUB OUTER,RR AXLE JTEKT	8-97023-965-1	02	1	0710-					●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	8-97188-223-0	02	1	0710-					●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1204-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1204-			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0710-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0710-1106	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-317-2	02	1	0710-			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-960-1	02	1	0710-1106			●	●
16	05.822 SEAL; OIL,RR HUB,OUTER	8-97023-976-1	02	1	0710-					●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0710-	●	●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	0710-			●	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0710-	●	●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-0	02	1	0710-			●	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0710-	●	●	●	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	0710-	●	●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	0710-			●	●
25	05.420 SHAFT; AXLE,RR L=894.5	8-97350-603-0	02	1	0710-					●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0710-	●	●	●	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0710-	●	●	●	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0710-	●	●	●	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0710-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) NSK	9-00093-624-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-624-0	02	1	0710-				●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	0710-			●
37	05.855 BEARING; HUB INNER,RR AXLE	8-97188-222-0	02	1	0710-					●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0710-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0710-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) TKK	8-94336-316-1	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-316-1	02	1	0710-				●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) NOK	8-94367-958-0	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-958-0	02	1	0710-				●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) NOK	8-97122-937-0	02	1	0710-			●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-97147-681-0	02	1	0710-					●	●
49	05.387 CASE; RR AXLE	8-97331-454-0	01	1	0710-0803					●	●
49	05.387 CASE; RR AXLE	8-98049-681-2	01	1	0804-					●	●
49	05.387 CASE; RR AXLE	8-97321-625-4	01	1	0710-	●	●
49	05.387 CASE; RR AXLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97302-439-2	01	1	0710-			●
49	05.387 CASE; RR AXLE	8-97302-439-2	01	1	0710-				●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	0710-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0710-	●	●	●	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0710-	●	●	●	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0710-	●	●	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0710-	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE	8-97359-821-0	01	1	0710-					●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0710-	●	●	●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0710-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	07	1	0710-0909			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50061-050-0	04	1	0710-0909			●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	0910-			●	●	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0710-	●	●	●	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0710-	●	●	●	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0710-	●	●		●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M12X32	8-97359-819-0	12	1	0710-			●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14X40	8-98007-879-0	12	1	0710-			●
74	05.002 BOLT; RR BRK ASM SETTING M14X40	8-98007-879-0	12	1	0710-					●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	0710-	●	●		●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 07.347 ID=12.2	0-91510-812-0	12	1	0710-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) 06.174 ID=14.2	0-91510-814-0	12	1	0710-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING 06.174 ID=14.2	0-91510-814-0	12	1	0710-					●	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0710-	●	●		●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M12	0-91110-512-0	12	1	0710-			●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) 07.833 M14	0-91110-514-0	12	1	0710-			●
76	05.002 NUT; RR BRK ASM SETTING 07.833 M14	0-91110-514-0	12	1	0710-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
