Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#38925) — 266 parça

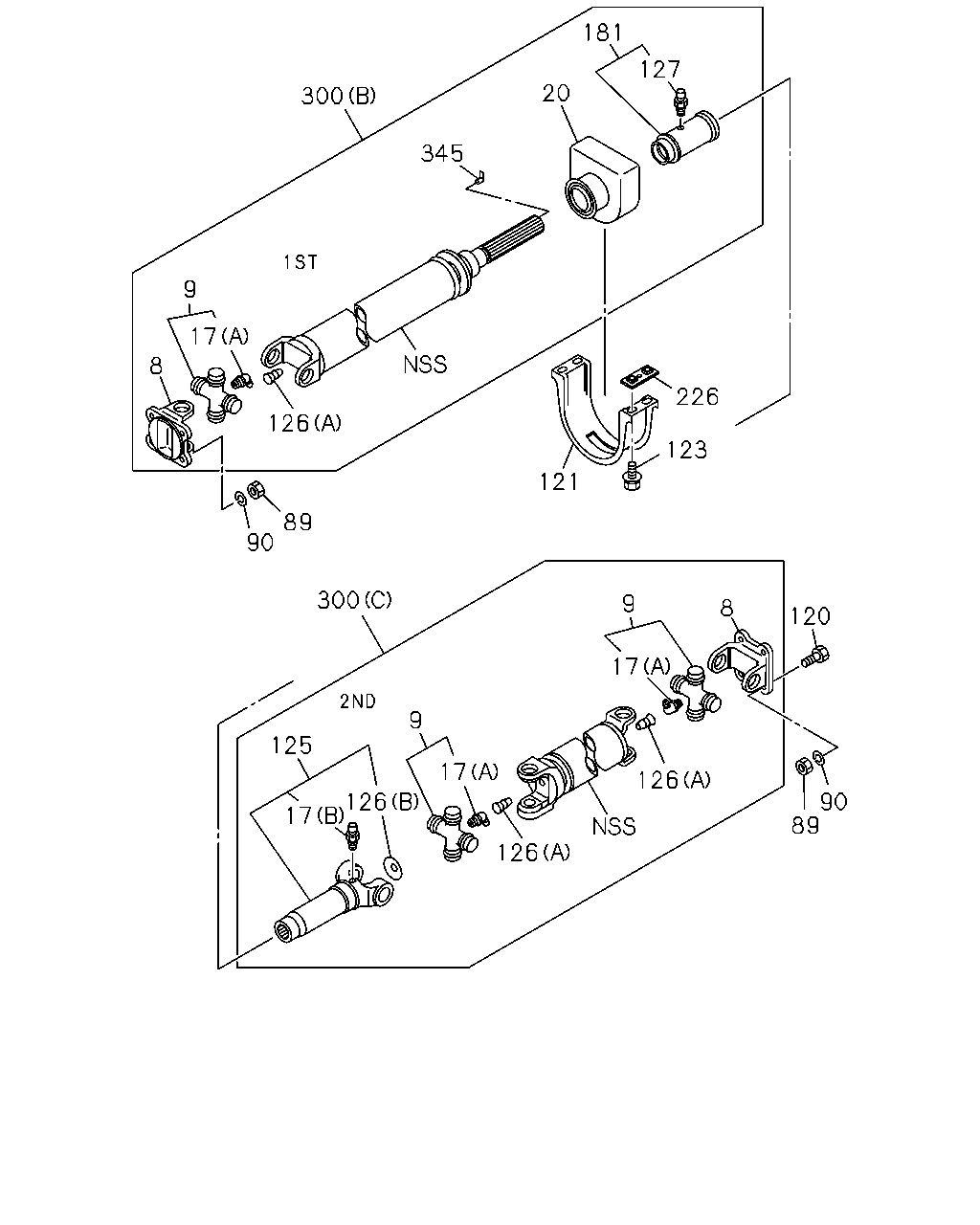

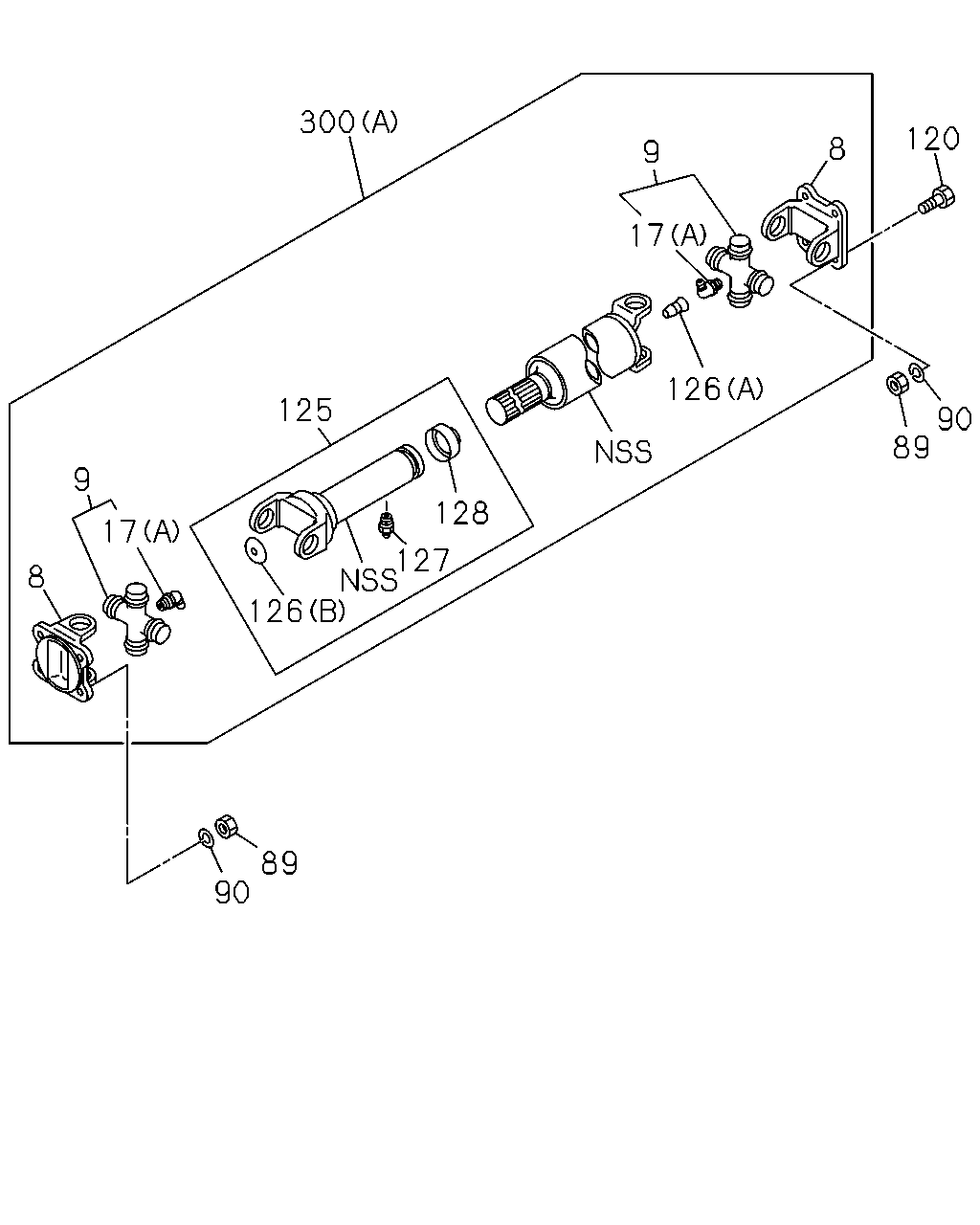

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97322-663-0	02	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	8-97322-663-0	01	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0710-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) D=80	1-37211-037-4	01	1	0710-			●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0710-				●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0710-			●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	02	1	0710-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-0	01	1	0710-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	01	1	0710-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-789-1	01	1	0710-			●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0710-				●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0710-			●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0710-	●	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-		●		●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0710-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12	8-97365-450-0	12	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0710-				●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0710-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 07.347 ID=12.2	0-91510-812-0	12	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0710-				●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0710-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12X35	8-97365-451-0	08	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0710-				●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-1	01	1	0710-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0710-			●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	0710-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	0710-		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 2700MM(27W) (A)	1-09600-023-0	01	1	0710-	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	01	1	0710-			●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-				●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0710-	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	0710-	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0710-			●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-3	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1066	8-97387-806-3	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1124	8-97387-792-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1076	8-98024-889-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1027	8-98024-890-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=672	8-98024-897-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=747	8-98024-904-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (C) L=1252	8-98063-805-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (C) L=1252	8-98063-805-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1021	8-98040-826-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=972	8-98040-827-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=555	8-98024-909-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=630	8-98024-913-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (C) L=1302	8-98024-925-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-						●

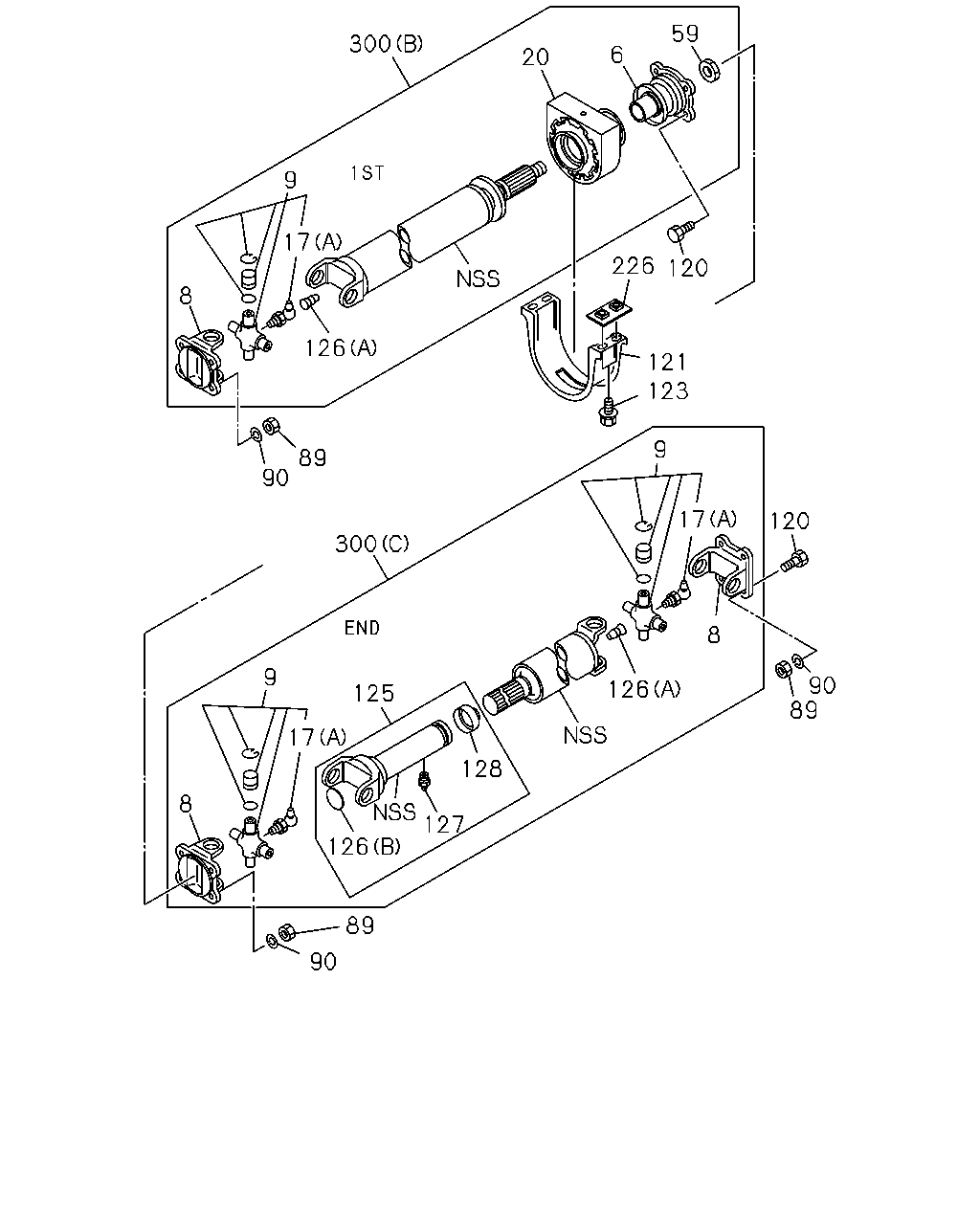

59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 17 120 300 8 9 90 89 126 125 17 128 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-796-0	01	1	0710-			●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	0710-				●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97322-663-0	02	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	8-97322-663-0	01	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0710-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) D=80	1-37211-037-4	01	1	0710-			●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0710-				●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0710-			●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	02	1	0710-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-0	01	1	0710-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	01	1	0710-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-789-1	01	1	0710-			●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0710-				●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0710-			●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0710-	●	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-		●		●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	0710-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	0710-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-880-0	01	1	0710-			●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0710-				●	●	●
59	05.586 NUT; RET TO SUPPORT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M30	8-97160-857-0	01	1	0710-			●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0710-				●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0710-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12	8-97365-450-0	12	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0710-				●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0710-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 07.347 ID=12.2	0-91510-812-0	12	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0710-				●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0710-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12X35	8-97365-451-0	08	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0710-				●	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97035-623-1	01	1	0710-	●		●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0710-		●		●	●	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0710-	●		●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0710-		●		●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-1	01	1	0710-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0710-			●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	0710-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	0710-		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 2700MM(27W) (A)	1-09600-023-0	01	1	0710-	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	01	1	0710-			●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-				●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0710-	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	0710-	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0710-			●	●	●	●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97371-572-0	02	1	0710-	●		●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0710-		●		●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-3	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1066	8-97387-806-3	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1124	8-97387-792-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1076	8-98024-889-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1027	8-98024-890-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=672	8-98024-897-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=747	8-98024-904-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (C) L=1252	8-98063-805-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (C) L=1252	8-98063-805-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1021	8-98040-826-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=972	8-98040-827-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=555	8-98024-909-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=630	8-98024-913-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (C) L=1302	8-98024-925-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-						●

181 127 20 300 345 9 17 8 226 126 123 121 89 90 300 9 8 120 17 9 125 17 126 126 17 90 89 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97322-663-0	02	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	8-97322-663-0	01	1	0710-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0710-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) D=80	1-37211-037-4	01	1	0710-			●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0710-				●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0710-			●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	02	1	0710-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-0	01	1	0710-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	01	1	0710-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-789-1	01	1	0710-			●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0710-				●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0710-			●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0710-	●	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0710-		●		●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0710-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	0710-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	0710-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-98020-880-0	01	1	0710-			●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0710-				●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0710-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12	8-97365-450-0	12	1	0710-			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0710-				●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0710-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 07.347 ID=12.2	0-91510-812-0	12	1	0710-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0710-				●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0710-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12X35	8-97365-451-0	08	1	0710-			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0710-				●	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97035-623-1	01	1	0710-	●		●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0710-		●		●	●	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0710-	●		●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0710-		●		●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-1	01	1	0710-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-1	01	1	0710-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0710-			●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	0710-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	0710-		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-	●	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 2700MM(27W) (A)	1-09600-023-0	01	1	0710-	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	01	1	0710-			●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0710-				●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0710-	●	●	●	●	●	●
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	0710-	●
181	05.586 COVER; BRG,PROP SHAFT	8-98046-526-0	01	1	0710-		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97371-572-0	02	1	0710-	●		●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0710-		●		●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-3	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1066	8-97387-806-3	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1124	8-97387-792-2	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-0	01	1	0710-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1076	8-98024-889-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1027	8-98024-890-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=672	8-98024-897-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=747	8-98024-904-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (C) L=1252	8-98063-805-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (C) L=1252	8-98063-805-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1021	8-98040-826-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=972	8-98040-827-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=555	8-98024-909-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=630	8-98024-913-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=995	8-98024-911-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0710-					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) (C) L=1302	8-98024-925-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0710-						●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-				●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0710-						●
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	0710-	●
345	05.600 PLUG; PROP SHAFT	8-98042-692-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
