◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#38924) — 1244 parça

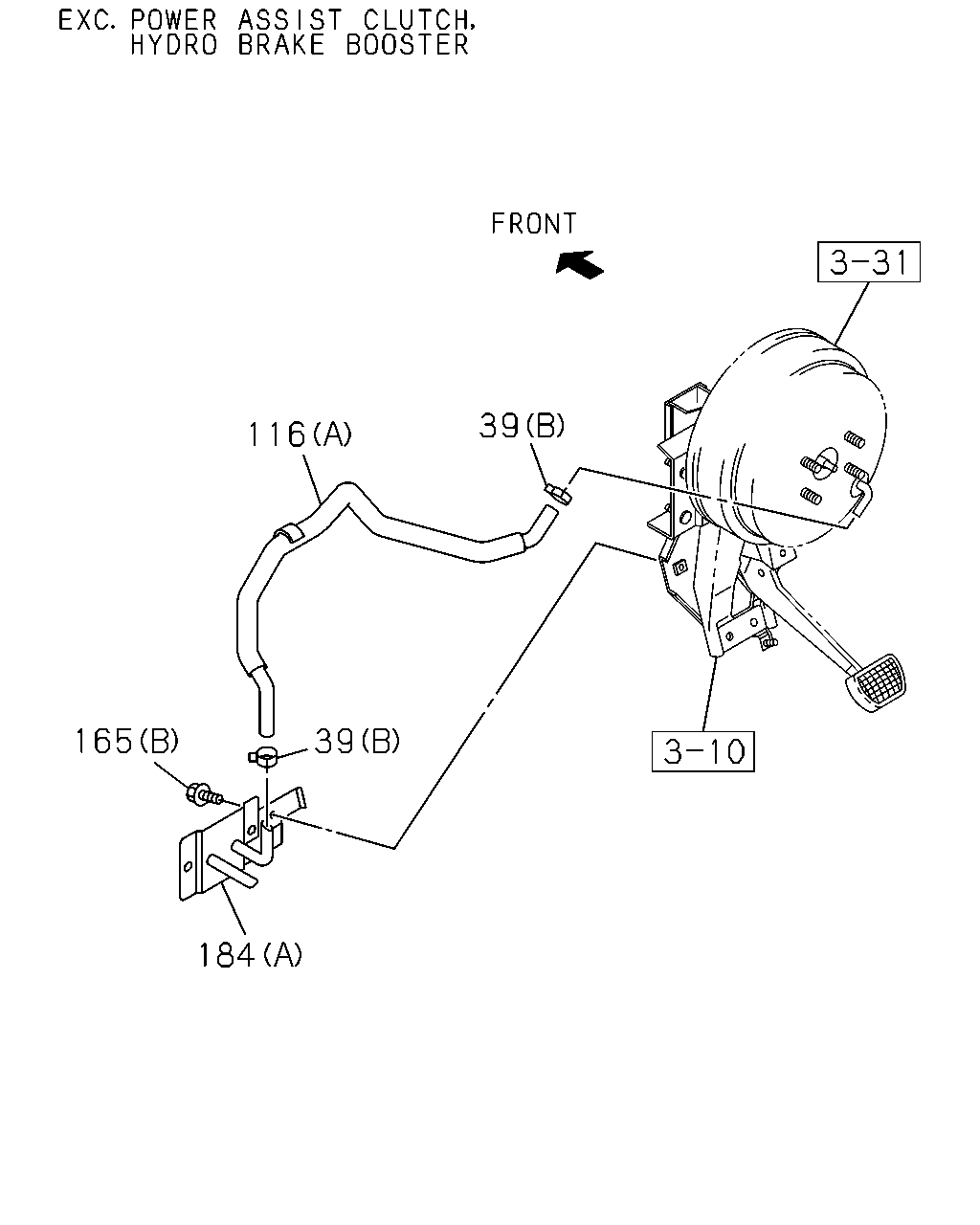

çizim 35368
39 116 165 39 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●

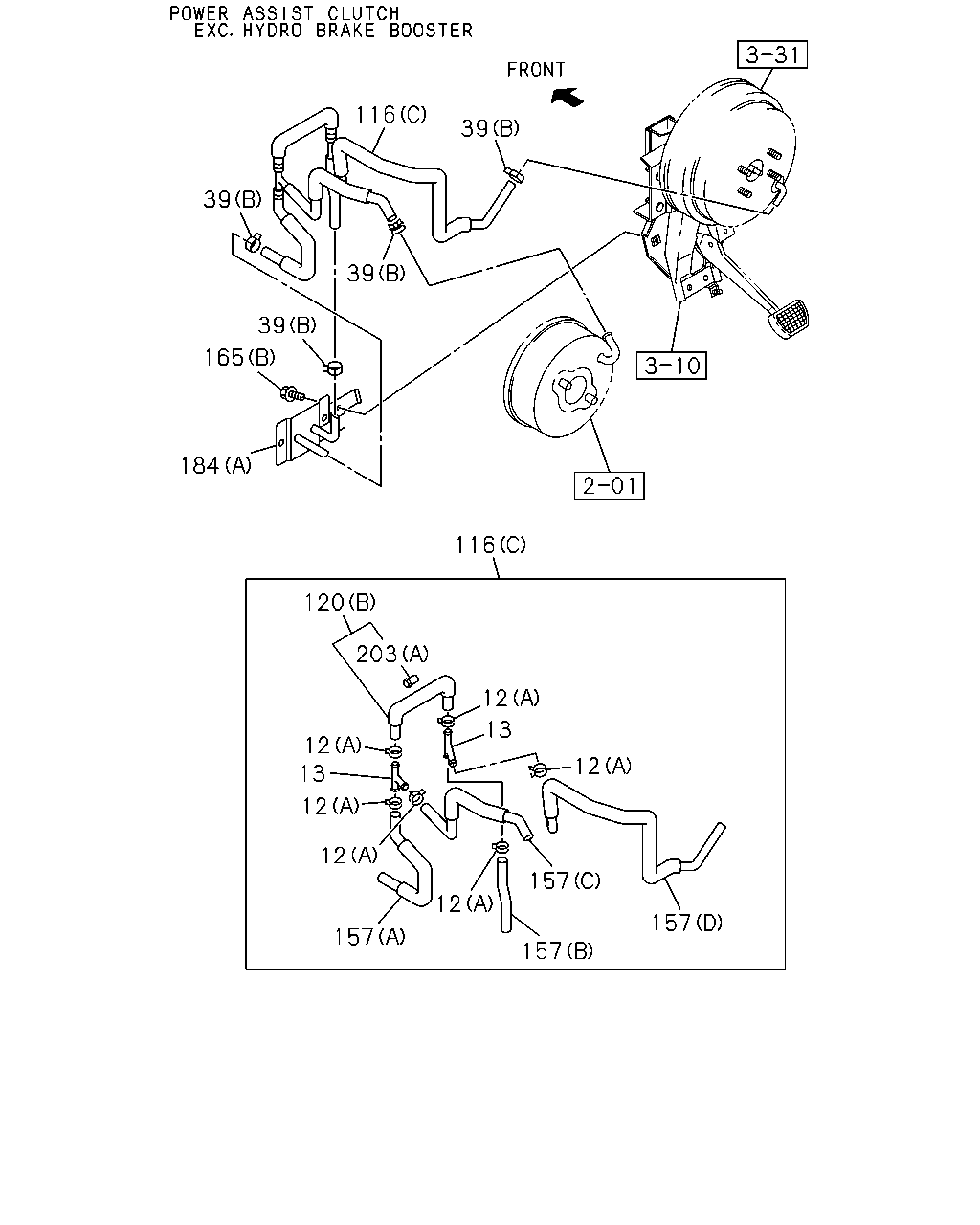

çizim 35370
116 39 39 39 39 165 184 116 120 203 12 13 12 13 12 12 12 157 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ●

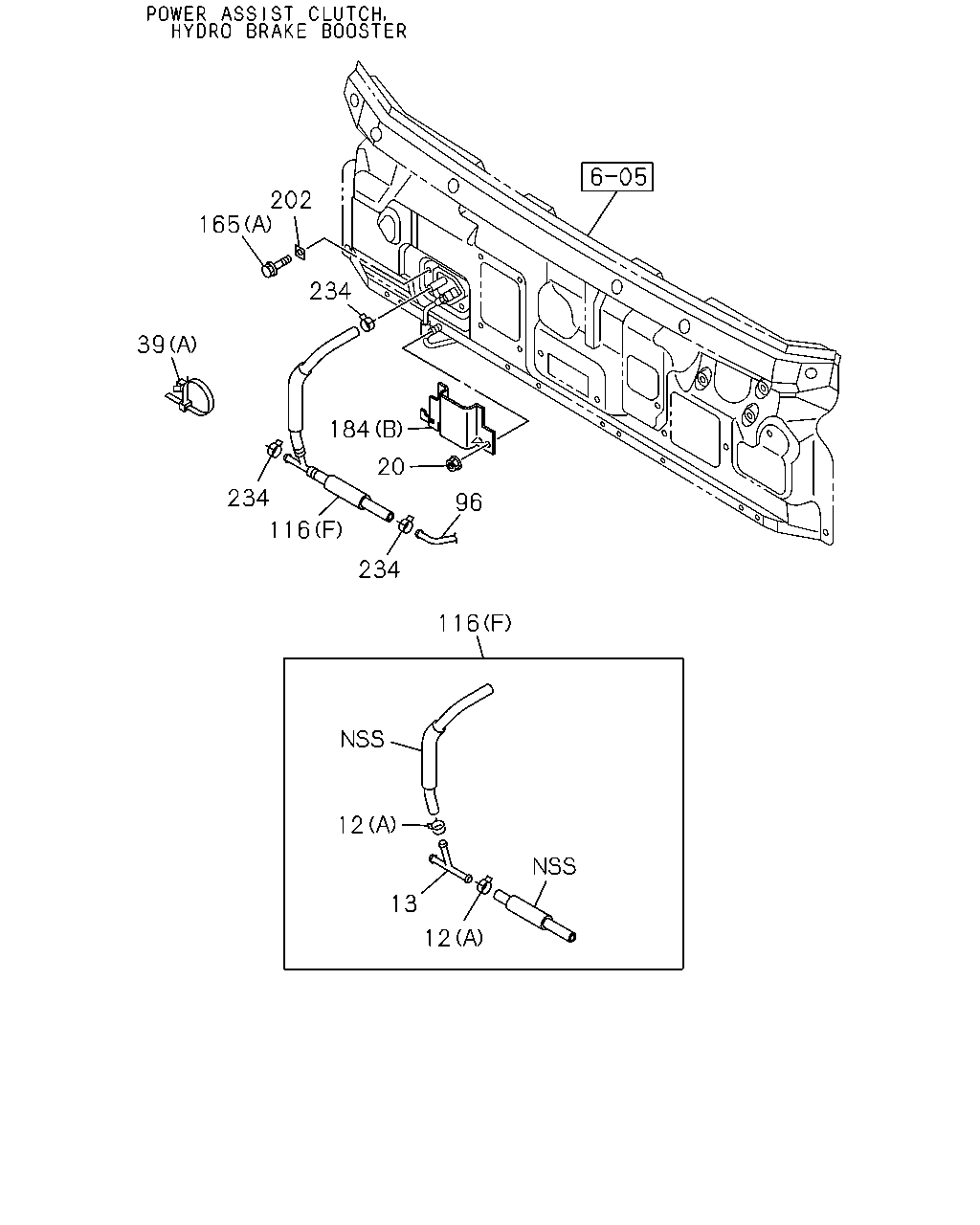

çizim 35371
202 165 234 39 184 20 234 96 116 234 116 12 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ●

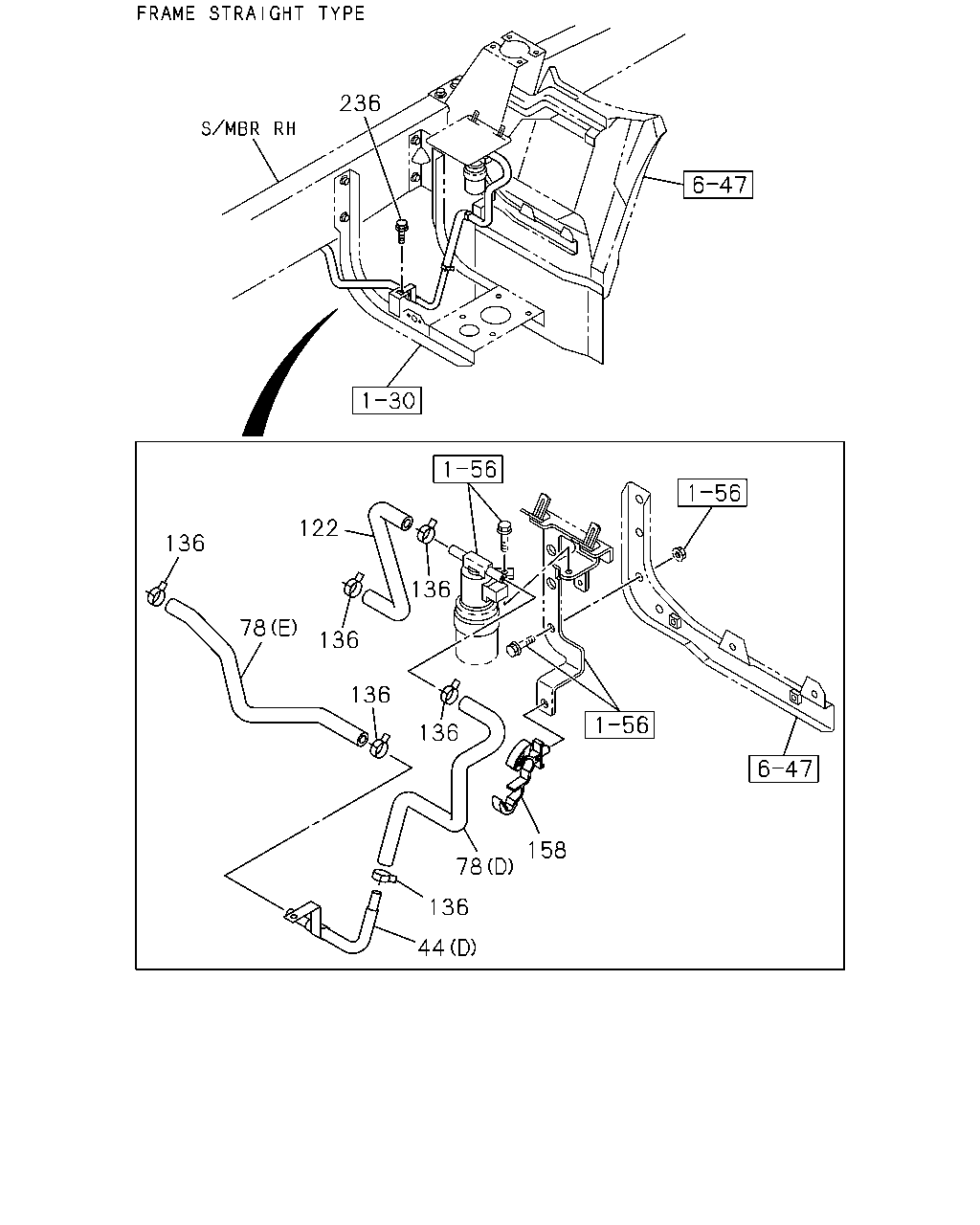

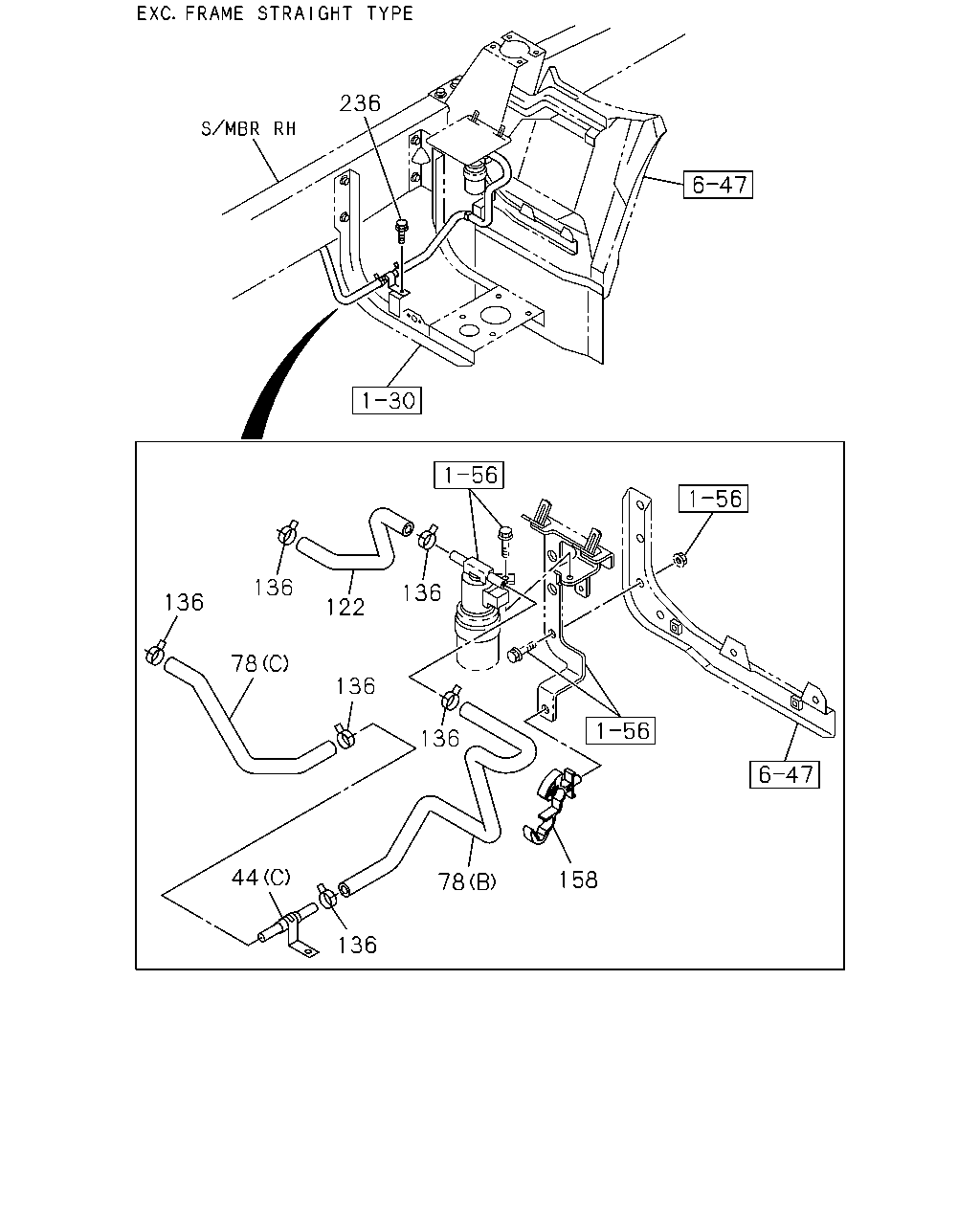

çizim 35431
236 122 136 136 78 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98034-374-0 01 1 0710-0710 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98089-666-0 01 1 0711- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 0710- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98034-281-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98040-634-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1104- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1104- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0710-0911 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0710-0911 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0710- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710- ● ●

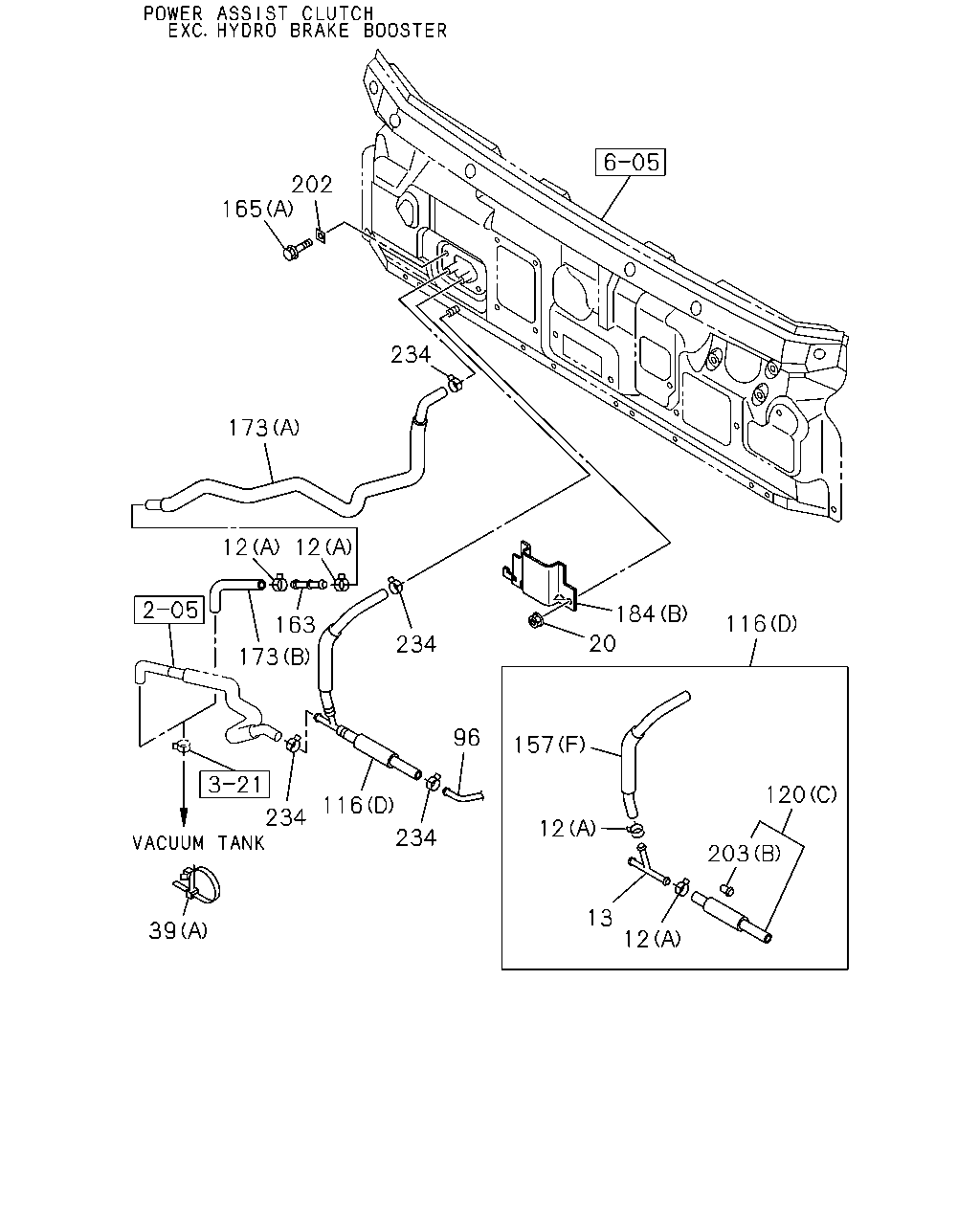

çizim 35459
202 165 234 173 12 12 184 116 163 20 234 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 0710- ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163 		8-97353-668-0 01 1 0710- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98055-936-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-937-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98022-870-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1101- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ●

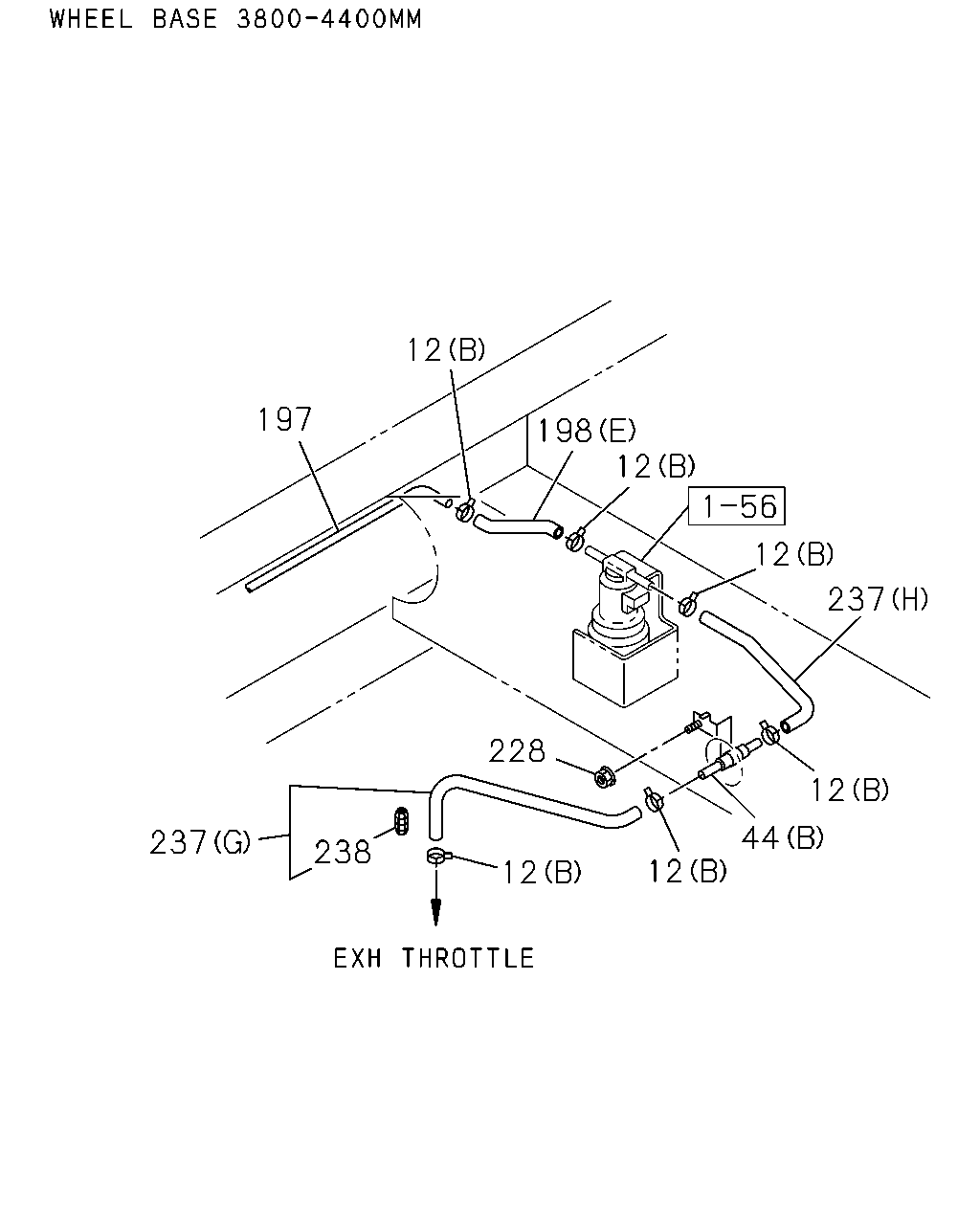

çizim 35547
12 197 198 12 12 237 228 12 44 12 237 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98034-374-0 01 1 0710-0710 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98089-666-0 01 1 0711- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 0710- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98034-281-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98040-634-0 01 1 0710- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 0710- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98040-481-1 01 1 0710-0903 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98040-482-1 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98133-641-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98079-539-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-97373-197-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (C) 		8-98035-890-2 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
228 04.930 NUT; PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
228 04.930 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (B) 		8-98034-429-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98035-889-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (E) 		8-98035-891-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (F) 		8-97378-772-0 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-98171-279-0 01 1 1009- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(C) 		8-98171-279-0 01 1 1009- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ● ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 0710- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ●
çizim 35548
96 116 78 169 75 66 66 66 66 169 66 66 116 116 33 66 116 169 66 235 108 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0710- ● ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0710- ● ● ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0710- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98041-054-3 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0710- ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0710- ● ● ● ● ● ●
çizim 35549
106 12 237 12 197 12 198 12 44 236 12 238 106 12 237 12 127 127 12 12 197 128 198 128 12 12 12 237 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98034-374-0 01 1 0710-0710 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98089-666-0 01 1 0711- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 0710- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98034-281-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98040-634-0 01 1 0710- ● ●
106 04.930 CLIP; PIPE
WHEEL BASE 2700MM(27W) ID=10 H=40 		8-94462-219-0 02 1 0710-0710 ●
106 04.930 CLIP; PIPE
WHEEL BASE 2700MM(27W) ID=10 H=40 		8-94462-219-0 01 1 0711- ●
127 04.930 BOLT; CLIP
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
127 04.930 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
128 04.930 NUT; CLIP
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
128 04.930 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 0710- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98040-481-1 01 1 0710-0903 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98040-482-1 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98133-641-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98079-539-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-97373-197-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (C) 		8-98035-890-2 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (B) 		8-98034-429-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98035-889-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (E) 		8-98035-891-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (F) 		8-97378-772-0 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-98171-279-0 01 1 1009- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(C) 		8-98171-279-0 01 1 1009- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ● ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 0710- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ●
çizim 35550
236 136 136 136 122 78 136 136 44 158 78 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98034-374-0 01 1 0710-0710 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-98089-666-0 01 1 0711- ●
44 04.930 PIPE; VAC,MAG VLV
(C) 		8-98063-777-0 01 1 0710- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98034-281-1 01 1 0710- ● ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98040-634-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1104- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0710- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0710-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1104- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0710-0911 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0710-0911 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0710- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ● ● ●
236 04.930 BOLT; PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0711- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0710- ● ●
çizim 35551
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0710- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0710- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0710- ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ● ● ● ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712- ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0710- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0710- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0710- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0710- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98055-936-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-937-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98022-870-1 01 1 0710-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1101- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710- ● ● ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0710- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710- ● ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0710- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0802- ● ● ●
çizim 35552
78 39 39 39 39 78 39 80 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98058-595-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) 		8-98051-652-0 01 1 0811- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) 		8-98135-521-0 01 1 0811- ● ●
çizim 35553
116 169 75 66 66 116 66 66 169 116 66 66 66 116 169 66 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-054-3 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98041-054-3 01 1 0710- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98040-479-3 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0710- ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0710- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0710- ● ● ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0710- ● ● ● ● ● ●
çizim 35555
237 12 12 198 12 30 12 12 238 237 12 197 197 12 198 237 12 12 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0710- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W) 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0911 ● ● ● ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ● ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0911 ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
30 04.686 BOLT; CLIP,VAC PIPE
WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98034-371-1 01 1 0710- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98034-372-1 01 1 0710-0801 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98083-557-0 01 1 0802- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98040-481-1 01 1 0710-0903 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98040-482-1 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 		8-98133-641-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98080-337-0 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 		8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-643-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98040-483-2 01 1 0710-0903 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-642-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) 		8-98079-539-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (A) 		8-97373-197-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
(B) 		8-98041-642-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W) (C) 		8-98035-890-2 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 03.630 (E) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=400 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (E) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) 03.630 (A) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (B) 		8-98034-429-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98097-542-0 01 1 0710-0710 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-98101-554-0 01 1 0711- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (D) 		8-98035-889-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) (E) 		8-98035-891-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (F) 		8-97378-772-0 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(H) 		8-98040-785-1 01 1 0710- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4100MM(41W) (G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(G) 		8-97378-771-0 01 1 0710- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98034-430-0 01 1 0710-1008 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (C) 		8-98171-279-0 01 1 1009- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(C) 		8-98171-279-0 01 1 1009- ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ● ● ● ● ●
238 04.892 ORIFICE; VACUUM HOSE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-97377-521-0 01 1 0710- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0710- ● ●
çizim 35583
78 108 80 39 39 80 98 116 85 66 116 96 39 39 78 66 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0911 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 06 1 0710-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98058-595-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) 		8-98051-652-0 01 1 0811- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) 		8-98135-521-0 01 1 0811- ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 0710-0810 ● ●
85 04.931 HOSE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-97389-705-2 01 1 0811- ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 		8-98135-573-0 01 1 0811- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0710- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0710- ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710- ● ● ● ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0710- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
çizim 99824
116 39 39 165 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0710- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ●
116 04.931 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (I) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(J) 		8-98034-276-2 01 1 0710-0911 ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(H) 		8-98158-378-0 01 1 0912- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ● ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712- ● ● ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-1102 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98183-462-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0710-1102 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98041-992-2 01 1 0710-1102 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98183-470-1 01 1 1103-1103 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98193-144-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98193-144-0 01 1 1104- ● ●
çizim 99875
78 39 39 80 39 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
06.672 (D) ID=21 		8-94242-034-0 02 1 0710-0711 ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0712- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0808 ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0809- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0710-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 08 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98063-820-0 01 1 0710-0711 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98106-711-0 01 1 0712- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=100 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0801 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0802- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98041-427-3 01 1 0710-0808 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98041-427-3 01 1 0710-0808 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98129-223-0 01 1 0809-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98129-223-0 01 1 0809-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (H) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(H) 		8-98136-613-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98082-309-1 01 1 0710-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0904- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98092-678-0 01 1 0710-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-712-2 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98080-833-1 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (G) 		8-97386-589-0 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.686 (G) 		8-97386-589-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-97389-728-2 01 1 0710- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (J) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0710- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0710-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-103-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (I) 		8-98096-135-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98058-595-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 0710-0810 ● ●
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) 		8-98051-652-0 01 1 0811- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98046-881-0 01 1 0710-1106 ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98171-600-0 01 1 1107- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
(E) 		8-98097-788-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (D) 		8-97386-605-0 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
04.685 (D) 		8-97386-605-0 01 1 0710- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(F) 		8-98092-258-1 01 1 0710- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) 		8-98135-521-0 01 1 0811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
