3-55 — BRAKE PIPING; OIL,REAR
(#38922) — 57 parça
Tümü
A - NPR5SE
B - NPR5WE
C - NPR5SN
D - NPR5SS
E - NPR5WN
F - NPR5WS
◀
[355A] EXC.FRAME STRAIGHT TYPE (15 parça)
[355A] ALL MODEL (7 parça)
[355A] FRAME STRAIGHT TYPE (17 parça)
[355A] HYDRO BRAKE BOOSTER(N0.1) (11 parça)
[355A] HYDRO BRAKE BOOSTER(N0.2) (7 parça)
▶

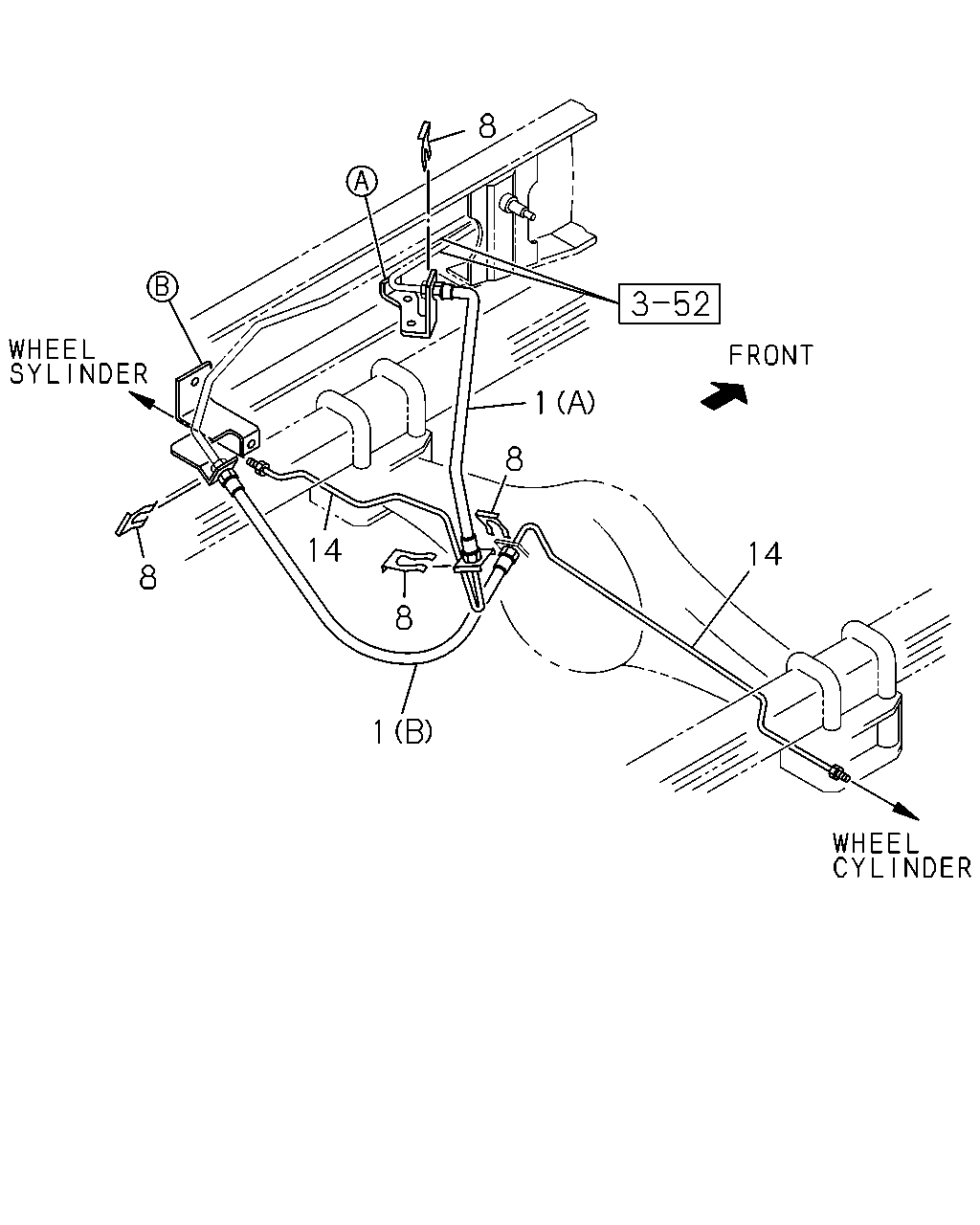

8
1
8
14
14
8
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.680 HOSE; FLEX,RR BRK
(A) L=310
8-97035-063-1
01
1
0710-
●
●
1
04.680 HOSE; FLEX,RR BRK
(B) L=345
8-97230-284-1
01
1
0710-
●
●
1
04.680 HOSE; FLEX,RR BRK
(C)
8-97253-569-0
01
1
0710-
●
●
●
●
1
04.680 HOSE; FLEX,RR BRK
(C)
8-97253-570-0
01
1
0710-
●
●
●
●
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
0710-
●
●
●
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98026-038-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98089-413-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98006-755-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98006-757-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
8-97359-748-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
8-97359-749-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
8-97359-746-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-746-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
8-97359-747-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-747-0
01
1
0710-
●
3
3
25
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
04.681 BRACKET; FLEX HOSE,RR BRK
(B)
8-98030-103-0
01
1
0710-0903
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
(D)
8-98117-514-1
01
1
0904-
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (A)
8-97205-199-1
01
1
0710-
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
(C)
8-97205-714-1
01
1
0710-
●
●
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
(C)
8-97205-714-1
01
1
0710-
●
●
●
●
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
0710-
●
●
●
●
●
●
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
0710-
●
●
●
●
●
●

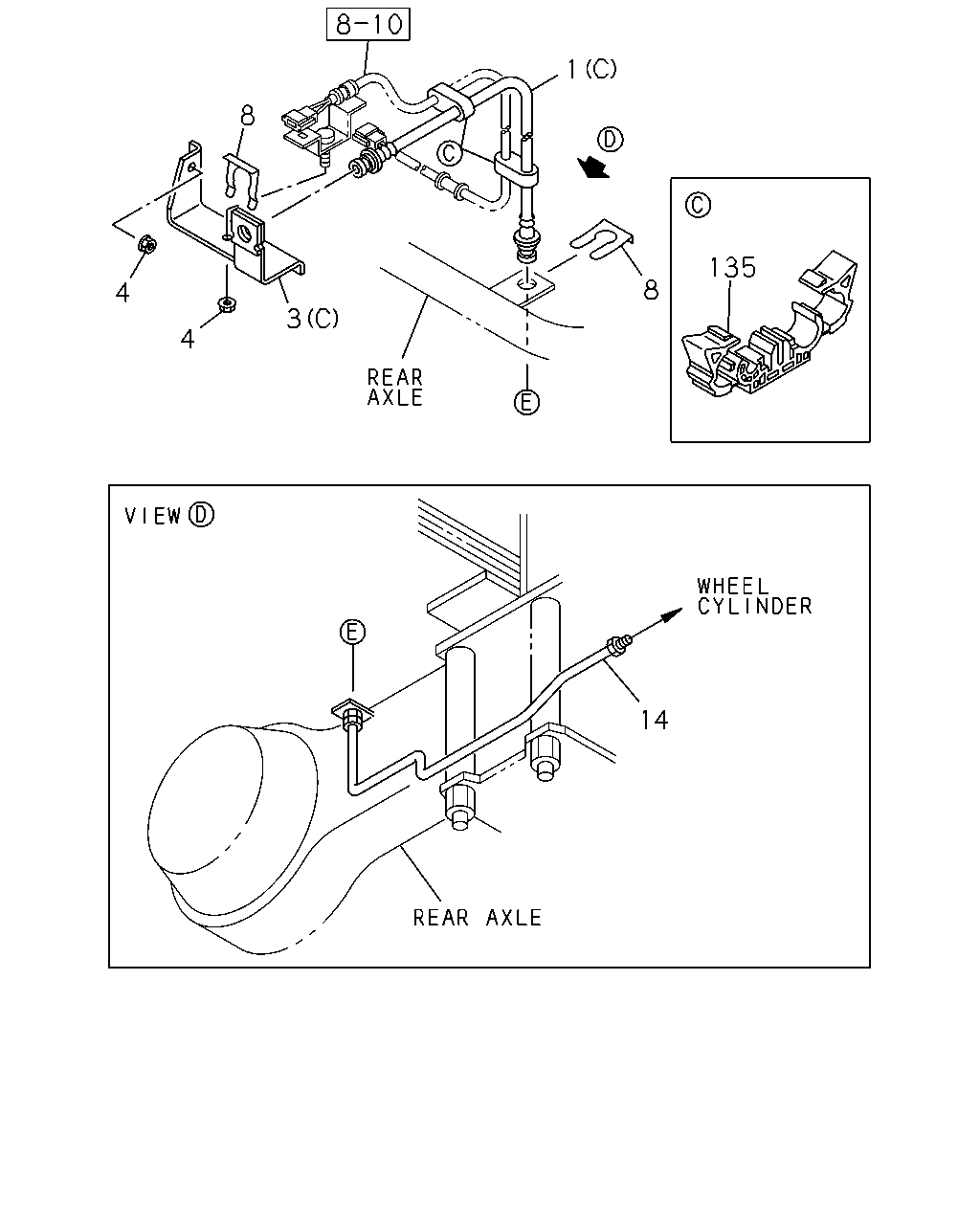

1
8
135
8
4
4
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.680 HOSE; FLEX,RR BRK
(A) L=310
8-97035-063-1
01
1
0710-
●
●
1
04.680 HOSE; FLEX,RR BRK
(B) L=345
8-97230-284-1
01
1
0710-
●
●
1
04.680 HOSE; FLEX,RR BRK
(C)
8-97253-569-0
01
1
0710-
●
●
●
●
1
04.680 HOSE; FLEX,RR BRK
(C)
8-97253-570-0
01
1
0710-
●
●
●
●
4
04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
●
●
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
0710-
●
●
●
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98026-038-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98089-413-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98006-755-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98006-757-0
01
1
0710-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
8-97359-748-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
8-97359-749-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
8-97359-746-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-746-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
8-97359-747-0
01
1
0710-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-747-0
01
1
0710-
●
135
04.686 CLIP; FLEX HOSE
8-97207-699-0
04
1
0710-
●
●
●
●

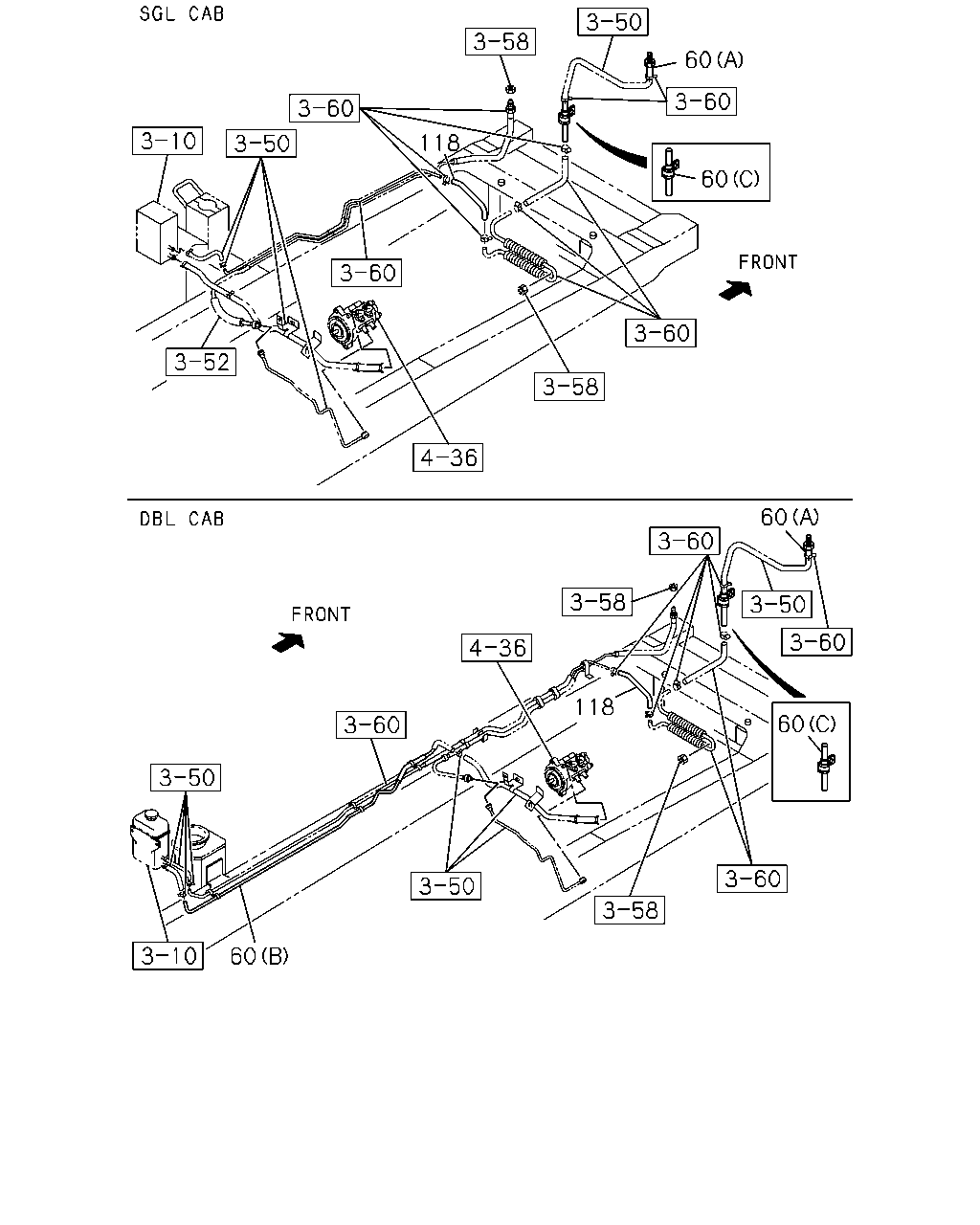

60
118
60
60
118
60
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D)
8-98041-326-1
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(D)
8-98041-326-1
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A)
8-98080-549-0
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(A)
8-98080-549-0
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C)
8-98088-313-1
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(C)
8-98088-313-1
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
(B)
8-98092-259-1
01
1
0710-
●
118
04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ)
8-97181-217-2
01
1
0710-1001
●
118
04.680 HOSE; PIPE TO PIPE
8-97181-217-2
01
1
0710-1001
●
●
118
04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ)
8-98158-200-0
01
1
1002-
●
118
04.680 HOSE; PIPE TO PIPE
8-98158-200-0
01
1
1002-
●
●

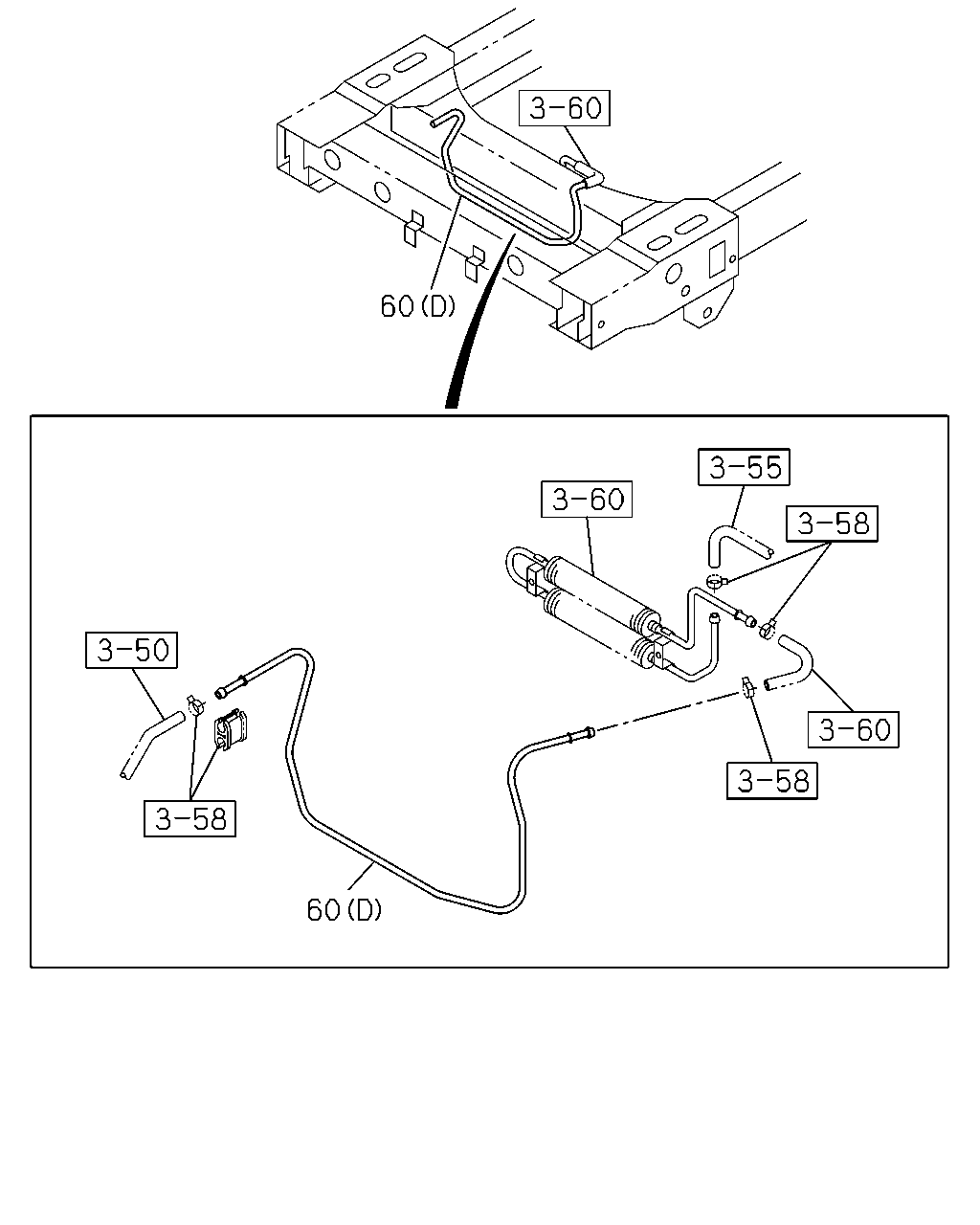

60
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D)
8-98041-326-1
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(D)
8-98041-326-1
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A)
8-98080-549-0
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(A)
8-98080-549-0
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C)
8-98088-313-1
01
1
0710-
●
60
04.685 PIPE ASM; BRK
(C)
8-98088-313-1
01
1
0710-
●
●
60
04.685 PIPE ASM; BRK
(B)
8-98092-259-1
01
1
0710-
●
