◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#38921) — 86 parça

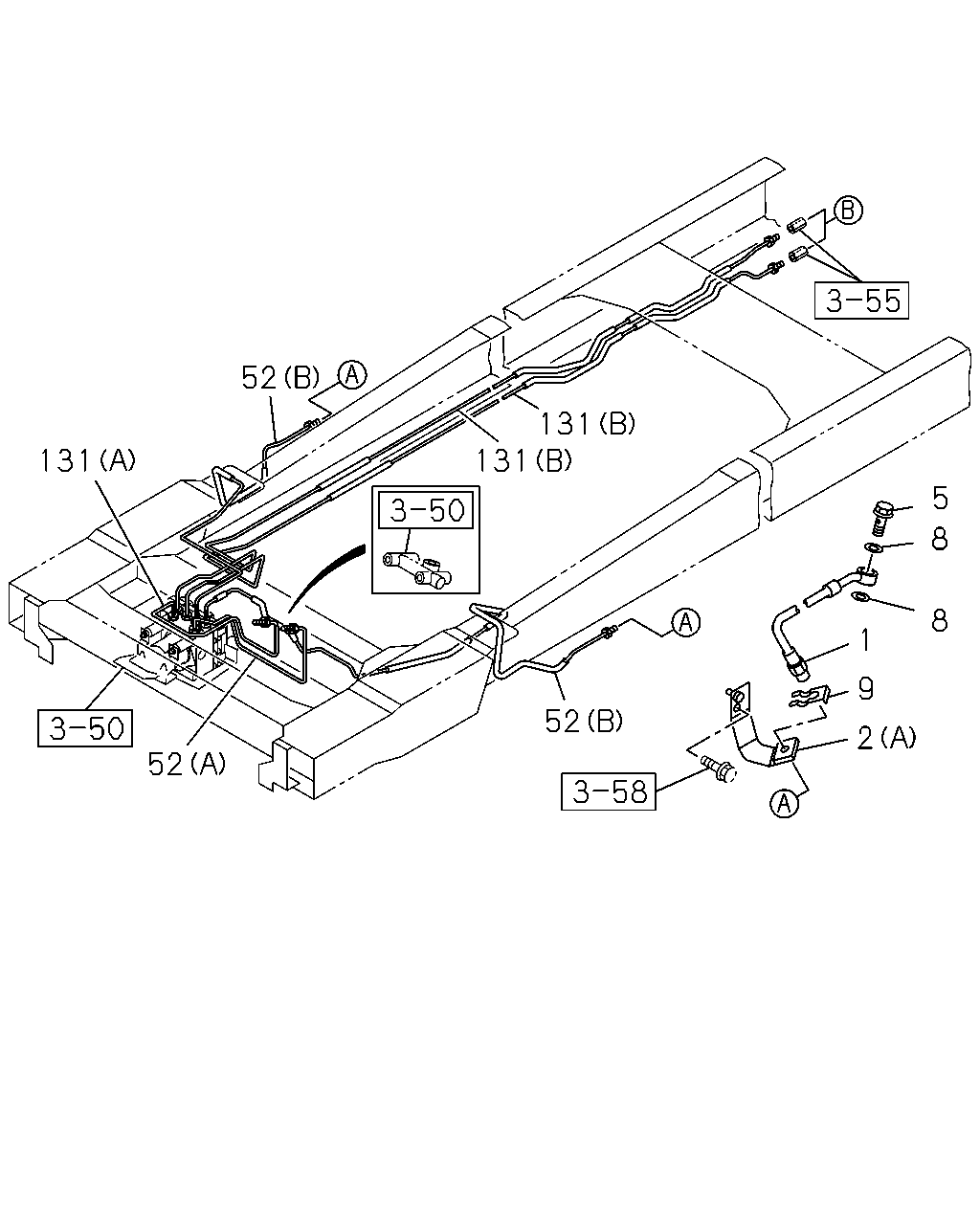

çizim 34556
52 131 131 131 5 8 8 1 9 52 2 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK 8-97365-481-0 02 1 0710- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97365-482-0 02 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98047-528-1 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0710-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0710-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0710-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0710-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0710- ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0710- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0710- ● ● ● ● ● ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 0710- ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 0710- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ● ● ● ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710- ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710- ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710- ● ● ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710- ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0710- ● ● ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B)BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0710-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B)BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B)BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0710-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B)BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B)BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0710- ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B)BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0710- ● ● ● ●

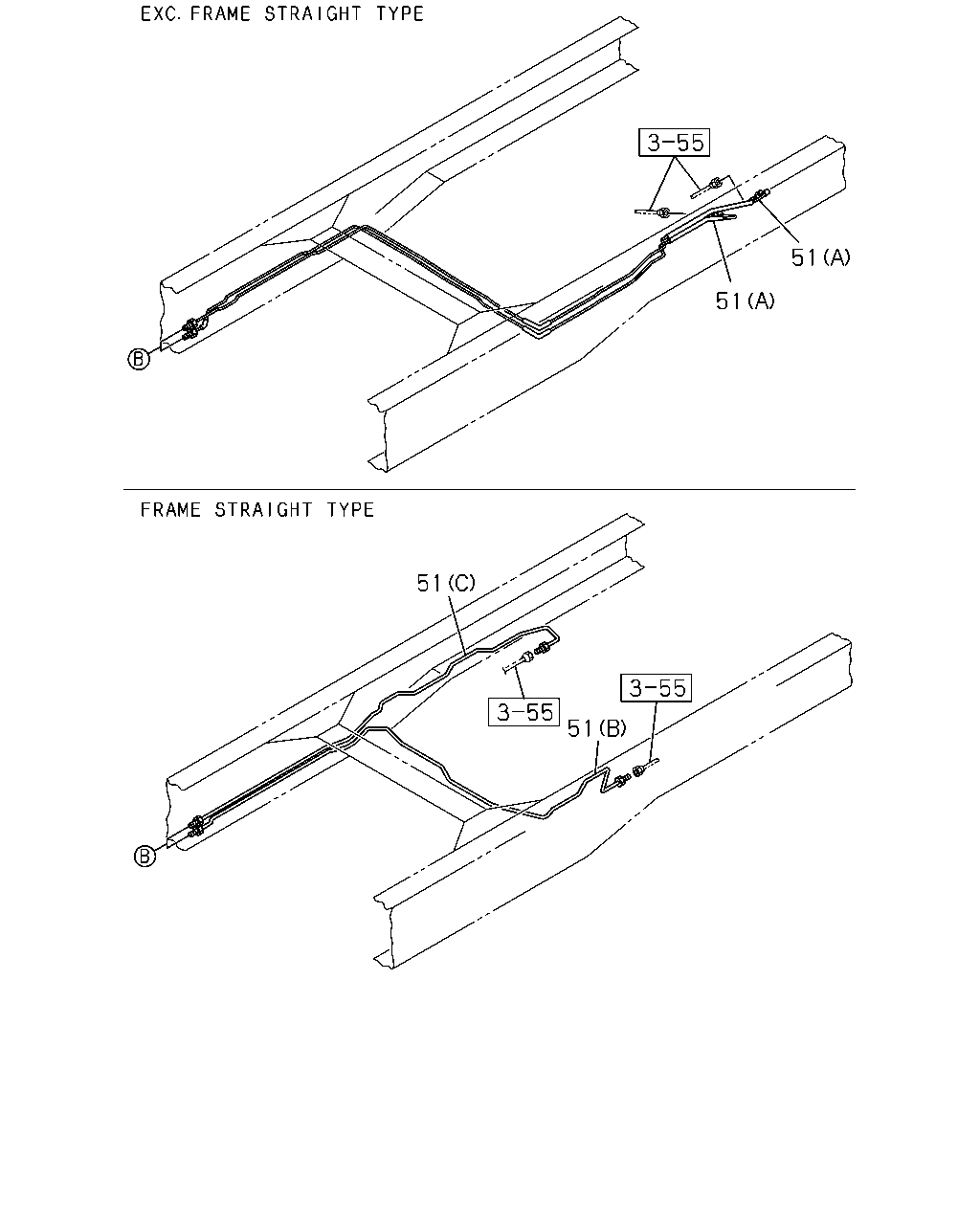

çizim 35404
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710- ●
51 04.685 PIPE; BRK
(A)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710- ●
51 04.685 PIPE; BRK
(A)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0710- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0710- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0710- ●
51 04.685 PIPE; BRK
(C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0710- ●
51 04.685 PIPE; BRK
(B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710- ●
51 04.685 PIPE; BRK
(B)BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0710- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710- ●
51 04.685 PIPE; BRK
(C)BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0710- ●

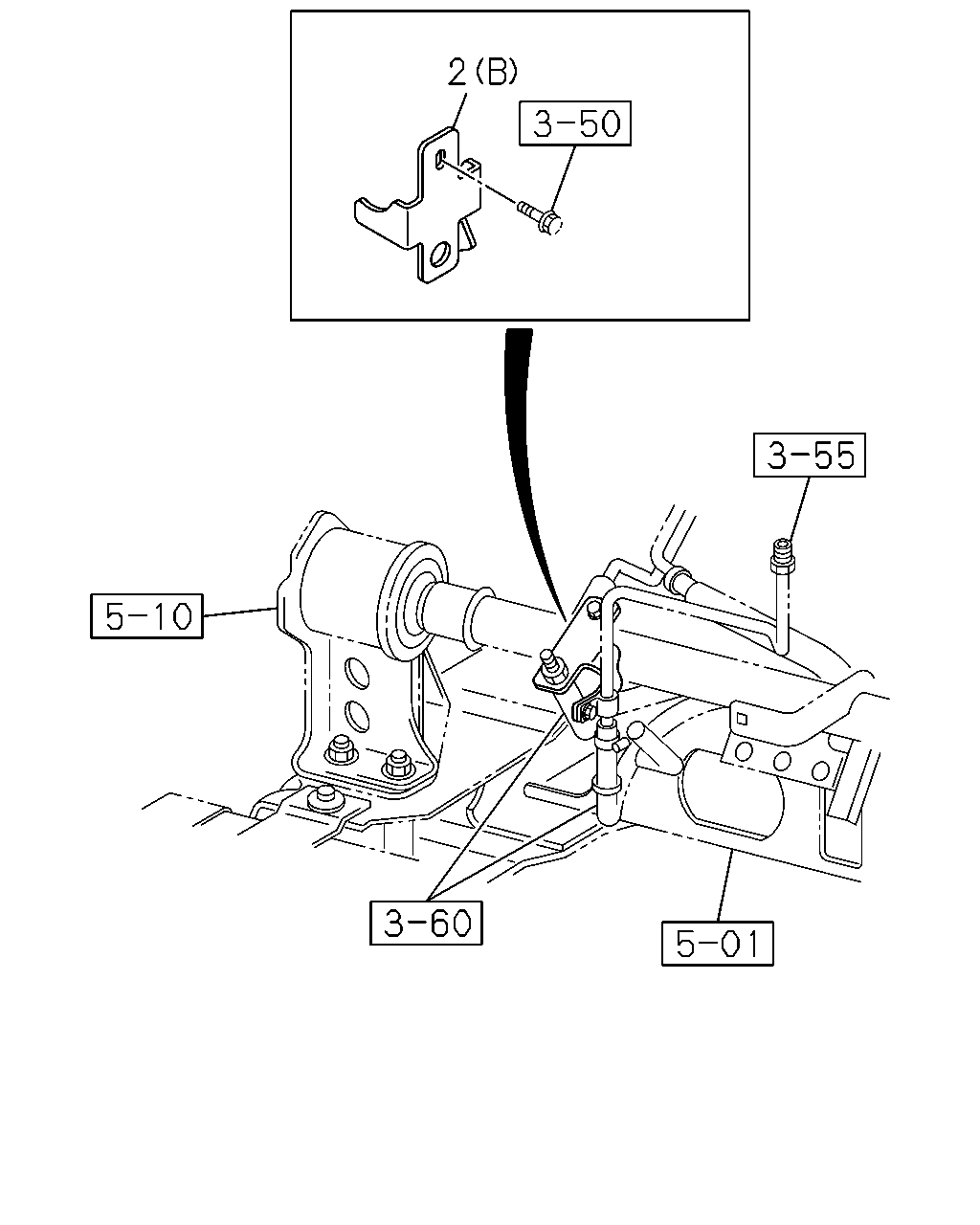

çizim 99818
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98047-528-1 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0710-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0710-0907 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0710-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0710-0907 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0908-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0908-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 0910- ● ●

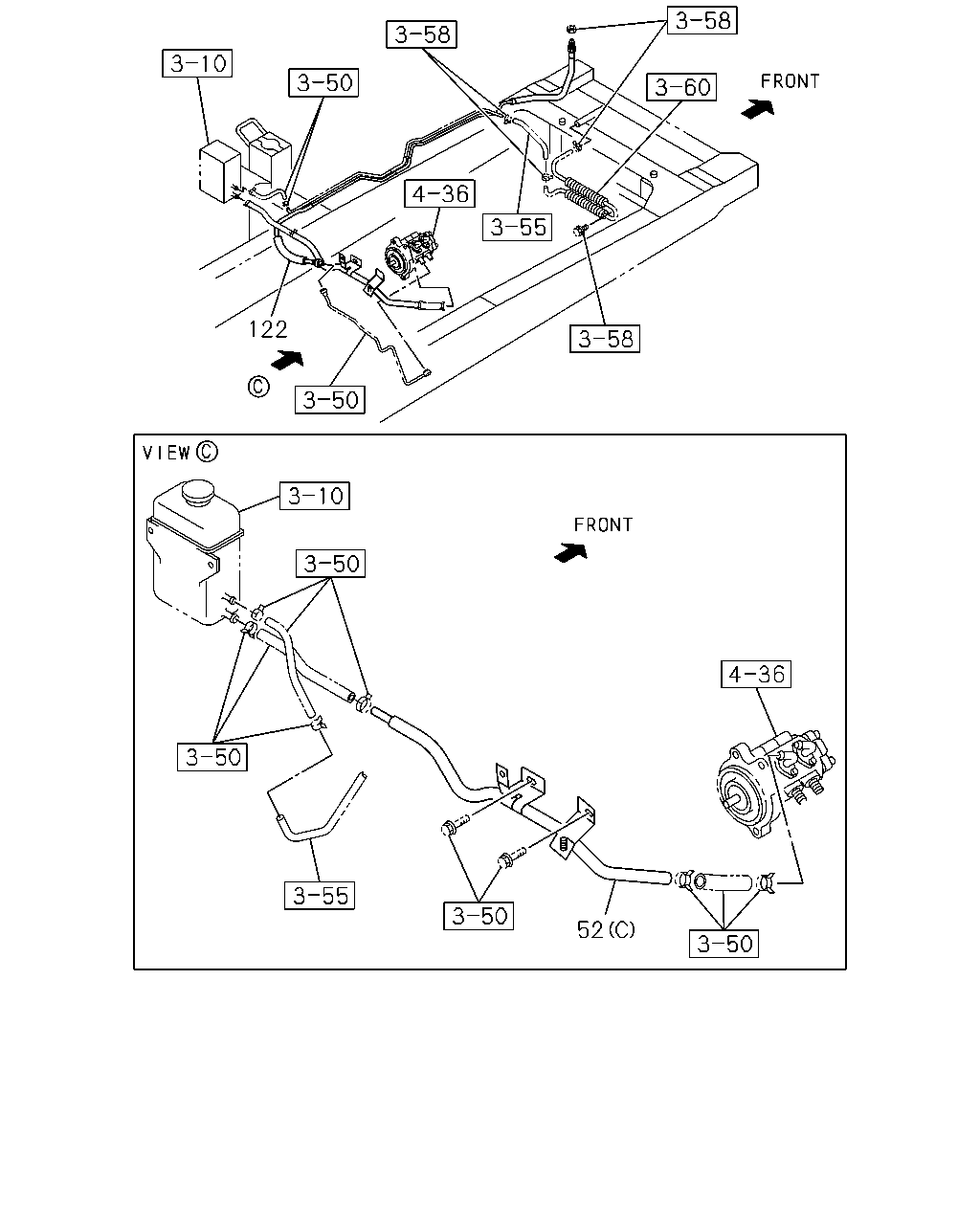

çizim 99820
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 0710- ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 0710- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0710- ● ● ● ● ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0710- ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0710- ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0710- ● ● ● ●
52 04.685 PIPE; BRK
(B)BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0710- ● ● ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98041-325-3 01 1 0710-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98041-325-3 01 1 0710-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 0910- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1839 		8-98136-573-0 01 1 0910- ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98069-783-3 01 1 0710-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1958 		8-98136-574-0 01 1 0910- ●
