Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#38920) — 202 parça

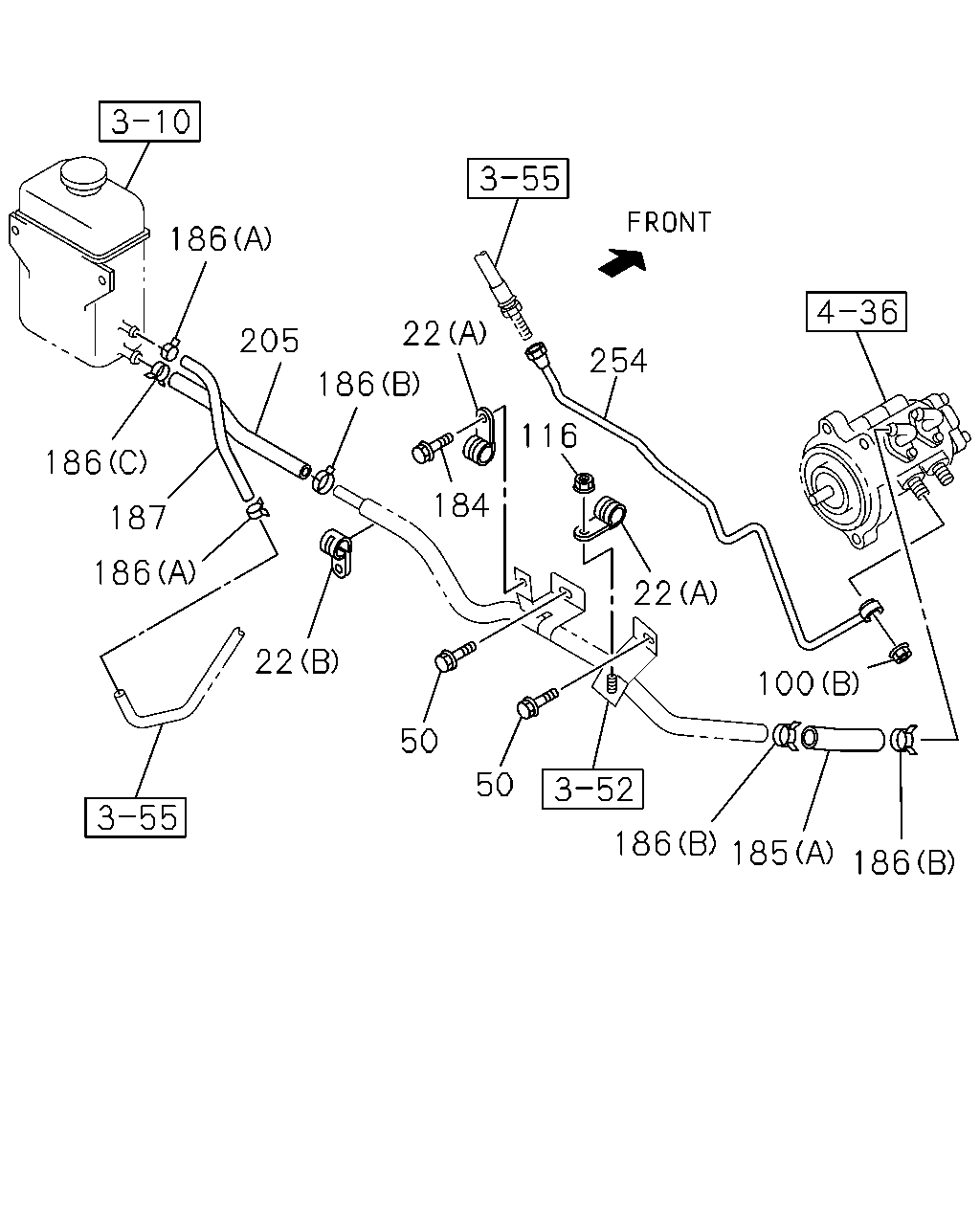

186 22 205 254 186 116 186 184 187 186 22 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0710-	●
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	0710-		●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0710-	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	0710-		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0710-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0710-		●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0710-	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	0710-		●	●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0808	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0808		●	●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0809-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0809-		●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0809-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0710-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0710-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0710-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0710-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	02	1	0710-	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	0710-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0911	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0911		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	01	1	0710-0911	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0710-0911		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	0912-	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	0912-		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22	8-94382-401-0	01	1	0710-1003	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0710-1003		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-		●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0710-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0710-		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0710-			●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0710-	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0710-		●
205	04.681 HOSE; TANK TO PIPE 06.670 L=200 SERVICED BY L=300	0-09814-300-0	01	1	0710-			●
254	04.685 PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0710-	●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	0710-		●
254	04.685 PIPE; BRAKE,2WAY	8-98053-548-0	01	1	0710-			●

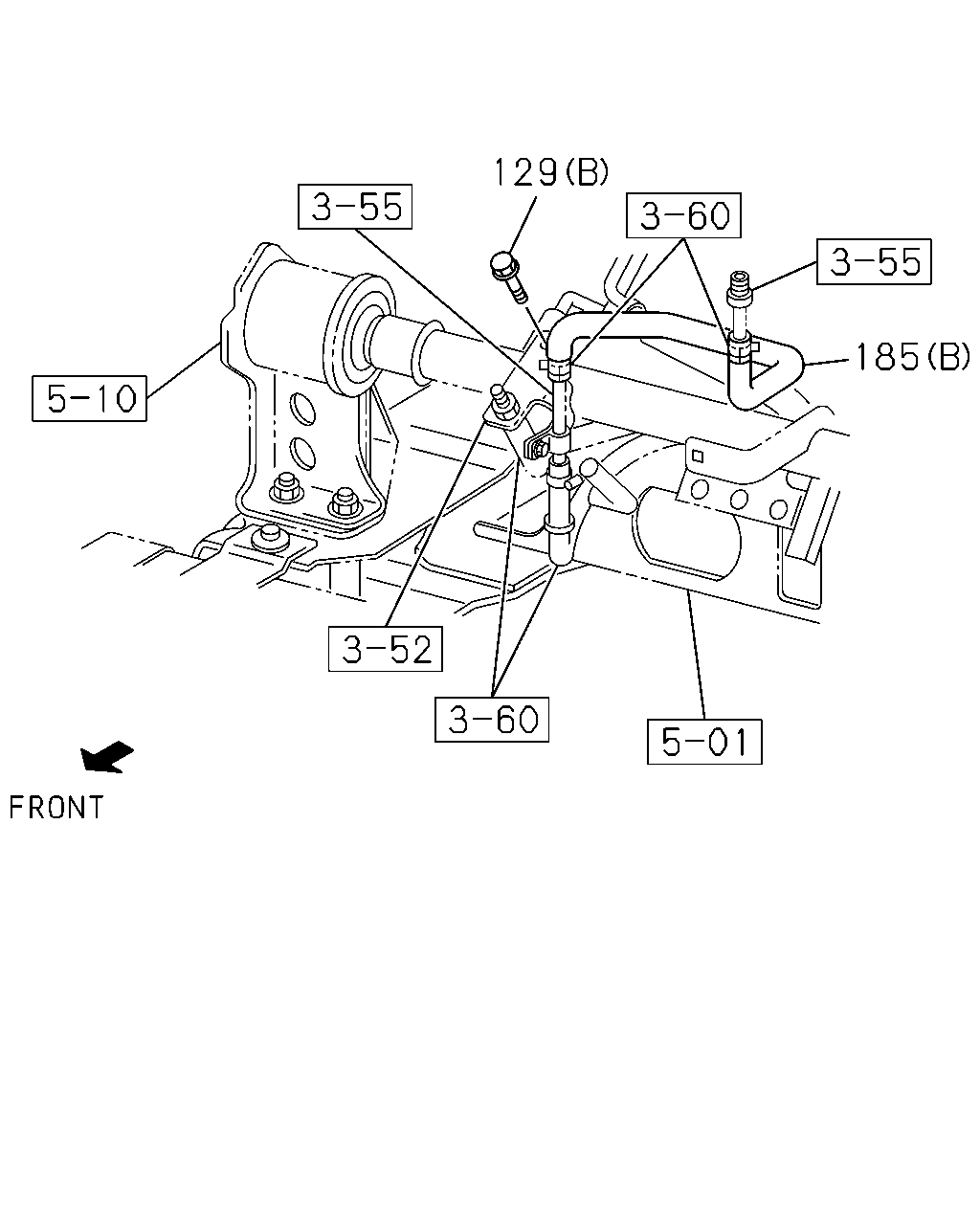

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0809	●	●	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-	●	●	●	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0710-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0710-		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0710-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0710-		●	●

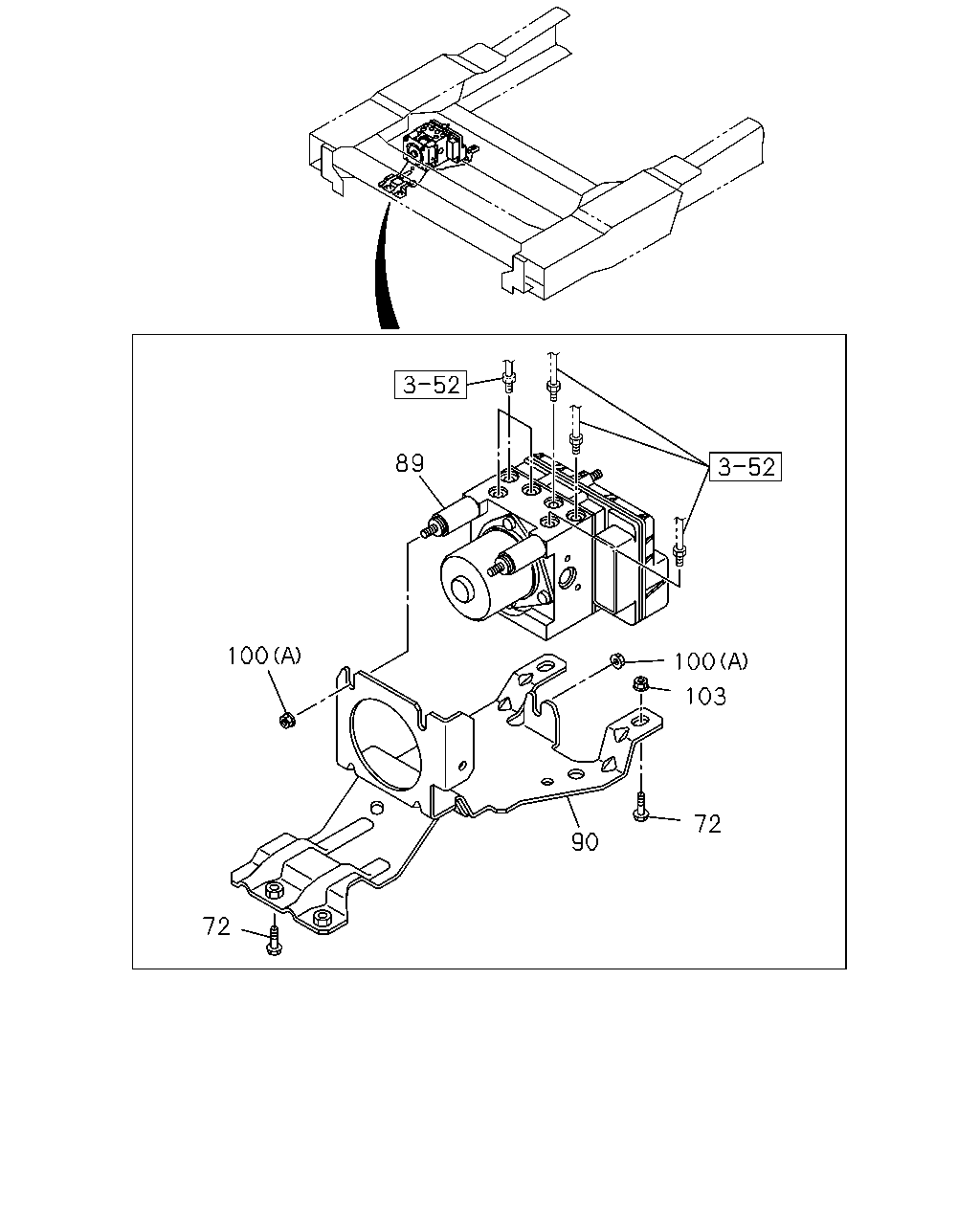

89 100 100 103 72 90 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-562-1	01	1	0710-1006				●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98081-562-1	01	1	0710-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-007-0	01	1	1007-				●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-0	01	1	1007-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER(7QQ)	8-98081-563-1	01	1	0710-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-563-1	01	1	0710-1006		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-0	01	1	1007-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-008-0	01	1	1007-		●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0710-	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0710-	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	0710-		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●			●

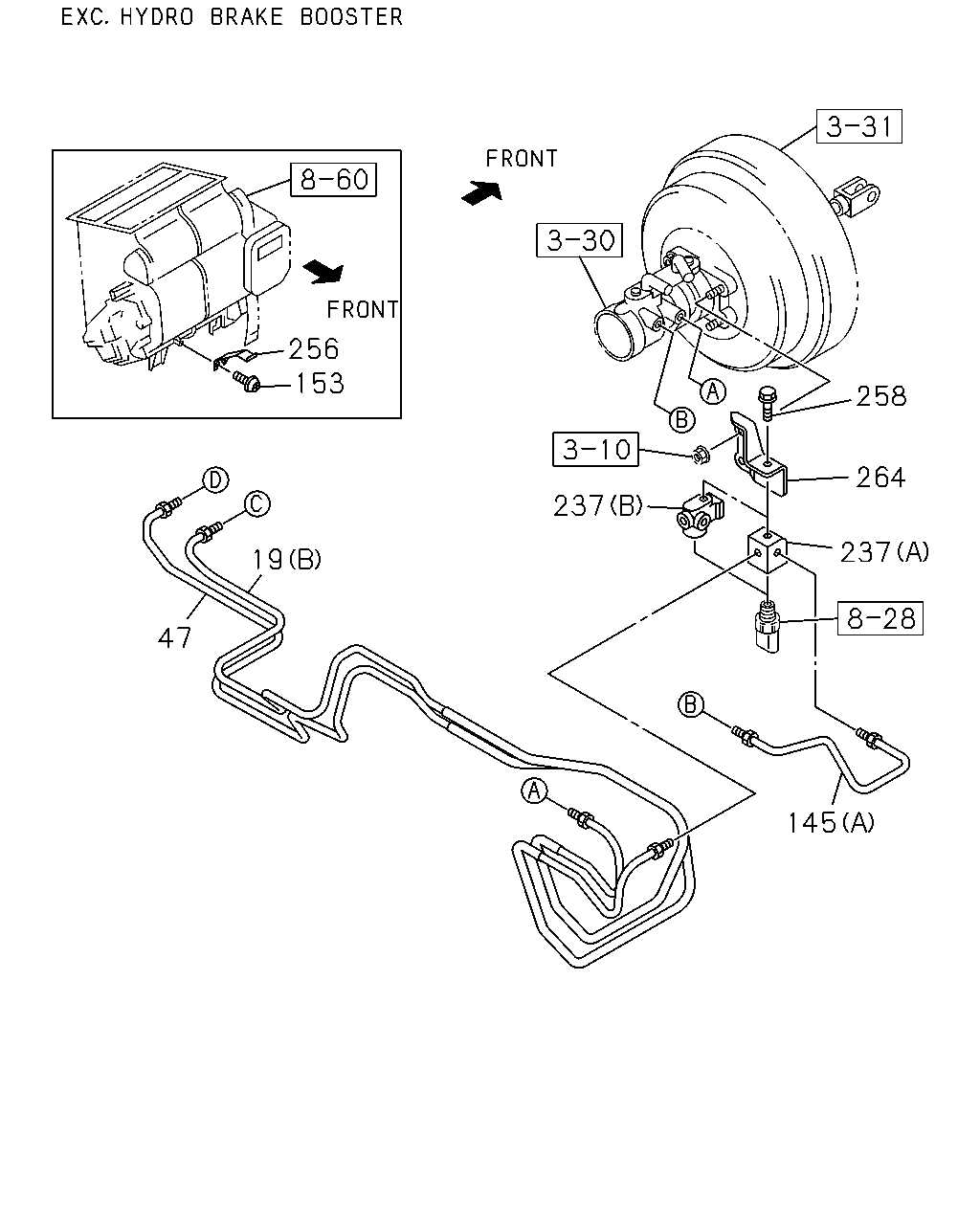

256 153 258 264 237 237 19 47 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0710-0812	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0710-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0710-		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0710-0812	●
47	04.685 PIPE; OIL,FRT BRK	8-98070-480-2	01	1	0710-0812		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906	●
47	04.685 PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0901-0906		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-	●
47	04.685 PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	0907-		●	●
47	04.685 PIPE; OIL,FRT BRK	8-98005-586-3	01	1	0710-0906				●	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0710-0906	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	0907-				●	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98042-422-0	01	1	0710-0906				●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98042-422-0	01	1	0710-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A) L=201	8-98133-407-0	01	1	0907-				●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=201	8-98133-407-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98075-345-0	01	1	0710-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98075-345-0	01	1	0710-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (B) L=268	8-98133-409-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=268	8-98133-409-0	01	1	0907-		●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0710-0808	●	●	●	●	●	●
153	04.730 SCREW; BRKT FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-	●	●	●	●	●	●
237	04.840 CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0710-0906	●	●	●	●	●	●
237	04.840 CONNECTOR; MODULATOR (B)	8-98111-748-1	01	1	0907-	●	●	●	●	●	●
256	04.840 BRACKET; BRK PIPE	8-98034-784-1	01	1	0710-0808	●	●	●	●	●	●
256	04.840 BRACKET; BRK PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0809-1005	●	●	●	●	●	●
256	04.840 BRACKET; BRK PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98163-521-0	01	1	1006-	●	●	●	●	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●	●	●	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0710-	●	●	●	●	●	●

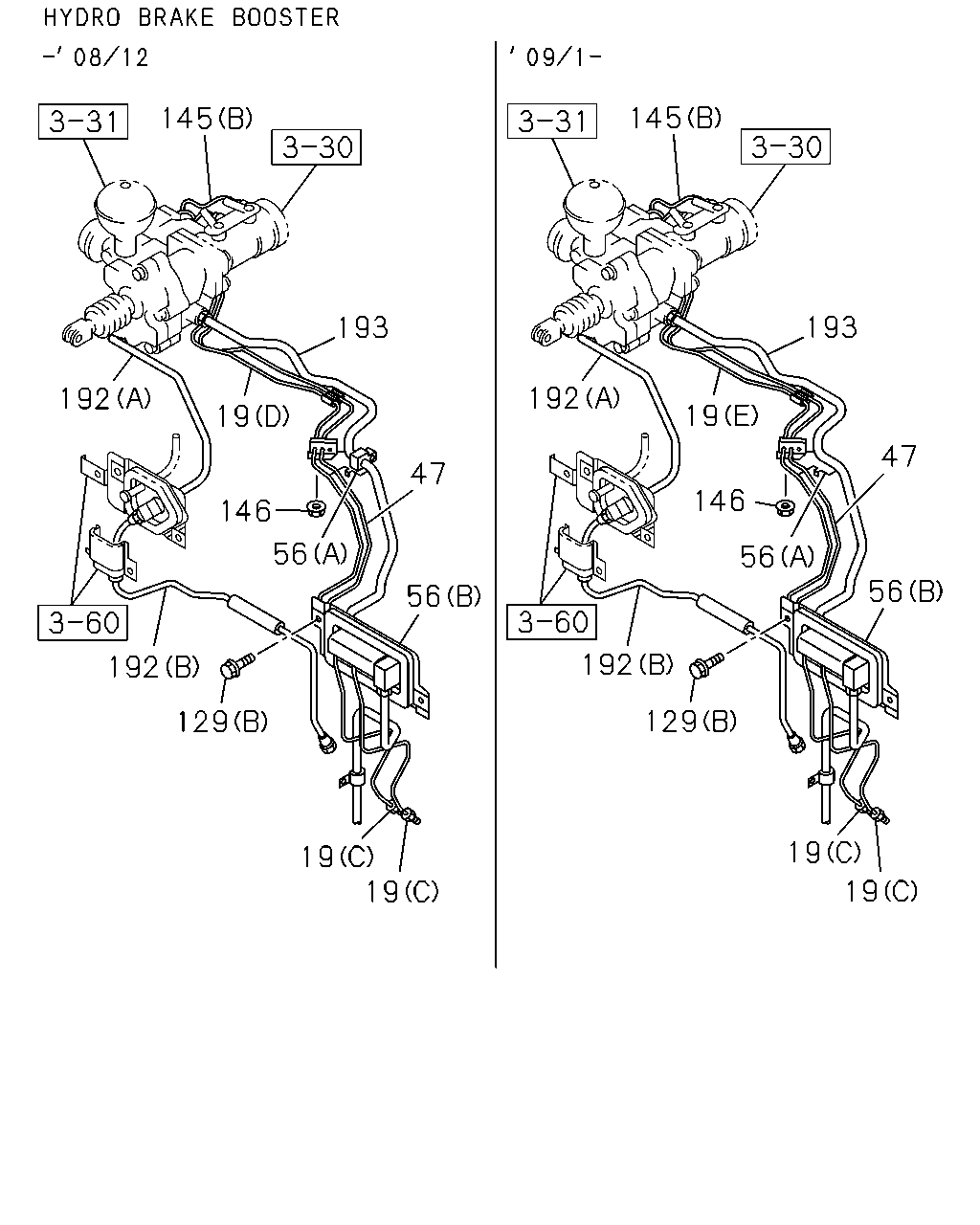

145 145 193 193 192 192 19 19 47 47 146 146 56 56 56 56 192 192 129 129 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0710-0812	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0710-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0710-		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ)	8-98070-480-2	01	1	0710-0812	●
47	04.685 PIPE; OIL,FRT BRK	8-98070-480-2	01	1	0710-0812		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1150	8-98098-681-0	01	1	0901-0906	●
47	04.685 PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0901-0906		●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-	●
47	04.685 PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	0907-		●	●
47	04.685 PIPE; OIL,FRT BRK	8-98005-586-3	01	1	0710-0906				●	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98005-586-3	01	1	0710-0906	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	0907-				●	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0710-0812	●
56	04.686 BRACKET; UNION,BRK (A)	8-98077-185-2	01	1	0710-0812		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0901-		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0710-1005	●			●	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-	●			●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0710-1005	●			●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●			●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0710-1005	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0710-1005	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●	●	●
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0809	●	●	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-	●	●	●	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98042-422-0	01	1	0710-0906				●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98042-422-0	01	1	0710-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A) L=201	8-98133-407-0	01	1	0907-				●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=201	8-98133-407-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98075-345-0	01	1	0710-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98075-345-0	01	1	0710-0906		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (B) L=268	8-98133-409-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=268	8-98133-409-0	01	1	0907-		●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0710-	●
146	04.685 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0710-		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98041-943-1	01	1	0710-0710	●
192	04.685 PIPE; PRESSURE (A)	8-98041-943-1	01	1	0710-0710		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98101-746-0	01	1	0710-0808	●
192	04.685 PIPE; PRESSURE (A)	8-98101-746-0	01	1	0710-0808		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	0809-	●
192	04.685 PIPE; PRESSURE (A)	8-98127-262-0	01	1	0809-		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-052-1	01	1	0710-1103	●
192	04.685 PIPE; PRESSURE (B)	8-98042-052-1	01	1	0710-1103		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1104-	●
192	04.685 PIPE; PRESSURE (B)	8-98193-137-0	01	1	1104-		●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98067-717-1	01	1	0710-0812	●
193	04.685 PIPE; RETURN	8-98067-717-1	01	1	0710-0812		●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	0901-	●
193	04.685 PIPE; RETURN	8-98098-683-0	01	1	0901-		●	●

19 19 56 8 7 117 129 7 8 15 12 227 10 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0710-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0710-	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0710-	●	●	●	●	●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0710-	●	●	●	●	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97331-331-2	01	1	0710-1107	●	●	●	●	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-98159-364-1	01	1	1108-1112	●	●	●	●	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98159-364-1	01	1	1201-	●	●	●	●	●	●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-1112	●	●	●	●	●	●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1201-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-478-1	01	1	0710-0812	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98070-478-1	01	1	0710-0812		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (E)	8-98098-682-1	01	1	0901-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98098-682-1	01	1	0901-		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0710-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	0710-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	0710-		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98077-185-2	01	1	0710-0812	●
56	04.686 BRACKET; UNION,BRK (A)	8-98077-185-2	01	1	0710-0812		●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0901-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0901-		●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-282-1	01	1	0710-1005	●			●	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1006-	●			●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97389-281-1	01	1	0710-1005	●			●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1006-	●			●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0710-1005	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0710-1005	●	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0710-	●	●	●	●	●	●
129	04.710 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0809	●	●	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-	●	●	●	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-		●	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-				●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●			●
253	04.840 JOINT EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	0710-	●	●	●	●	●	●

130 131

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0710-	●	●	●	●	●	●
	131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
