Sayfa 0-12 - Isuzu EPC

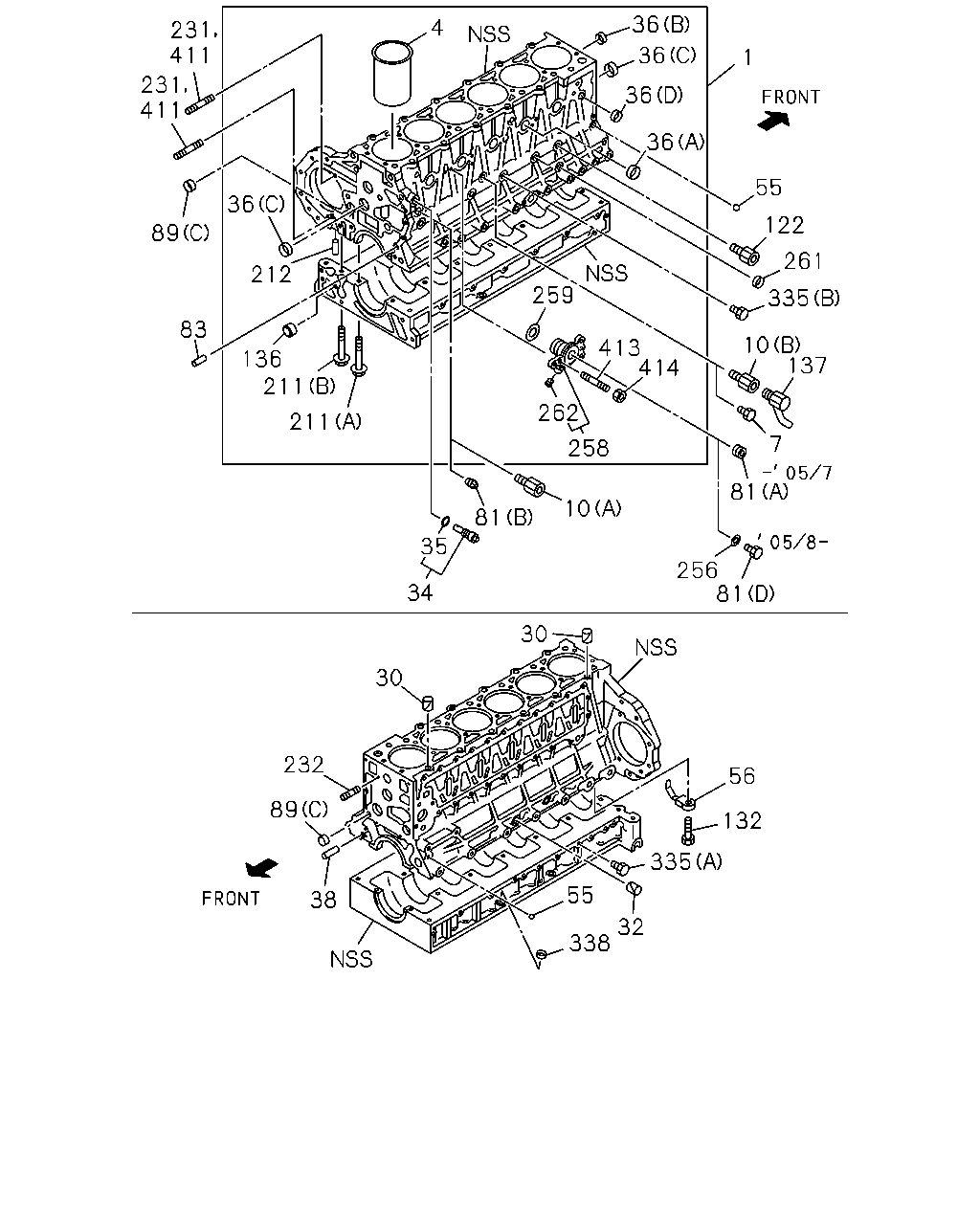

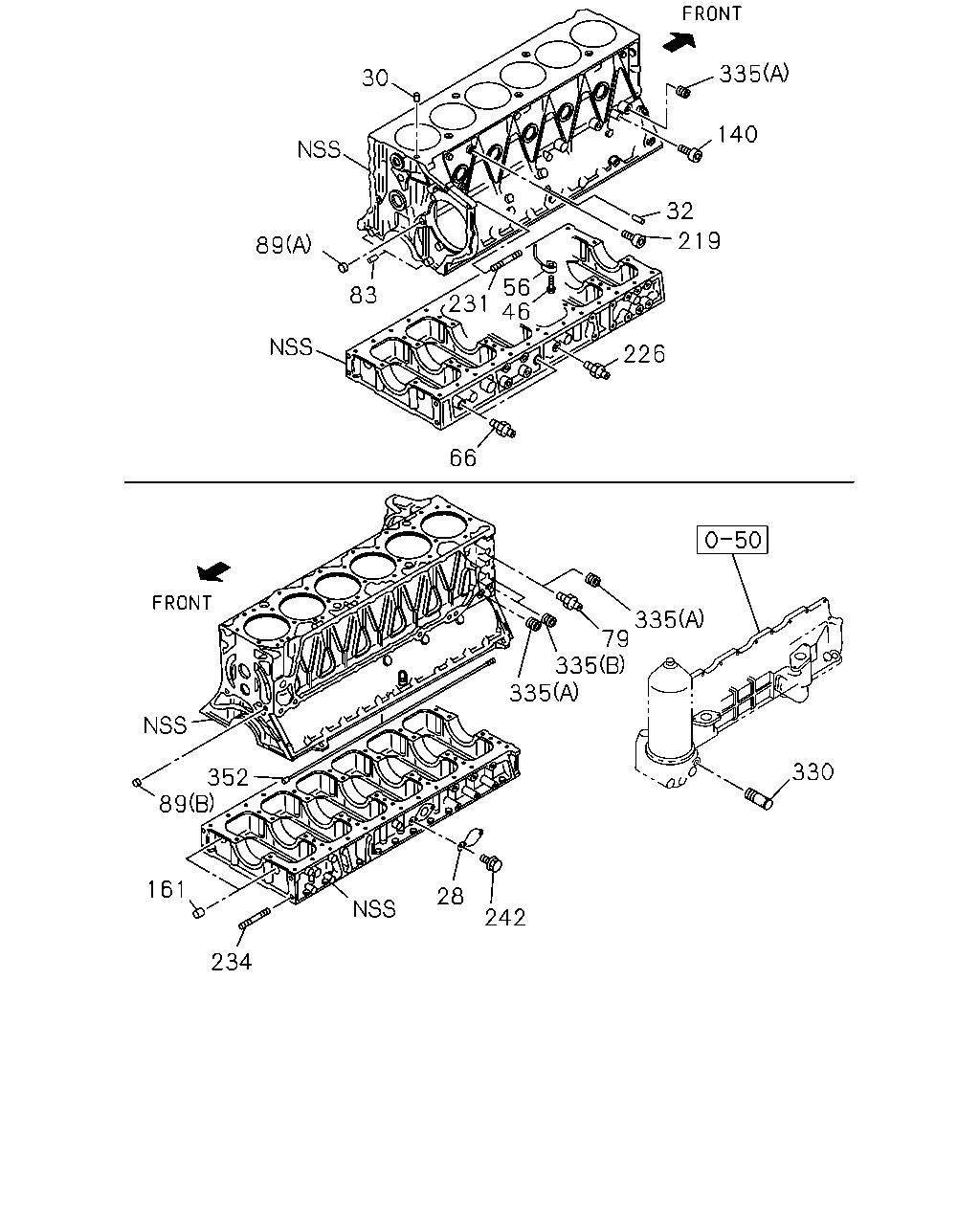

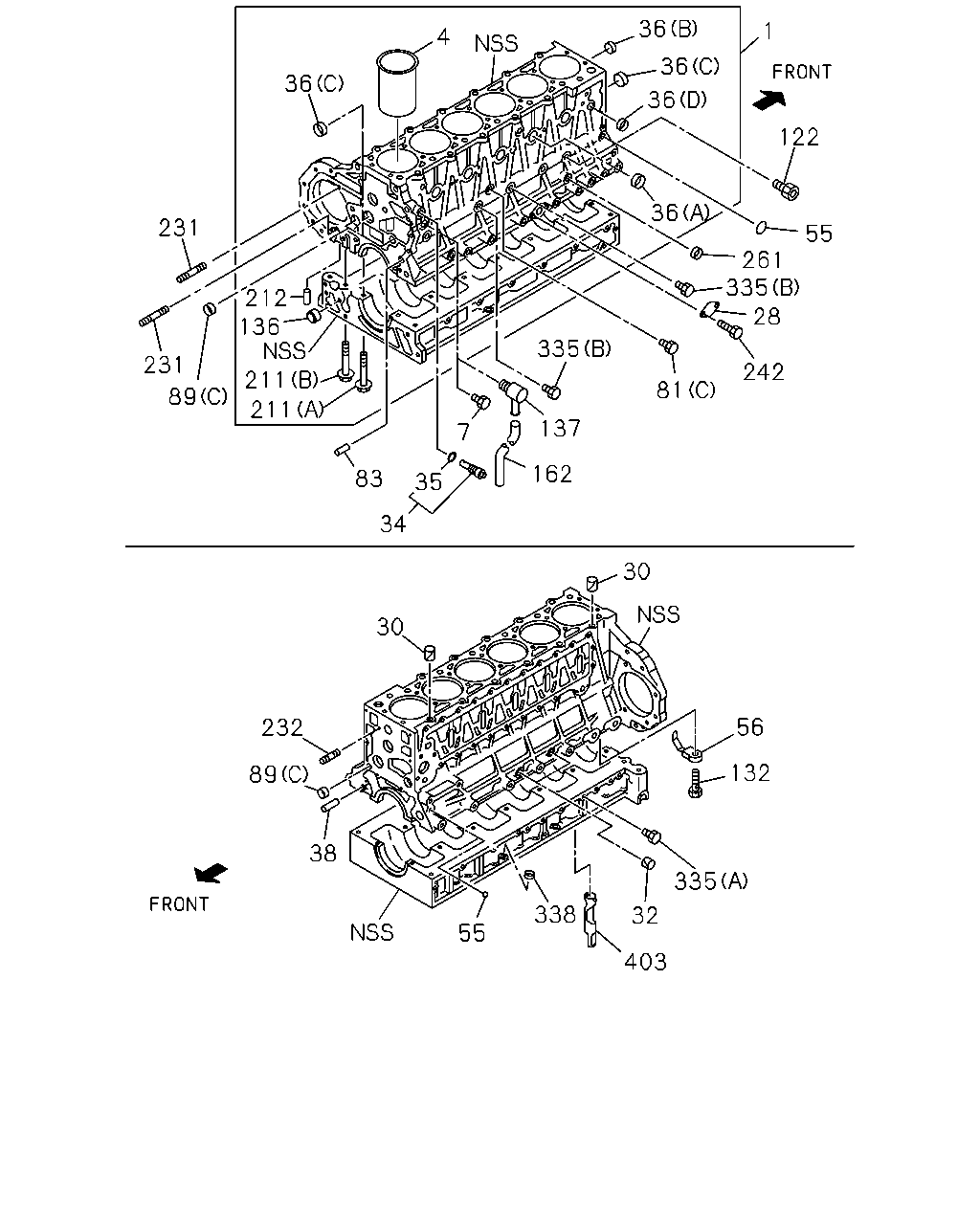

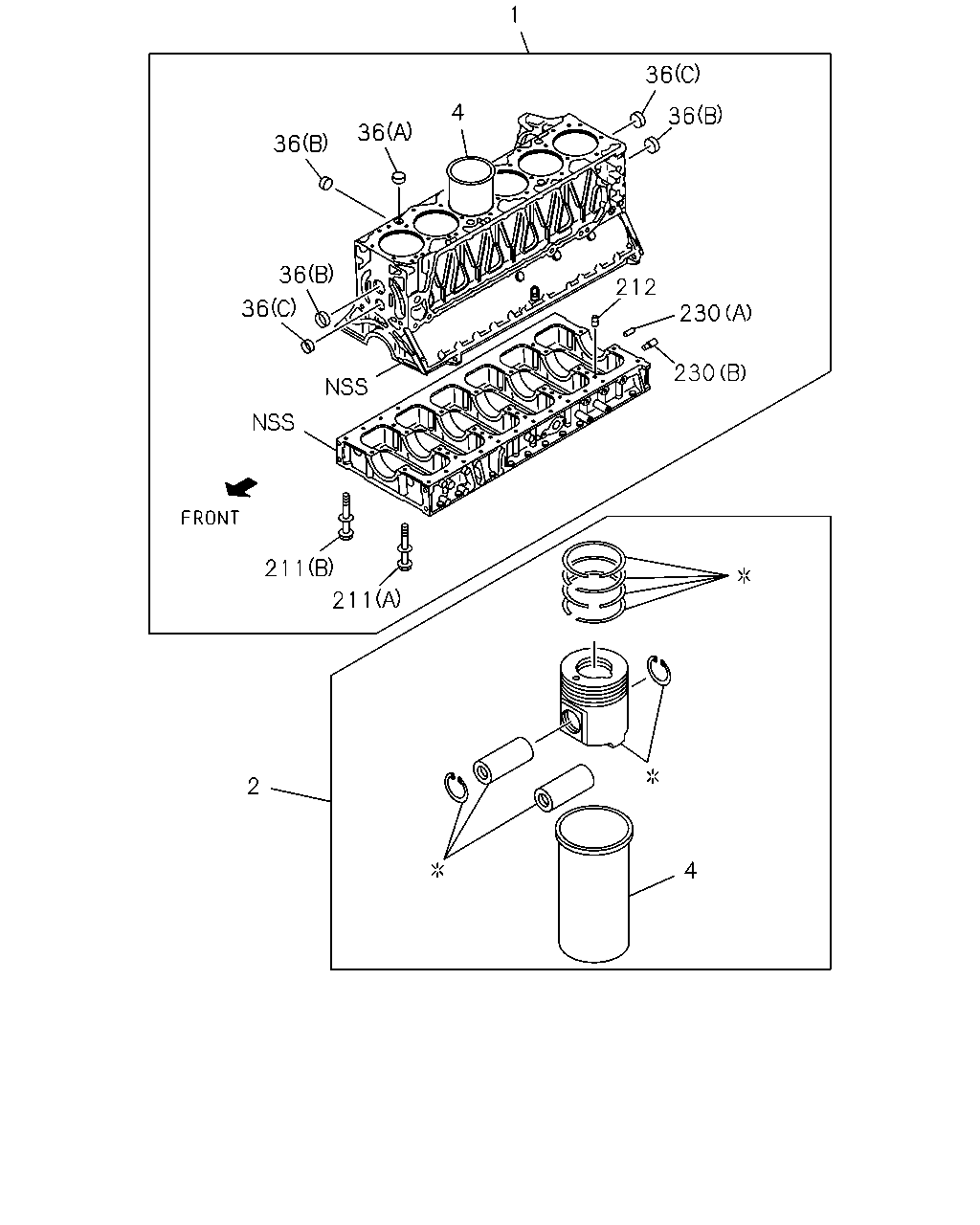

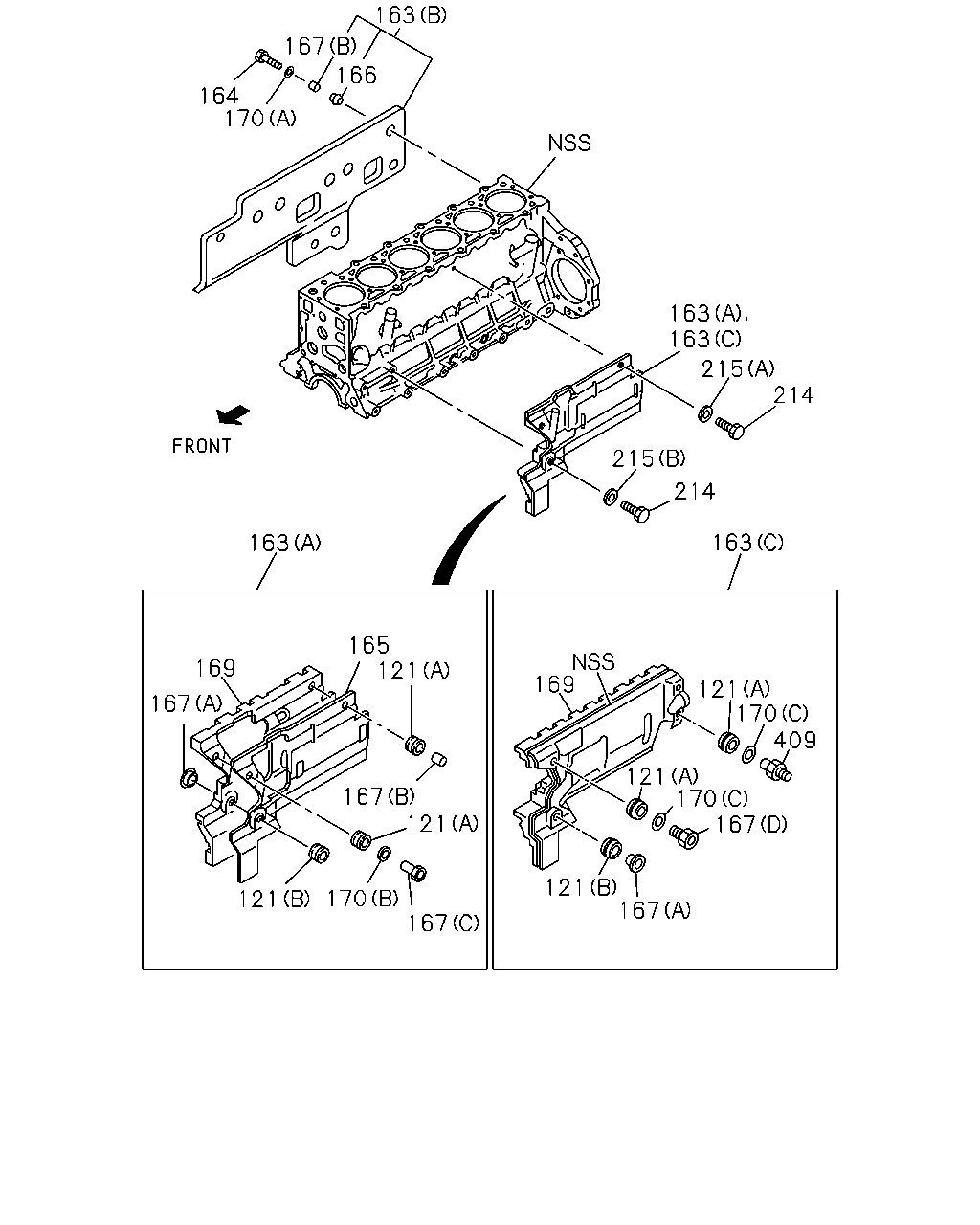

0-12 — CYLINDER BLOCK (#3892) — 862 parça

36 4 231 411 36 1 231 411 36 36 55 36 122 89 261 259 212 335 83 413 414 10 137 136 211 262 211 7 258 81 10 81 35 256 81 34 30 30 232 56 89 132 335 55 38 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BLOCK ASM; CYL	8-98319-410-0	01	1	1507-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9601-9709			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9710-9806			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9807-0001			●
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9807-0001				●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94395-860-8	01	1	9710-9807			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94392-486-0	01	1	9808-0001			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-97601-299-5	01	1	0002-1012			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-705-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98206-960-0	01	1	1210-			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-0	01	1	0002-0004			●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	0002-0004				●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-4	01	1	0005-1012			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-704-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98206-959-0	01	1	1210-			●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9807					●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001					●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504					●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012					●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209					●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-					●
1	BLOCK ASM; CYL	1-11210-620-5	01	1	9601-	●	●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	9601-	●	●
7	PLUG; WATER DRAIN EURO2 SPECIFICATION<THN> M14X16.5	8-97329-617-0	01	1	1101-			●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-					●	●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9601-9709			●
10	CONNECTOR; WATER DRAIN EXC. EURO2 SPECIFICATION<THN> (A)	1-09660-408-0	01	1	9710-9806			●
10	CONNECTOR; WATER DRAIN EXC. EURO2 SPECIFICATION<THN> (A)	1-09660-408-0	01	1	9807-0004			●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9807-0004				●
10	CONNECTOR; WATER DRAIN EXC. EURO2 SPECIFICATION<THN> (A)	1-09660-408-0	01	1	0005-			●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9601-9806			●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9807-0004			●	●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	0005-1012			●
10	CONNECTOR; WATER DRAIN EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-378-0	01	1	1101-			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9806			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9807-0004			●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0607			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0608-			●		●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9806			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9807-0004			●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0607			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0608-			●		●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9601-9806			●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9807-0004			●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0607			●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0608-			●		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9601-9806			●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9807-0004			●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0607			●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9710-9806			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9710-9806					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9807-0004			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9807-0004				●	●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0005-0504			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0005-0504					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0505-0607			●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0608-1012			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0608-1012						●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	1101-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	1101-					●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9709			●		●
36	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	04	1	9710-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0502			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0607			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9601-9806			●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9807-0004			●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0607			●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0608-			●		●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9601-9806			●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9807-0004			●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0607			●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0608-			●		●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608			●
56	JET; OIL,PISTON COOLING ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-194-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9609-9806			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9807-0004			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0607			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0608-0703			●			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●			●
56	JET; OIL,PISTON COOLING EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94399-187-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9609-					●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	9601-	●	●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (A) NPTF1-11 1/2	1-09605-065-1	01	1	9710-0507			●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (D) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (B) PT3/8	8-94397-338-0	01	1	9710-			●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	9601-0607					●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0608-0703					●	●
81	PLUG; WATER JACKET (C) M14X16.5	8-97329-617-0	01	1	0704-					●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9806			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9807-0004			●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0306			●		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0607			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0608-			●		●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0004	●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG EXC. ANTI NOISE EQUIPMENT ECE<SLK>	9-08151-025-0	02	1	0005-	●
83	PIN; FLYWHEEL HSG ANTI NOISE EQUIPMENT ECE<SLK>	9-08161-025-0	02	1	0005-	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9601-9806			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9807-0004			●	●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0607			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0608-0908			●		●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-			●		●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0301	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0909	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9601-9803			●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0004			●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0607			●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0608-			●		●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9601-9806			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9807-0004			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0607			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0608-			●			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-0704					●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-					●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0005-0607			●		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0608-0812			●		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●		●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9601-9806			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9807-0004			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-1012			●
137	COCK; DRAIN,WATER EXC. EURO2 SPECIFICATION<THN>	8-94393-716-1	01	1	1101-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9601-0607					●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0608-1012					●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-2	14	1	9601-9806			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0607			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0608-0905			●		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9806			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0607			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0608-			●		●	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107	●	●
211	BOLT; CRANKCASE (A) M10X95 FLANGE	8-98141-538-0	24	1	1108-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9806			●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9807-0004			●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0306			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-0607			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0608-			●		●	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-	●	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0608-						●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-9709			●		●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004				●	●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-1102			●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-1102					●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	1103-			●		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9601-9806			●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9807-0004			●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0604			●		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-0607			●		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0608-			●		●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=14.2 OD=25	1-09630-141-0	01	1	0508-			●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0505-0507					●
258	ADAPTER; BLOCK HTR EURO2 SPECIFICATION<THN>	8-94395-868-0	01	1	9710-0507			●
258	ADAPTER; BLOCK HTR EURO2 SPECIFICATION<THN>	8-97602-806-0	01	1	0508-			●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0505-0507					●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=38.7	1-09623-184-0	01	1	9710-			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9601-9806			●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9807-0004			●	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0307			●		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0505-0507					●
262	PLUG; ADAPTER EURO2 SPECIFICATION<THN>	1-13163-002-0	01	1	9710-			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0608-0703						●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-						●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9709			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9601-9709					●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	02	1	9710-0703			●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9710-9806			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9710-9806					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9807-0004			●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9807-0004					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0501			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	0005-0501					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0607			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0502-0607					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0608-			●			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0608-					●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9709			●		●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9710-9806			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9710-9806					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9807-0004			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9807-0004				●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	0005-0703			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0703					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	04	1	0704-1102			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-1102					●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	1103-			●		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9601-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	1203-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9601-9707	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●
335	PLUG; C/BL,SIDE ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	06	1	0005-	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9601-0004	●	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) PT1/8	1-09605-050-0	02	1	0005-1202	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	1203-	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-0608			●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-			●		●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9601-9806			●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9807-0004			●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0607			●		●
338	CUP; SEALING,GUIDE TUBE HOLE EXC. EURO2 SPECIFICATION<THN> OD=15.6	5-11129-003-0	01	1	0608-			●
411	STUD; BRG CASE EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9710-0301			●
411	STUD; BRG CASE EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
411	STUD; BRG CASE EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-			●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0505-0507					●
413	STUD; ADAPTER EURO2 SPECIFICATION<THN> M8X30 L=41	9-04110-830-0	02	1	9710-0604			●
413	STUD; ADAPTER EURO2 SPECIFICATION<THN> M8X30 L=41	0-41010-830-0	02	1	0605-			●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0505-0507					●
414	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-208-0	02	1	9710-0602			●
414	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-208-0	02	1	0603-			●

36 1 4 36 36 36 122 36 231 55 212 136 211 261 335 28 335 231 242 81 89 211 137 7 162 83 35 34 30 30 56 232 132 89 38 335 338 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BLOCK ASM; CYL	8-98319-410-0	01	1	1507-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9601-9709			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9710-9806			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9807-0001			●
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9807-0001				●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94395-860-8	01	1	9710-9807			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94392-486-0	01	1	9808-0001			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-97601-299-5	01	1	0002-1012			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-705-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98206-960-0	01	1	1210-			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-0	01	1	0002-0004			●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	0002-0004				●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-4	01	1	0005-1012			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-704-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98206-959-0	01	1	1210-			●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9807					●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001					●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504					●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012					●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209					●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-					●
1	BLOCK ASM; CYL	1-11210-620-5	01	1	9601-	●	●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	9601-	●	●
7	PLUG; WATER DRAIN EURO2 SPECIFICATION<THN> M14X16.5	8-97329-617-0	01	1	1101-			●
7	PLUG; WATER DRAIN PT3/8	8-94397-338-0	01	1	1101-					●	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9601-					●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9806			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9807-0004			●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0607			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0608-			●		●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9806			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9807-0004			●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0607			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0608-			●		●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9601-9806			●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9807-0004			●	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0607			●		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0608-			●		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9601-9806			●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9807-0004			●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0607			●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9710-9806			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9710-9806					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9807-0004			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9807-0004				●	●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0005-0504			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0005-0504					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0505-0607			●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0608-1012			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0608-1012						●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	1101-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	1101-					●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9709			●		●
36	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	04	1	9710-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0502			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0607			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9601-9806			●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9807-0004			●	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0607			●		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0608-			●		●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9601-9806			●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9807-0004			●	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0607			●		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0608-			●		●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608			●
56	JET; OIL,PISTON COOLING ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-194-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9609-9806			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9807-0004			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0607			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0608-0703			●			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●			●
56	JET; OIL,PISTON COOLING EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94399-187-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9609-					●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	9601-	●	●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (A) NPTF1-11 1/2	1-09605-065-1	01	1	9710-0507			●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (D) M14X14	9-09862-156-0	01	1	0508-			●
81	PLUG; WATER JACKET EURO2 SPECIFICATION<THN> (B) PT3/8	8-94397-338-0	01	1	9710-			●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	9601-0607					●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0608-0703					●	●
81	PLUG; WATER JACKET (C) M14X16.5	8-97329-617-0	01	1	0704-					●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9806			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9807-0004			●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0306			●		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0607			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0608-			●		●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0004	●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG EXC. ANTI NOISE EQUIPMENT ECE<SLK>	9-08151-025-0	02	1	0005-	●
83	PIN; FLYWHEEL HSG ANTI NOISE EQUIPMENT ECE<SLK>	9-08161-025-0	02	1	0005-	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9601-9806			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9807-0004			●	●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0607			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0608-0908			●		●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-			●		●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0301	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0909	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9601-9803			●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9804-0004			●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0607			●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0608-			●		●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9601-9806			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9807-0004			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0607			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0608-			●			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9601-0704					●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-					●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0005-0607			●		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0608-0812			●		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-			●		●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9601-9806			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9807-0004			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-1012			●
137	COCK; DRAIN,WATER EXC. EURO2 SPECIFICATION<THN>	8-94393-716-1	01	1	1101-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9601-0607					●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0608-1012					●	●
162	HOSE; WATER DRAIN,C/BL L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0608-1012						●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9601-0206					●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-1012					●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-2	14	1	9601-9806			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0607			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0608-0905			●		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9806			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0607			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0608-			●		●	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107	●	●
211	BOLT; CRANKCASE (A) M10X95 FLANGE	8-98141-538-0	24	1	1108-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9806			●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9807-0004			●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0306			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-0607			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0608-			●		●	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-	●	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0608-						●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-9709			●		●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004				●	●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-1102			●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-1102					●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	1103-			●		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9601-9806			●		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9807-0004			●	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0604			●		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-0607			●		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0608-			●		●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-0512		●			●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9601-9806			●		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9807-0004			●	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0307			●		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0608-0703						●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-						●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9709			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9601-9709					●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	02	1	9710-0703			●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9710-9806			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9710-9806					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9807-0004			●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9807-0004					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0501			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	0005-0501					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0607			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0502-0607					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0608-			●			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0608-					●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9709			●		●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9710-9806			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9710-9806					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9807-0004			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9807-0004				●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	0005-0703			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0703					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	04	1	0704-1102			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-1102					●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	1103-			●		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9601-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	1203-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9601-9707	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●
335	PLUG; C/BL,SIDE ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	06	1	0005-	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9601-0004	●	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) PT1/8	1-09605-050-0	02	1	0005-1202	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	1203-	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-0608			●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-			●		●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9601-9806			●		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9807-0004			●	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0607			●		●
338	CUP; SEALING,GUIDE TUBE HOLE EXC. EURO2 SPECIFICATION<THN> OD=15.6	5-11129-003-0	01	1	0608-			●
403	GUIDE; GALLERY	8-94395-351-1	01	1	9601-0607					●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0608-					●	●

335 30 140 32 219 89 56 46 83 231 226 66 335 79 335 335 330 352 89 161 28 242 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
28	COVER; OIL PORT	1-11219-163-0	01	1	9601-					●
28	COVER; OIL PORT	1-11749-103-0	01	1	9601-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9601-9806			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9807-0004			●	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0607			●		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0608-			●		●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9601-	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9601-9806			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9807-0004			●	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0607			●		●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0608-			●		●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9601-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9601-	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9601-9608			●
56	JET; OIL,PISTON COOLING ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-194-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9609-9806			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9807-0004			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0607			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0608-0703			●			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007			●			●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-			●			●
56	JET; OIL,PISTON COOLING EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94399-187-0	06	1	9601-9608					●
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9609-					●
56	JET; OIL,PISTON COOLING	1-13342-127-1	06	1	9601-	●	●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-	●	●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9601-	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9601-9806			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9807-0004			●	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0306			●		●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-0607			●		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0608-			●		●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9601-0004	●	●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	0005-		●
83	PIN; FLYWHEEL HSG EXC. ANTI NOISE EQUIPMENT ECE<SLK>	9-08151-025-0	02	1	0005-	●
83	PIN; FLYWHEEL HSG ANTI NOISE EQUIPMENT ECE<SLK>	9-08161-025-0	02	1	0005-	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9601-9806			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	9807-0004			●	●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0607			●		●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0608-0908			●		●	●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11129-128-0	03	1	0909-			●		●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9601-0301	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9601-0909	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-	●	●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	9601-	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9601-	●	●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9601-	●	●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9601-	●	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0608-						●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9601-9709			●		●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9710-9806					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9807-0004				●	●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0301					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=40	0-49841-025-0	02	1	0302-0512			●
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512					●
231	STUD; AIR CMPR EXC. EURO2 SPECIFICATION<THN> M10X25 L=48.5	0-49241-025-0	02	1	0601-1102			●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-1102					●
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	1103-			●		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9601-	●	●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9601-	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9601-0512		●			●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●			●
330	JOINT; HTR HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V>	5-09650-027-0	01	1	9904-		●
330	JOINT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)	1-09660-504-1	01	1	9601-9611	●	●
330	JOINT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9612-9903	●	●
330	JOINT; HTR HEATER & DEFROSTER(C41) EXC. OIL FILTER SETTING DOWNWARD<E7V> PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9904-9912		●
330	JOINT; HTR AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9904-9912		●
330	JOINT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9904-9912	●
330	JOINT; HTR HEATER & DEFROSTER(C41) PARTIAL OIL FILTER ELEMENT TYPE<KC1>,PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0001-		●
330	JOINT; HTR AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0001-		●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0001-	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	03	1	0608-0703						●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	03	1	0704-						●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9601-9709			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9601-9709					●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	02	1	9710-0703			●
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	02	1	0704-			●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9710-9806			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9710-9806					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	9807-0004			●	●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	9807-0004					●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0501			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6	8-94399-421-0	01	1	0005-0501					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-0607			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0502-0607					●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0608-			●			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X10	8-98003-416-0	01	1	0608-					●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9601-9709			●		●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9710-9806			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9710-9806					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	9807-0004			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9807-0004				●	●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14	8-94399-225-0	04	1	0005-0703			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0703					●
335	PLUG; C/BL,SIDE EXC. EURO2 SPECIFICATION<THN> (B) M14X16.5	8-97329-617-0	04	1	0704-1102			●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	0704-1102					●
335	PLUG; C/BL,SIDE (B) M14X16.5	8-97329-617-0	04	1	1103-			●		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9601-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	0005-1202	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	1203-		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	03	1	1203-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9601-9707	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9708-0004	●
335	PLUG; C/BL,SIDE ANTI NOISE EQUIPMENT ECE<SLK> (B) PT1/4	1-09605-019-0	06	1	0005-	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9601-0004	●	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	0005-1202		●
335	PLUG; C/BL,SIDE EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) PT1/8	1-09605-050-0	02	1	0005-1202	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	1203-	●	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9601-	●	●

163 167 166 164 170 163 163 215 214 215 214 163 163 165 121 169 169 121 170 409 167 121 170 167 167 121 121 167 170 121 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	E
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (B) OD=32	8-94396-221-0	01	1	9601-0004	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	9601-0004		●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=32	8-94396-221-0	01	1	0005-		●
121	RUBBER; MTG,COVER EXC. EURO2 SPECIFICATION<THN> (A) OD=22	8-94140-428-1	04	1	9601-9803	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (A) OD=22	8-94140-428-1	04	1	9804-0004	●
121	RUBBER; MTG,COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=22	8-94140-428-1	02	1	9601-		●
163	COVER ASM; C/BL SKIRT EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-989-1	01	1	9601-9803	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-989-1	01	1	9804-0004	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (A)	8-94390-172-0	01	1	9601-		●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94395-894-0	01	1	9601-		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X20	0-20800-820-0	04	1	9601-9610		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	04	1	9611-0512		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT ECE<SLK>	8-94395-694-1	01	1	9601-		●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT ECE<SLK> OD=22	8-94140-428-1	04	1	9601-		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9601-0004	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=32 W/FLANGE	8-94397-356-1	01	1	9601-0004		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0005-		●
167	TUBE; DIST,SIDE COVER EXC. EURO2 SPECIFICATION<THN> (D) M10	8-94393-791-2	03	1	9601-9803	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (D) M10	8-94393-791-2	03	1	9804-0004	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=13 T=9.5	8-94140-427-1	05	1	9601-		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK> (C) M10	8-94393-791-2	01	1	9601-		●
169	INSULATOR; SIDE COVER EXC. EURO2 SPECIFICATION<THN>	8-94394-121-0	01	1	9601-9803	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN>	8-94394-121-0	01	1	9804-0004	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94390-173-0	01	1	9601-		●
170	WASHER; COVER EXC. EURO2 SPECIFICATION<THN> (C) ID=14 OD=22	9-47515-014-0	04	1	9601-9803	●
170	WASHER; COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (C) ID=14 OD=22	9-47515-014-0	04	1	9804-0004	●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=8.4 OD=22	9-09160-708-0	04	1	9601-0605		●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=8.4 OD=22	0-91610-708-0	04	1	0606-		●
170	WASHER; COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=14 OD=22	9-47515-014-0	01	1	9601-		●
214	BOLT; NOISE COVER EXC. EURO2 SPECIFICATION<THN> M10X25 FLANGE	0-28181-025-0	01	1	9601-9803	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> M10X25 FLANGE	0-28181-025-0	01	1	9804-0004	●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28181-025-0	02	1	9601-0512		●
214	BOLT; NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> M10X25 FLANGE	0-28151-025-0	02	1	0601-		●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN> (B) ID=10.5 OD=32	9-09164-810-0	01	1	9601-0004	●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=10.5 OD=32	9-09164-810-0	01	1	9601-0004		●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0605		●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=10.5 OD=22	9-09164-610-0	01	1	9601-0605		●
215	WASHER; PL,NOISE COVER ANTI NOISE EQUIPMENT ECE<SLK> (A) ID=10.5 OD=22	0-91614-610-0	01	1	0606-		●
409	SPACER; COVER EXC. EURO2 SPECIFICATION<THN>	8-94394-990-1	01	1	9601-9803	●
409	SPACER; COVER ANTI NOISE EQUIPMENT VAR2<TAK> EXC. EURO2 SPECIFICATION<THN>	8-94394-990-1	01	1	9804-0004	●

1 36 4 36 36 36 36 212 36 230 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BLOCK ASM; CYL	8-98319-410-0	01	1	1507-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9601-9709			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9710-9806			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94393-958-9	01	1	9807-0001			●
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9807-0001				●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94395-860-8	01	1	9710-9807			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-94392-486-0	01	1	9808-0001			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-97601-299-5	01	1	0002-1012			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-705-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<THN>	8-98206-960-0	01	1	1210-			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-0	01	1	0002-0004			●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	0002-0004				●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-97601-297-4	01	1	0005-1012			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-704-0	01	1	1101-1209			●
1	BLOCK ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98206-959-0	01	1	1210-			●
1	BLOCK ASM; CYL	8-94394-057-9	01	1	9601-9807					●
1	BLOCK ASM; CYL	8-94392-491-2	01	1	9808-0001					●
1	BLOCK ASM; CYL	8-97600-415-2	01	1	0002-0504					●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0505-1012					●
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209					●
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-					●
1	BLOCK ASM; CYL	1-11210-620-5	01	1	9601-	●	●
1	BLOCK ASM; CYL	8-98206-963-0	01	1	1210-						●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9601-9709			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-0	06	1	9710-9806			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-1	06	1	9807-0004			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-1	06	1	9807-0004				●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-2	06	1	0005-0108			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-205-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-5	06	1	0306-0706			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-205-5	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9601-9709			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-0	06	1	9710-9806			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-1	06	1	9807-0004			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-1	06	1	9807-0004				●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-2	06	1	0005-0108			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-206-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-5	06	1	0306-0706			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-206-5	06	1	0707-			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-701-2	06	1	9710-0108			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-203-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-701-4	06	1	0306-0706			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-203-5	06	1	0707-			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-702-2	06	1	9710-0108			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-204-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-702-4	06	1	0306-0706			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-204-5	06	1	0707-			●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT ECE<SLK> GRADE=1X	1-87811-434-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9609-					●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT ECE<SLK> GRADE=3X	1-87811-435-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9609-					●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT ECE<SLK> GRADE=1X	1-87811-436-0	06	1	9601-9608					●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT ECE<SLK> GRADE=3X	1-87811-437-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-4	06	1	9601-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-4	06	1	9601-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-3	06	1	9601-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-3	06	1	9601-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0608-0706						●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-6	06	1	0707-						●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0608-0706						●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-6	06	1	0707-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0505-1012					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9710-9806			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9710-9806					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-1	05	1	9807-0004			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9807-0004				●	●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0005-0504			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0005-0504					●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0505-0607			●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	0608-1012			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0608-1012						●
36	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	05	1	1101-			●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	1101-					●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9601-9709			●		●
36	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=45	1-09600-005-2	04	1	9710-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0607			●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9601-9806			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9807-0004			●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0502			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-0607			●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0608-			●		●	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	9601-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	9601-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-2	14	1	9601-9806			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0607			●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0608-0905			●		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-			●		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9601-9806			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9807-0004			●	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0607			●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0608-			●		●	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9601-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9601-1107	●	●
211	BOLT; CRANKCASE (A) M10X95 FLANGE	8-98141-538-0	24	1	1108-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9601-9806			●		●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9807-0004			●	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0306			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-0607			●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0608-			●		●	●
212	PIN; CRANKCASE OD=12 L=28	1-09740-031-0	02	1	9601-	●	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9601-	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9601-	●	●

343 308 343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-0	06	1	9601-9709			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-0	06	1	9710-9806			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-1	06	1	9807-0004			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-1	06	1	9807-0004				●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-2	06	1	0005-0108			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-205-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-459-5	06	1	0306-0706			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-205-5	06	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-0	06	1	9601-9709			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-0	06	1	9710-9806			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-1	06	1	9807-0004			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-1	06	1	9807-0004				●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-2	06	1	0005-0108			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-206-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-460-5	06	1	0306-0706			●
2	LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-206-5	06	1	0707-			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-701-2	06	1	9710-0108			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-203-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87811-701-4	06	1	0306-0706			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=1X	1-87812-203-5	06	1	0707-			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-702-2	06	1	9710-0108			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-204-3	06	1	0109-0305			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87811-702-4	06	1	0306-0706			●
2	LINER SET; ENG CYL EURO2 SPECIFICATION<THN> GRADE=3X	1-87812-204-5	06	1	0707-			●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT ECE<SLK> GRADE=1X	1-87811-434-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9609-					●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT ECE<SLK> GRADE=3X	1-87811-435-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9609-					●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT ECE<SLK> GRADE=1X	1-87811-436-0	06	1	9601-9608					●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT ECE<SLK> GRADE=3X	1-87811-437-0	06	1	9601-9608					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-453-4	06	1	9601-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-454-4	06	1	9601-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-3	06	1	9601-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-3	06	1	9601-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-763-3	06	1	0608-0706						●
2	LINER SET; ENG CYL GRADE=1X	1-87812-246-6	06	1	0707-						●
2	LINER SET; ENG CYL GRADE=3X	1-87811-764-3	06	1	0608-0706						●
2	LINER SET; ENG CYL GRADE=3X	1-87812-247-6	06	1	0707-						●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9601-9806			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9807-0004			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	9601-0607					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0608-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	9601-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	9601-	●	●
308	PROTECTOR; HEAT,HD COVER EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-98171-339-0	01	1	1006-					●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9601-9806			●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	9807-0004			●	●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0005-			●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9601-9603					●
308	PROTECTOR; HEAT,HD COVER	8-94390-548-0	01	1	9604-9901					●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9902-1005					●
308	PROTECTOR; HEAT,HD COVER ANTI NOISE EQUIPMENT ECE<SLK>	8-94391-759-2	01	1	1006-					●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9601-9806			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9807-0004			●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0005-0512			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	04	1	0601-			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9601-0512					●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
