Isuzu WW
▶
TRUCKS
▶
NNR
▶
51398 - NNR/NPR/NQR(AUST)
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#38919) — 34 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WS
D - NPR5SE
E - NPR5WE
F - NPR5WN
◀

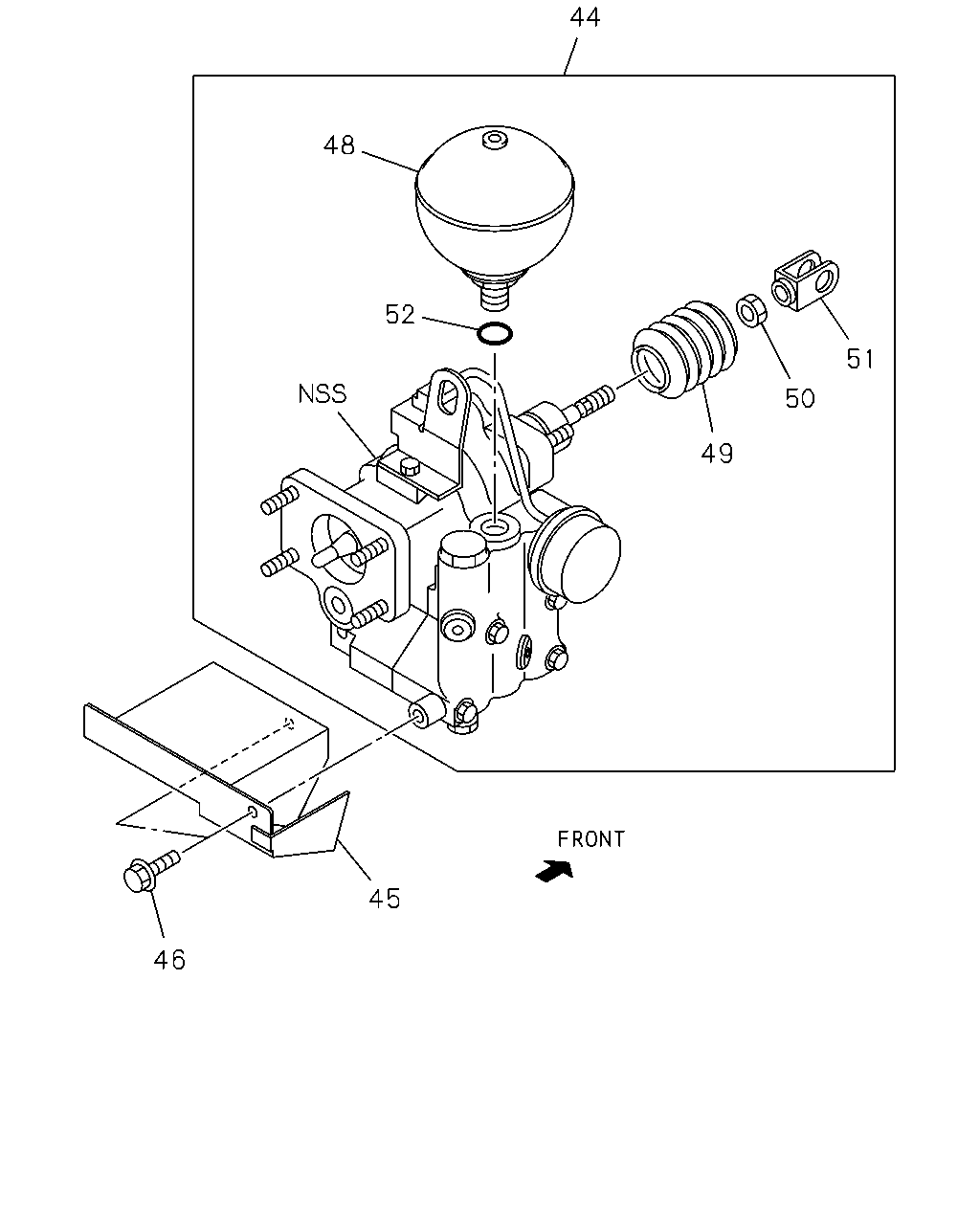

[331A] HYDRO BRAKE BOOSTER (16 parça)
[331A] EXC.HYDRO BRAKE BOOSTER (18 parça)
▶
44
48
52
51
50
49
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
44
04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-98031-414-0
01
1
0710-
●
44
04.901 BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
0710-
●
●
45
04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-98031-415-1
01
1
0710-
●
45
04.901 PROTECTOR; HEAT
8-98031-415-1
01
1
0710-
●
●
46
04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE
0-28050-610-0
02
1
0710-
●
46
04.901 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE
0-28050-610-0
02
1
0710-
●
●
48
04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-346-0
01
1
0710-
●
48
04.906 ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
0710-
●
●
49
04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-043-0
01
1
0710-
●
49
04.906 GUARD; HYDRO BRK BOOSTER
8-97191-043-0
01
1
0710-
●
●
50
04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-349-0
01
1
0710-
●
50
04.906 NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
0710-
●
●
51
04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-347-0
01
1
0710-
●
51
04.906 CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
0710-
●
●
52
04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 04.910
8-97191-038-0
01
1
0710-
●
52
04.906 GASKET; HYDRO BRK BOOSTER
04.910
8-97191-038-0
01
1
0710-
●
●
1
17
16
24
15
12
11
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.901 MASTER VAC ASM; BRK
8-97162-800-1
01
1
0710-
●
●
●
1
04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97162-800-1
01
1
0710-
●
3
04.906 RETAINER; FRT SHELL,M/VAC
9-83315-319-0
01
1
0710-
●
●
●
3
04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
9-83315-319-0
01
1
0710-
●
11
04.906 FILTER; M/VAC
8-97205-576-0
01
1
0710-
●
●
●
11
04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97205-576-0
01
1
0710-
●
12
04.906 SILENCER; M/VAC
8-97205-577-0
01
1
0710-
●
●
●
12
04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97205-577-0
01
1
0710-
●
15
04.906 RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
0710-
●
●
●
15
04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-94375-083-0
01
1
0710-
●
16
04.662 NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
0710-
●
●
●
16
04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10
1-52139-008-0
01
1
0710-
●
17
04.662 CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
0710-
●
●
●
17
04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97224-610-0
01
1
0710-
●
23
04.910 SEAL; M/VAC
8-97079-350-0
01
1
0710-
●
●
●
23
04.910 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97079-350-0
01
1
0710-
●
24
04.906 GUARD; VLV BODY,M/VAC
8-97205-578-0
01
1
0710-
●
●
●
24
04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97205-578-0
01
1
0710-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
