Isuzu WW
▶
TRUCKS
▶
NNR
▶
51398 - NNR/NPR/NQR(AUST)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#38913) — 61 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WE
D - NPR5WN
E - NPR5SS
F - NPR5WS
◀

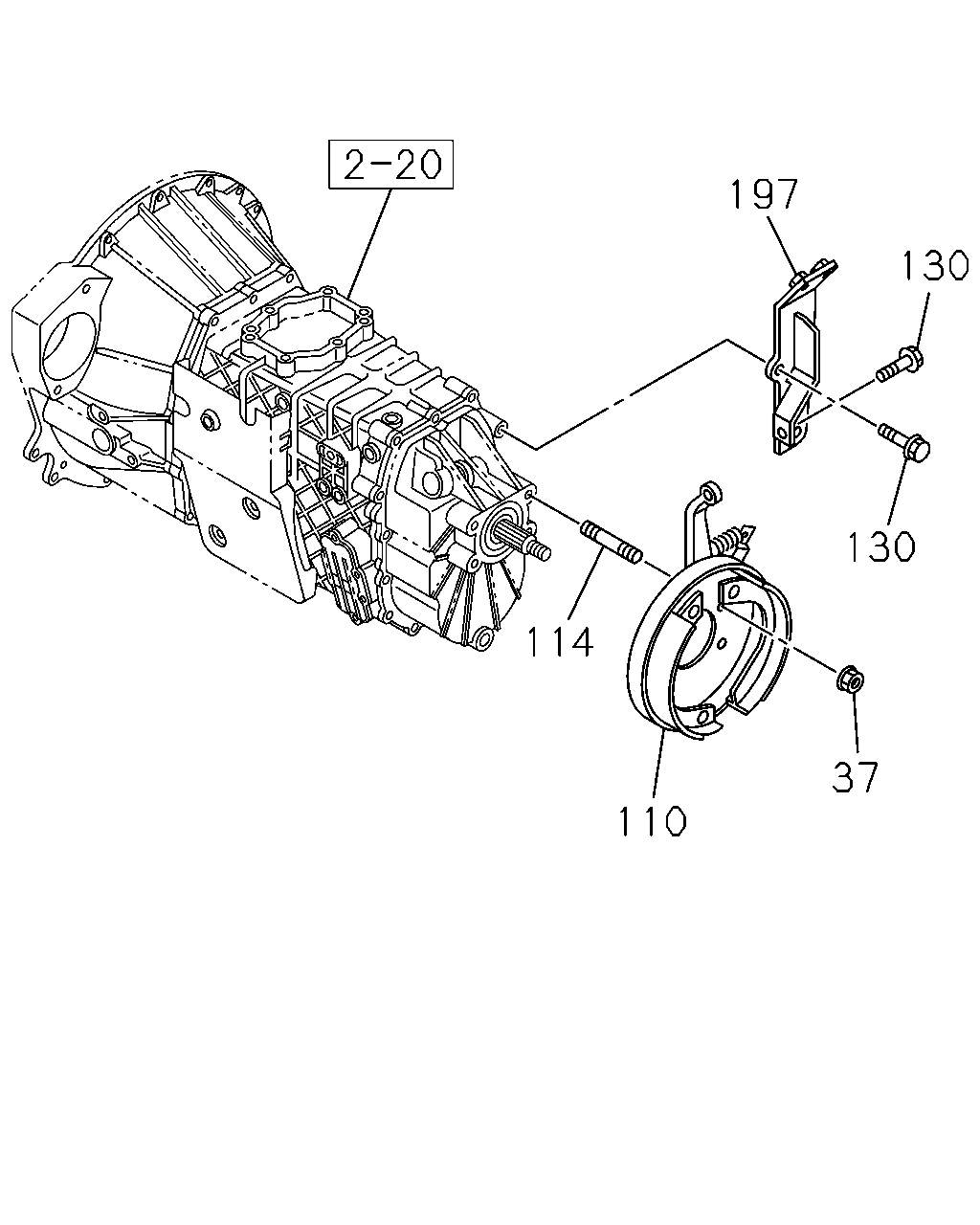

[308A] NQR(NO.1) (9 parça)

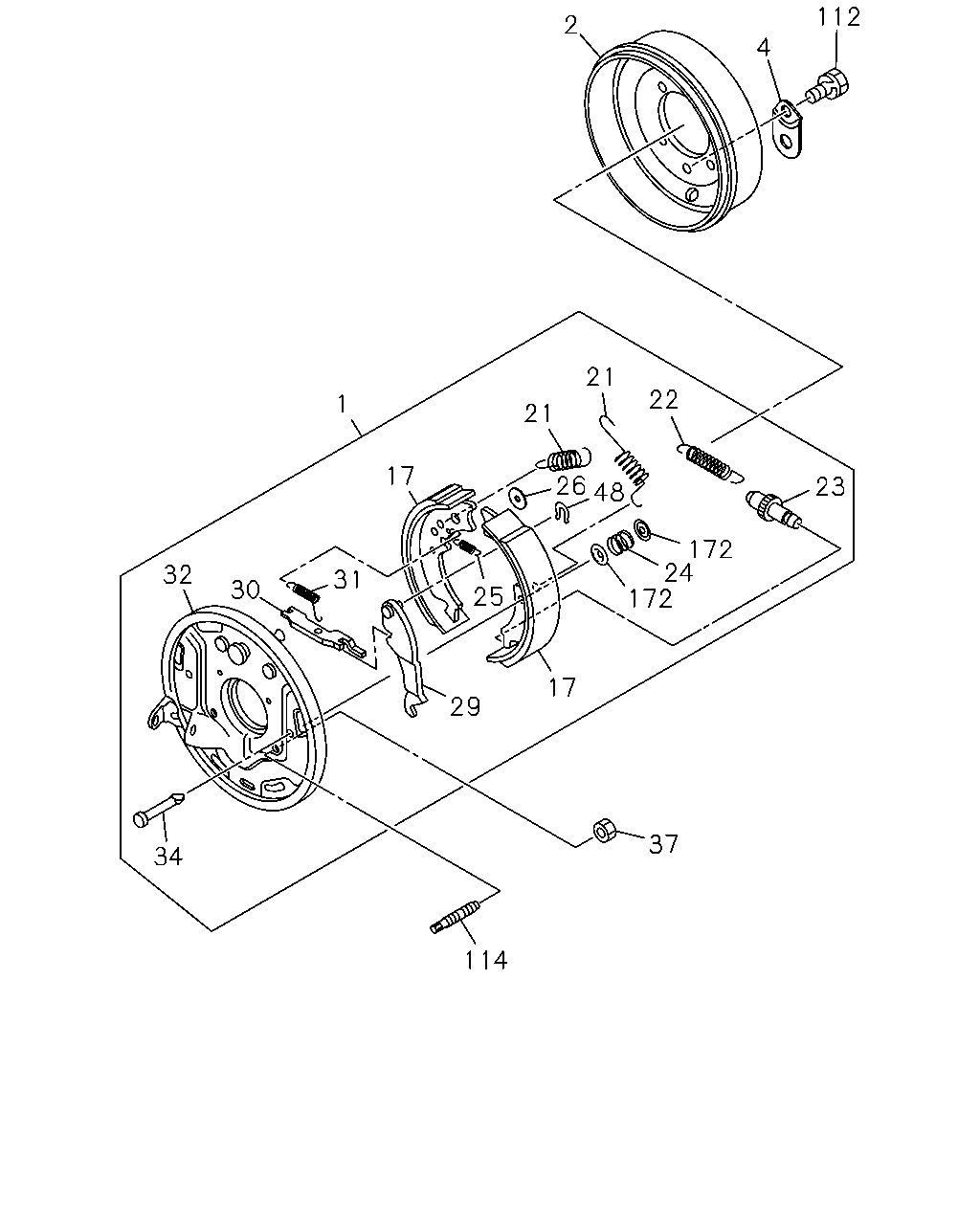

[308A] NNR,NPR (28 parça)

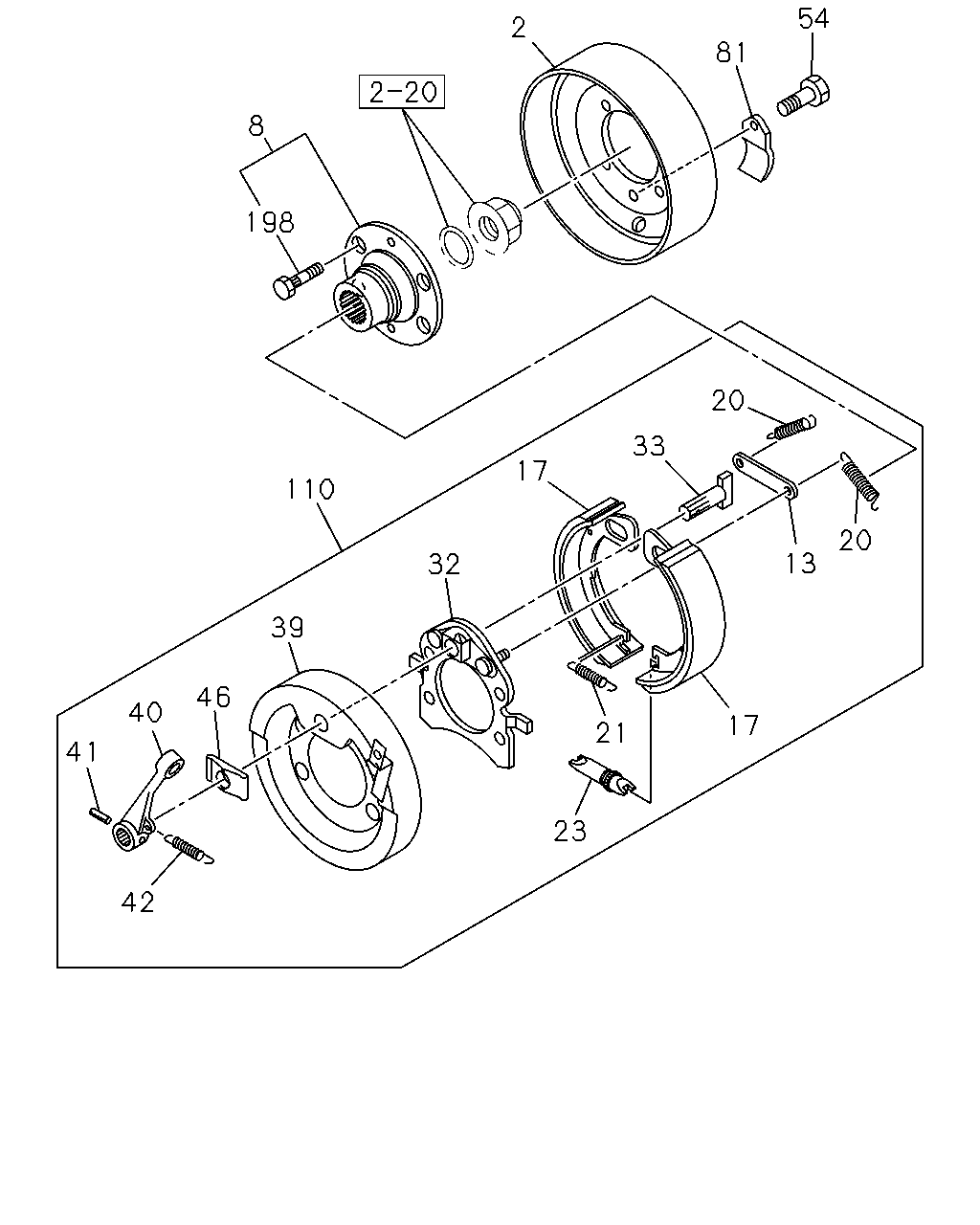

[308A] NQR(NO.2) (24 parça)
▶
197
130
130
114
37
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
37
05.610 NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
0710-
●
●
●
●
37
05.610 NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0710-
●
●
110
05.610 BRAKE ASM; PARKING
8-98034-305-0
01
1
0710-
●
●
114
05.605 STUD; SUPPORT PLATE
8-98029-929-0
04
1
0710-
●
●
●
●
114
05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
0710-
●
●
130
05.605 BOLT; BRKT
02.042 M10X25 FLANGE
0-28151-025-0
03
1
0710-
●
●
197
05.605 BRACKET; CENTER BRAKE CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97304-238-0
01
1
0710-1005
●
●
197
05.605 BRACKET; CENTER BRAKE CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97304-238-0
01
1
1006-
●
●
197
05.605 BRACKET; CENTER BRAKE CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97244-812-0
01
1
0710-
●
●
112
2
4
21
22
1
21
17
26
48
23
172
24
172
31
32
30
25
17
29
37
34
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
05.610 BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
0710-
●
●
●
●
2
05.605 DRUM; PARKING BRK
8-97033-989-1
01
1
0710-
●
●
2
05.605 DRUM; PARKING BRK
8-97334-107-0
01
1
0710-
●
●
2
05.605 DRUM; PARKING BRK
1-46211-057-0
01
1
0710-
●
●
4
05.606 COVER; ADJ HOLE
8-98029-820-0
01
1
0710-
●
●
●
●
17
05.606 SHOE; PARKING BRK
8-97020-250-2
02
1
0710-
●
●
●
●
17
05.606 SHOE; PARKING BRK
8-97042-934-1
02
1
0710-
●
●
21
05.606 SPRING; RETURN,PARKING BRK SHOE
05.605
8-94132-157-0
02
1
0710-
●
●
●
●
21
05.606 SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
0710-
●
●
22
05.606 SPRING; ADJ SCREW,PARKING BRK
05.605
8-94107-618-0
01
1
0710-
●
●
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
0710-
●
●
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
0710-
●
●
24
05.605 SPRING; BRK SHOE
8-94132-155-1
02
1
0710-
●
●
●
●
25
05.605 SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
0710-
●
●
●
●
26
05.605 PLATE; SHOE GUIDE
8-98043-959-0
01
1
0710-
●
●
●
●
29
04.591 LEVER; PARKING BRK
8-98043-949-0
01
1
0710-
●
●
●
●
30
05.605 STRUT; PARKING BRK
8-98043-953-0
01
1
0710-
●
●
●
●
31
05.605 SPRING; SHOE TO STRUT
8-94132-158-0
01
1
0710-
●
●
●
●
32
05.610 PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
0710-
●
●
●
●
32
05.610 PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
0710-
●
●
34
05.605 PIN; BRK SHOE
8-98043-955-0
02
1
0710-
●
●
●
●
37
05.610 NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
0710-
●
●
●
●
37
05.610 NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0710-
●
●
48
05.605 RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
0710-
●
●
●
●
112
05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER
0-50540-616-0
01
1
0710-
●
●
●
●
114
05.605 STUD; SUPPORT PLATE
8-98029-929-0
04
1
0710-
●
●
●
●
114
05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
0710-
●
●
172
05.605 CUP; SHOE HOLD
8-98043-956-0
04
1
0710-
●
●
●
●
54
2
81
8
198
20
33
17
110
20
13
32
39
46
40
17
21
41
23
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
2
05.605 DRUM; PARKING BRK
8-97033-989-1
01
1
0710-
●
●
2
05.605 DRUM; PARKING BRK
8-97334-107-0
01
1
0710-
●
●
2
05.605 DRUM; PARKING BRK
1-46211-057-0
01
1
0710-
●
●
8
05.605 FLANGE; PARKING BRK
8-98044-142-0
01
1
0710-
●
●
13
05.615 BRACE; PARKING BRK
1-46239-003-0
01
1
0710-
●
●
17
05.606 SHOE; PARKING BRK
8-97020-250-2
02
1
0710-
●
●
●
●
17
05.606 SHOE; PARKING BRK
8-97042-934-1
02
1
0710-
●
●
20
05.606 SPRING; RETURN,SECONDARY,PARKING
1-09586-002-0
02
1
0710-
●
●
21
05.606 SPRING; RETURN,PARKING BRK SHOE
05.605
8-94132-157-0
02
1
0710-
●
●
●
●
21
05.606 SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
0710-
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
0710-
●
●
●
●
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
0710-
●
●
32
05.610 PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
0710-
●
●
●
●
32
05.610 PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
0710-
●
●
33
05.605 SHAFT; CAM,PARKING BRK
8-98043-961-0
01
1
0710-
●
●
39
05.610 COVER; DUST,PARKING BRK
1-46213-075-0
01
1
0710-
●
●
40
05.605 LEVER; CM/SHF,PARKING BRK
8-98047-550-0
01
1
0710-
●
●
41
05.605 PIN; KNOCK,LEVER
9-09878-594-0
01
1
0710-
●
●
42
05.605 SPRING; RETURN,LEVER
1-09583-041-0
01
1
0710-
●
●
46
05.605 WASHER; LEVER
1-09509-057-0
01
1
0710-
●
●
54
05.606 BOLT; COVER
03.403 M8X20 W/LK&PL WASHER
0-50640-820-0
02
1
0710-
●
●
81
05.606 COVER; CHECK HOLE,PARKING BRK
8-98031-861-0
02
1
0710-
●
●
110
05.610 BRAKE ASM; PARKING
8-98034-305-0
01
1
0710-
●
●
198
05.605 BOLT; KNURL
M12X39
8-97365-446-0
04
1
0710-
●
●
