◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#3891) — 750 parça

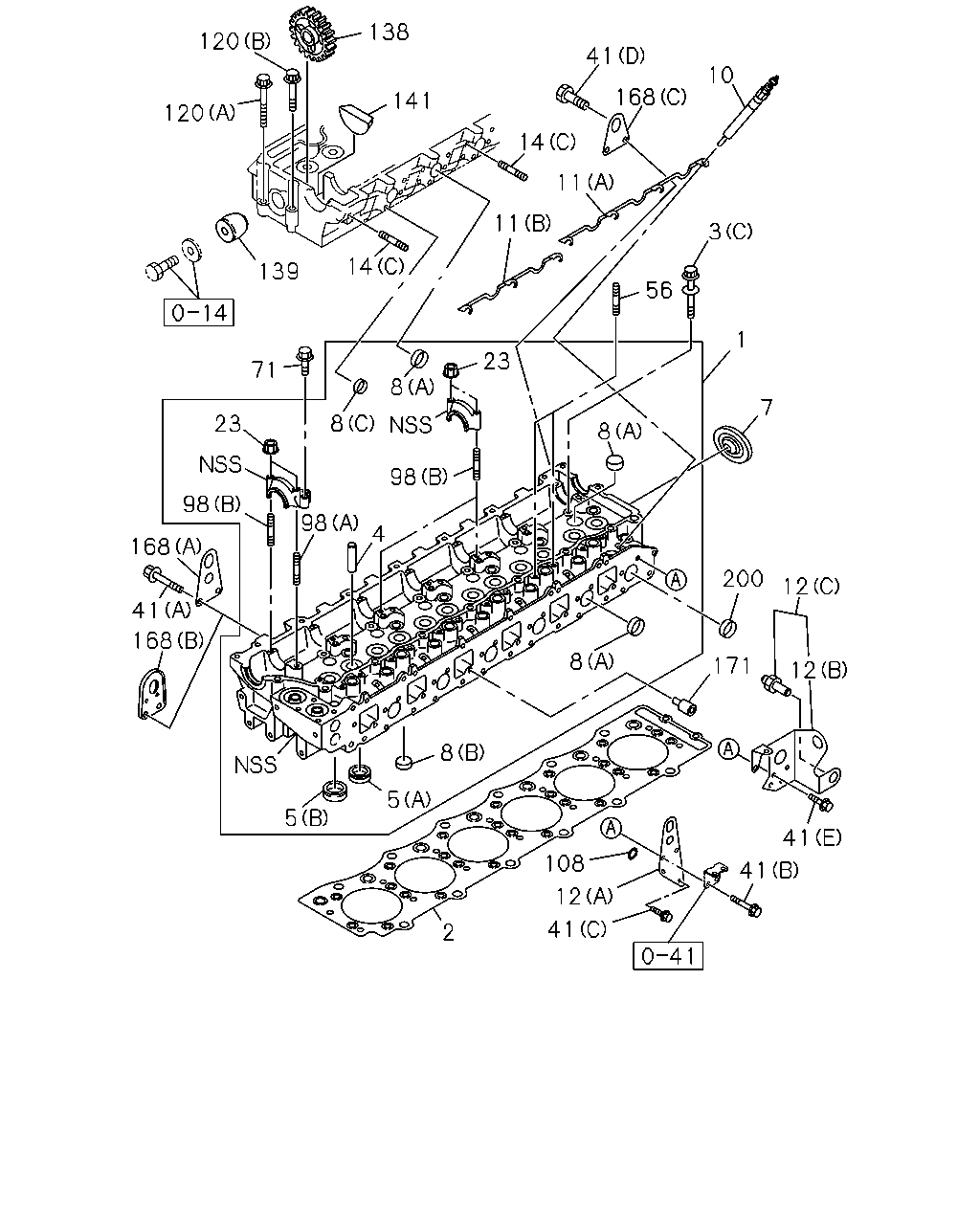

çizim 4824
138 120 41 10 168 141 120 14 11 11 3 14 139 56 1 23 71 8 7 8 23 8 98 98 98 4 168 200 12 41 168 8 171 12 8 5 5 41 108 41 12 41 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94393-807-5 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-967-0 01 1 9609-9709 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9710-9806 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL 8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-3 01 1 0005-1012 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-98180-576-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-6 01 1 9710-1012 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9601- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609- ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0608-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9601-9806 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9807-0004 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0005- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9601- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 9601- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-2 26 1 9601-9806 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 9807-0004 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0607 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0608-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601- ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0608-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9806 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9807-0004 ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ● ●
5 SEAT; VLV INSERT
(B) OD=38 		8-94395-888-2 12 1 0608- ●
5 SEAT; VLV INSERT
(A) OD=38 		8-97216-511-0 12 1 0608-0703 ●
5 SEAT; VLV INSERT
(A) ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9601-9806 ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9807-0004 ● ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9601-9806 ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9807-0004 ● ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9601- ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-0004 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-122-0 06 1 0005- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9601-9806 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9807-0004 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0607 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0608- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0608- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0608- ●
8 CUP; SEALING,WATER JACKET
INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 01 1 9804- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-0406 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-0105 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ● ●
10 PLUG; GLOW 8-94392-815-4 06 1 0608- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9806 ● ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9807-9809 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0005- ● ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(C) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ● ●
12 HANGER; ENG,RR
(E) 		8-94390-417-2 01 1 0608- ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9601-9709 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9710-9806 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 0005- ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> (B) 		8-94394-337-1 01 1 9710- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601- ●
12 HANGER; ENG,RR
(D) 		1-11777-099-0 01 1 9601- ● ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9601-9709 ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0303-0607 ● ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0608- ● ● ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9706- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9706- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9806 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9807-0004 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-0607 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0608- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0607 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9709 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9710-9806 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0512 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0607 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28781-025-0 02 1 9710-0512 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0607 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601- ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0512 ● ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9601-9806 ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9807-0004 ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0005- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9601-9806 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9807-0004 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0607 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0608- ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9806 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0607 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0608- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9806 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0607 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0608- ● ● ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9601-9709 ● ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN> ID=35.2 		1-09623-375-0 01 1 9710-9803 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9710-9803 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 9804-9806 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9804-9806 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 9807-0004 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9807-0004 ● ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 0005-0607 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0005-0607 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 0608- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0608- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9806 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9807-0004 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0607 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0608- ● ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9806 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9807-0004 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0607 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0608- ● ● ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9601-9806 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9807-0004 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0607 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0608-1005 ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0608- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9601-9709 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9710-9806 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-2 01 1 0005- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9601-9806 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9807-0004 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0005- ●
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<THN> (B) 		8-94391-505-0 01 1 9710- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9601-0607 ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0608- ●
168 HANGER; ENG,FRT
(D) 		1-11777-207-0 01 1 9601- ● ●
171 SEAT; VLV
EURO2 SPECIFICATION<THN> 		8-94394-678-1 06 1 9710- ●
171 SEAT; VLV 8-94395-571-1 06 1 9601-9709 ● ●
171 SEAT; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94395-571-1 06 1 9710-9806 ●
171 SEAT; VLV 8-94395-571-1 06 1 9710-9806 ●
171 SEAT; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94395-571-1 06 1 9807-0004 ●
171 SEAT; VLV 8-94395-571-1 06 1 9807-0004 ● ●
171 SEAT; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94395-571-1 06 1 0005-1102 ●
171 SEAT; VLV 8-94395-571-1 06 1 0005-1102 ●
171 SEAT; VLV 8-94395-571-1 06 1 1103- ● ●
200 CUP; SEALING,INLET MANIFOLD
EURO2 SPECIFICATION<THN> OD=32 		1-09600-012-2 01 1 9710- ●

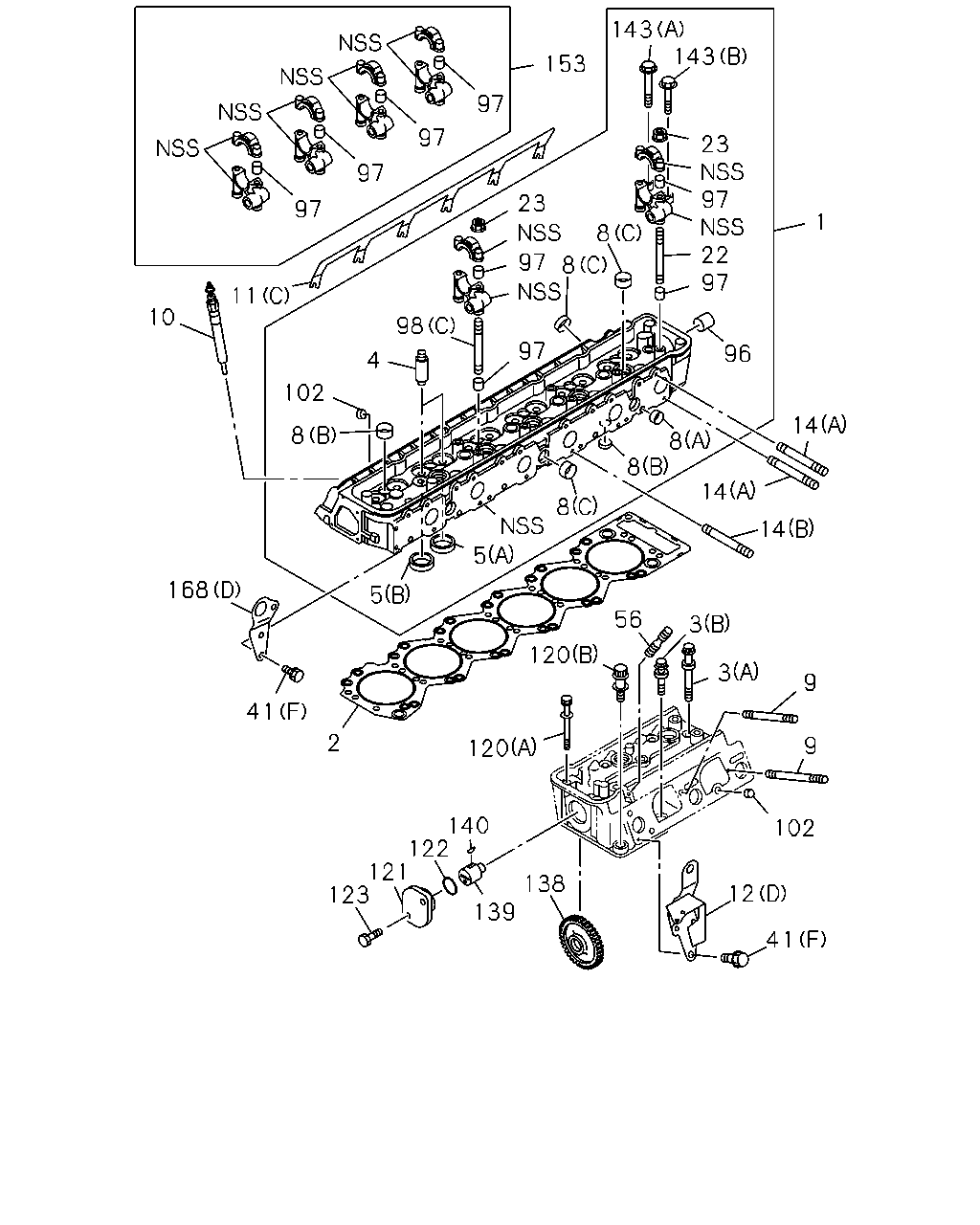

çizim 5521
143 143 153 97 97 23 97 22 97 97 23 8 97 1 97 8 98 11 10 97 96 4 102 14 8 8 8 14 8 14 5 168 5 56 3 120 3 9 41 2 9 120 140 122 121 123 102 138 12 139 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94393-807-5 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-967-0 01 1 9609-9709 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9710-9806 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL 8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-3 01 1 0005-1012 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-98180-576-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-6 01 1 9710-1012 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9601- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609- ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0608-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9601-9806 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9807-0004 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0005- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9601- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 9601- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-2 26 1 9601-9806 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 9807-0004 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0607 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0608-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601- ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0608-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9806 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9807-0004 ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ● ●
5 SEAT; VLV INSERT
(B) OD=38 		8-94395-888-2 12 1 0608- ●
5 SEAT; VLV INSERT
(A) OD=38 		8-97216-511-0 12 1 0608-0703 ●
5 SEAT; VLV INSERT
(A) ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9601-9806 ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9807-0004 ● ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9601-9806 ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9807-0004 ● ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9601- ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-0004 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-122-0 06 1 0005- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0608- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0608- ●
8 CUP; SEALING,WATER JACKET
INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 01 1 9804- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-0406 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-0105 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ● ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9601- ● ●
10 PLUG; GLOW 8-94392-815-4 06 1 0608- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9806 ● ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9807-9809 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0005- ● ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(C) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ● ●
12 HANGER; ENG,RR
(E) 		8-94390-417-2 01 1 0608- ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9601-9709 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9710-9806 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 0005- ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> (B) 		8-94394-337-1 01 1 9710- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601- ●
12 HANGER; ENG,RR
(D) 		1-11777-099-0 01 1 9601- ● ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9601-9709 ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0303-0607 ● ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0608- ● ● ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9706- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9706- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9601- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9806 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9807-0004 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-0607 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0608- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0607 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9709 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9710-9806 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0512 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0607 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28781-025-0 02 1 9710-0512 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0607 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601- ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0512 ● ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9601-9806 ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9807-0004 ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0005- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601- ● ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9601- ● ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9806 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0607 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0608- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9806 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0607 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0608- ● ● ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ● ●
102 SEAT; VLV 1-11119-021-0 06 1 9711- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ● ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9601- ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9601- ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9806 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9807-0004 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0607 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0608- ● ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9806 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9807-0004 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0607 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0608- ● ● ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ● ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9601- ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9601-0512 ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 9601-0512 ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28060-860-0 01 1 0601- ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-178-0 01 1 9609-9709 ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 01 1 9710-0609 ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 0610- ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0608- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9601-9709 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9710-9806 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-2 01 1 0005- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9601-9806 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9807-0004 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0005- ●
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<THN> (B) 		8-94391-505-0 01 1 9710- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9601-0607 ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0608- ●
168 HANGER; ENG,FRT
(D) 		1-11777-207-0 01 1 9601- ● ●

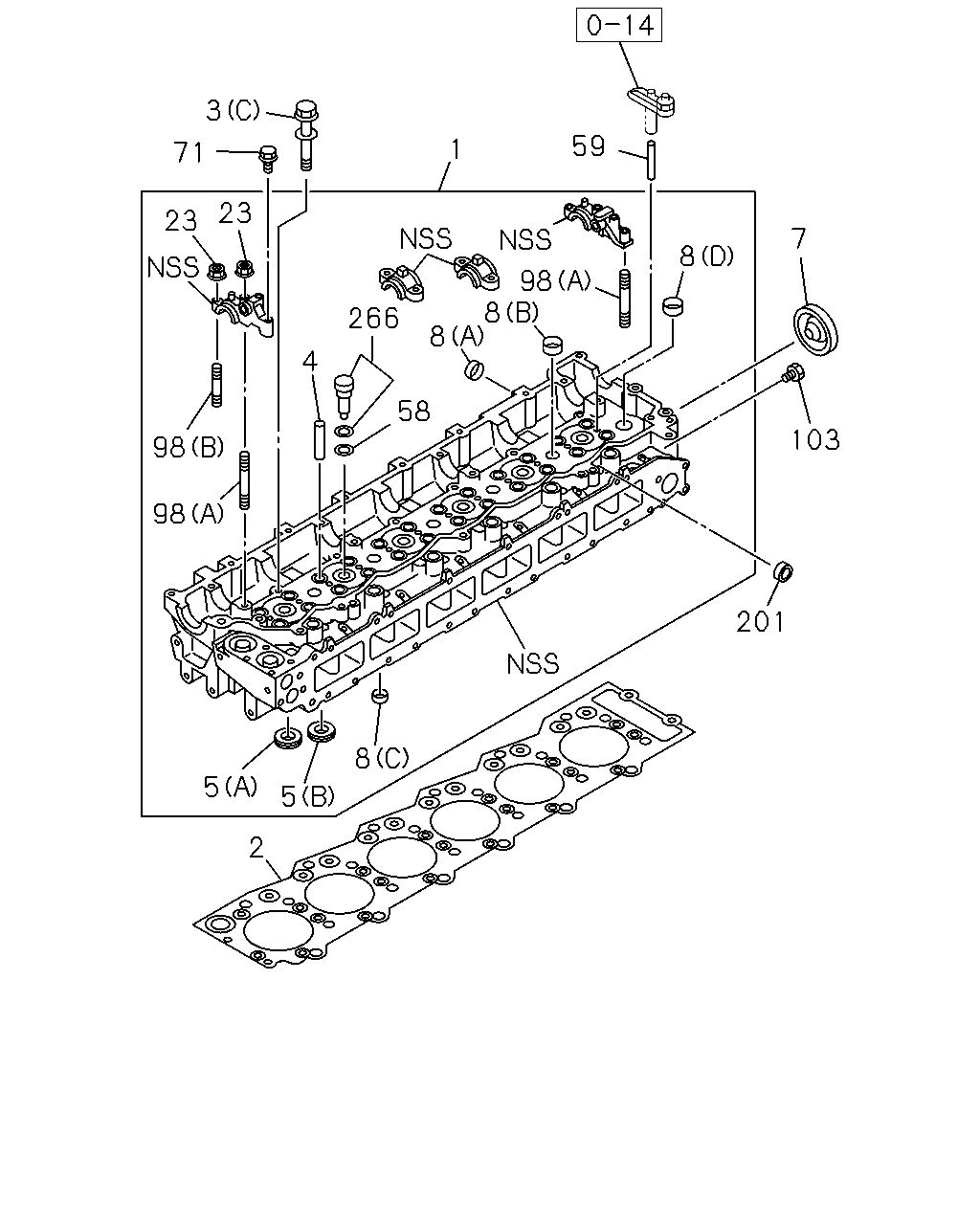

çizim 38432
3 71 1 59 7 103 8 98 266 4 23 23 98 98 58 8 8 201 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94393-807-5 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-967-0 01 1 9609-9709 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9710-9806 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL 8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-3 01 1 0005-1012 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-98180-576-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-6 01 1 9710-1012 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9601- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609- ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0608-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9601-9806 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9807-0004 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0005- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9601- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 9601- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0608- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-2 26 1 9601-9806 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 9807-0004 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0607 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-94396-207-3 26 1 0608-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601- ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0608-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9601-9806 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9807-0004 ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601- ● ●
5 SEAT; VLV INSERT
(B) OD=38 		8-94395-888-2 12 1 0608- ●
5 SEAT; VLV INSERT
(A) OD=38 		8-97216-511-0 12 1 0608-0703 ●
5 SEAT; VLV INSERT
(A) ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9601-9806 ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9807-0004 ● ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9601-9806 ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9807-0004 ● ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) OD=52 		8-94394-127-0 06 1 9601- ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-0004 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-122-0 06 1 0005- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9601-9806 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9807-0004 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0607 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0608- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0608- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0608- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0608- ●
8 CUP; SEALING,WATER JACKET
INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 01 1 9804- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9601-9806 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9807-0004 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-0406 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-0105 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9601-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9806 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9807-0004 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603-0607 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0608- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-0809 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0608- ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0608- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9601-9806 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9807-0004 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0607 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0608- ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9601-9806 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0607 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0608- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9601-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9806 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9807-0004 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0607 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0608- ● ● ●
98 STUD; CAM BRKT
(C) M8X114 L=132 		1-09300-028-1 06 1 9601- ● ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0608- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0608- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0608- ●

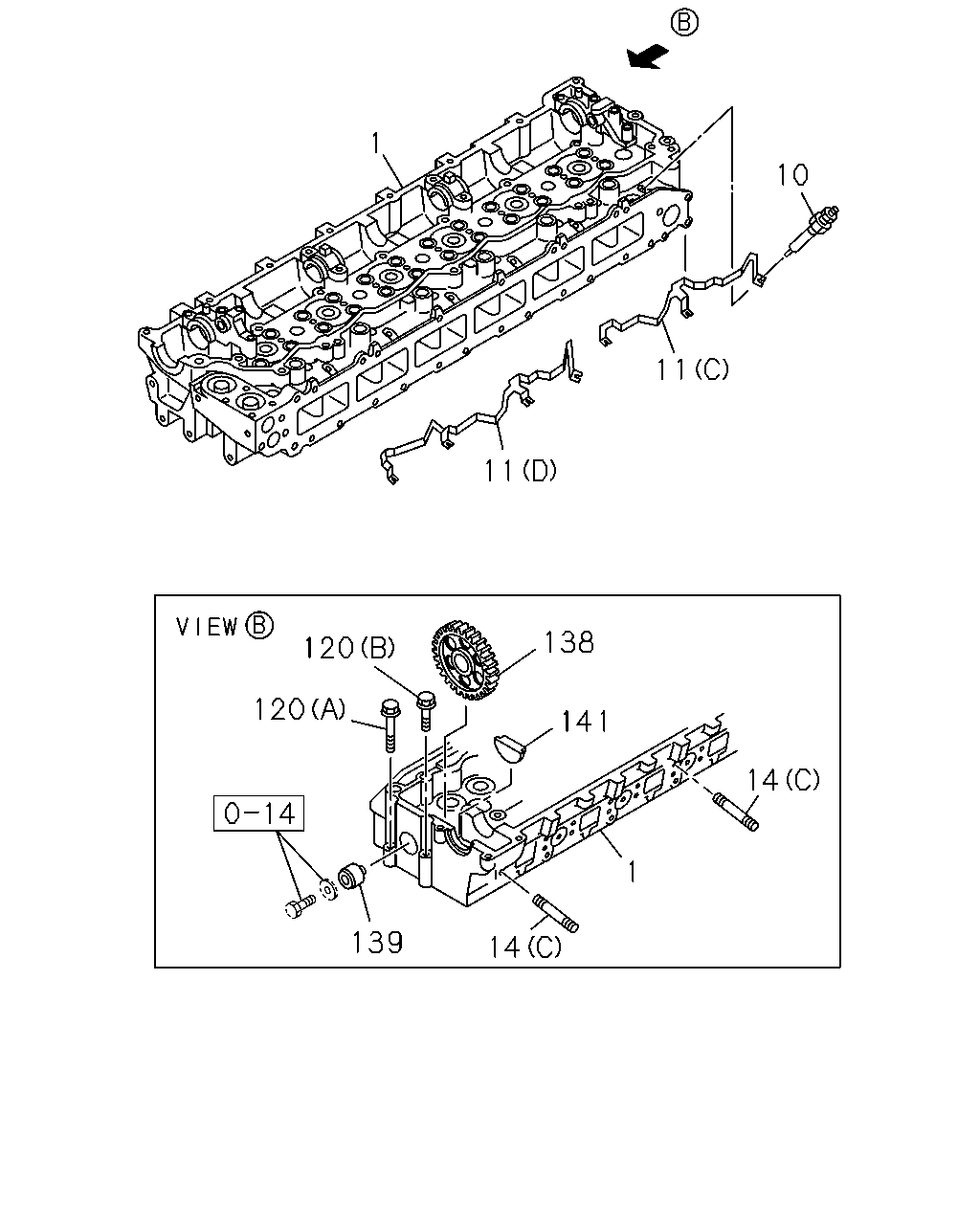

çizim 38744
1 10 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94393-807-5 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-967-0 01 1 9609-9709 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9710-9806 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL 8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-3 01 1 0005-1012 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-98180-576-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-6 01 1 9710-1012 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9601- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609- ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0608-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
10 PLUG; GLOW 8-94392-815-4 06 1 0608- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9806 ● ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9807-9809 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ● ● ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0005- ● ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-648-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0608-0804 ●
11 CONNECTOR; GLOW PLUG
(C) 		8-98040-649-0 01 1 0805- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9601-9806 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9807-0004 ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ●
11 CONNECTOR; GLOW PLUG
(C) 		1-19732-011-1 01 1 9601- ● ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X93 L=108 		8-94396-123-0 11 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X93 L=108 		8-94396-123-0 11 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9601-9709 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9710-9806 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 01 1 9807-0004 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 01 1 0005- ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9601-9709 ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> (C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 9710-0302 ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0303-0607 ● ●
14 STUD; EXH MANIF
(C) M10X60 L=75 		8-94397-286-0 12 1 0608- ● ● ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9706- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-9705 ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9706- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9601-9806 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9807-0004 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0607 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0608- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9601-9806 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9807-0004 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0607 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0608- ● ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9601- ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9601-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9806 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9807-0004 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0607 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0608- ● ● ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-0011 ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9601-9806 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9807-0004 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0607 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0608-1005 ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ●
çizim 38783
1 168 41 12 168 41 108 41 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-94393-807-5 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-967-0 01 1 9609-9709 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9710-9806 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL 8-94390-967-1 01 1 9807-0004 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-3 01 1 0005-1012 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-98180-576-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-6 01 1 9710-1012 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9601-9608 ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9601- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609- ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0608-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
12 HANGER; ENG,RR
(E) 		8-94390-417-2 01 1 0608- ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9601-9709 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9710-9806 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9807-0004 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94394-553-1 01 1 0005- ●
12 HANGER; ENG,RR
EURO2 SPECIFICATION<THN> (B) 		8-94394-337-1 01 1 9710- ●
12 HANGER; ENG,RR
(A) 		8-94399-405-0 01 1 9601- ●
12 HANGER; ENG,RR
(D) 		1-11777-099-0 01 1 9601- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601-0607 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9601-9709 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9710-9806 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9807-0004 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0512 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (D) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9601-9806 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9807-0004 ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0607 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0608- ● ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28781-025-0 02 1 9710-0512 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0601-0607 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0608- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 01 1 9601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9601- ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-0512 ● ●
41 BOLT; ENG HANGER
(F) M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601- ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9601-9709 ● ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN> ID=35.2 		1-09623-375-0 01 1 9710-9803 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9710-9803 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 9804-9806 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9804-9806 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 9807-0004 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9807-0004 ● ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 0005-0607 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0005-0607 ●
108 GASKET; HANGER,RR
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) ID=35.2 		1-09623-375-0 01 1 0608- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0608- ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0608- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9601-9709 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9710-9806 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9807-0004 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-071-2 01 1 0005- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9601-9806 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9807-0004 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0005- ●
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<THN> (B) 		8-94391-505-0 01 1 9710- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 9601-0607 ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0608- ●
168 HANGER; ENG,FRT
(D) 		1-11777-207-0 01 1 9601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
