◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#389) — 53 parça

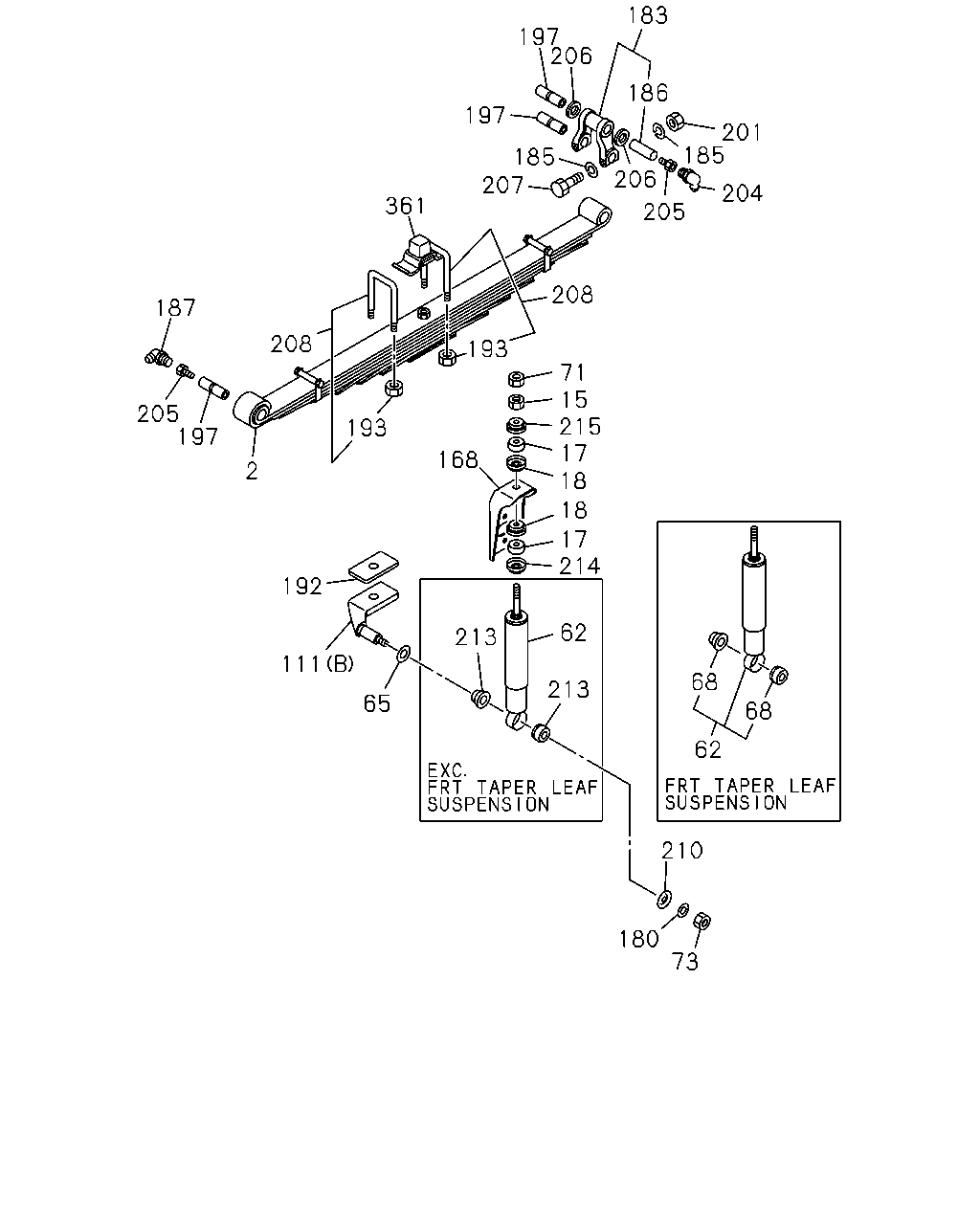

çizim 27852
183 197 206 186 197 201 185 185 207 206 204 361 205 208 187 208 193 71 15 215 17 18 205 197 193 168 2 18 17 214 192 62 213 111 68 213 65 68 62 210 180 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1(F40),SUSPENSION HEAVY DUTY VAR2(F41) EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-180-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR1(F40),SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-179-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-069-0 02 1 9202- ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9202- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9202- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9202- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-160-0 02 1 9202- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-180-3 02 1 9202- ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9202- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		1-51631-009-1 04 1 9202- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9202- ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-559-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-558-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A) 		1-51681-633-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A) 		1-51681-632-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-667-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-666-1 01 1 9202- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9202- ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9202- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9202- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9202-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9202- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9202- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9202- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9202- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9202- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9202- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9202- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9202- ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 9202- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9202- ● ●
213 BUSHING; RUBBER,LWR
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51631-009-1 04 1 9202- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9202- ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9202- ● ●
361 CLAMP; LEAF SPR 1-51172-081-0 02 1 9202- ● ●

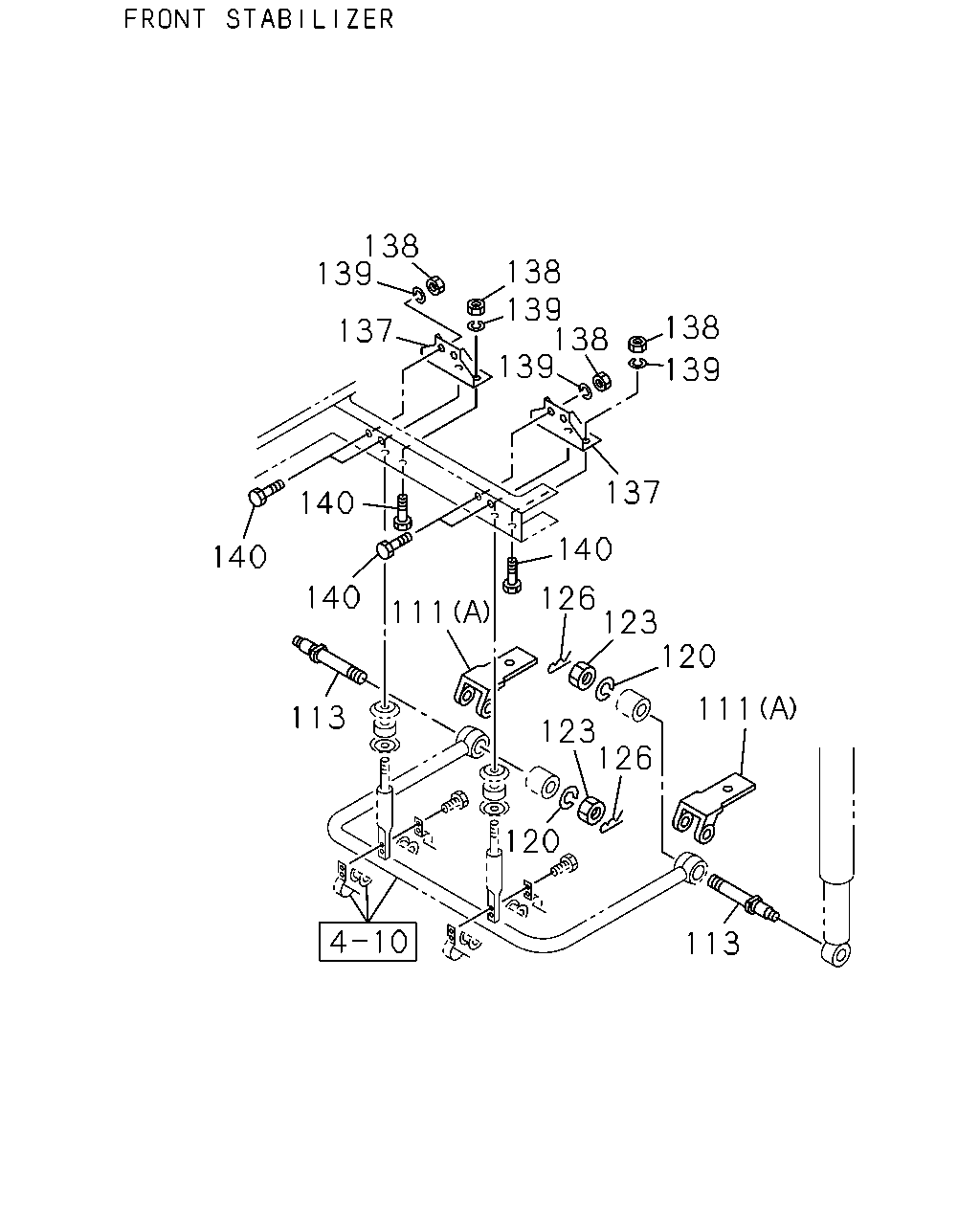

çizim 95863
138 139 138 139 138 139 138 137 139 137 140 140 140 140 126 123 120 111 111 113 123 126 120 113
BalonParca AdiParca NoAdetTipApplied Date A B
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-559-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F049(FS4) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-558-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A) 		1-51681-633-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) FRONT STABILIZER SHAFT<F59> (A) 		1-51681-632-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-667-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT AXLE F063(FS7) EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-51681-666-1 01 1 9202- ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-127-1 02 1 9202- ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> 		9-09160-522-0 02 1 9202- ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22 		9-09116-522-0 02 1 9202- ● ●
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9202- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9202- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9202- ● ●
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9202- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9202- ● ●
