Isuzu WW
▶
BUSES
▶
LV
▶
11100 - LV434(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

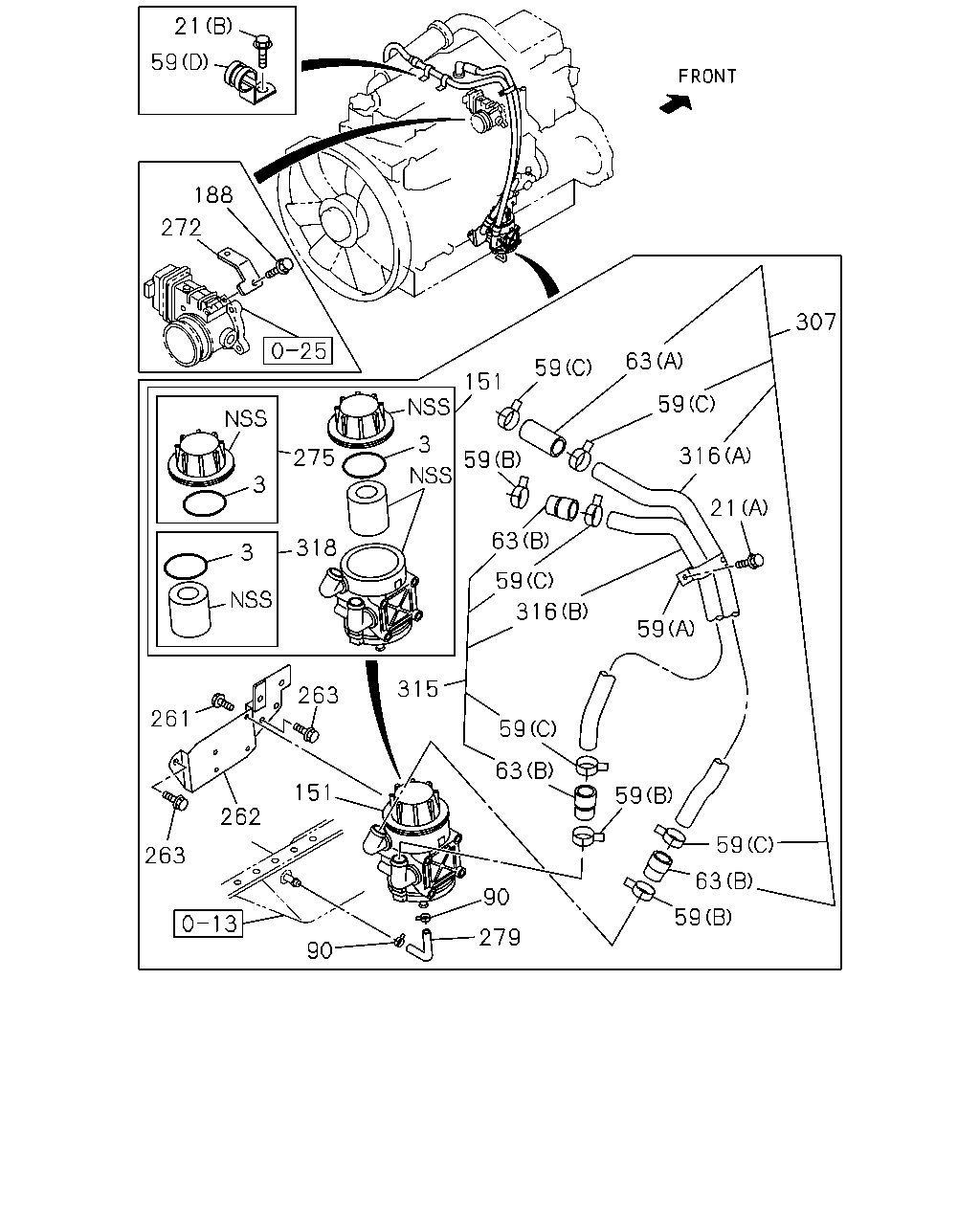

0-28 — VENTILATION SYSTEM
(#38897) — 27 parça
21
59
188
272
59
63
307
59
316
21
59
59
59
63
59
63
59
90
279
90
151
262
263
315
316
59
59
151
3
275
318
3
3
261
263
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0707-
21
BOLT; CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
0707-
21
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
02
1
0707-
59
CLIP; HOSE
(D) ID=31 H=30 L=35
1-09700-994-0
02
1
0707-
59
CLIP; HOSE
(A) ID=30X2 L=28
1-09701-266-0
01
1
0707-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
0707-
59
CLIP; HOSE
(C) ID=33.6
8-94362-518-0
05
1
0707-
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02828-070-0
01
1
0707-1005
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02728-070-0
01
1
1006-
63
HOSE; RUBBER,AIR BREATHER
(B)
1-09360-925-0
03
1
0707-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0707-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
0707-
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
0707-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
0707-
262
BRACKET; OIL SEPARETOR
8-97604-921-0
01
1
0707-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
0707-
272
BRACKET; PIPE
8-97607-397-0
01
1
0707-
275
CAP; PCV
8-97606-319-0
01
1
0707-
279
HOSE; RUBBER,OIL DRAIN
0-02709-140-0
01
1
0707-0712
279
HOSE; RUBBER,OIL DRAIN
L=160
0-02709-160-0
01
1
0801-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98055-316-2
01
1
0707-1208
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98218-154-0
01
1
1209-
315
HOSE; RUBBER
8-97615-918-1
01
1
0707-1006
315
HOSE; RUBBER
8-98154-176-1
01
1
1007-
316
HOSE; BREATHER
(B) L=1320
8-97600-189-0
01
1
0707-
316
HOSE; BREATHER
(A) L=800
8-97602-932-0
01
1
0707-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
0707-
