Isuzu WW
▶
BUSES
▶
LV
▶
11100 - LV434(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

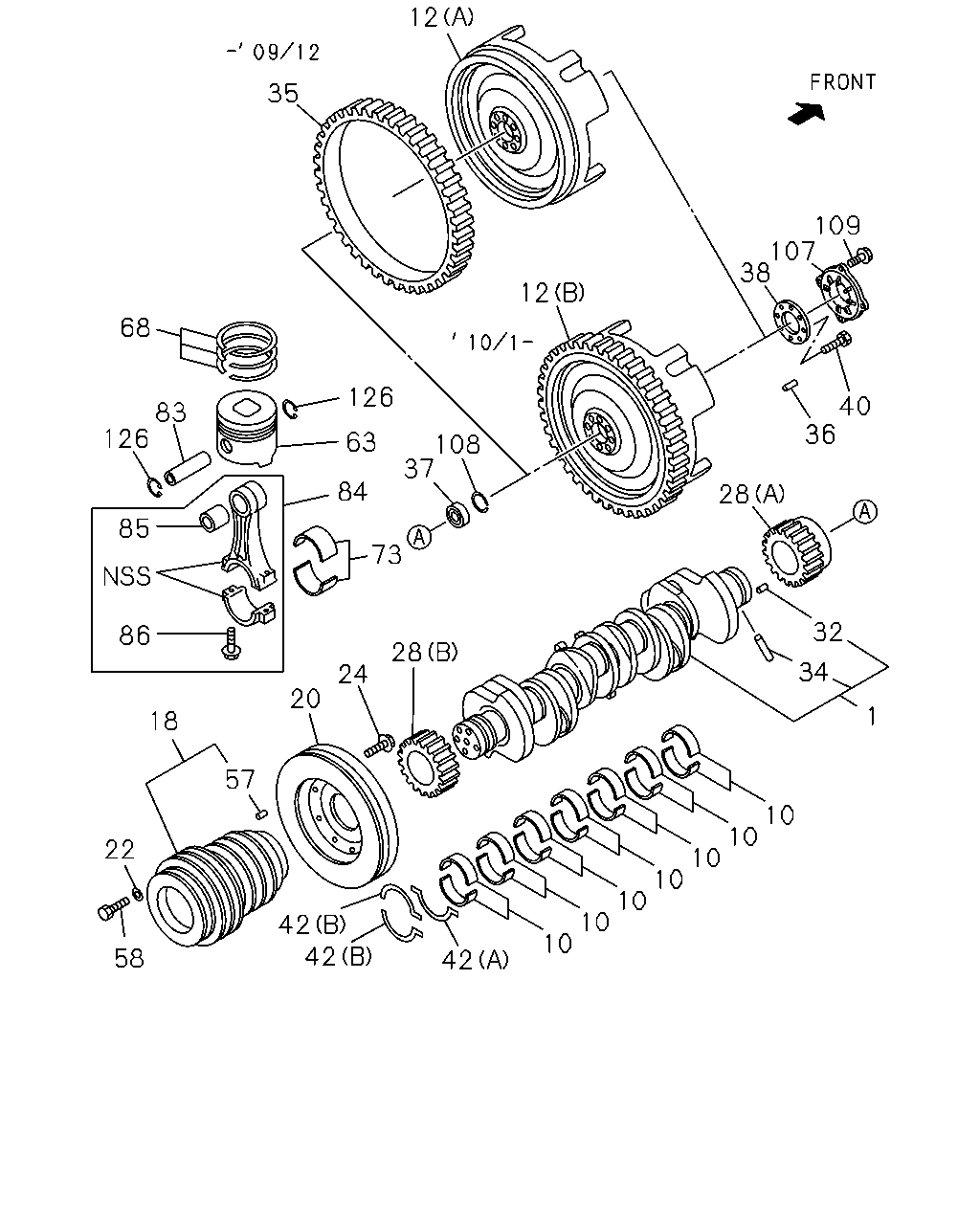

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#38892) — 37 parça
35
12
12
38
107
109
40
36
28
32
34
1
10
10
10
10
10
10
10
42
42
42
57
18
22
58
20
24
28
73
84
63
126
37
108
68
83
126
85
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-004-0
01
1
0707-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
0707-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
0707-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
0707-
12
FLYWHEEL
(A)
8-97603-813-0
01
1
0707-0912
12
FLYWHEEL
(B)
8-98154-823-1
01
1
1001-
18
PULLEY; CR/SHF
7-GROOVE
8-94395-505-2
01
1
0707-
20
DAMPER; CR/SHF
8-97604-900-0
01
1
0707-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0707-
24
BOLT; DAMPER
M10X16 FLANGE
0-28151-016-0
06
1
0707-
28
GEAR; CR/SHF
(A) Z=42
8-94392-255-1
01
1
0707-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
0707-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
0707-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0707-
35
GEAR; RING
Z=160
1-12333-011-3
01
1
0707-0912
35
GEAR; RING
Z=160
8-98154-894-0
01
1
1001-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0707-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-200-1
01
1
0707-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
0707-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
0707-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0707-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0707-
57
PIN; PULLEY
OD=8 L=16
9-08150-816-0
01
1
0707-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
0707-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
06
1
0707-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
06
1
0707-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
06
1
0707-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
06
1
0707-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
06
1
0707-
84
ROD ASM; CONN
8-98018-425-2
06
1
0707-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
0707-
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
12
1
0707-1004
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1005-
107
RETAINER; BRG
8-97603-812-0
01
1
0707-
108
RING; SNAP,BRG SET
OD=76.5
9-09180-172-0
01
1
0707-
109
BOLT; RET
M10X20 FLANGE
0-28151-020-0
04
1
0707-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
12
1
0707-
