8-80 — WINDSHIELD WIPER AND WASHER (#38883) — 28 parça
çizim 177831
24 127 26 25 30 36 36 36 39 36 40 36 39
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 0610-
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 0610-
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 0610-
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 0610-
36 HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000 		9-09914-906-0 01 1 0610-
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 0610-
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 0610-
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 0610-

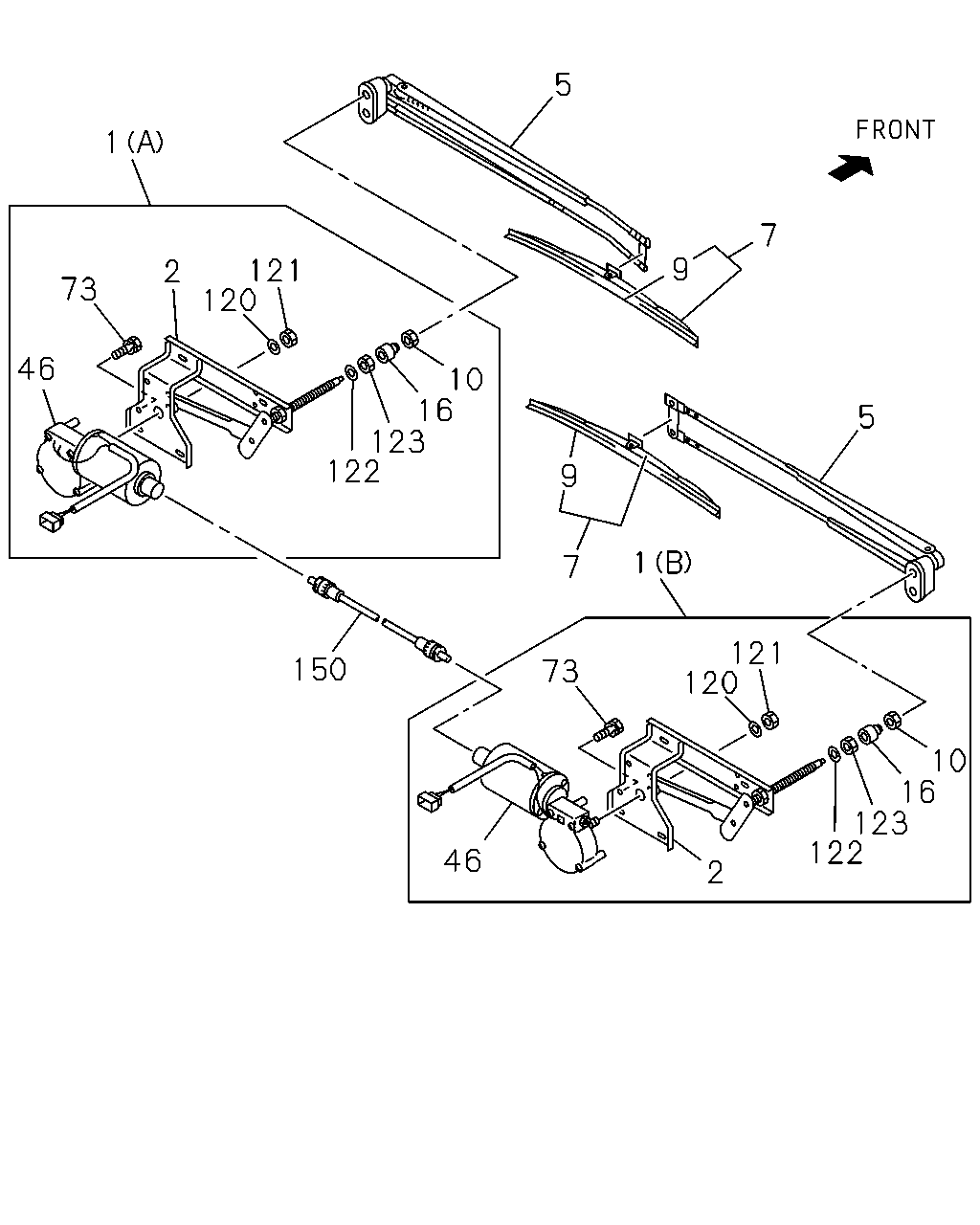

çizim 177843
5 1 7 9 121 120 2 73 46 10 16 123 122 5 9 1 7 121 120 150 73 10 16 123 122 46 2
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> (A) 		1-83310-071-0 01 1 0610-
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> (B) 		1-83310-114-0 01 1 0610-
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83312-082-0 01 1 0610-
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-117-0 01 1 0610-
5 ARM; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-120-0 01 1 0610-
5 ARM; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83314-121-0 01 1 0610-
7 BLADE; WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83315-039-0 02 1 0610-
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> L=563 		1-83355-009-0 02 1 0610-
10 NUT; WIPER ARM TO WIPER PIVOT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-049-0 02 1 0610-
16 SEAL; BALL JOINT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-048-0 02 1 0610-
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83311-059-0 01 1 0610-
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83311-065-0 01 1 0610-
73 BOLT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-079-0 06 1 0610-
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-045-0 01 1 0610-
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-077-0 01 1 0610-
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-044-0 01 1 0610-
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-078-0 01 1 0610-
122 WASHER; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-046-0 02 1 0610-
123 NUT; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83318-050-0 02 1 0610-
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> 		1-83124-080-0 01 1 0610-
