◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11031 - LT134-RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#38876) — 411 parça
çizim 177801
1 1 1 1 178 178 178 596 596
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0610-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0610-
1 SLEEVE; RUBBER
(D) ID=6 L=30 		5-09360-352-0 01 1 0610-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0610-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0610-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 0610-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=12 		9-09956-093-1 01 1 0610-
596 GROMMET
EURO4 SPECIFICATION(KBT) (A) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0610-
596 GROMMET
EURO4 SPECIFICATION(KBT) (B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0610-

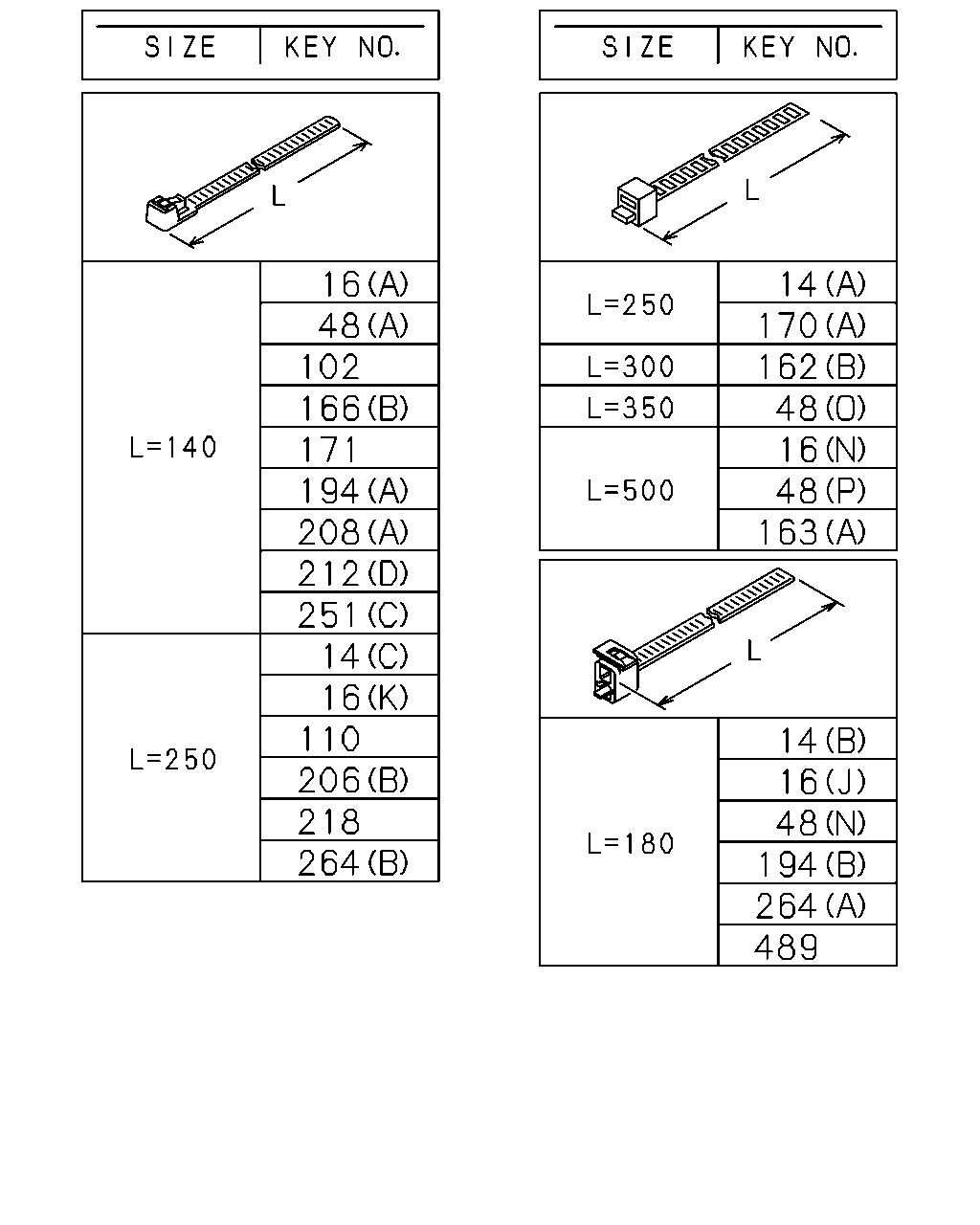

çizim 177813
16 48 102 166 171 194 208 212 251 14 16 110 206 218 264 14 170 162 48 16 48 163 14 16 48 194 264 489
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0610-0702
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 16 1 0703-0905
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 17 1 0906-1205
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 17 1 1206-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 02 1 0610-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0610-1207
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1208-
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 0610-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33 		1-09701-047-0 03 1 0809-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500 		1-09707-082-1 02 1 0809-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 05 1 0610-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 15 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0610-0706
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 0610-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0610-0705
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0610-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 02 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (L) OD=9 H=6 		1-09709-178-0 01 1 0610-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (C) ID=33 L=63 		1-09700-807-0 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500 		1-09707-082-1 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 25 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 27 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 25 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0610-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 04 1 0610-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 		5-09707-031-1 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 02 1 0610-
48 CLIP; FRAME HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0610-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 0610-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0610-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 0610-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 0610-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0610-0802
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 0610-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0610-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0610-
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 0801-0801
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0610-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0610-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0610-0705
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0610-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0610-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0610-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0610-
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 03 1 0610-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0610-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0610-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0610-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0610-
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 01 1 0610-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 02 1 0610-
194 CLIP; BAND
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) L=140 		5-09707-031-1 01 1 0610-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 04 1 0610-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0610-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0610-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0610-
208 CLIP; HARNESS,MAG VLV
EURO4 SPECIFICATION(KBT) (A) L=140 		5-09707-031-1 01 1 0610-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (B) ID=11 L=41 		1-09700-403-0 01 1 0610-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=11 L=41 		1-09700-403-0 02 1 0610-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 01 1 0610-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0610-
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0610-0712
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0610-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0610-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0610-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0610-
489 CLIP; HARNESS,OIL PRESS SW
L=180 		1-09707-162-1 01 1 0610-

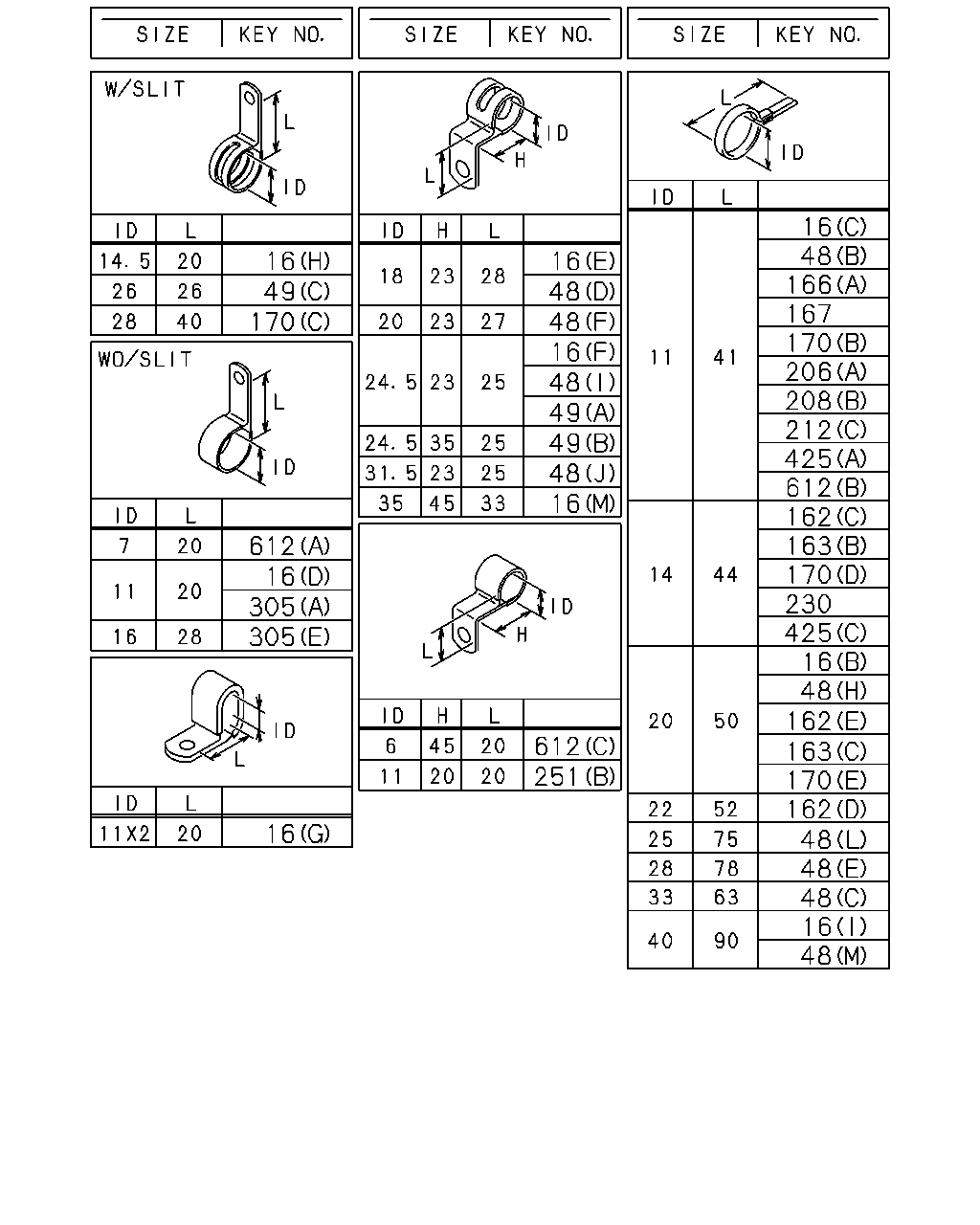

çizim 177815
16 48 166 167 170 206 208 212 425 612 162 163 170 230 425 16 48 162 163 170 162 48 48 48 16 48 16 49 170 16 48 48 16 48 49 49 48 16 612 16 305 305 612 251 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33 		1-09701-047-0 03 1 0809-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500 		1-09707-082-1 02 1 0809-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 05 1 0610-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 15 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0610-0706
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 0610-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0610-0705
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0610-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 02 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (L) OD=9 H=6 		1-09709-178-0 01 1 0610-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (C) ID=33 L=63 		1-09700-807-0 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500 		1-09707-082-1 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 25 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 27 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 25 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0610-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 04 1 0610-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 		5-09707-031-1 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 02 1 0610-
48 CLIP; FRAME HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0610-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 0610-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0610-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 0610-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 0610-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0610-0802
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 0610-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0610-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0610-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0610-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0610-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0610-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0610-0705
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0610-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0610-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0610-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0610-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 0610-
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 03 1 0610-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0610-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 0610-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 0610-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0610-
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 01 1 0610-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0610-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0610-
208 CLIP; HARNESS,MAG VLV
EURO4 SPECIFICATION(KBT) (A) L=140 		5-09707-031-1 01 1 0610-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (B) ID=11 L=41 		1-09700-403-0 01 1 0610-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=11 L=41 		1-09700-403-0 02 1 0610-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 01 1 0610-
230 CLIP; C/MBR HARNESS
ANTILOCK BRAKE SYSTEM<BFA> ID=14 L=44 		9-09917-427-0 04 1 0610-
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0610-0712
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0610-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0610-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0610-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 04 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 04 1 0802-
305 CLIP; ENG HARNESS
(A) T=0.8 ID=11 L=20 		0-95235-035-0 02 1 0610-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 01 1 0610-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0610-
305 CLIP; ENG HARNESS
(A) T=1.2 ID=11 L=20 		0-95235-036-0 01 1 0610-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0610-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 01 1 0610-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=10 & 12 		1-09709-278-1 02 1 0610-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14 L=44 		9-09917-427-0 02 1 0610-
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION(KBT) (A) ID=7 L=20 		0-95234-635-0 01 1 0610-
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION(KBT) (B) ID=11 L=41 		1-09700-403-0 04 1 0610-
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION(KBT) (C) ID=6 H=45 L=20 		1-09700-824-0 01 1 0610-
çizim 177820
279 53 53 53 308 308 324 308 324 334 334 375 375 53 53 312 312 53 542
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (F) L=90 		1-47477-755-1 01 1 0809-
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98014-419-0 01 1 0610-
53 BRACKET; HARNESS
EURO4 SPECIFICATION(KBT) (B) L=55 		1-47476-177-0 01 1 0610-
53 BRACKET; HARNESS
EURO4 SPECIFICATION(KBT) (C) 		1-47479-118-0 01 1 0610-
53 BRACKET; HARNESS
(E) L=50 		1-47475-663-1 02 1 0610-0611
53 BRACKET; HARNESS
(D) L=95 		1-82699-085-0 03 1 0610-
279 STAY; HARNESS 1-82699-873-0 02 1 0610-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 01 1 0610-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 0610-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0610-
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47475-455-0 01 1 0610-
312 BRACKET; CLIP HARNESS
(B) L=75 		1-47478-323-0 01 1 0610-
324 BRACKET; CLIP
(A) 		8-98044-308-0 01 1 0610-0706
324 BRACKET; CLIP
(A) 		8-98044-308-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98044-308-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98044-308-0 01 1 0907-
324 BRACKET; CLIP
(A) 		8-98044-309-0 01 1 0610-0706
324 BRACKET; CLIP
(A) 		8-98044-309-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98044-309-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98044-309-0 01 1 0907-
324 BRACKET; CLIP
(B) 		1-47476-393-0 02 1 0610-0706
324 BRACKET; CLIP
(B) 		1-47476-393-0 02 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) 		1-47476-393-0 02 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) 		1-47476-393-0 02 1 0907-
334 BRACKET
(A) 		1-82698-495-2 01 1 0610-
334 BRACKET
(B) L=110 		1-82699-589-0 01 1 0610-0706
334 BRACKET
(B) L=110 		1-82699-589-0 01 1 0707-0906
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (B) L=110 		1-82699-589-0 01 1 0707-0906
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (B) L=110 		1-82699-589-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0610-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0610-
542 TUBE; DISTANCE,FUEL 8-97377-804-0 01 1 0806-

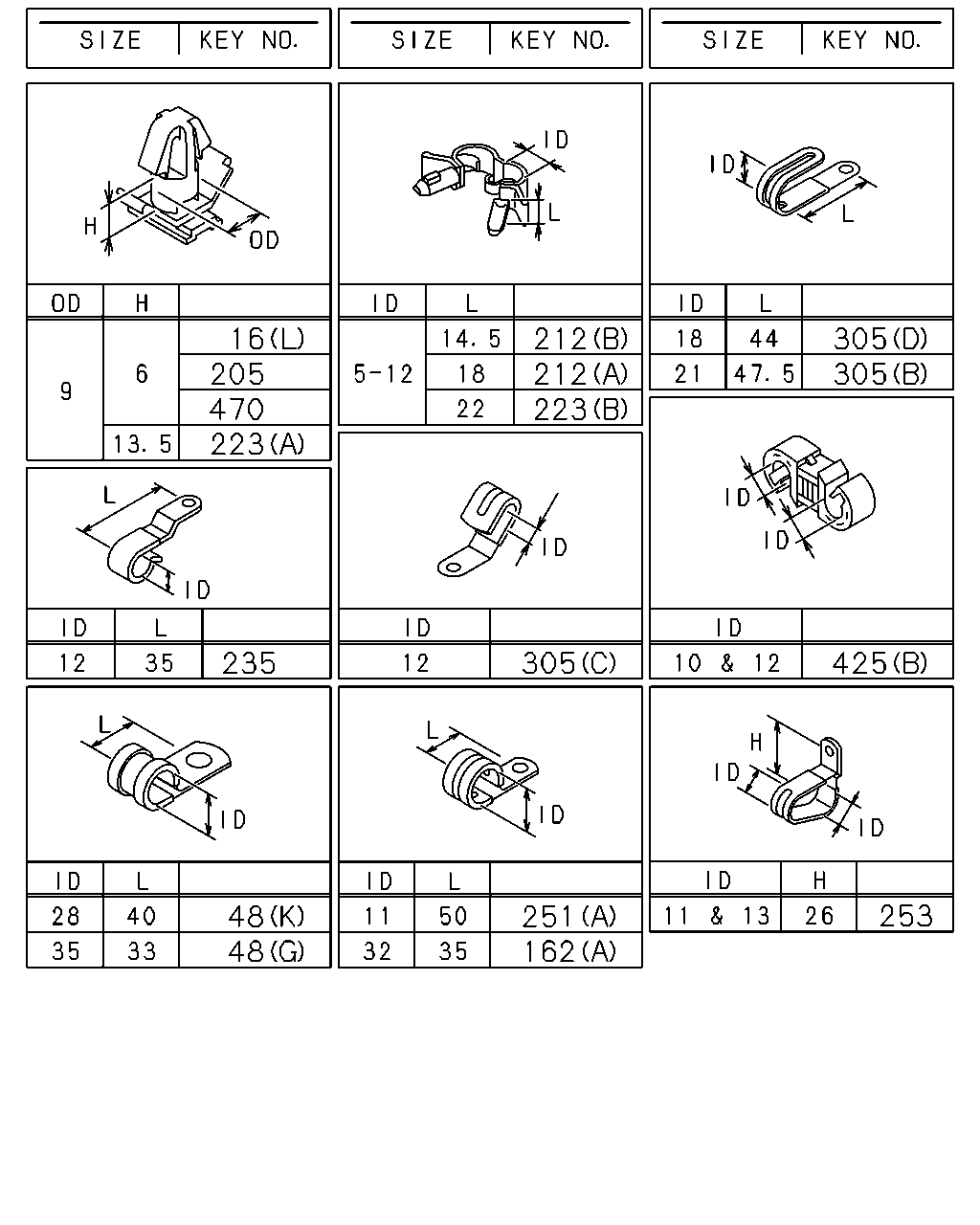

çizim 177821
16 205 470 223 212 212 223 305 305 305 425 235 253 48 48 251 162
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33 		1-09701-047-0 03 1 0809-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500 		1-09707-082-1 02 1 0809-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 04 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 05 1 0610-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
ASSISTOR SHIFT CONTROL<WX8> (J) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 15 1 0610-0706
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0610-0706
16 CLIP; HARNESS
(G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 0610-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 06 1 0610-0705
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0610-0705
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (H) ID=14.5 L=20 		1-09701-012-0 02 1 0610-
16 CLIP; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (L) OD=9 H=6 		1-09709-178-0 01 1 0610-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (C) ID=33 L=63 		1-09700-807-0 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500 		1-09707-082-1 01 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 25 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 27 1 0610-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 25 1 0612-0802
48 CLIP; FRAME HARNESS
WHEEL BASE 5700MM(57W) (C) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0610-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 04 1 0610-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 		5-09707-031-1 01 1 0610-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 02 1 0610-
48 CLIP; FRAME HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0610-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0610-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 0610-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0610-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 0610-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 0610-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0610-0802
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 0610-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0610-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0610-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0610-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0610-0705
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 0706-
205 CLIP; BACK LAMP HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0610-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (D) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0705
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) ID=11 L=41 		1-09700-403-0 01 1 0610-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 0610-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0610-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0610-
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0610-0712
251 CLIP; WATER LEVEL HARNESS
WHEEL BASE 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0610-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0610-
253 CLIP; CABLE FIX
ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0610-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0610-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 04 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 04 1 0802-
305 CLIP; ENG HARNESS
(A) T=0.8 ID=11 L=20 		0-95235-035-0 02 1 0610-
305 CLIP; ENG HARNESS
(E) ID=16 L=28 		0-95235-556-0 01 1 0610-
305 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 0610-
305 CLIP; ENG HARNESS
(A) T=1.2 ID=11 L=20 		0-95235-036-0 01 1 0610-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0610-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 01 1 0610-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=10 & 12 		1-09709-278-1 02 1 0610-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14 L=44 		9-09917-427-0 02 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0610-
çizim 177822
38 139 38 304 38 242 304 313 38 139 38 55 423 38 169 326 371 38 139 150 242 313 38 313 313 242 38 173 242 38 173 219 47 219 294 297 340 515 525 552
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(I) M8X12 FLANGE 		0-28050-812-0 01 1 0806-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0801-
38 BOLT; CLIP,HARNESS
WHEEL BASE 5700MM(57W) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0801-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X16 FLANGE 		0-28050-816-0 04 1 0707-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 01 1 0707-0906
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) M8X30 FLANGE 		0-28650-830-0 01 1 0707-0906
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) M8X30 FLANGE 		0-28650-830-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 06 1 0610-0906
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 14 1 0610-0706
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0707-
38 BOLT; CLIP,HARNESS
(C) M10X20 FLANGE 		0-28751-020-0 01 1 0610-
38 BOLT; CLIP,HARNESS
ASSISTOR SHIFT CONTROL<WX8> (D) M8X20 FLANGE 		0-28650-820-0 04 1 0610-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28050-825-0 05 1 0610-0805
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28050-825-0 04 1 0806-
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE 		0-28650-620-0 02 1 0610-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0610-0712
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0801-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 01 1 0610-0706
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0707-0712
38 BOLT; CLIP,HARNESS
WHEEL BASE 5000MM(50W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0610-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 0610-0906
38 BOLT; CLIP,HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X20 FLANGE 		0-28650-820-0 03 1 0610-0906
38 BOLT; CLIP,HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X20 FLANGE 		0-28650-820-0 03 1 0907-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 03 1 0610-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 02 1 0610-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X25 FLANGE 		0-28650-825-0 06 1 0707-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 07 1 0610-0906
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0610-
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28050-825-0 01 1 0610-
150 BOLT; CLIP
EURO4 SPECIFICATION(KBT) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0610-1201
173 BOLT; STARTER EARTH
(B) M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0801-0808
219 NUT
WHEEL BASE 5700MM(57W) (B) M8 FLANGE 		0-91180-108-0 03 1 0801-0808
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0809-
219 NUT
WHEEL BASE 5700MM(57W) (B) M8 FLANGE 		0-91180-108-0 03 1 0809-
219 NUT
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (B) M8 FLANGE 		0-91180-108-0 03 1 0809-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 14 1 0707-0712
219 NUT
WHEEL BASE 5000MM(50W) (B) M8 FLANGE 		0-91180-108-0 02 1 0801-
219 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 01 1 0706-0706
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE 		0-91180-108-0 01 1 0707-
219 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 01 1 0707-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 22 1 0610-0705
219 NUT
(B) M8 FLANGE 		0-91180-108-0 20 1 0706-0706
219 NUT
(B) M8 FLANGE 		0-91180-108-0 06 1 0707-
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0610-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0610-0712
219 NUT
(B) M8 FLANGE 		0-91180-108-0 11 1 0801-0906
219 NUT
(B) M8 FLANGE 		0-91180-108-0 10 1 0907-
242 BOLT; BRKT,HARNESS
EURO4 SPECIFICATION(KBT) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0610-
242 BOLT; BRKT,HARNESS
EURO4 SPECIFICATION(KBT) (B) M10X25 FLANGE 		0-28651-025-0 01 1 0610-
242 BOLT; BRKT,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-
242 BOLT; BRKT,HARNESS
(D) M12X20 FLANGE 		0-28151-220-0 01 1 0610-
294 NUT
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> M8 FLANGE 		0-91180-108-0 01 1 0809-
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 06 1 0707-
294 NUT
M8 FLANGE 		0-91180-108-0 10 1 0610-0611
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 0612-0906
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0907-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0610-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0610-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0610-
313 BOLT; BRKT
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0610-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0611
313 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 0610-
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> M8X20 FLANGE 		0-28650-820-0 03 1 0809-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0610-
371 BOLT; GEN HARNESS
M8X20 FLANGE 		0-28650-820-0 04 1 0610-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0610-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0610-
525 NUT; CLIP
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0610-
552 NUT; BRKT,HARNESS
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
