8-01 — LAMP; FRONT AND FRONT SIDE (#38873) — 73 parça

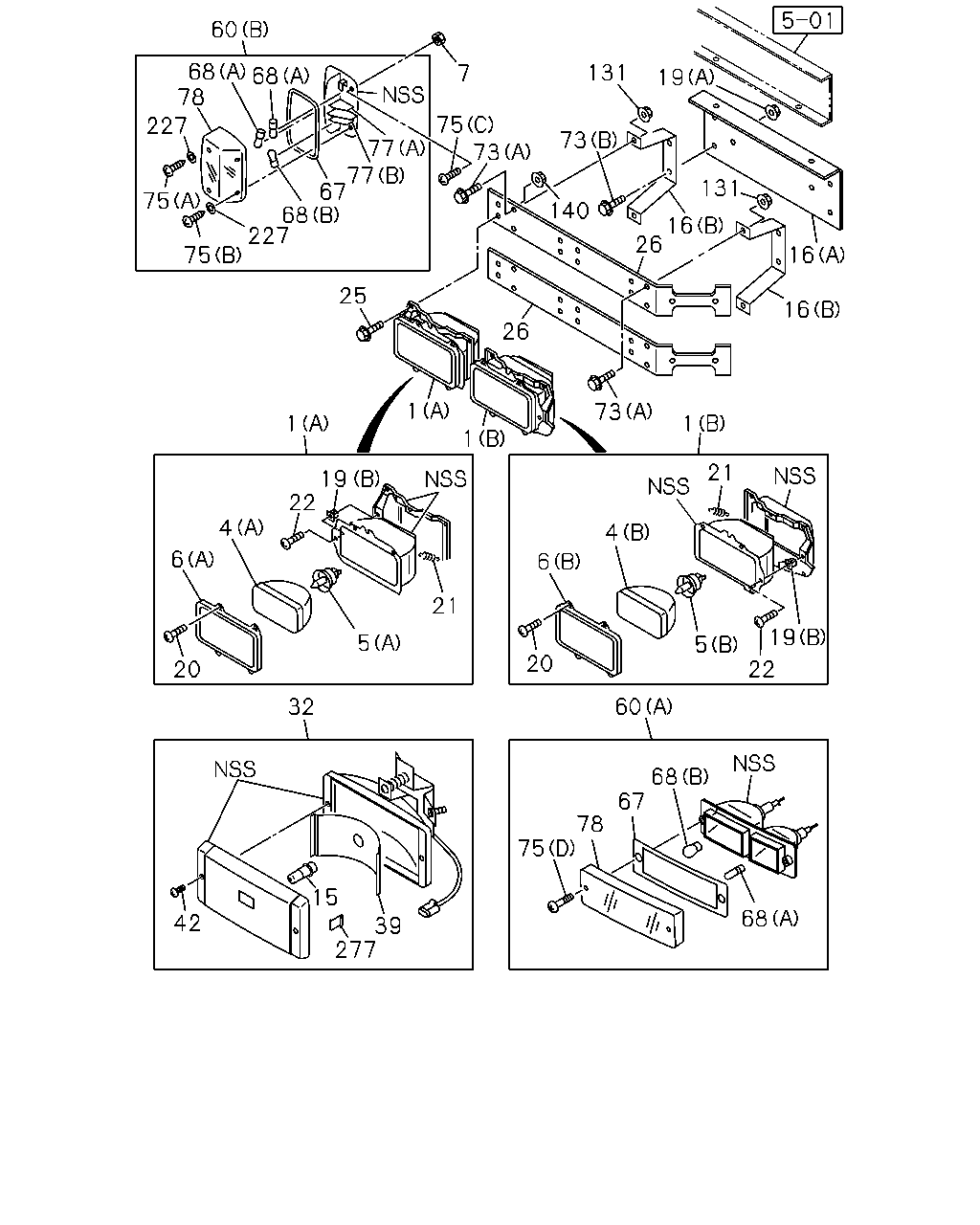

çizim 177819
60 68 78 68 131 7 19 75 73 227 73 77 77 67 68 227 75 131 75 140 16 26 16 25 16 26 1 73 1 1 1 21 19 22 4 4 6 6 21 19 5 5 20 22 20 32 60 68 67 78 75 15 68 42 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0610-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801-
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0610-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0610-
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0610-
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0610-
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 0610-
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 0610-
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 0610-
6 RIM; HEADLAMP
(A) 24V 70W 		1-82114-018-0 02 1 0610-
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 0610-
7 NUT; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> M5 		0-91110-505-0 08 1 0610-0705
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0706-
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0610-
16 BRACKET; HEADLAMP
(A) 		1-53456-310-0 02 1 0610-
16 BRACKET; HEADLAMP
(B) 		9-82615-154-2 04 1 0610-
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 0610-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0610-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0610-
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0610-
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0610-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0610-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0610-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0610-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0610-
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0610-
26 BRACKET ASM; HEADLAMP 1-82117-188-0 04 1 0610-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-954-1 01 1 0610-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-955-1 01 1 0610-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97357-929-0 02 1 0610-
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-931-0 04 1 0610-
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (A) 		1-86830-272-0 01 1 0610-
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (A) 		1-86830-273-0 01 1 0610-
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-257-1 01 1 0610-0705
60 LAMP ASM; FRT COMB
(B) 		1-82210-257-1 01 1 0706-
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-258-1 01 1 0610-0705
60 LAMP ASM; FRT COMB
(B) 		1-82210-258-1 01 1 0706-
67 GASKET; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94149-259-0 02 1 0610-
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-003-0 01 1 0610-0705
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 0706-
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-004-0 01 1 0610-0705
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 0706-
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (A) 24V 5W 		1-82194-089-0 02 1 0610-
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 21W 		1-82194-090-0 02 1 0610-
68 BULB; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (B) 24V 10W 		1-82194-037-0 02 1 0610-0705
68 BULB; FRT COMB LAMP
(B) 24V 10W 		1-82194-037-0 02 1 0706-
68 BULB; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (A) 24V 21W 		1-82194-104-0 04 1 0610-0705
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-104-0 04 1 0706-
73 BOLT; BRKT,HEADLAMP
(B) M6X20 FLANGE 		0-28650-620-0 08 1 0610-
73 BOLT; BRKT,HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 08 1 0610-
75 SCREW; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (D) 		0-91190-435-0 04 1 0610-
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0610-0705
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0706-
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (A) M4X50 		1-09106-004-0 04 1 0610-0705
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 0706-
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (B) M4X16 		1-09106-005-0 04 1 0610-0705
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 0706-
77 SHADE; FRT TURN SIGNAL LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (A) 		1-82219-020-0 02 1 0610-0705
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0706-
77 SHADE; FRT TURN SIGNAL LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82219-021-0 02 1 0610-0705
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0706-
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94151-264-0 01 1 0610-
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94151-265-0 01 1 0610-
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-006-0 01 1 0610-0705
78 LENS ASM; FRT COMB 1-82215-006-0 01 1 0706-
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-007-0 01 1 0610-0705
78 LENS ASM; FRT COMB 1-82215-007-0 01 1 0706-
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 08 1 0610-
140 NUT
M5 		0-91110-505-0 12 1 0610-
227 SEAT; SET SCREW,FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-09503-132-0 08 1 0610-0705
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 0706-
277 CLIP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-930-0 02 1 0610-
