Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#3887) — 190 parça

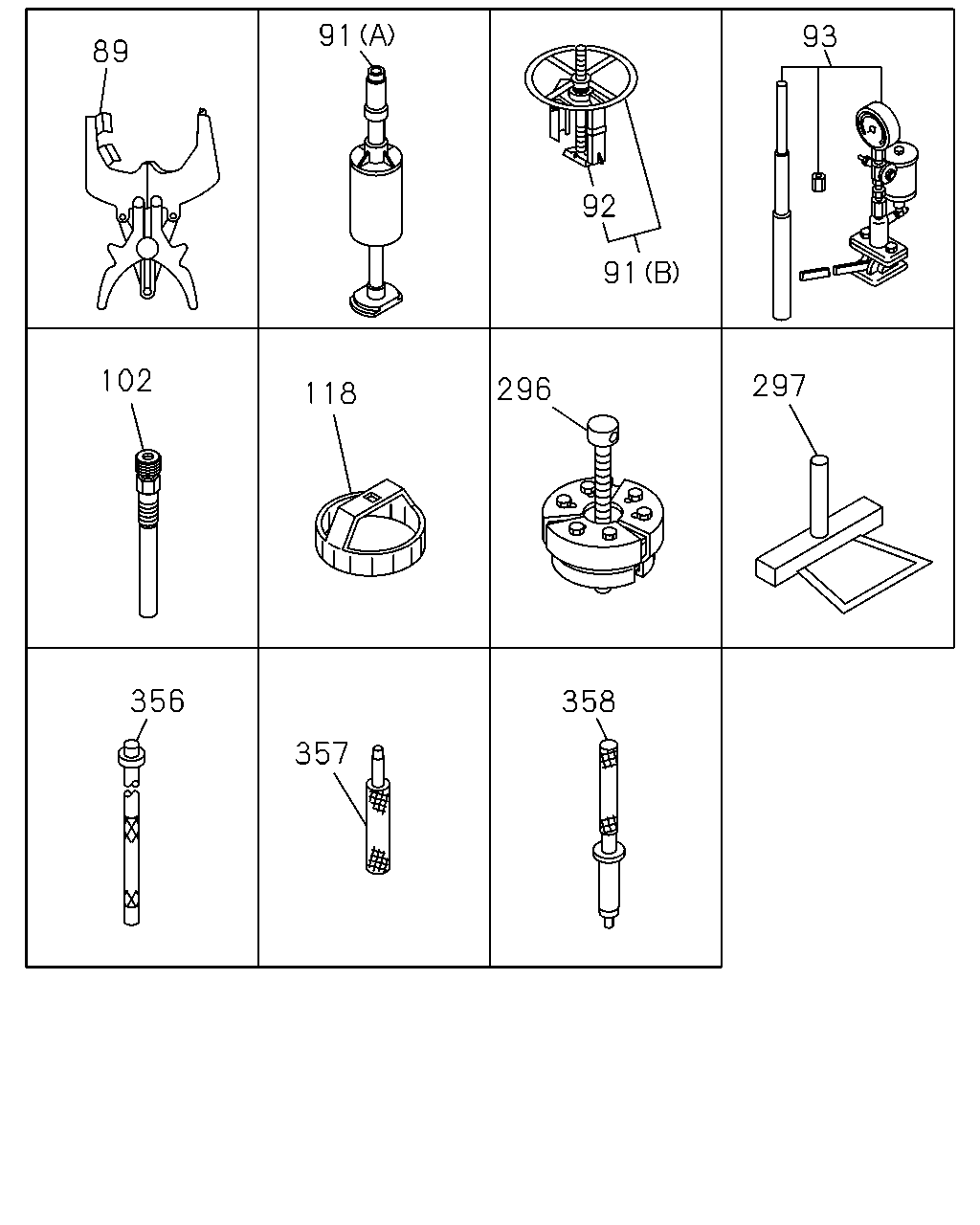

91 93 89 92 91 102 297 296 118 356 358 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	TOOL; PISTON RING	1-85221-029-0	01	1	9601-0004	●	●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-849-0	01	1	9601-9806	●	●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	8-94396-849-0	01	1	9807-0004	●	●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-849-0	01	1	0005-	●	●
91	REPLACER ASM; CYL LINER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85231-021-0	01	1	9601-	●	●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-821-0	01	1	9601-9806	●	●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	8-94396-821-0	01	1	9807-0004	●	●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-821-0	01	1	0005-	●	●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-85220-001-0	01	1	9601-9806	●	●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	1-85220-001-0	01	1	9807-0004	●	●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-85220-001-0	01	1	0005-	●	●
93	SETTING KIT; VALVE GUIDE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=260	9-85231-202-0	01	1	9601-	●	●
102	ADAPTER; COMP GAGE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	5-85317-001-0	01	1	9601-	●	●
118	WRENCH; OIL FILTER 6HH1 STD ENG(65L) EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-85221-097-0	01	1	9601-9705	●	●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L)	1-85221-097-0	01	1	9601-9705		●
118	WRENCH; OIL FILTER 6HH1 STD ENG(65L) EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-85221-097-0	01	1	9706-9710	●	●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L)	1-85221-097-0	01	1	9706-9710	●	●
118	WRENCH; OIL FILTER 6HH1 STD ENG(65L) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-85221-097-0	01	1	9711-9806	●	●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L)	1-85221-097-0	01	1	9711-9806	●	●
118	WRENCH; OIL FILTER 6HH1 STD ENG(65L) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-85221-097-0	01	1	9807-0004	●	●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L)	1-85221-097-0	01	1	9807-0004	●	●
296	REPLACER; SLINGER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-858-0	01	1	9601-9806	●	●
296	REPLACER; SLINGER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	8-94396-858-0	01	1	9807-0004	●	●
297	CUTTER; SEAL,OIL PAN 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94393-112-0	01	1	9601-9806	●	●
297	CUTTER; SEAL,OIL PAN 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	8-94393-112-0	01	1	9807-0004	●	●
356	TOOL; SETTING,OIL SEAL,CYL HEAD 6HK1 TCC ENG(81L)	8-94391-527-0	01	1	0608-		●
357	REPLACER; NOZZLE SLEEVE 6HK1 TCC ENG(81L)	8-94391-555-0	01	1	0608-		●
358	PLACER; NOZZLE SLEEVE 6HK1 TCC ENG(81L)	8-94391-556-0	01	1	0608-		●

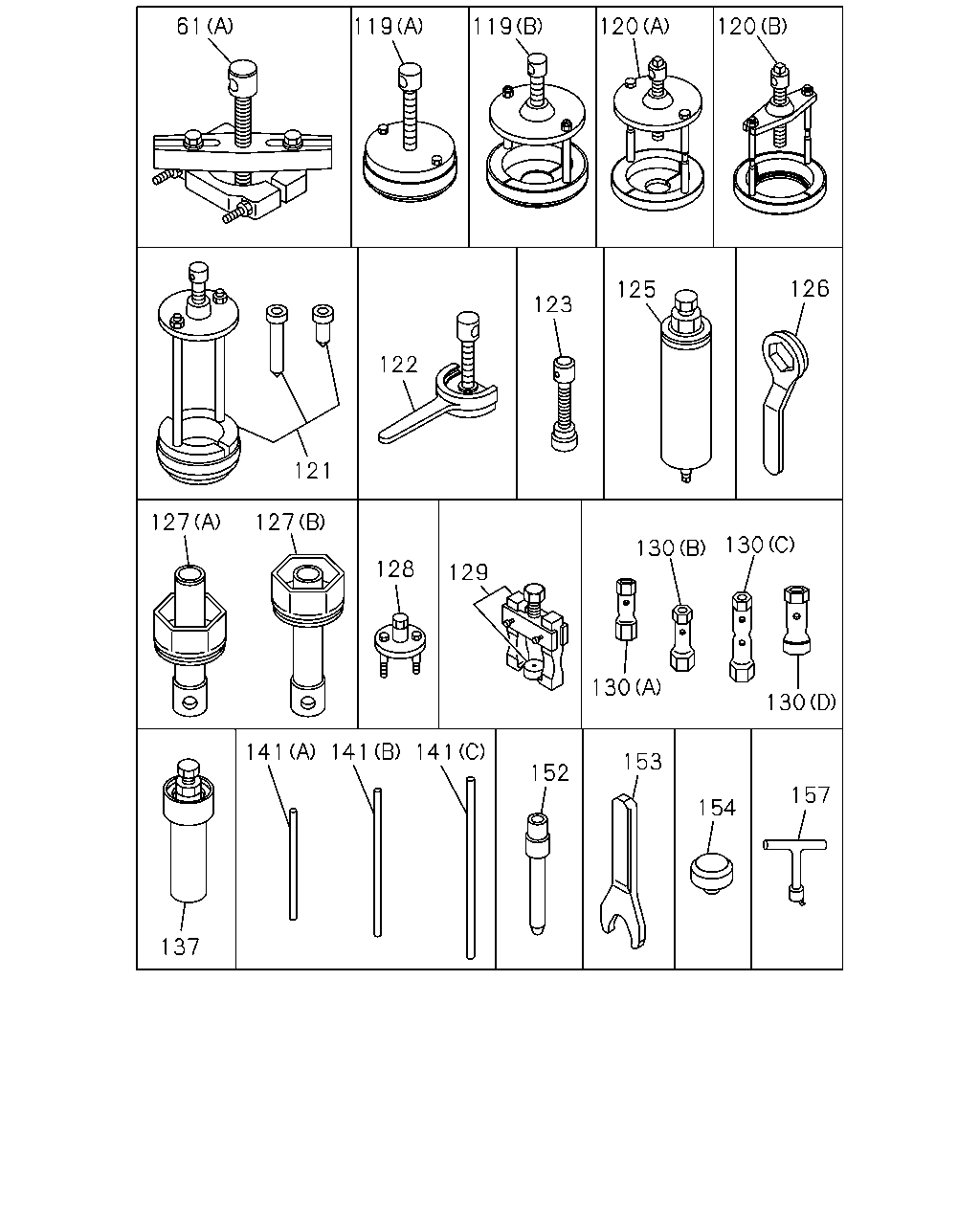

61 119 119 120 120 126 125 123 122 121 127 127 130 130 128 129 130 130 141 141 141 153 152 157 154 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-	●	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9601-9806	●	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9807-0004	●	●
119	PULLER ASM; TOP GEAR BRG MAL6S M/T(Y1V) (B) L=235	9-85210-190-0	01	1	9601-	●	●
119	PULLER ASM; TOP GEAR BRG MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (B)	9-85210-185-0	01	1	9601-0004	●	●
119	PULLER ASM; TOP GEAR BRG MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (A)	9-85210-186-0	01	1	9601-0004	●	●
120	PULLER ASM; MAIN REAR BRG MAL6S M/T(Y1V) (A) L=285	9-85210-184-0	01	1	9601-	●	●
120	PULLER ASM; MAIN REAR BRG MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (B)	9-85210-192-0	01	1	9601-0004	●	●
121	PULLER ASM; COUNTER REAR MAL6S M/T(Y1V) L=285	9-85210-184-0	01	1	9601-	●	●
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	9601-0004	●	●
123	PULLER; SPEEDOMETER BUSHING MAL6S M/T(Y1V)	9-85210-091-0	01	1	9601-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9601-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	9601-	●	●
127	WRENCH ASM; HUB BRG NUT (A) L=400 B=105	9-85113-509-0	01	1	9601-	●	●
127	WRENCH ASM; HUB BRG NUT (B) B=98 L=305	9-85113-533-2	01	1	9601-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9601-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9601-	●	●
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9601-0004	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9601-0004	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9601-0004	●	●
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	9601-0004	●	●
137	PLIER; SHOE,RETURN SPRING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85210-025-0	01	1	9601-9803		●
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9601-1501	●	●
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9601-0004	●	●
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9601-0004	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9601-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9601-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9601-	●	●
157	REPLACER KIT; RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16	1-85237-002-0	01	1	9601-0004		●

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9601-0708	●	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-0604	●	●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9601-0708	●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-0604	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●	●
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	9601-	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9601-	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9601-9606	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602	●	●
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9601-0603	●	●
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	0-91510-510-0	04	1	0604-	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9601-9606	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0512	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9601-9606	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602	●	●
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●

12 5 1 9 23 13 22 21 20 19 17 29 193 29 29 208 115 237 232 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9601-	●	●
5	WRENCH ASM; NUT,MAINSHAFT MAL6S M/T(Y1V)	1-85110-010-0	01	1	9601-9803	●	●
9	WRENCH; WHEEL PIN DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450	1-85111-033-1	01	1	9601-0208	●	●
9	WRENCH; WHEEL PIN DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0209-	●	●
9	WRENCH; WHEEL PIN EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440	1-85113-015-1	01	1	0005-0208	●	●
9	WRENCH; WHEEL PIN TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440	1-85113-015-1	01	1	0209-	●	●
9	WRENCH; WHEEL PIN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64) ,DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445	8-97118-906-0	01	1	9804-9903		●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9601-0004	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9601-0208	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●
17	HAMMER	9-85121-406-0	01	1	9601-0208	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●	●
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9601-9602	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9601-0208	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9601-0208	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9601-0208	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9601-0208	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-	●	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9601-0208	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9601-	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9601-0208	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-	●	●
115	PLIER	5-85171-001-0	01	1	9601-9602	●	●
115	PLIER	5-85171-002-0	01	1	9603-0208	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410	●	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●	●
193	JACK ASM CAUTIONS ARABIAN<WJ7> 10TON	1-85510-025-0	01	1	0309-0504	●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	9601-0308	●	●
193	JACK ASM EXC. CAUTIONS ARABIAN<WJ7> 10TON	1-85510-013-1	01	1	0309-0504	●	●
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON	8-97607-599-0	01	1	0505-0607	●	●
193	JACK ASM 10TON	8-97607-599-0	01	1	0608-	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9601-0105	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	9601-0208	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9601-	●	●
237	BAG; TOOL	8-97130-902-1	01	1	9601-	●	●

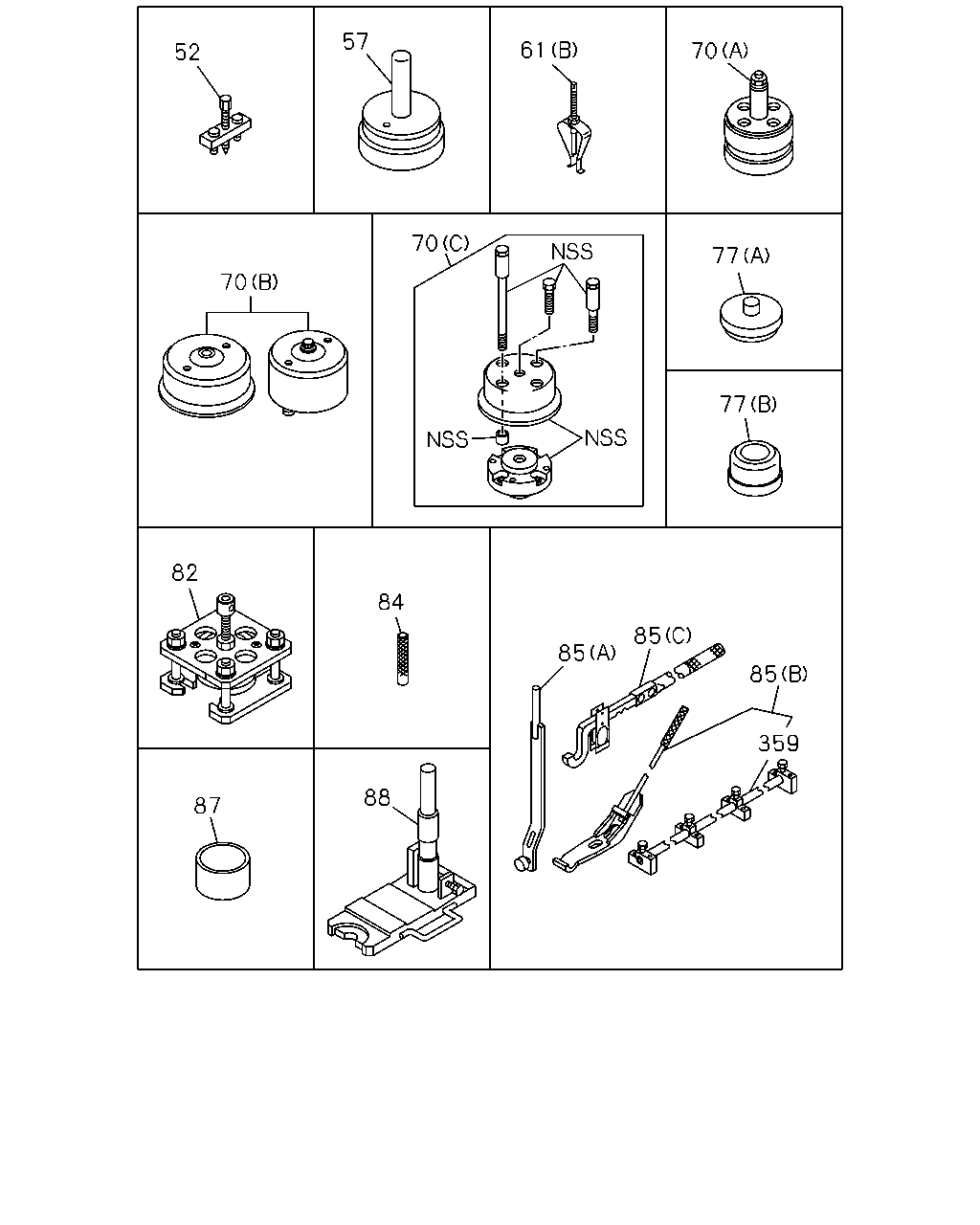

57 61 70 52 70 77 70 77 82 84 85 85 85 359 88 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	REMOVER; WATER PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85210-047-0	01	1	9601-	●	●
57	TOOL; SETTING CRANK GEAR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=134.5	8-94396-819-0	01	1	9601-9806	●	●
57	TOOL; SETTING CRANK GEAR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=134.5	8-94396-819-0	01	1	9807-0004	●	●
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=144.5	1-85221-072-0	01	1	9601-	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-	●	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9601-9806	●	●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9807-0004	●	●
70	TOOL; SETTING,OIL SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-856-0	01	1	9601-9806	●	●
70	TOOL; SETTING,OIL SEAL 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	8-94396-856-0	01	1	9807-0004	●	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85220-025-1	01	1	9601-1108	●	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C)	8-98194-607-0	01	1	1109-1502	●	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C)	8-98194-607-0	AR	1	1503-	●	●
77	TOOL; SETTING,CYL LINER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85221-073-0	01	1	9601-	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-816-0	01	1	9601-9709		●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-816-0	01	1	9710-9806	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) (B)	8-94396-816-0	01	1	9807-0004	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-816-0	01	1	0005-	●	●
82	PULLER ASM; CR/SHF GEAR 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-818-0	01	1	9601-9806	●	●
82	PULLER ASM; CR/SHF GEAR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	8-94396-818-0	01	1	9807-0004	●	●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-815-0	01	1	9601-9806	●	●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	8-94396-815-0	01	1	9807-0004	●	●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-815-0	01	1	0005-	●	●
85	REPLACER ASM; VALVE SPR 6HK1 TCC ENG(81L) (C)	8-94391-528-0	01	1	0608-		●
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	8-94396-861-0	01	1	9601-9806	●	●
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	8-94396-861-0	01	1	9807-0004	●	●
85	REPLACER ASM; VALVE SPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85235-007-0	01	1	9601-	●	●
87	TOOL; PISTON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85221-082-0	01	1	9601-	●	●
88	TOOL; CONNROD BUSHING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85220-037-0	01	1	9601-	●	●
359	PIVOT 6HK1 TCC ENG(81L)	8-94396-862-0	01	1	0608-		●

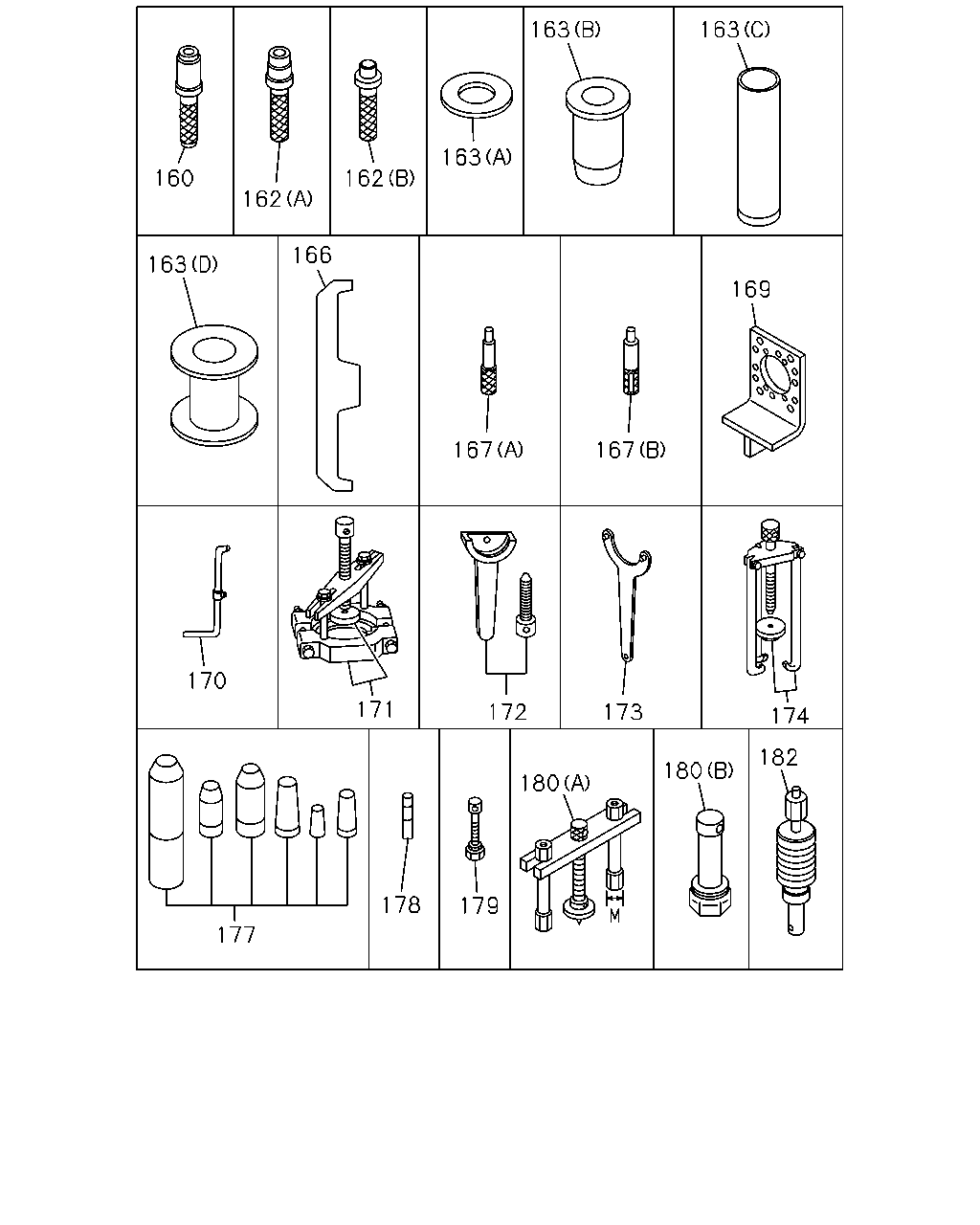

163 163 163 162 160 162 166 163 169 167 167 170 171 172 173 174 182 180 180 178 179 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	9601-	●	●
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9601-0004	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9601-0004	●	●
163	TOOL; SETTING MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	0005-	●	●
163	TOOL; SETTING MAL6 M/T<X9G>,MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	0005-	●	●
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=195	1-85221-162-1	01	1	9601-0004	●	●
163	TOOL; SETTING ISUZU M/T<X9A> (D) L=150	1-85221-163-0	01	1	9601-0004	●	●
163	TOOL; SETTING ISUZU M/T<X9A> (A) OD=120	1-85221-164-0	01	1	9601-0004	●	●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (B) L=150	9-85221-248-0	01	1	9601-0004	●	●
163	TOOL; SETTING MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (C) L=350	9-85221-310-0	01	1	9601-0004	●	●
166	ALIGNER; CLU RELEASE LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6) ISUZU M/T<X9A> L=480	1-85253-011-0	01	1	9601-9803	●	●
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-011-0	01	1	9804-0004	●	●
167	ALIGNER; CLU PILOT ISUZU M/T<X9A> (A) D=30.6 L=185	1-85253-012-0	01	1	9601-0004	●	●
167	ALIGNER; CLU PILOT MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N) (A) D=30.6 L=185	1-85253-012-0	01	1	0005-	●	●
167	ALIGNER; CLU PILOT MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (B) D=36 L=190	1-85253-022-0	01	1	9601-0004	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9601-0004	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9601-0004	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9601-9803	●	●
171	PULLER ASM; PINION BRG FINAL GEAR 16.5"<B2Y>	9-85210-172-0	01	1	9601-9803		●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9804-0004	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9601-9803	●	●
172	PULLER ASM; BRG DIFF PILOT FINAL GEAR 16.5"<B2Y>	9-85210-173-0	01	1	9601-9803		●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9804-0004	●	●
173	WRENCH; COUPLING DRIVER FINAL GEAR 16.5"<B2Y>	9-85111-942-0	01	1	9601-9803		●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9601-	●	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9601-0004	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9601-	●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9601-0004	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	02	1	9601-	●	●
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	9601-0004	●	●
182	REMOVER ASM	9-85210-095-0	01	1	9601-0004	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
