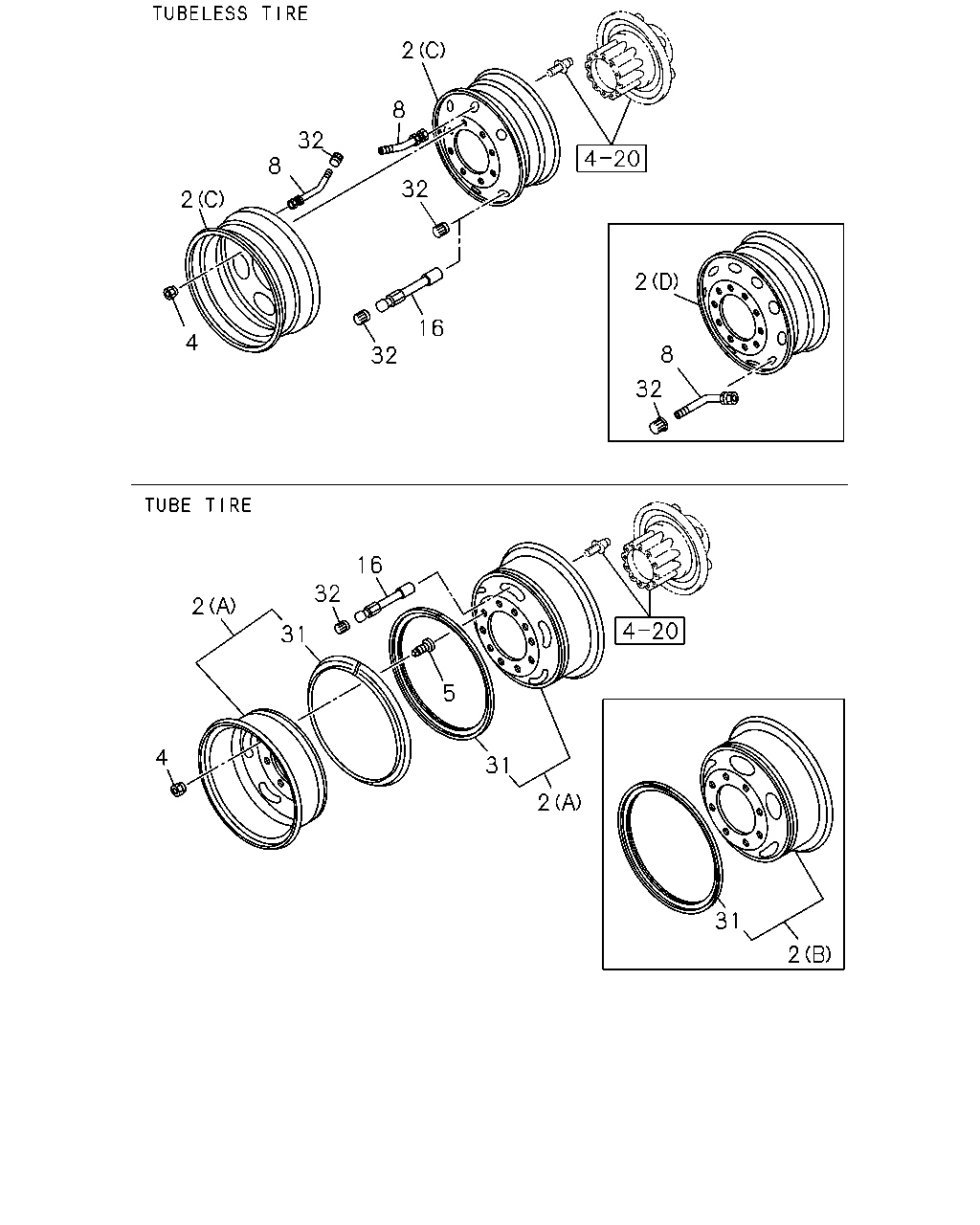

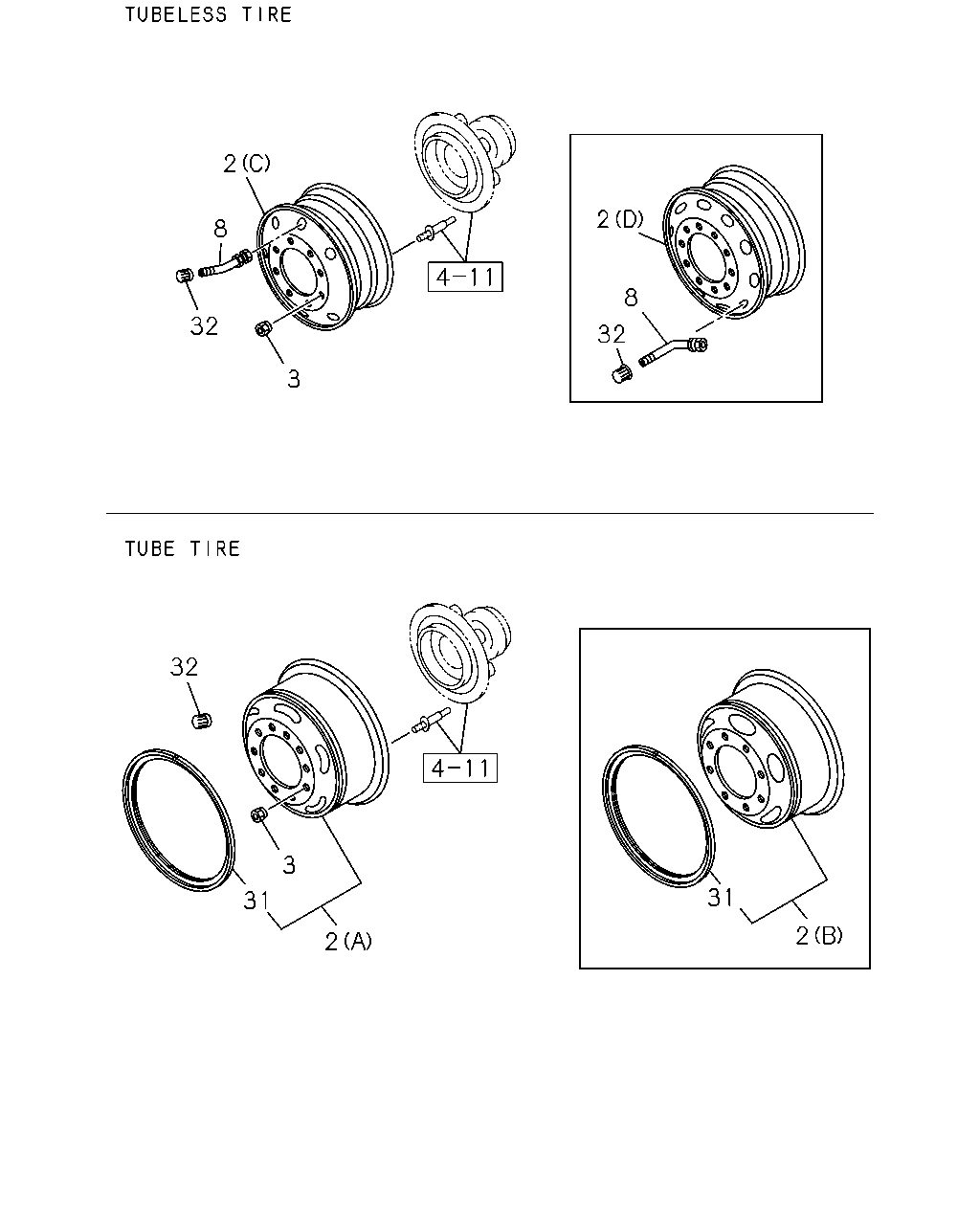

4-80 — ROAD WHEEL (#38859) — 113 parça

2 2 8 8 32 32 3 32 3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-730-0	06	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-730-0	01	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (B)	1-42350-478-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-478-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-447-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (B)	1-42350-362-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-362-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-448-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (D)	1-42350-745-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-745-0	01	1	0610-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) SPARE	1-42350-758-0	01	1	0610-1310
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C)	1-42350-758-0	06	1	0610-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	06	1	0610-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0610-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	08	1	0610-
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	08	1	0610-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	06	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	06	1	1311-1407
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-048-0	01	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-048-0	01	1	1311-1407
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	0610-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	1311-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	01	1	0610-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-020-3	01	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-020-3	01	1	1311-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42355-003-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-003-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-012-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-004-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-014-0	01	1	0610-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),SPARE TIRE & DISCWHEEL RR(R46)	1-42374-001-0	06	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	06	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	01	1	0610-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	07	1	0610-

2 8 32 8 32 2 2 16 4 8 32 32 16 32 2 31 5 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-730-0	06	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-730-0	01	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.00TX20 162-12(Q54) (B)	1-42350-478-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-478-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-447-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (B)	1-42350-362-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR(R46) (B) SPARE	1-42350-362-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR(R46) (A) SPARE	1-42350-448-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (D)	1-42350-745-0	06	1	0610-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR(R46) (D) SPARE	1-42350-745-0	01	1	0610-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) SPARE	1-42350-758-0	01	1	0610-1310
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0610-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C)	1-42350-758-0	06	1	0610-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	06	1	0610-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0610-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	08	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	08	1	0611-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	08	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	06	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	06	1	1311-1407
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-048-0	01	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-048-0	01	1	1311-1407
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42370-048-0	06	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	0610-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	06	1	1311-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR(R46) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42370-020-3	01	1	0610-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-020-3	01	1	1206-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR(R46)	1-42370-020-3	01	1	1311-
16	HOLDER; TIRE VALVE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> L=170	1-42370-024-0	02	1	0610-1003
16	HOLDER; TIRE VALVE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> L=170	8-98167-052-0	02	1	1004-1310
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DI SC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170	8-98167-052-0	02	1	1311-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42355-003-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-003-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-012-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-004-1	01	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0610-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR(R46)	1-42355-014-0	01	1	0610-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),SPARE TIRE & DISCWHEEL RR(R46)	1-42374-001-0	06	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	06	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR(R46)	1-42374-001-0	01	1	0610-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR(R46) EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	07	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
