4-61 — SHOCK ABSORBER; REAR SUSPENSION (#38857) — 24 parça

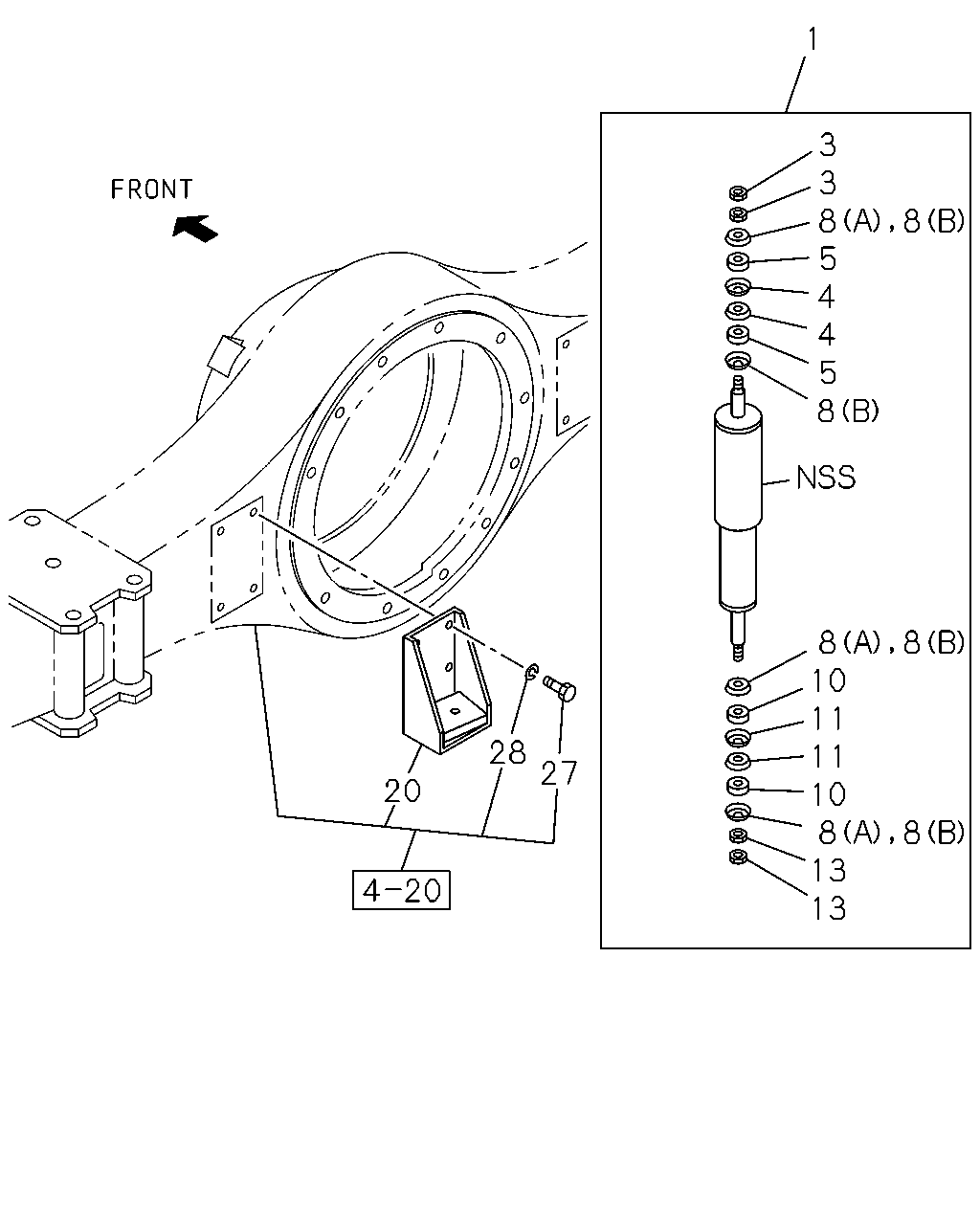

çizim 177794
1 3 3 8 5 4 4 5 8 8 8 10 11 11 10 8 13 13 8 28 27 20 8 4 20
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
TAPER LEAF SUSP RR<SAT> 		8-98073-532-0 02 1 0710-
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 0610-0709
1 ABSORBER ASM; SHOCK,RR
EXC. TAPER LEAF SUSP RR<SAT> 		1-51630-195-2 02 1 0710-
3 NUT; S/ABS
M14 		9-99111-414-0 04 1 0610-
4 WASHER; CENTER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=24 		1-51631-067-0 04 1 0710-
4 WASHER; CENTER,S/ABS
ID=20.8 		9-51631-041-0 04 1 0610-0709
4 WASHER; CENTER,S/ABS
EXC. TAPER LEAF SUSP RR<SAT> ID=20.8 		9-51631-041-0 04 1 0710-
5 BUSHING; RUBBER,S/ABS,UPR
TAPER LEAF SUSP RR<SAT> ID=16 T=25 		1-51631-069-0 04 1 0710-
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-039-0 04 1 0610-0709
5 BUSHING; RUBBER,S/ABS,UPR
EXC. TAPER LEAF SUSP RR<SAT> 		9-51631-039-0 04 1 0710-
8 WASHER; S/ABS
TAPER LEAF SUSP RR<SAT> (B) ID=16.5 		1-51631-068-0 08 1 0710-
8 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 06 1 0610-0709
8 WASHER; S/ABS
EXC. TAPER LEAF SUSP RR<SAT> (A) ID=16.5 		9-51631-040-0 06 1 0710-
10 BUSHING; RUBBER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=16 T=25 		1-51631-069-0 04 1 0710-
10 BUSHING; RUBBER,S/ABS 9-51631-039-0 04 1 0610-0709
10 BUSHING; RUBBER,S/ABS
EXC. TAPER LEAF SUSP RR<SAT> 		9-51631-039-0 04 1 0710-
11 WASHER; CENTER,LWR,RR S/ABS
TAPER LEAF SUSP RR<SAT> ID=24 		1-51631-067-0 04 1 0710-
11 WASHER; CENTER,LWR,RR S/ABS
ID=20.8 		9-51631-041-0 04 1 0610-0709
11 WASHER; CENTER,LWR,RR S/ABS
EXC. TAPER LEAF SUSP RR<SAT> ID=20.8 		9-51631-041-0 04 1 0710-
13 NUT; LWR,RR S/ABS
M14 		9-99111-414-0 04 1 0610-
20 BRACKET; LWR,S/ABS 1-42129-113-0 01 1 0610-
20 BRACKET; LWR,S/ABS 1-42129-114-0 01 1 0610-
27 BOLT; ABSORBER BRKT
M14X25 		0-20801-425-0 08 1 0610-
28 WASHER; LK,ABSORBER BRKT
ID=14.2 		0-91510-614-0 08 1 0610-
