◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11031 - LT134-RHD EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#38854) — 62 parça
çizim 177769
73 62 14 65 65 68 18 168 18 68 65 111 211 180 68 73 68 211
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0610-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0610-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98096-780-0 02 1 0710-
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0610-0709
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-417-0 02 1 0710-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-154-0 02 1 0610-0709
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> BEST VALUE PARTS 		1-87610-154-0 02 1 0710-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0610-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0610-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0610-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0610-
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0610-
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0610-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> 		1-51681-722-1 01 1 0610-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> 		8-98153-483-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> 		1-51681-723-1 01 1 0610-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> 		8-98153-484-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0610-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0610-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0610-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0610-

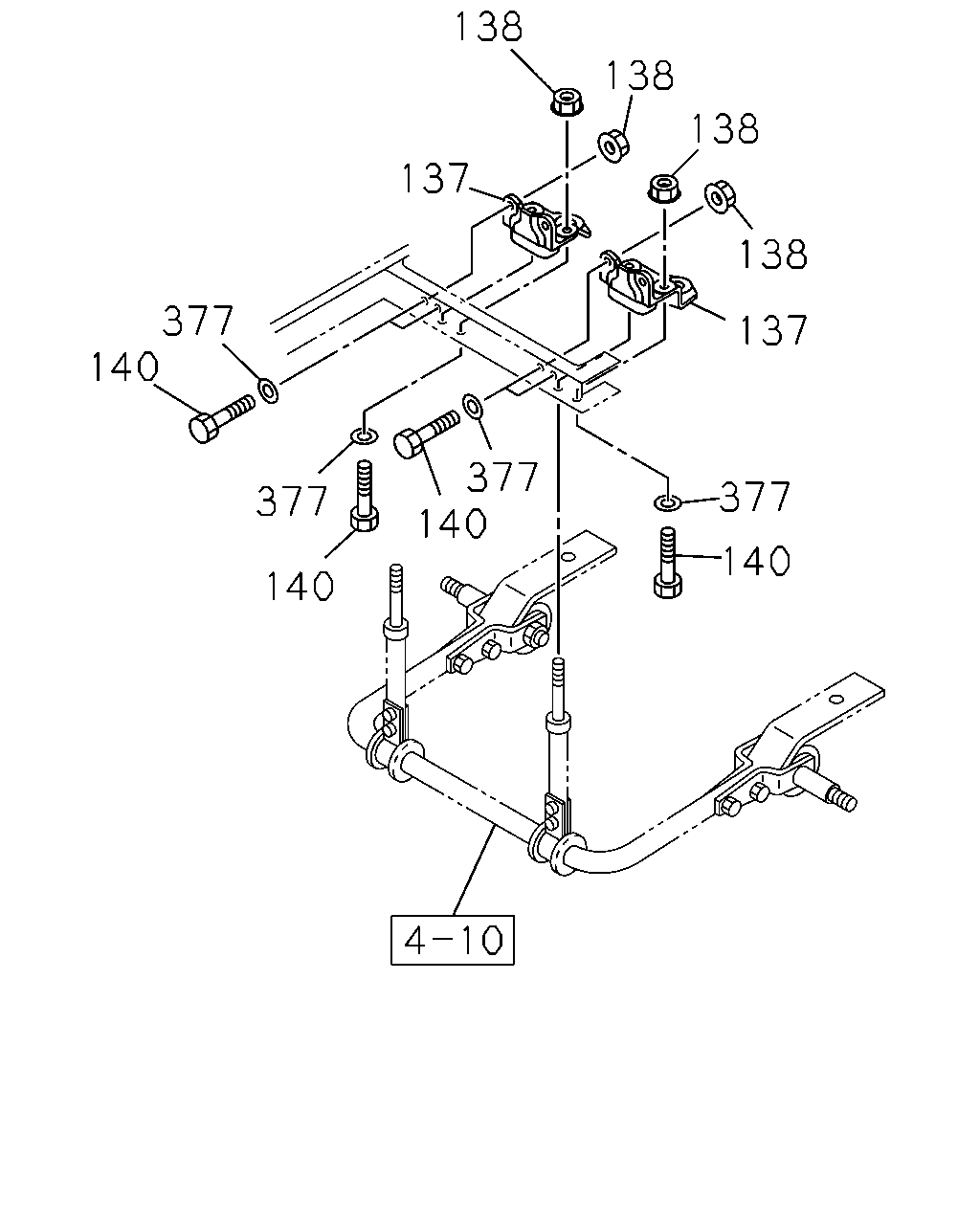

çizim 177777
138 138 138 137 138 377 140 137 377 140 377 377 140 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0610-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 0610-
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0610-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-134-0 01 1 0610-
138 NUT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14 		0-91110-514-0 08 1 0610-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 08 1 0610-
140 BOLT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14X45 		0-20801-445-0 08 1 0610-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		0-20801-445-0 08 1 0610-
377 WASHER; LK,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=14.2 		0-91510-514-0 08 1 0610-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=14.2 		0-91510-514-0 08 1 0610-

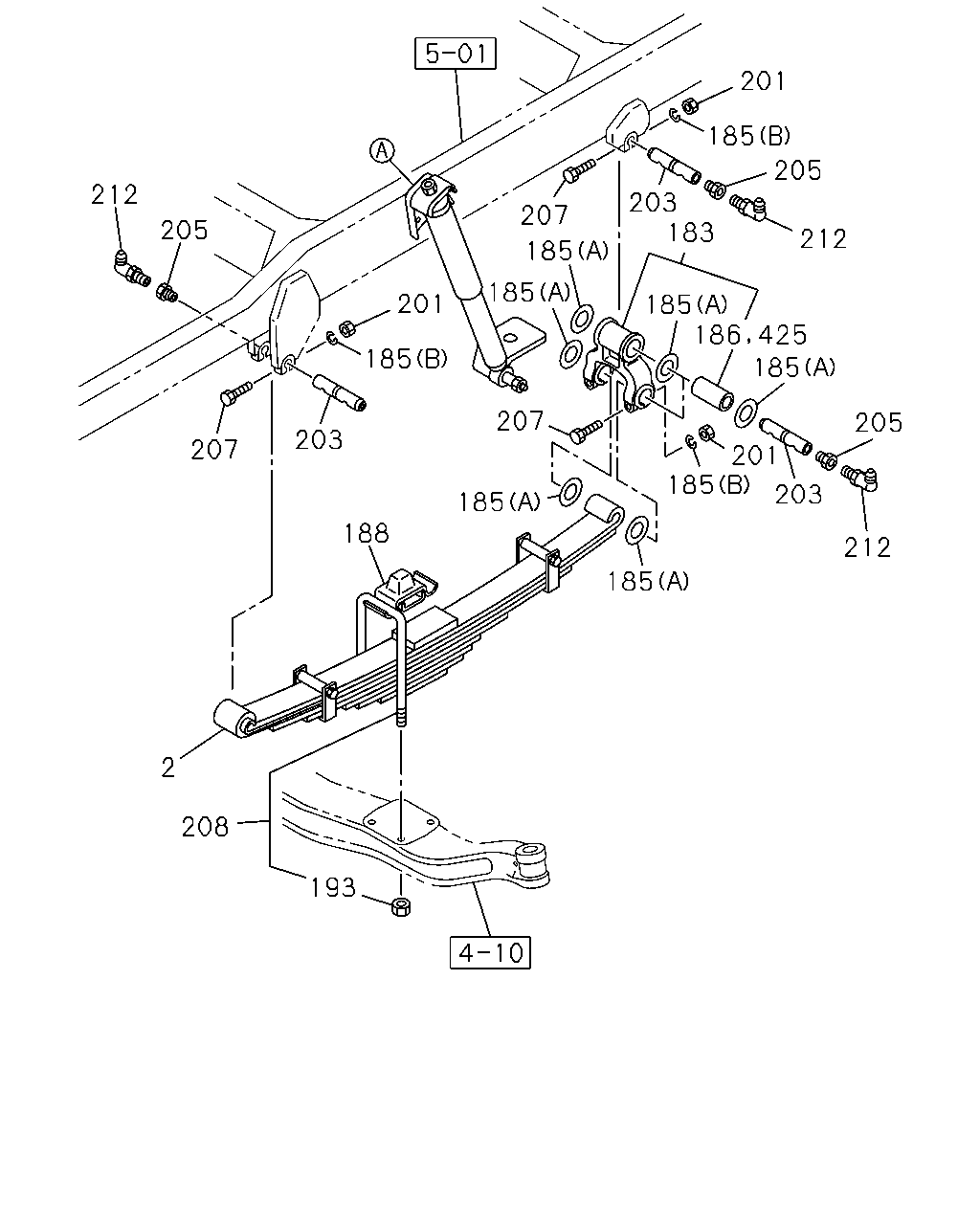

çizim 177782
201 185 205 212 207 203 183 205 212 185 185 201 185 185 185 207 205 203 207 201 185 203 185 188 212 185 2 208 193 186 425
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98096-765-0 02 1 0710-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98202-922-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-830-0 02 1 0610-0709
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF 		1-51130-830-0 02 1 0710-
183 SHACKLE; FRT SUSP 8-97530-932-0 02 1 0610-0610
183 SHACKLE; FRT SUSP 1-51162-039-2 02 1 0610-0705
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0706-
185 WASHER; LK,PIN
(B) ID=12.2 		0-91510-612-0 12 1 0610-
185 WASHER; LK,PIN
(A) ID=32.4 		1-51169-018-0 12 1 0610-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0610-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT STABILIZER SHAFT<F59> 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 9-51172-067-1 02 1 0610-1108
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> 		9-51172-067-1 02 1 1109-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0610-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0610-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0610-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0610-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0610-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> L=190 		1-87870-439-1 04 1 0810-0811
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-1 04 1 0810-0811
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> EXC. FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> EXC. STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59> L=190 		1-87870-439-2 04 1 0812-
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-439-1 04 1 0610-0805
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0610-
425 SEAL; DUST
OD=38 		1-51351-030-0 02 1 0610-0610
