Isuzu WW
▶
BUSES
▶
LT
▶
11031 - LT134-RHD EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

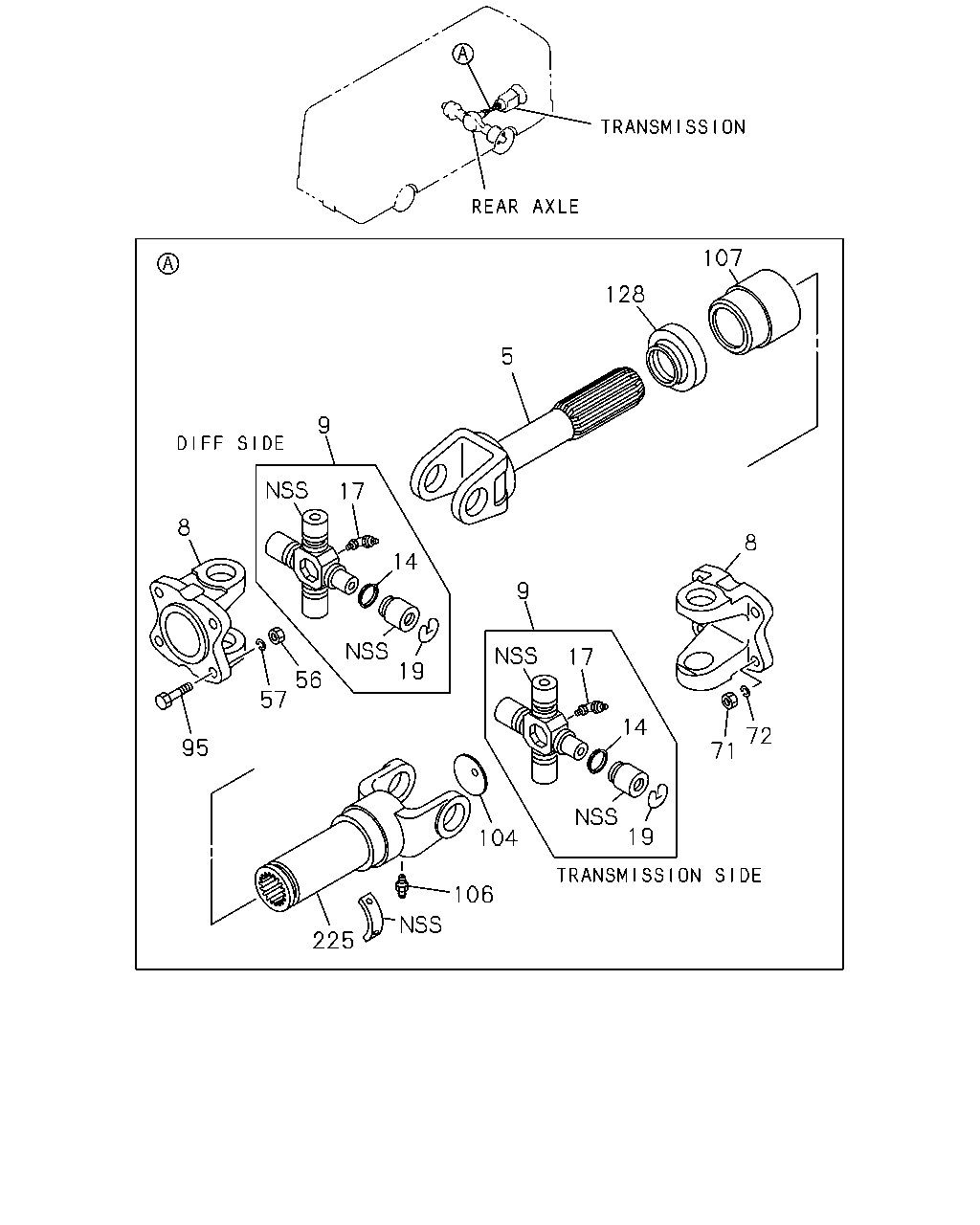

4-01 — PROPELLER SHAFT
(#38842) — 22 parça
Tümü
A - WHEEL BASE 5000MM
B - WHEEL BASE 5700MM
107
128
5
9
17
8
8
14
9
17
19
56
57
14
72
95
71
19
104
106
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
YOKE; STUB,PROP SHAFT
L=387
1-37171-086-1
01
1
0610-
●
●
8
YOKE; FLANGE,PROP SHAFT
1-37211-056-3
02
1
0610-
●
●
9
JOURNAL ASM; PROP SHAFT
1-37300-102-1
AR
1
0610-1505
●
●
9
JOURNAL ASM; PROP SHAFT
8-98048-925-1
AR
1
1506-
●
●
14
COVER; DUST,SPIDER
1-37319-012-0
08
1
0610-1505
●
●
14
COVER; DUST,SPIDER
8-98020-800-0
08
1
1506-
●
●
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0610-
●
●
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE
1-09587-086-0
08
1
0610-
●
●
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE
1-09587-087-2
08
1
0610-
●
●
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW
1-09587-088-1
08
1
0610-
●
●
56
NUT; YOKE
M14
0-91110-514-0
04
1
0610-
●
●
57
WASHER; LK,YOKE
ID=14.2
0-91510-814-0
04
1
0610-0702
●
●
57
WASHER; LK,YOKE
ID=14.2
0-91510-614-0
04
1
0703-
●
●
71
NUT; YOKE
M14
0-91110-514-0
04
1
0610-
●
●
72
WASHER; LK,YOKE
ID=14.2
0-91510-814-0
04
1
0610-0702
●
●
72
WASHER; LK,YOKE
ID=14.2
0-91510-614-0
04
1
0703-
●
●
95
BOLT; YOKE,FINAL
M14X37
1-09000-121-0
04
1
0610-
●
●
104
PLUG; SLEEVE YOKE
1-09600-064-0
01
1
0610-
●
●
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
0-90301-410-0
01
1
0610-
●
●
107
COVER; RET,SLEEVE
1-37249-060-1
01
1
0610-
●
●
128
SEAL; SLEEVE
1-37247-024-0
01
1
0610-
●
●
225
YOKE; SLEEVE,PROP SHAFT
L=271
1-37241-099-2
01
1
0610-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
