◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11031 - LT134-RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#38841) — 93 parça
çizim 177759
372 372 387 81 297 297 297 372 81 81 372 297
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0610-
81 BRACKET; CLIP
(A) 		8-97614-149-0 01 1 0610-
81 BRACKET; CLIP
(C) 		8-98053-702-0 01 1 0610-
297 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0610-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0610-
297 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0610-0801
297 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0802-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0610-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0610-
387 STAY 1-47471-433-0 01 1 0610-

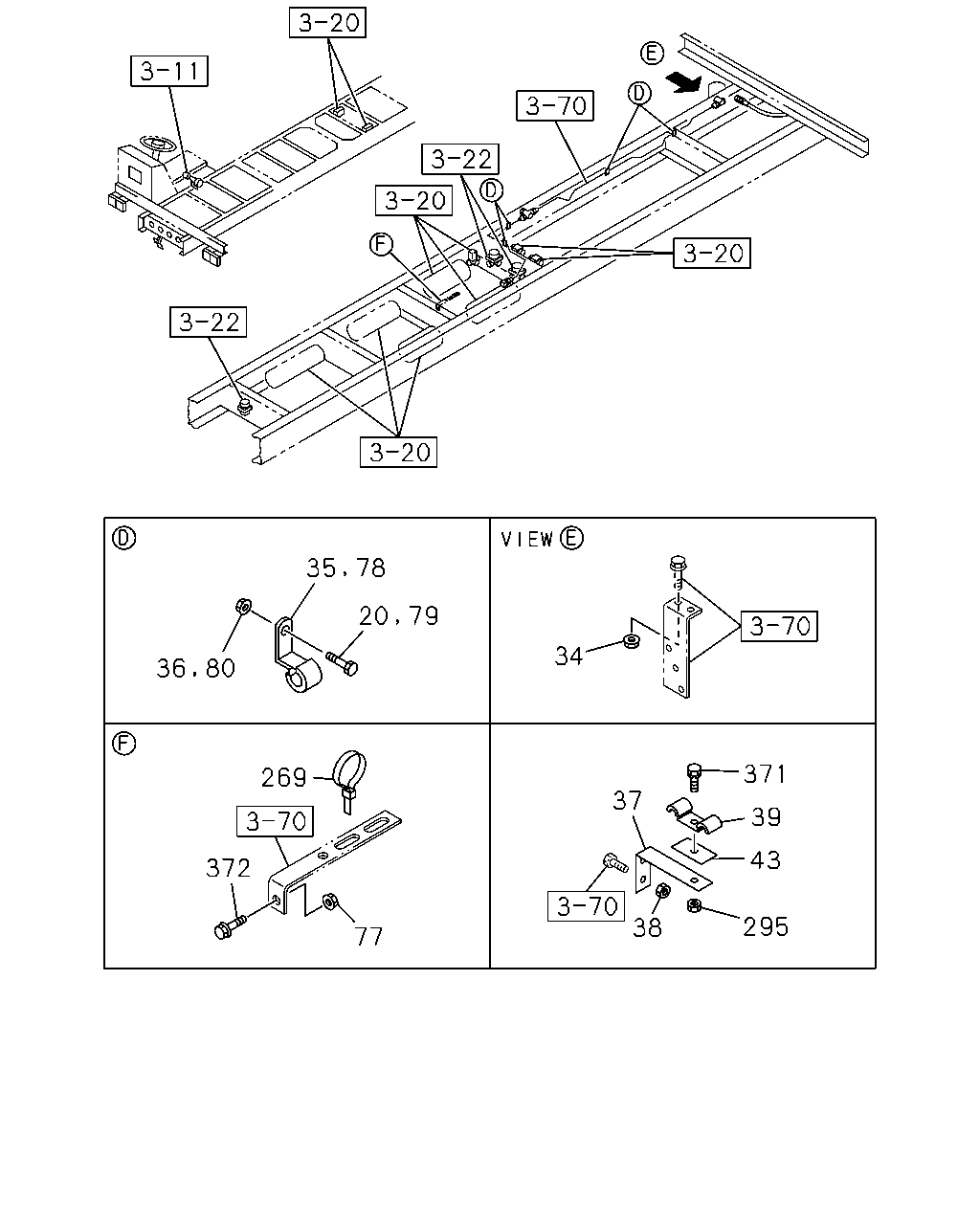

çizim 177764
34 371 269 37 39 43 372 295 38 77 35 78 20 79 36 80
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0610-
20 BOLT; CLIP
EURO4 SPECIFICATION(KBT) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-1104
35 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0610-
36 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0610-
37 BRACKET; PIPE CLIP 1-47475-105-2 01 1 1105-
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1105-
39 CLIP; AIR PIPE
ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 1105-
43 PLATE; CLIP,AIR PIPE
L=50 		1-47475-299-2 01 1 1105-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0701-0703
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0704-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0610-
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0610-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0610-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 08 1 0610-0612
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0701-
269 CLIP; BAND,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0610-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 13 1 0610-0610
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 14 1 0610-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 15 1 0610-0610
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 16 1 0610-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0610-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 1105-
371 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1105-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0610-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0610-

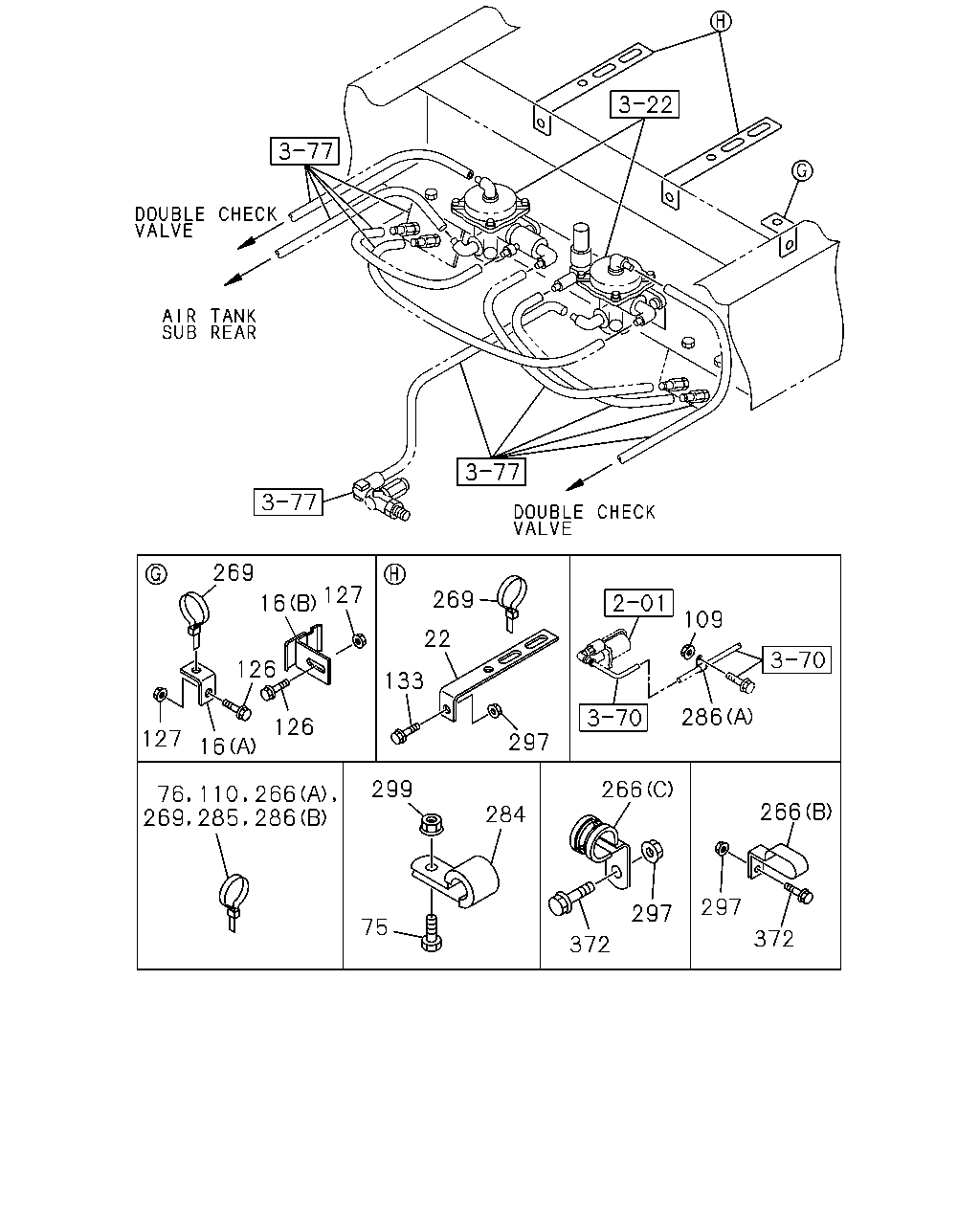

çizim 177765
269 127 16 269 109 22 126 133 286 126 127 297 16 299 266 266 284 297 297 75 372 372 76 110 266 286 285 269
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		8-98057-158-0 01 1 0610-0610
16 BRACKET; PIPE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) 		1-47479-693-0 01 1 0610-
22 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> L=225 		1-47477-646-3 02 1 0610-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
76 CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 02 1 0610-
76 CLIP; NYLON TUBE
AIR HORN(WB8) L=350 		1-09707-183-0 02 1 0610-
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 20 1 0610-0705
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 21 1 0706-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610-
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 03 1 0610-
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 04 1 0610-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 02 1 0610-
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 03 1 0610-
126 BOLT; CLIP BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 01 1 0610-
127 NUT; CLIP BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 01 1 0610-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0610-
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0610-
266 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0610-
266 CLIP; NYLON TUBE
(C) ID=39 H=28 L=32 		1-09701-263-0 01 1 0610-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 08 1 0610-0612
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0701-
269 CLIP; BAND,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0610-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 13 1 0610-0610
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 14 1 0610-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 15 1 0610-0610
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 16 1 0610-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0610-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0610-
285 CLIP; BAND
L=140 		5-09707-031-1 01 1 0610-
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0610-0610
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 0610-
286 CLIP; NYLON TUBE
(A) ID=9 		1-09700-839-1 01 1 0610-
297 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0610-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0610-
297 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0610-0801
297 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0802-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0610-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0610-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0610-

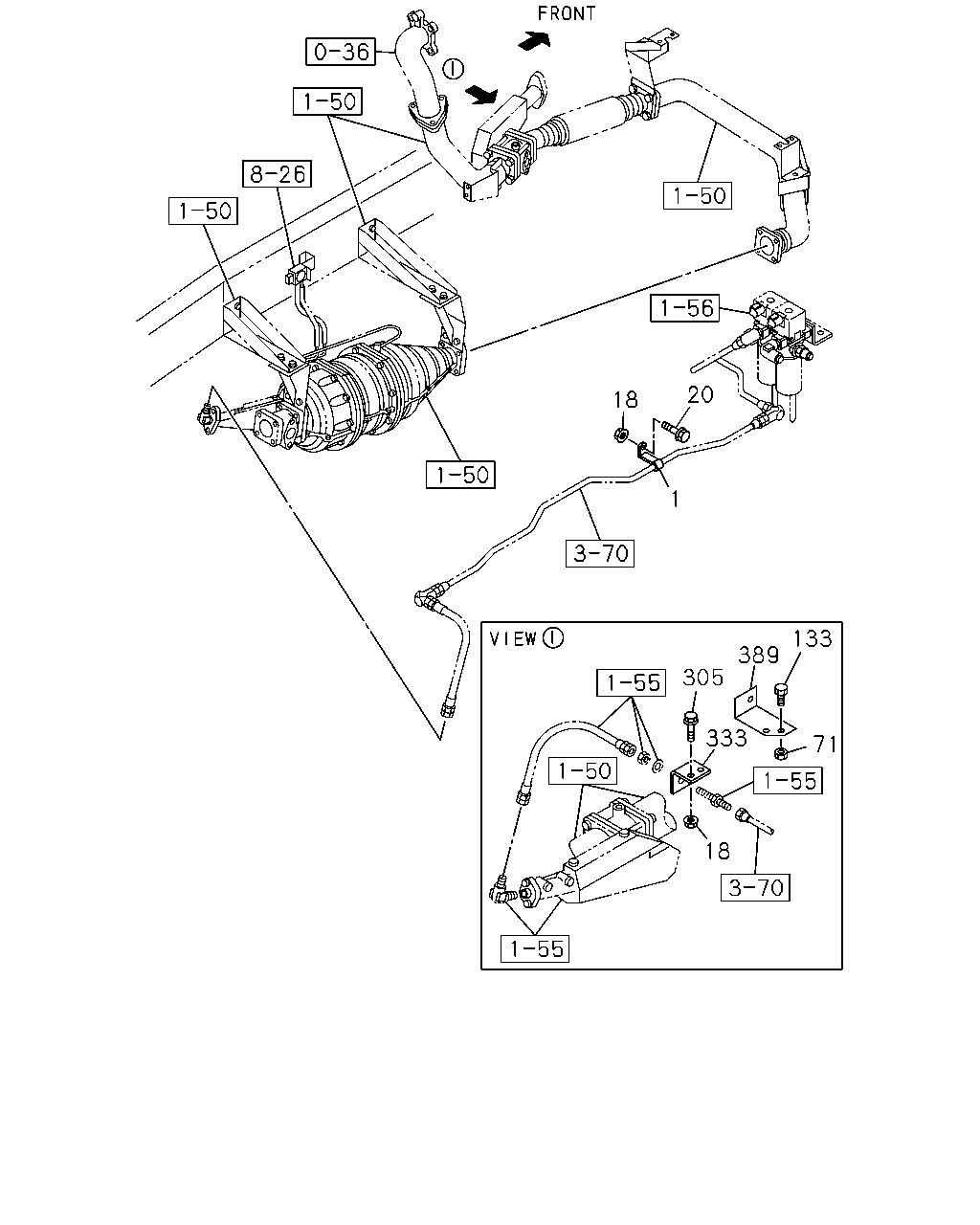

çizim 177768
20 18 1 133 389 305 333 71 18
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
EURO4 SPECIFICATION(KBT) ID=6 H=20 L=20 		1-09700-603-0 02 1 0610-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0610-
18 NUT; CLIP
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0610-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0610-
20 BOLT; CLIP
EURO4 SPECIFICATION(KBT) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0610-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0610-
333 BRACKET; BRK AIR PIPE 8-98057-110-0 01 1 0610-
389 BRACKET; UNION 1-47475-721-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
