3-70 — BRAKE PIPING; AIR,AIR MASTER (#38838) — 165 parça
çizim 177752

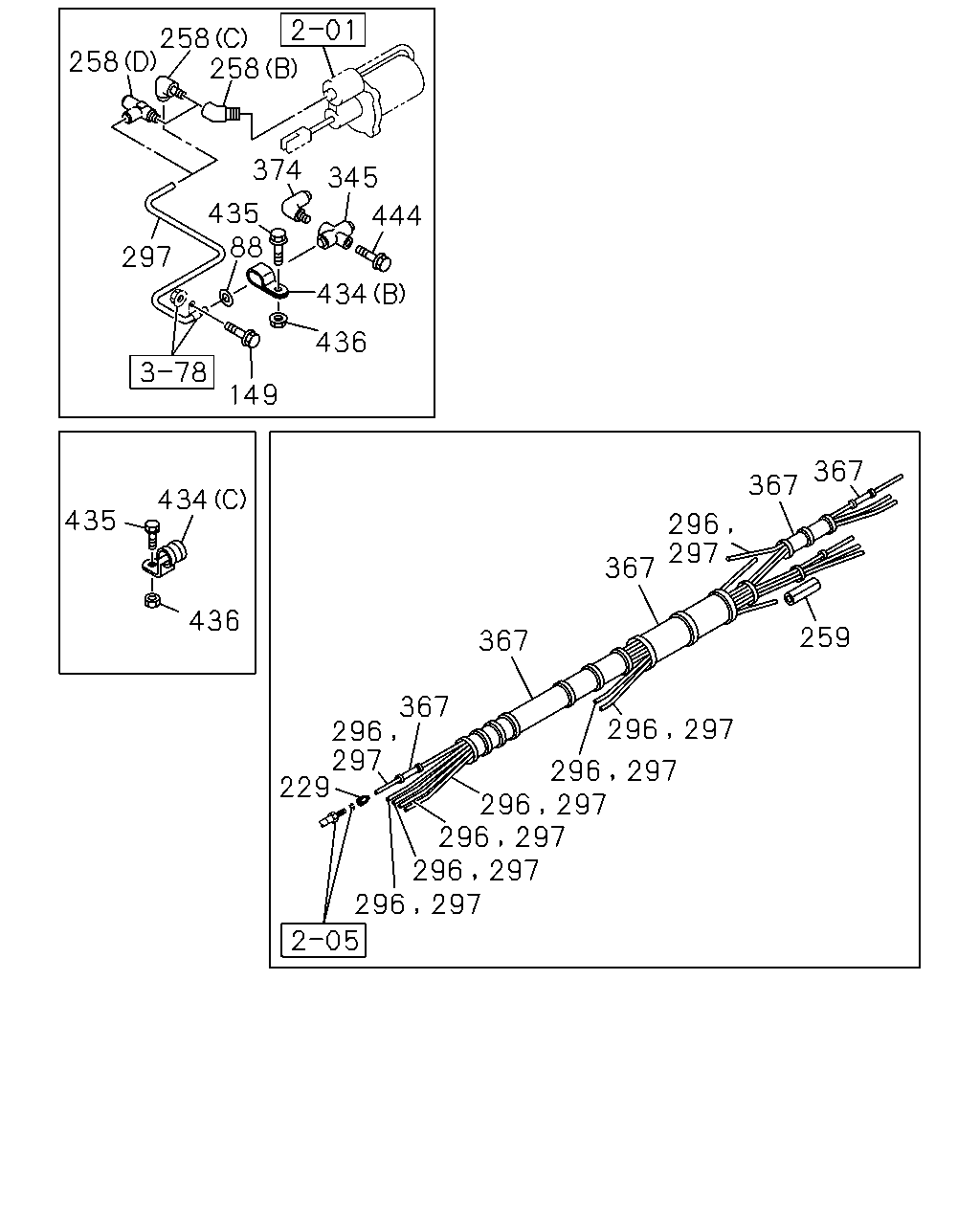

258 258 258 374 345 435 88 444 297 434 436 149 367 367 434 435 296 297 367 436 259 367 367 296 297 229 296 297 297 296 297 296 297 296 297 296 297 296
BalonParca AdiParca NoAdetTipApplied Date
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0610-
149 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0610-
229 ADAPTER; NYLON TUBE
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0610-
259 SLEEVE; RUBBER,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0610-
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 06 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0610-
297 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0610-
345 UNION; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0701-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (B) ID=9 L=50 		0-95234-885-0 01 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 08 1 0610-
434 CLIP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 08 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 07 1 0610-
434 CLIP
(C) ID=25 H=60 L=35 		1-09701-103-0 01 1 0610-
435 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 01 1 0610-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0610-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610-
436 NUT; CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 01 1 0610-
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 0610-0610
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0801
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0802-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0610
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
çizim 177756

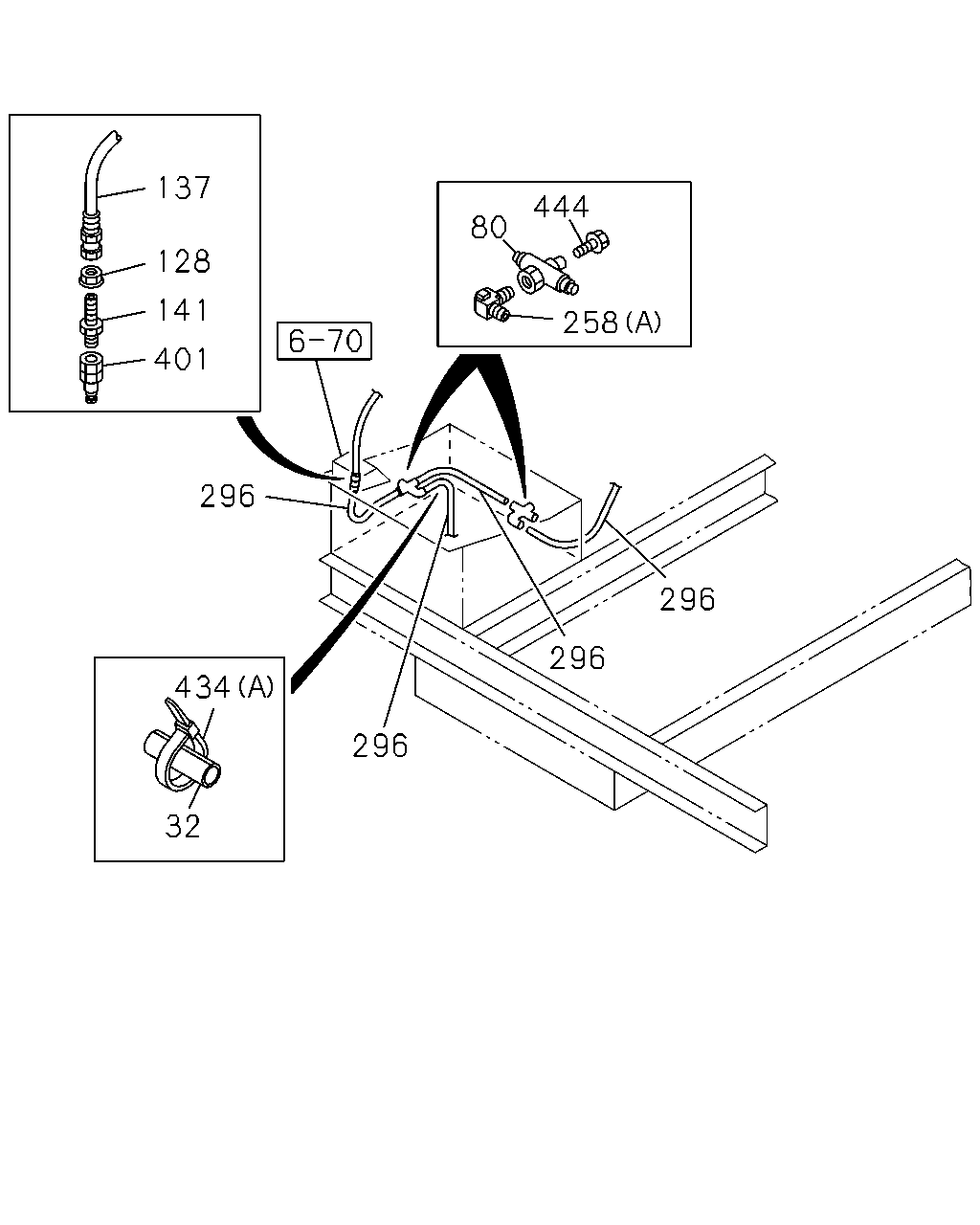

137 444 80 128 141 258 401 296 296 296 434 296 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0610-
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0610-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0610-
141 UNION; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 02 1 0610-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0610-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (B) ID=9 L=50 		0-95234-885-0 01 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 08 1 0610-
434 CLIP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 08 1 0610-
434 CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 07 1 0610-
434 CLIP
(C) ID=25 H=60 L=35 		1-09701-103-0 01 1 0610-
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 0610-0610
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0801
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0802-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0610
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
çizim 177760

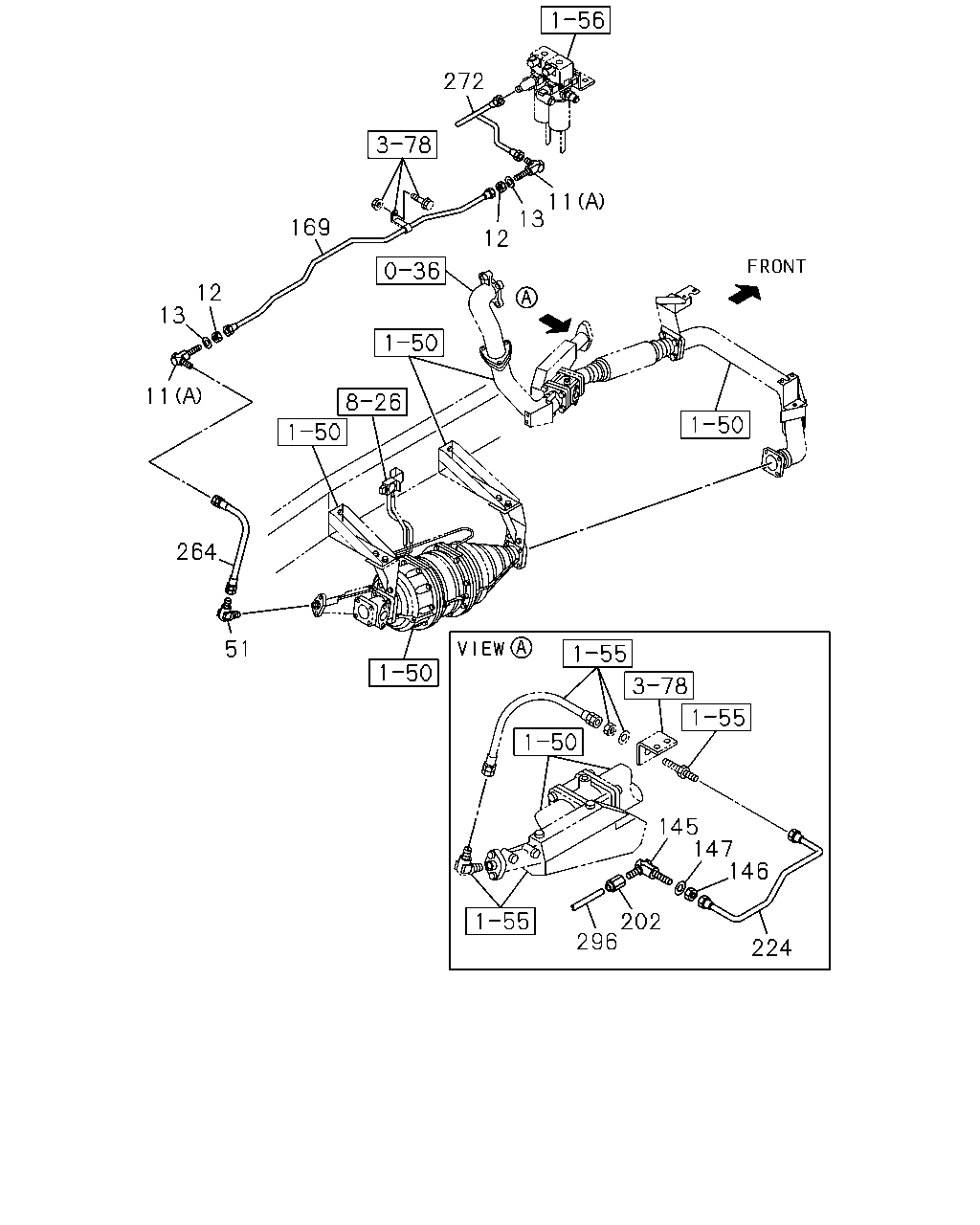

272 11 13 169 12 12 13 11 264 51 145 147 146 202 296 224
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
EURO4 SPECIFICATION(KBT) (A) M12 ELBOW 		0-92125-206-0 01 1 0610-0702
11 UNION; AIR PIPE
EURO4 SPECIFICATION(KBT) (A) M12 ELBOW 		0-92125-206-0 02 1 0703-
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0610-
12 NUT; UNION
M14 		0-91111-514-0 01 1 0610-1104
12 NUT; UNION
M22 		0-91111-522-0 04 1 0610-1104
12 NUT; UNION
M22 		0-91111-522-0 02 1 1105-
12 NUT; UNION
EURO4 SPECIFICATION(KBT) M12 		9-09840-280-0 01 1 0610-0702
12 NUT; UNION
EURO4 SPECIFICATION(KBT) M12 		9-09840-280-0 02 1 0703-
13 WASHER; LK,UNION
EURO4 SPECIFICATION(KBT) ID=12.2 		0-91510-512-0 01 1 0610-0702
13 WASHER; LK,UNION
EURO4 SPECIFICATION(KBT) ID=12.2 		0-91510-512-0 02 1 0703-
51 UNION
EURO4 SPECIFICATION(KBT) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0610-
145 UNION; NYLON TUBE
M12 ELBOW 		0-92125-206-0 01 1 0610-
146 NUT; UNION
M12 		9-09840-280-0 01 1 0610-
147 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0610-
169 PIPE; AIR,UNION TO FLEX HOSE
EURO4 SPECIFICATION(KBT) L=1169 SERVICED BY L=1200 		1-47428-816-0 01 1 0610-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610-
224 PIPE; AIR,UNION TO FLEX HOSE
L=406 		8-98055-824-0 01 1 0610-
264 HOSE; FLEX
EURO4 SPECIFICATION(KBT) L=250 		1-09363-618-0 01 1 0610-
272 PIPE; AIR,MAG VLV TO UNION
EURO4 SPECIFICATION(KBT) L=345 		8-98055-823-0 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0610-
çizim 177761

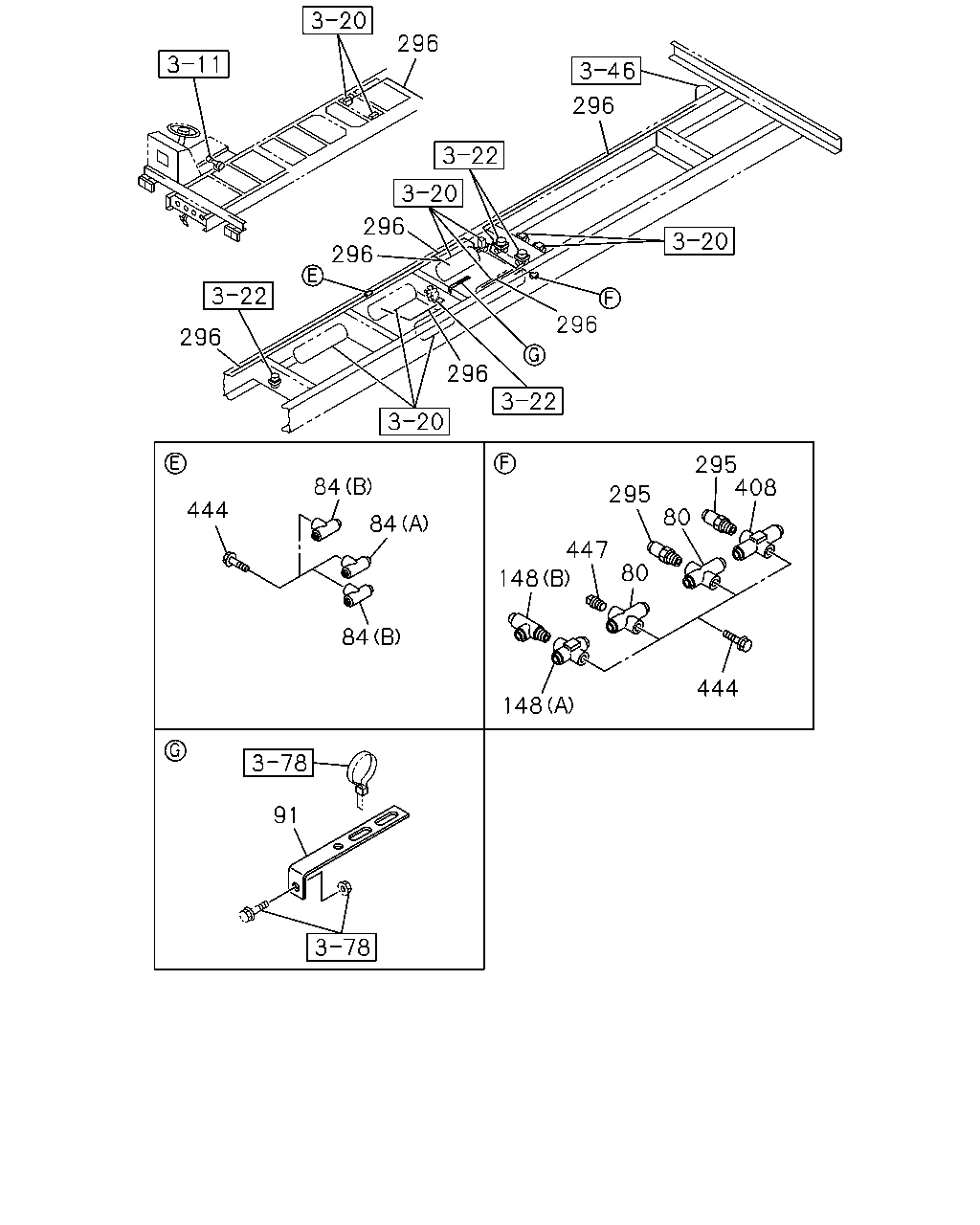

296 296 296 296 296 296 296 295 408 84 295 444 80 84 447 148 80 84 444 148 91
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
84 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0610-
84 UNION; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0610-
91 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 01 1 0701-0703
91 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 02 1 0704-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0610-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (B) 		1-09661-207-0 01 1 0610-
295 CONNECTOR; NYLON TUBE
AIR HORN(WB8) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0610-
295 CONNECTOR; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0610-
408 UNION; 3 WAY,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0610-
444 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 0610-0610
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0801
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0802-
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0610
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0610-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0801
444 BOLT; UNION
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
447 PLUG; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> PT3/8 		9-09204-517-0 01 1 0610-
çizim 177766

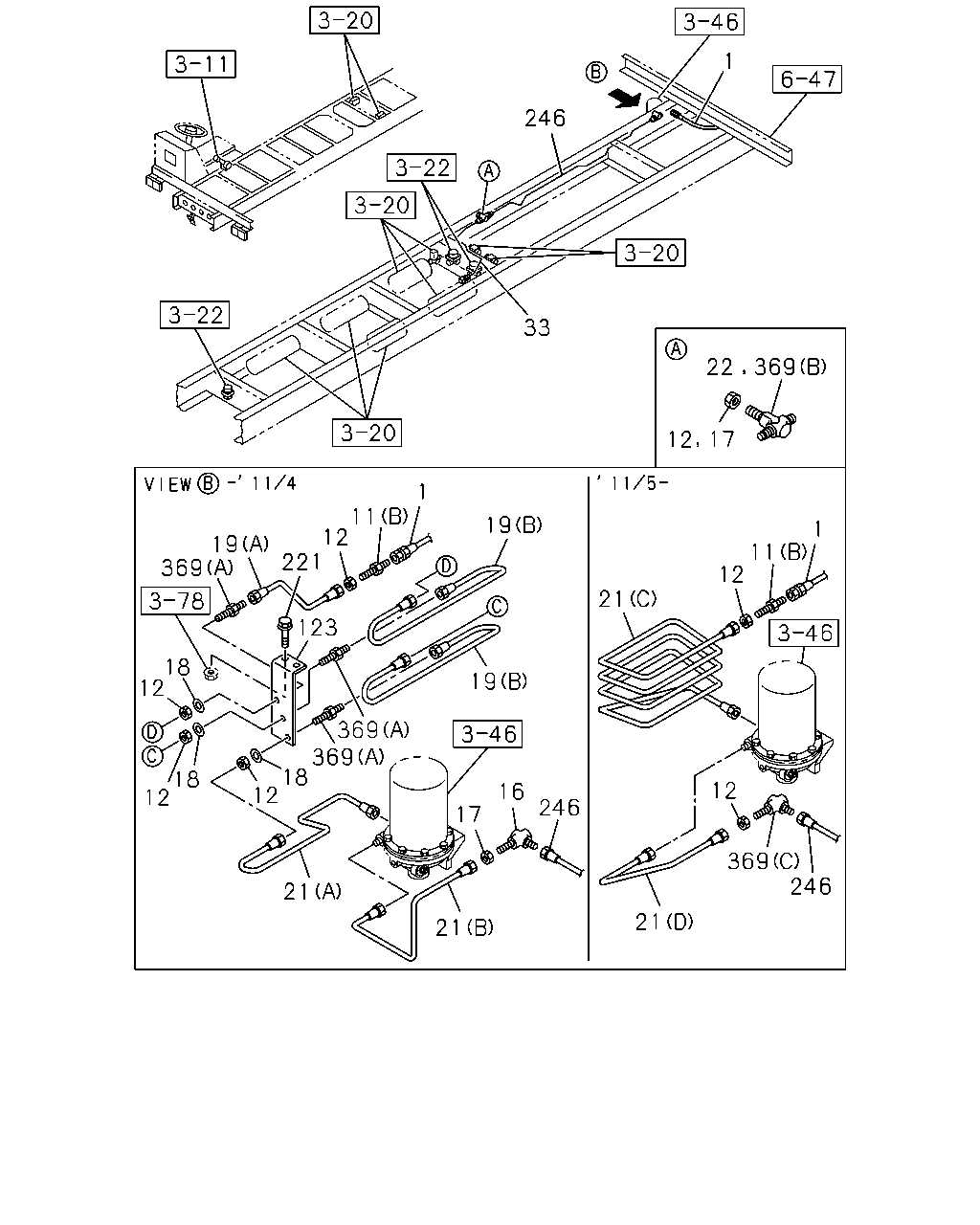

1 246 33 12 17 1 11 12 221 19 1 11 12 19 369 21 123 18 12 19 369 369 18 12 18 12 12 16 246 17 369 246 21 21 21 22 369
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-871-0 01 1 0610-
11 UNION; AIR PIPE
EURO4 SPECIFICATION(KBT) (A) M12 ELBOW 		0-92125-206-0 01 1 0610-0702
11 UNION; AIR PIPE
EURO4 SPECIFICATION(KBT) (A) M12 ELBOW 		0-92125-206-0 02 1 0703-
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0610-
12 NUT; UNION
M14 		0-91111-514-0 01 1 0610-1104
12 NUT; UNION
M22 		0-91111-522-0 04 1 0610-1104
12 NUT; UNION
M22 		0-91111-522-0 02 1 1105-
12 NUT; UNION
EURO4 SPECIFICATION(KBT) M12 		9-09840-280-0 01 1 0610-0702
12 NUT; UNION
EURO4 SPECIFICATION(KBT) M12 		9-09840-280-0 02 1 0703-
16 UNION; AIR PIPE
M22X2 ELBOW 		0-92135-215-0 01 1 0610-1104
17 NUT; UNION
M22 		0-91111-522-0 01 1 0610-1104
17 NUT; UNION
M14 		0-91111-514-0 01 1 1105-
18 WASHER; LK,UNION
ID=22.5 		0-91510-622-0 03 1 0610-1104
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(A) L=337 		8-98055-825-0 01 1 0610-1104
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(B) L=377 		8-98055-826-0 02 1 0610-1104
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=377 		8-98055-827-0 01 1 0610-1104
21 PIPE; AIR,UNION TO AIR DRYER
(D) 		8-98105-794-0 01 1 1105-
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=772 		8-98055-828-0 01 1 0610-1104
21 PIPE; AIR,UNION TO AIR DRYER
(C) 		8-98112-687-0 01 1 1105-
22 NIPPLE; AIR PIPE
M22 2WAY 		1-09654-212-1 01 1 1105-
33 PIPE; AIR,UNION TO AIR TANK
L=1297 		1-49124-939-0 01 1 0610-
123 BRACKET; UNION 8-98055-758-0 01 1 0610-1104
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-1104
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1105-
246 PIPE; AIR,UNION TO UNION
L=1488 		1-49124-938-0 01 1 0610-1104
246 PIPE; AIR,UNION TO UNION
L=1488 		8-98105-792-0 01 1 1105-
369 UNION; AIR PIPE
(A) M22 		0-92123-315-0 03 1 0610-1104
369 UNION; AIR PIPE
(B) M22 2WAY 		1-09654-212-1 01 1 0610-1104
369 UNION; AIR PIPE
(C) M22X2 ELBOW 		0-92135-215-0 01 1 1105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
