3-20 — AIR TANK (#38832) — 157 parça

33 164 27 46 46 26 46 26 80 46 39 31 30 2 7 26 6 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

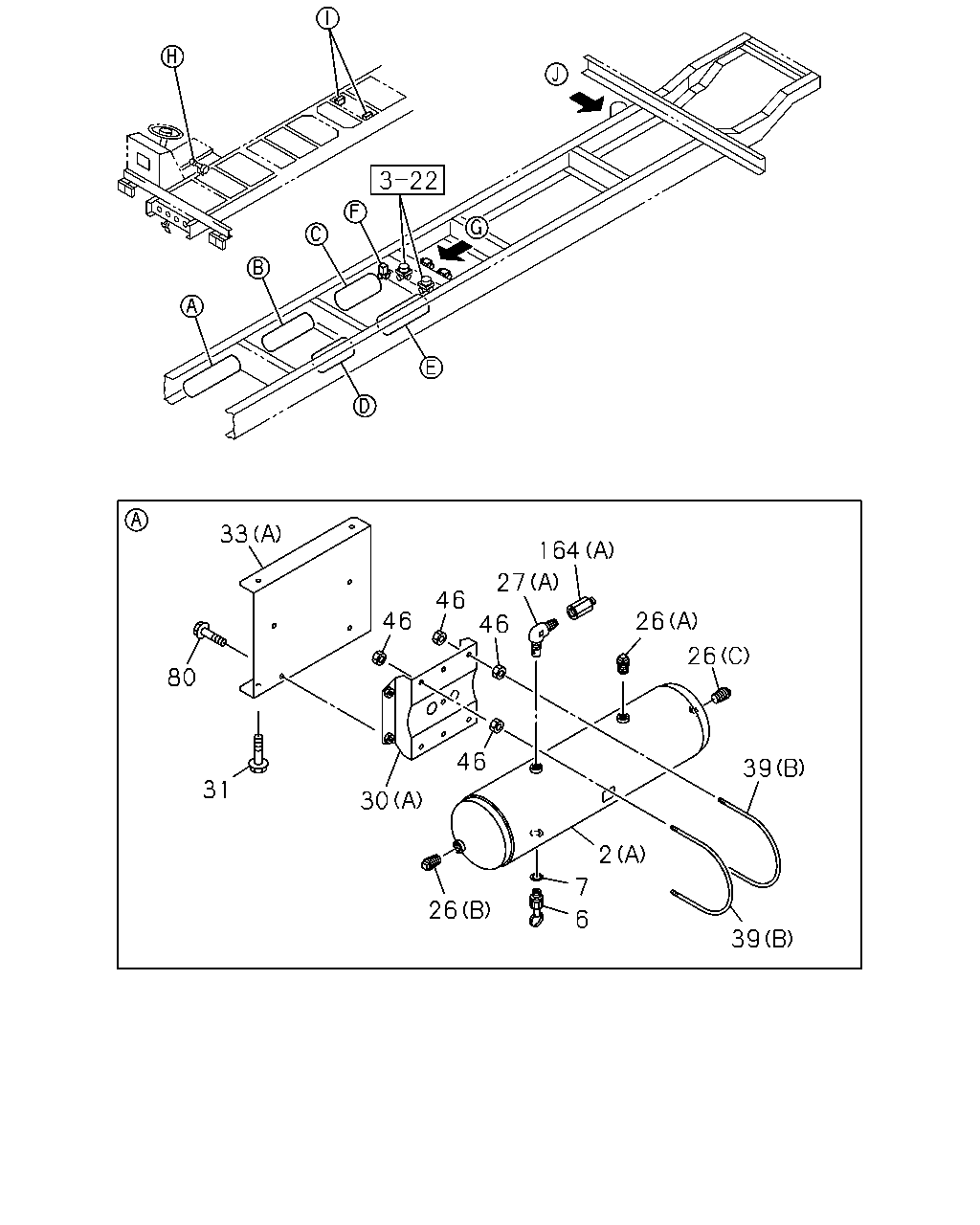

2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0610-
2	TANK; AIR (B)	1-48371-108-0	01	1	0610-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0610-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0610-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0610-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0610-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0610-
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0610-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0610-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0610-
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0610-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0610-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0610-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0610-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0610-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0610-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0610-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0610-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0610-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0610-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0610-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
164	CONNECTOR; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0610-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0610-

33 46 46 46 39 3 5 166 31 8 80 46 5 28 39 1 7 10 6 33 46 46 28 46 166 5 5 80 46 5 8 8 39 31 28 5 1 7 10 6 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

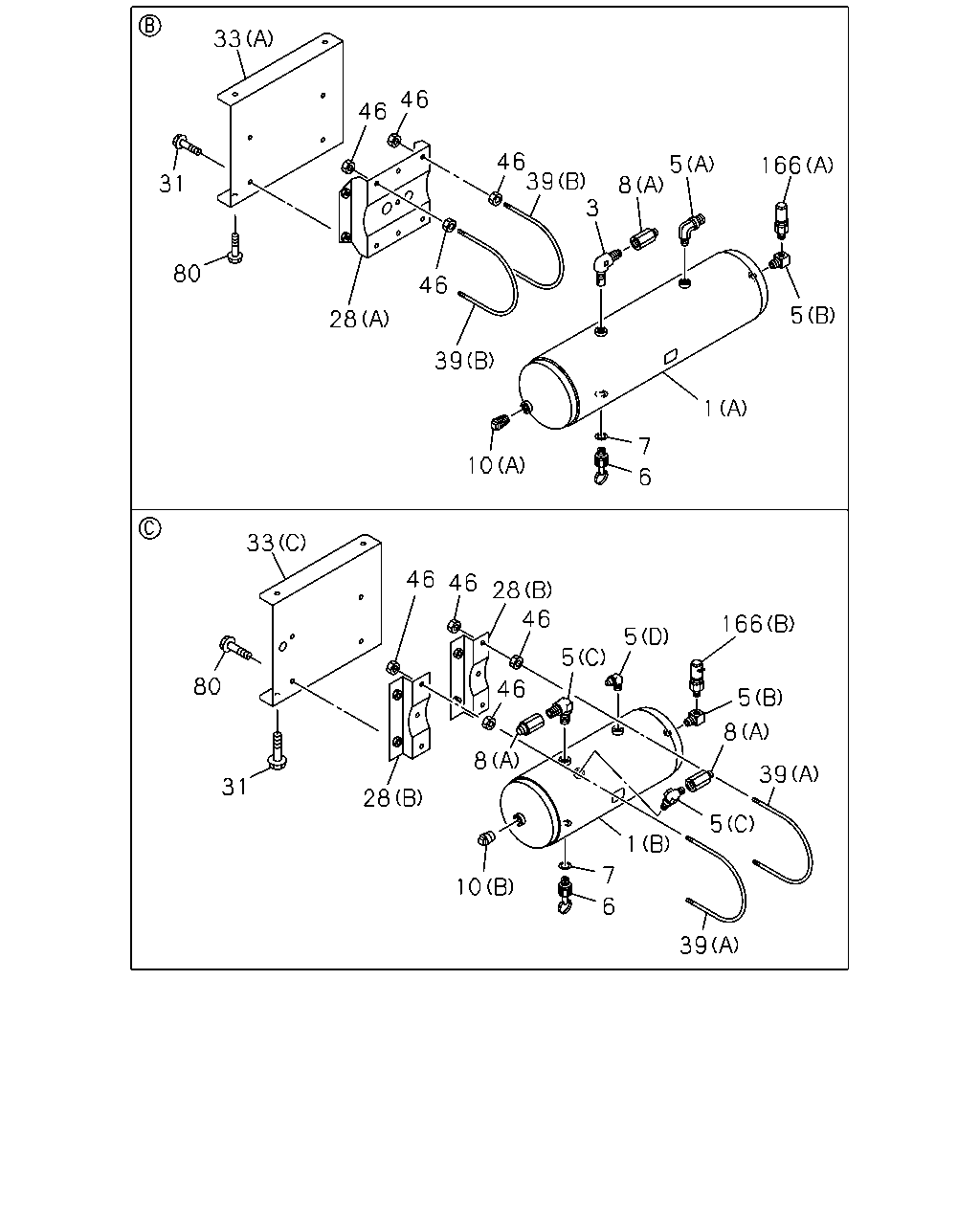

1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0610-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0610-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0610-
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	02	1	0610-0709
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0610-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
5	UNION; AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0610-1005
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0610-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0610-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0610-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0610-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0610-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0610-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0610-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0610-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0610-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	0610-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	0610-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0610-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0610-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0610-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0610-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0610-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0610-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0610-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0610-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0610-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0610-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	01	1	0610-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B)	1-48340-058-2	01	1	0610-

107 126 176 101 257 257 176 100 126 8 113 114 101 102 317 317 176 257 317 103 257 176 100 109 317 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0610-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0610-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8X80 FLANGE	0-28050-880-0	08	1	0610-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	08	1	0610-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	1-47479-519-0	02	1	0610-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE	0-28650-825-0	04	1	0610-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	0610-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	0610-
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0610-
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	0610-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0710-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0610-
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	0610-0610
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0610-
177	HOSE; RUBBER,DRAIN L=90	9-09712-638-0	01	1	0610-
178	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	0610-
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	08	1	0610-0610
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	04	1	0610-
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0610-0610
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	0610-

39 26 3 126 164 27 26 33 46 30 46 2 39 167 46 46 27 7 104 31 6 80 30 3 39 5 11 5 10 5 1 33 46 28 46 46 39 46 7 5 10 104 7 6 6 28 31 80 96 95 123 97 121 96 96 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

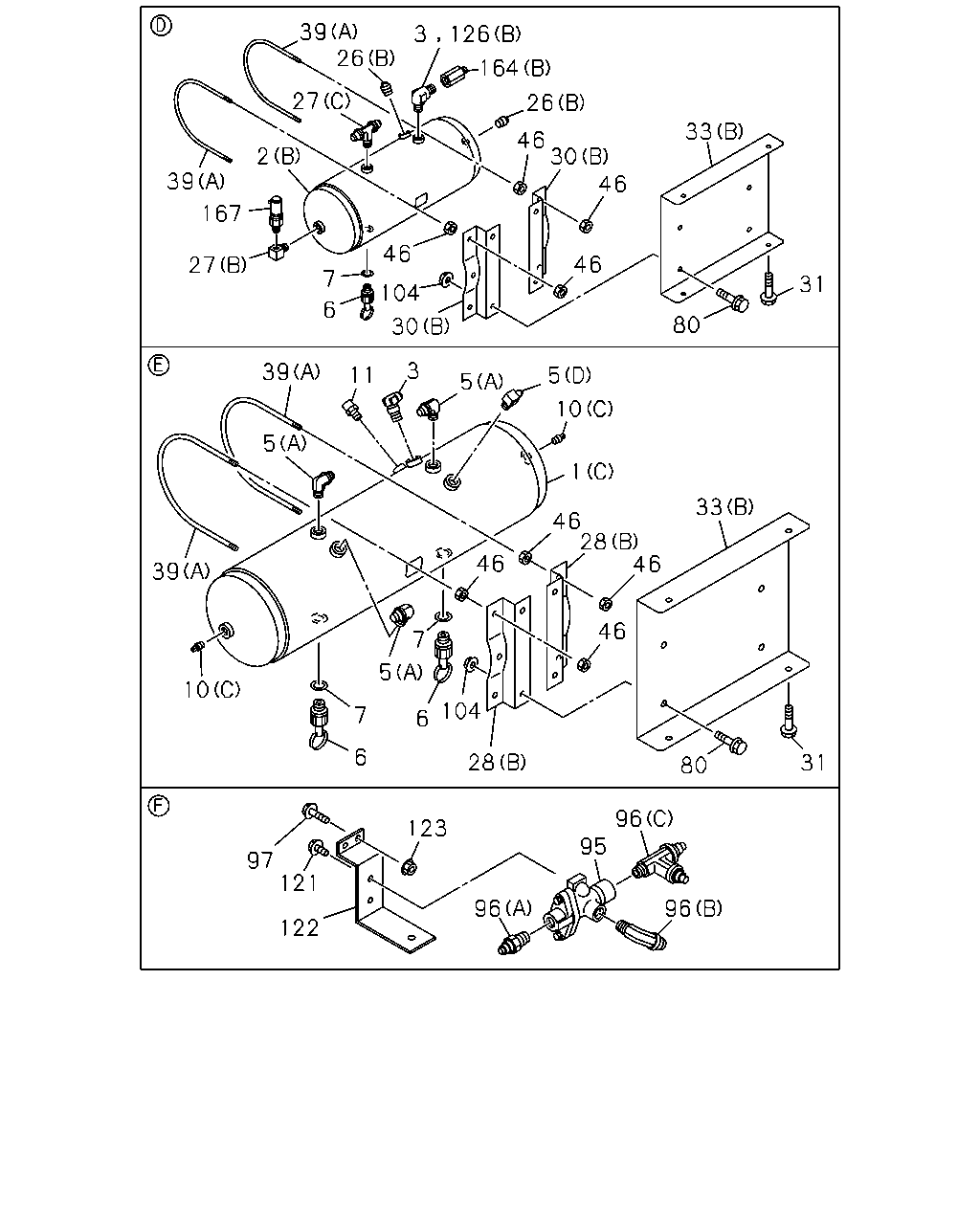

1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0610-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0610-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0610-
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0610-
2	TANK; AIR (B)	1-48371-108-0	01	1	0610-
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	02	1	0610-0709
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0610-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
5	UNION; AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0610-1005
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0610-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0610-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0610-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0610-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0610-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0610-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0610-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	0610-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0610-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0610-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0610-
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0610-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0610-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0610-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	0610-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0610-
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0610-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0610-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0610-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0610-
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0610-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0610-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0610-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0610-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0610-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0610-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0610-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0610-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0610-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
95	VALVE; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-1	01	1	0610-
96	CONNECTOR; DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0610-
96	CONNECTOR; DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
96	CONNECTOR; DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0610-
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28650-825-0	01	1	0610-
104	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0610-
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X12 FLANGE	0-28050-812-0	01	1	0610-0610
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X14 FLANGE	0-28080-814-0	02	1	0610-
122	BRACKET; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48495-285-0	01	1	0610-
123	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91180-108-0	01	1	0610-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0710-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0610-
164	CONNECTOR; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0610-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0610-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-1	01	1	0610-
