3-08 — PARKING BRAKE (#38829) — 38 parça

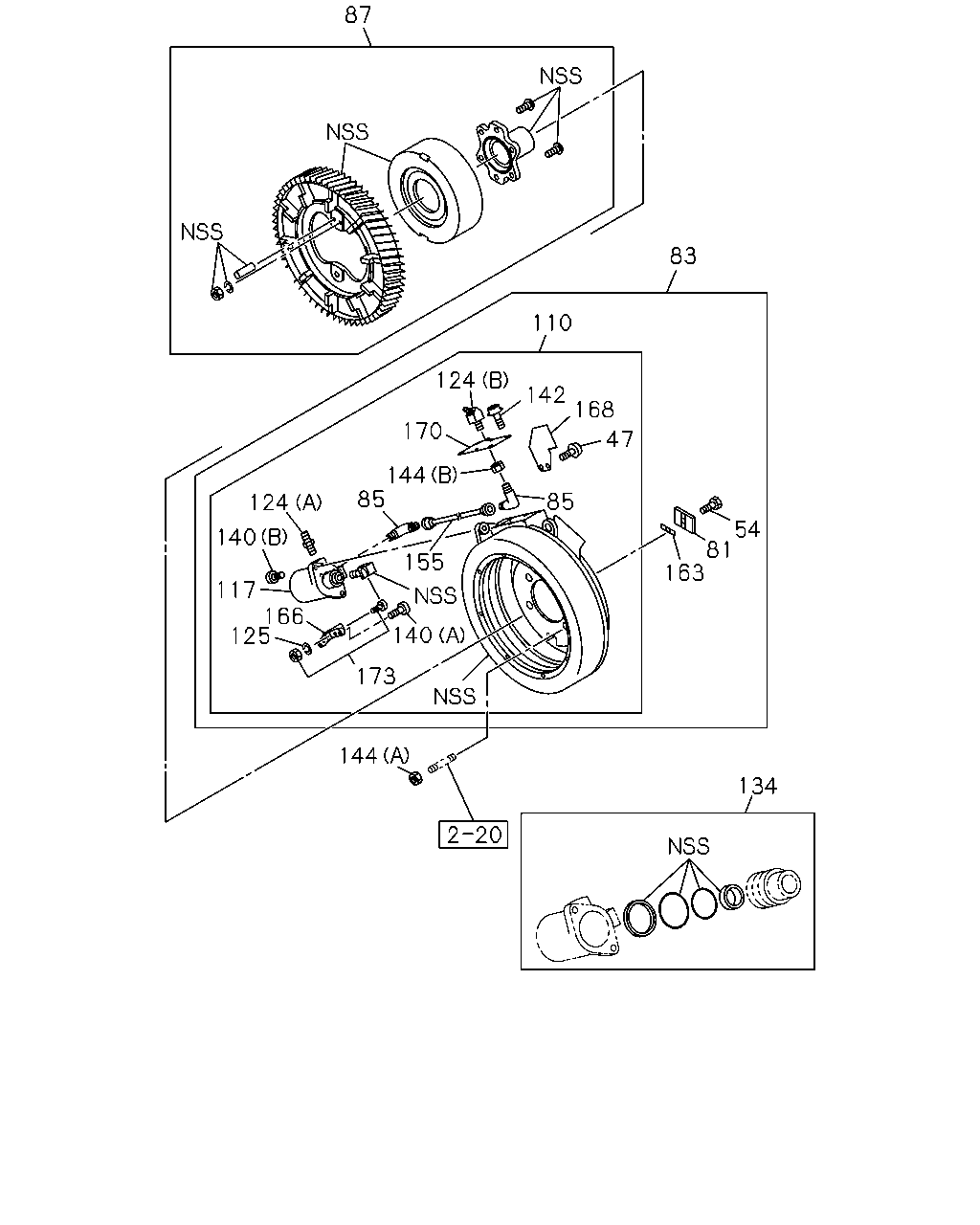

çizim 177732
87 83 110 124 142 168 170 47 144 85 85 124 54 81 163 140 155 117 166 125 140 173 144 134
BalonParca AdiParca NoAdetTipApplied Date
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0610-
54 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> M8X16 		9-05820-816-0 01 1 0610-0812
81 COVER; CHECK HOLE,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48629-124-0 01 1 0610-0812
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-482-4 01 1 0610-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0610-
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0610-
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-483-4 01 1 0610-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0610-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0610-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0610-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0610-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0610-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0610-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0610-
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0610-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0610-
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0610-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 0610-
163 BAR; FLAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-125-0 01 1 0610-0812
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0610-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0610-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0610-
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0610-

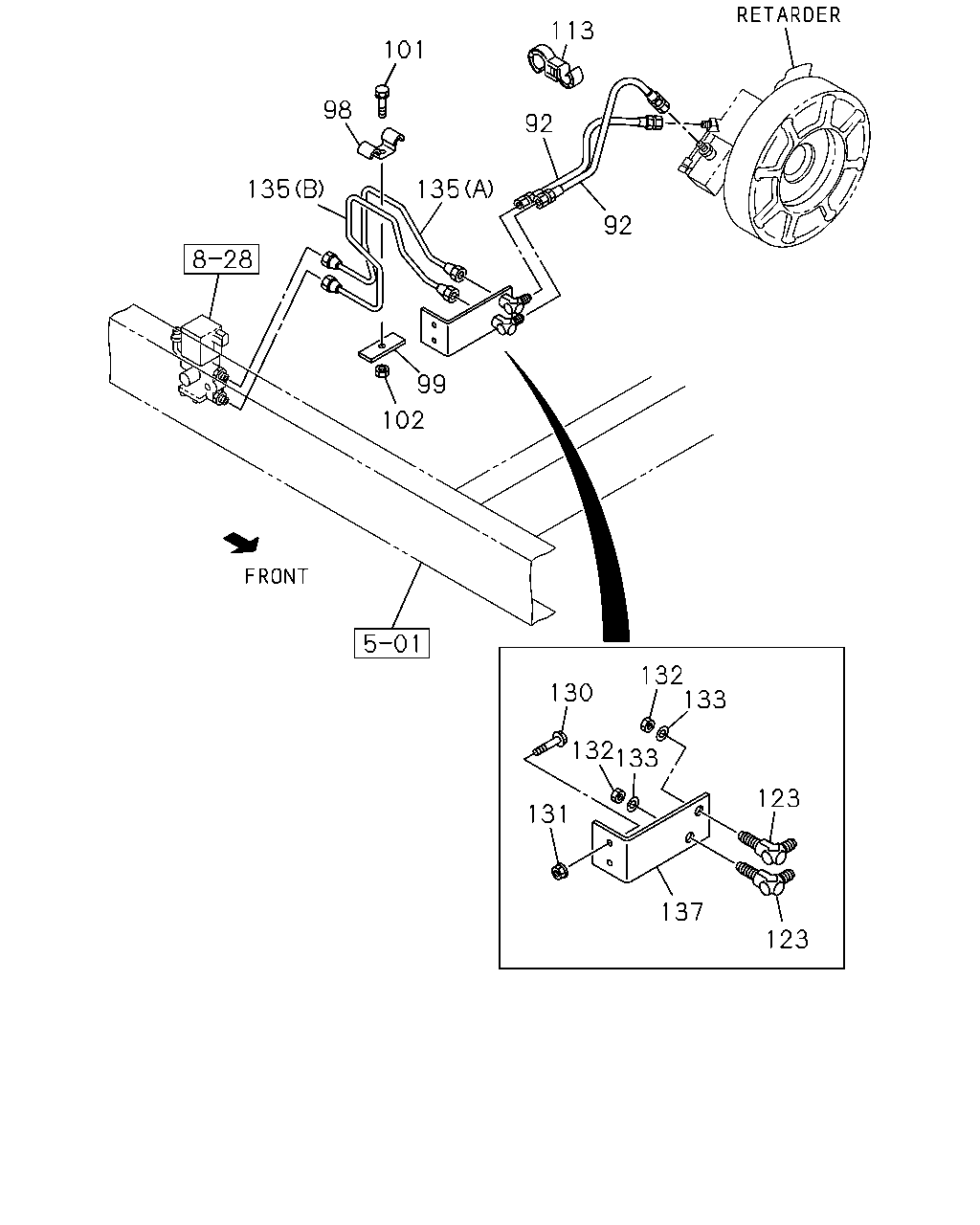

çizim 177735
113 101 98 92 135 135 92 99 102 132 133 130 132 133 123 131 137 123
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=350 		1-09363-877-0 02 1 0610-
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0610-
99 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> L=50 		1-47475-299-2 01 1 0610-
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0610-
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 01 1 0610-
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 0610-
123 UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M12 ELBOW 		0-92125-206-0 02 1 0610-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X35 FLANGE 		0-28050-835-0 02 1 0610-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0610-
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 03 1 0610-
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> M12 		9-09840-280-0 02 1 0610-
133 WASHER; UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 02 1 0610-
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=437 		1-49124-933-0 01 1 0610-
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=510 SERVICED BY L=550 		1-47428-808-0 01 1 0610-
137 BRACKET; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-47471-226-0 01 1 0610-
