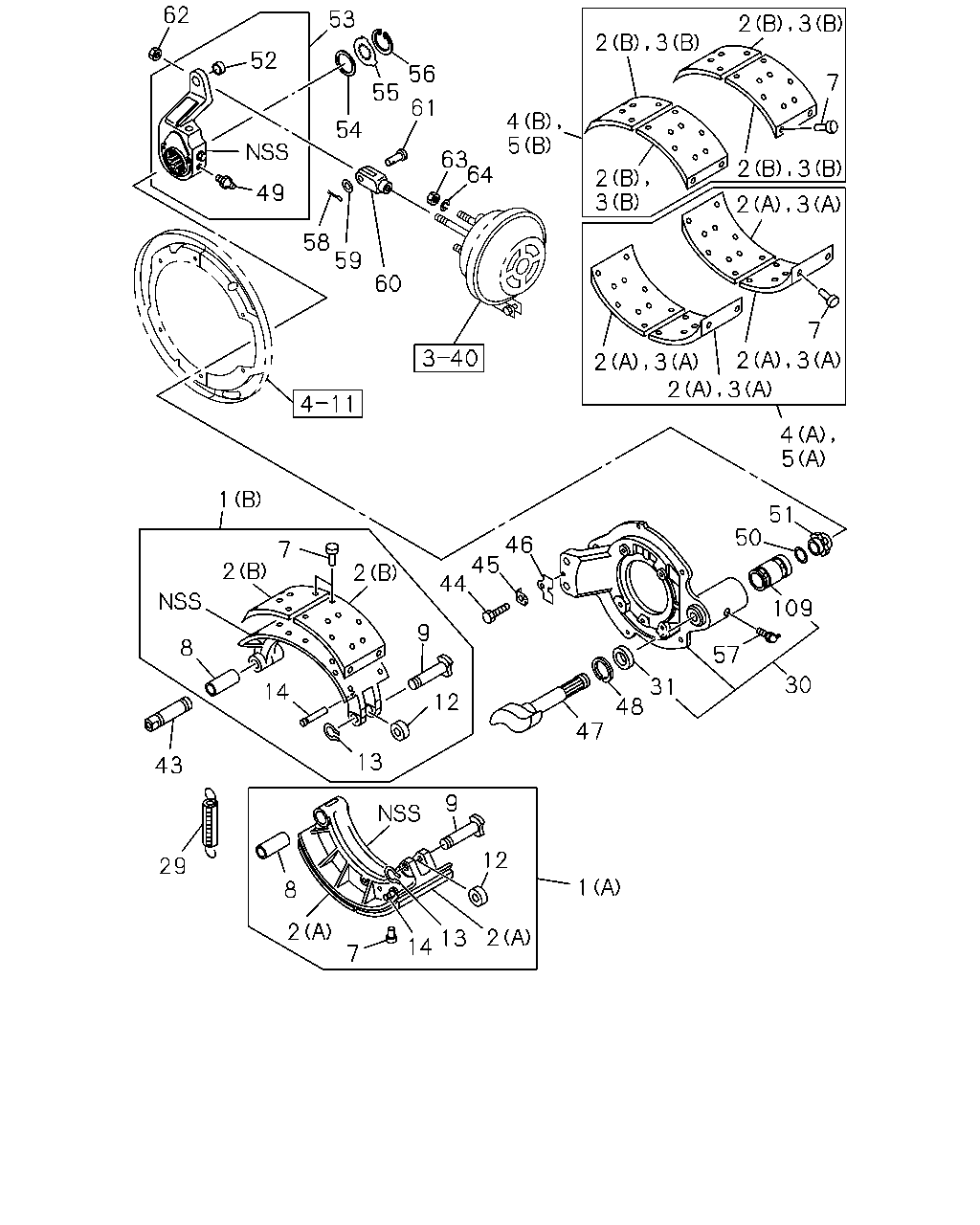

1 |
SHOE; BRK,FRT
(B) TRAILING
|
1-47120-333-0 |
01 |
1 |
0610- |
| |
1 |
SHOE; BRK,FRT
(B) TRAILING
|
1-47120-335-0 |
01 |
1 |
0610- |
| |
1 |
SHOE; BRK,FRT
(A) LEADING
|
1-47120-833-0 |
01 |
1 |
0610- |
| |
1 |
SHOE; BRK,FRT
(A) LEADING
|
1-47120-835-0 |
01 |
1 |
0610- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
(B)
|
1-47125-432-0 |
04 |
1 |
0610- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
(A)
|
1-47126-056-0 |
04 |
1 |
0610- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
(B)
|
1-47125-434-0 |
04 |
1 |
0610- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
(A)
|
1-47126-057-0 |
04 |
1 |
0610- |
| |
4 |
LINING SET; FRT BRK,STANDARD
(B)
|
1-88310-311-0 |
01 |
1 |
0610- |
| |
4 |
LINING SET; FRT BRK,STANDARD
(A)
|
1-88310-741-0 |
01 |
1 |
0610- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
(B)
|
1-88310-312-0 |
01 |
1 |
0610- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
(A)
|
1-88310-742-0 |
01 |
1 |
0610- |
| |
7 |
RIVET; LINING,FRT BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
0610- |
| |
8 |
BUSHING; BRK SHOE
|
1-47112-011-0 |
04 |
1 |
0610- |
| |
9 |
PIN; SHOE HOLDER
|
1-09744-060-0 |
04 |
1 |
0610- |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-007-0 |
04 |
1 |
0610- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
0610- |
| |
14 |
PIN; SHOE RETURN SPR
L=73.5
|
1-47119-017-1 |
04 |
1 |
0610- |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
|
1-09583-185-2 |
02 |
1 |
0610- |
| |
30 |
BRACKET; ANCHOR,FRT
ANTILOCK BRAKE SYSTEM<BFA>
|
1-47137-419-1 |
01 |
1 |
0610- |
| |
30 |
BRACKET; ANCHOR,FRT
ANTILOCK BRAKE SYSTEM<BFA>
|
1-47137-420-1 |
01 |
1 |
0610- |
| |
30 |
BRACKET; ANCHOR,FRT
EXC. ANTILOCK BRAKE SYSTEM<BFA>
|
1-47137-118-3 |
01 |
1 |
0610- |
| |
30 |
BRACKET; ANCHOR,FRT
EXC. ANTILOCK BRAKE SYSTEM<BFA>
|
1-47137-119-3 |
01 |
1 |
0610- |
| |
31 |
SEAL; OIL,CM/SHF
|
1-09625-228-0 |
02 |
1 |
0610- |
| |
43 |
PIN; ANCHOR
L=106.5
|
1-47131-038-0 |
04 |
1 |
0610- |
| |
44 |
BOLT; LOCK,ANCHOR PIN
M10X16
|
0-20851-016-0 |
02 |
1 |
0610- |
| |
45 |
WASHER; LK
|
1-47133-011-0 |
02 |
1 |
0610- |
| |
46 |
PLATE; LOCK
|
1-47133-005-0 |
02 |
1 |
0610- |
| |
47 |
CAMSHAFT; FRT BRK
|
1-47141-051-0 |
01 |
1 |
0610- |
| |
47 |
CAMSHAFT; FRT BRK
|
1-47141-052-0 |
01 |
1 |
0610- |
| |
48 |
RING; SPACER,CM/SHF
|
1-47143-005-0 |
02 |
1 |
0610- |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0610- |
| |
50 |
RING; FELT,CM/SHF
|
1-09620-009-0 |
02 |
1 |
0610- |
| |
51 |
COLLAR; RING,CM/SHF
|
1-47143-016-0 |
02 |
1 |
0610- |
| |
52 |
BUSHING; SLACK ADJ
|
1-09330-041-0 |
02 |
1 |
0610- |
| |
53 |
ADJUSTER ASM; SLACK
|
1-48270-043-0 |
01 |
1 |
0610- |
| |
53 |
ADJUSTER ASM; SLACK
|
1-48270-044-0 |
01 |
1 |
0610- |
| |
54 |
SPACER; CM/SHF
|
1-47143-004-0 |
02 |
1 |
0610- |
| |
55 |
PLATE; STOPPER,CM/SHF
|
1-47149-021-0 |
02 |
1 |
0610- |
| |
56 |
CLIP; ANCHOR PIN
|
9-09180-038-0 |
02 |
1 |
0610- |
| |
57 |
NIPPLE; GREASE,ANCHOR BRKT
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
0610- |
| |
58 |
PIN; SPLIT,JAW JOINT
OD=3.7 L=28
|
0-81124-028-0 |
02 |
1 |
0610- |
| |
59 |
WASHER; PL,JAW JOINT
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
0610- |
| |
60 |
JOINT; JAW,POWER CHAMBER
|
1-09768-060-1 |
02 |
1 |
0610- |
| |
61 |
PIN; JAW JOINT,POWER CHAMBER
|
1-09744-088-0 |
02 |
1 |
0610- |
| |
62 |
NUT; LK,JAW JOINT
M16
|
0-91111-516-0 |
02 |
1 |
0610- |
| |
63 |
NUT; POWER CHAMBER
M16
|
0-91110-516-0 |
04 |
1 |
0610- |
| |
64 |
WASHER; LK,POWER CHAMBER
ID=16.2
|
0-91510-516-0 |
04 |
1 |
0610- |
| |
109 |
BUSHING; CM/SHF,FRT BRK
|
1-47146-003-1 |
04 |
1 |
0610- |
