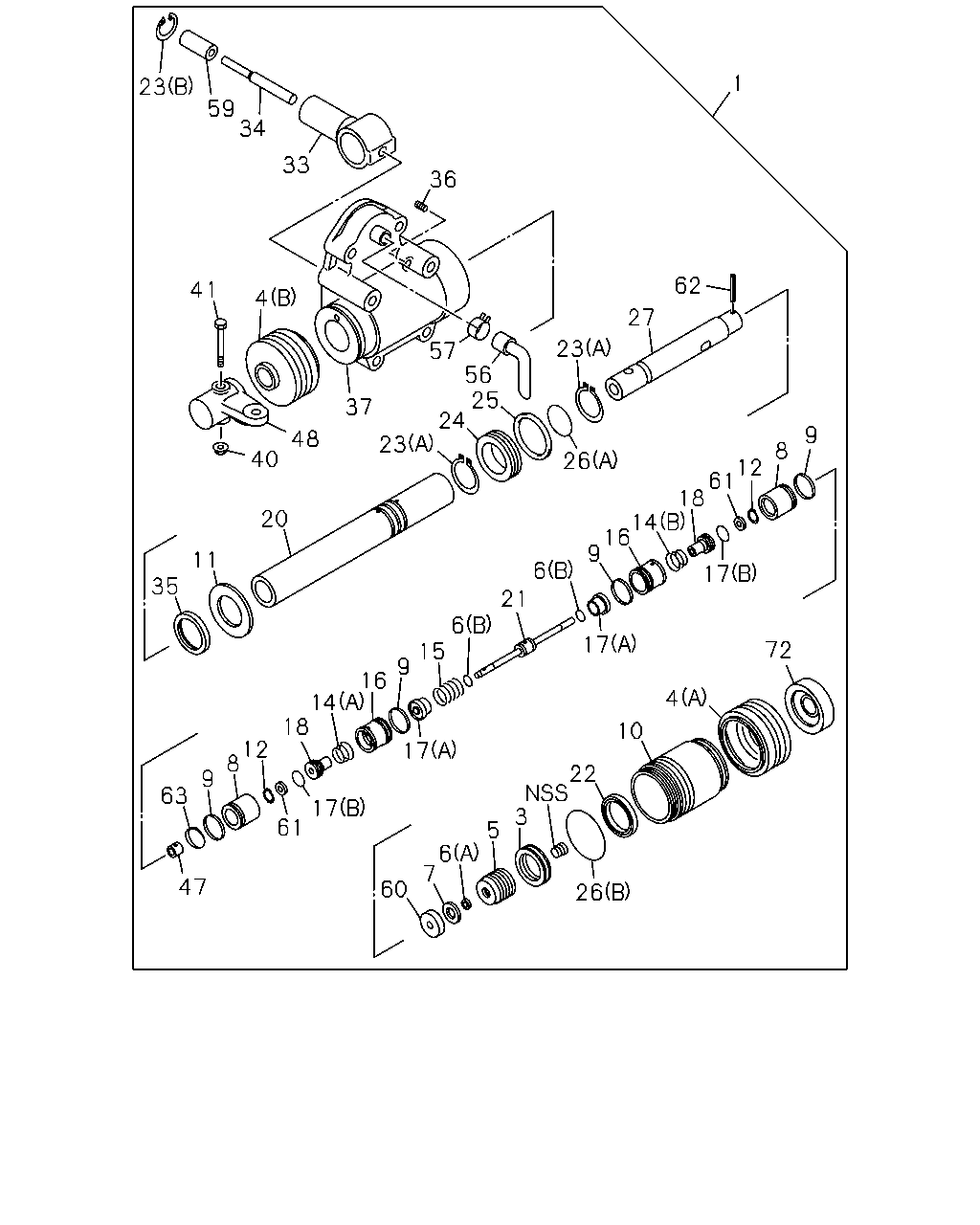

2-39 — POWER ASSISTOR (#38826) — 65 parça

1 23 59 34 33 36 62 41 4 27 57 56 25 24 23 37 9 48 23 8 40 26 12 61 18 14 16 9 20 11 6 17 35 21 6 15 17 72 9 16 4 14 18 10 12 8 17 22 3 9 63 17 61 5 6 7 47 60 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-279-1	01	1	0610-
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33738-055-0	01	1	0610-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0610-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0610-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-017-0	01	1	0610-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	0610-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	0610-
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	0610-
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	0610-
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0610-
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-572-0	01	1	0610-
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-576-0	01	1	0610-
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	02	1	0610-
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	0610-
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-568-0	01	1	0610-
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-582-0	01	1	0610-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-585-0	02	1	0610-
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-584-0	02	1	0610-
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0610-
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	0610-
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-765-0	01	1	0610-
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-587-0	01	1	0610-
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0610-
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0610-
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0610-
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-578-0	01	1	0610-
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	0610-
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	0610-
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	0610-
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-580-0	01	1	0610-
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-577-0	01	1	0610-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	0610-
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0610-
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	0610-
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-574-0	01	1	0610-
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-940-0	01	1	0610-
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-939-0	01	1	0610-
47	BUSHING; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-567-0	01	1	0610-
48	LEVER; CONT,CABLE ASSISTOR SHIFT CONTROL<WX8>	1-33739-559-0	01	1	0610-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0610-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	0610-
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-102-0	01	1	0610-
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-561-0	01	1	0610-
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	02	1	0610-
62	PIN; PIPE ASSISTOR SHIFT CONTROL<WX8>	1-33739-566-0	01	1	0610-
63	CLAMP; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-565-0	01	1	0610-
72	COVER ASSISTOR SHIFT CONTROL<WX8>	1-33738-056-0	01	1	0610-

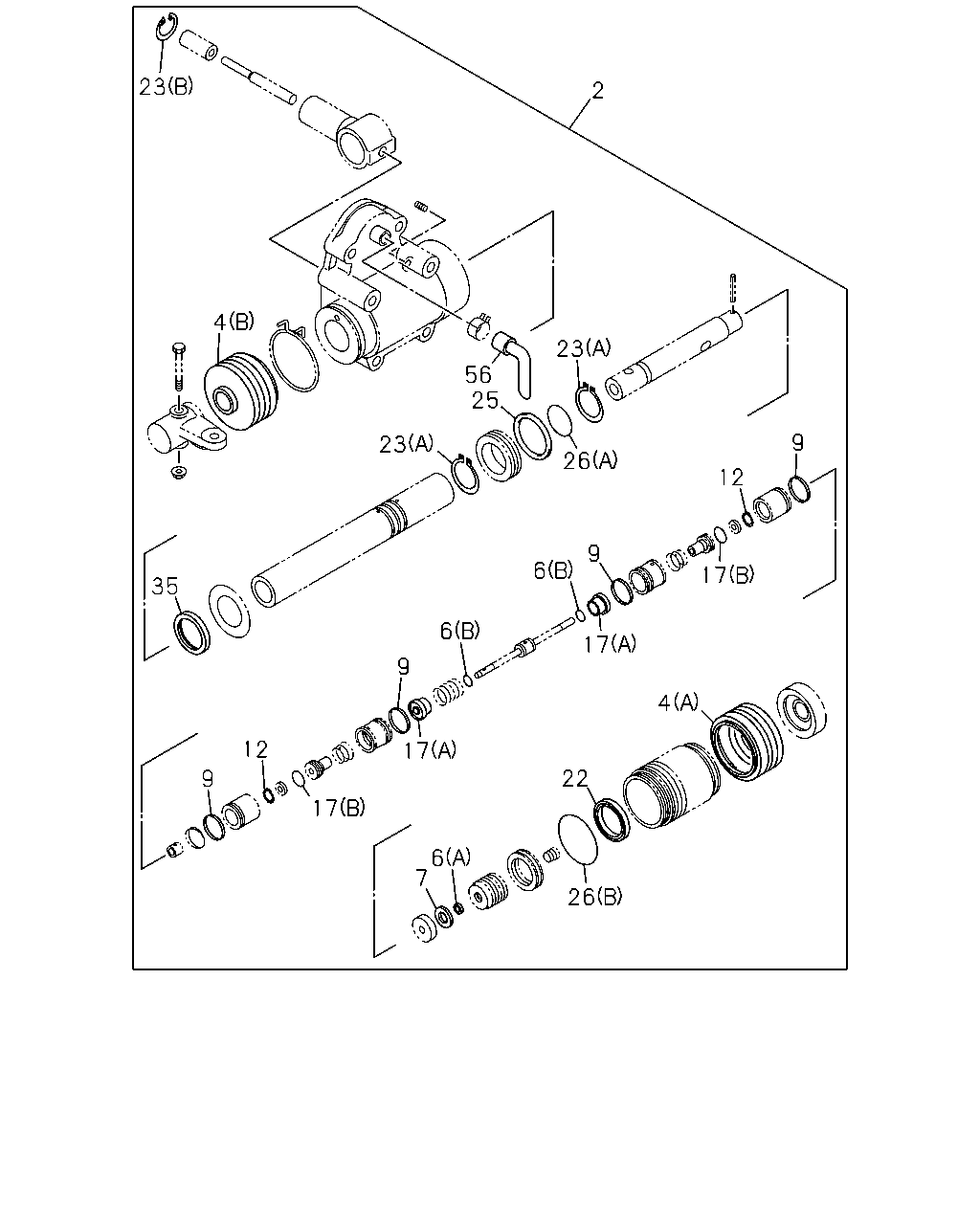

23 2 4 23 56 25 9 23 26 12 9 6 17 35 6 17 9 4 12 17 22 9 17 6 7 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-104-0	01	1	0610-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0610-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0610-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	0610-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	0610-
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	0610-
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0610-
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	02	1	0610-
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-584-0	02	1	0610-
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0610-
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0610-
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0610-
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0610-
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	0610-
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	0610-
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	0610-
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0610-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0610-
