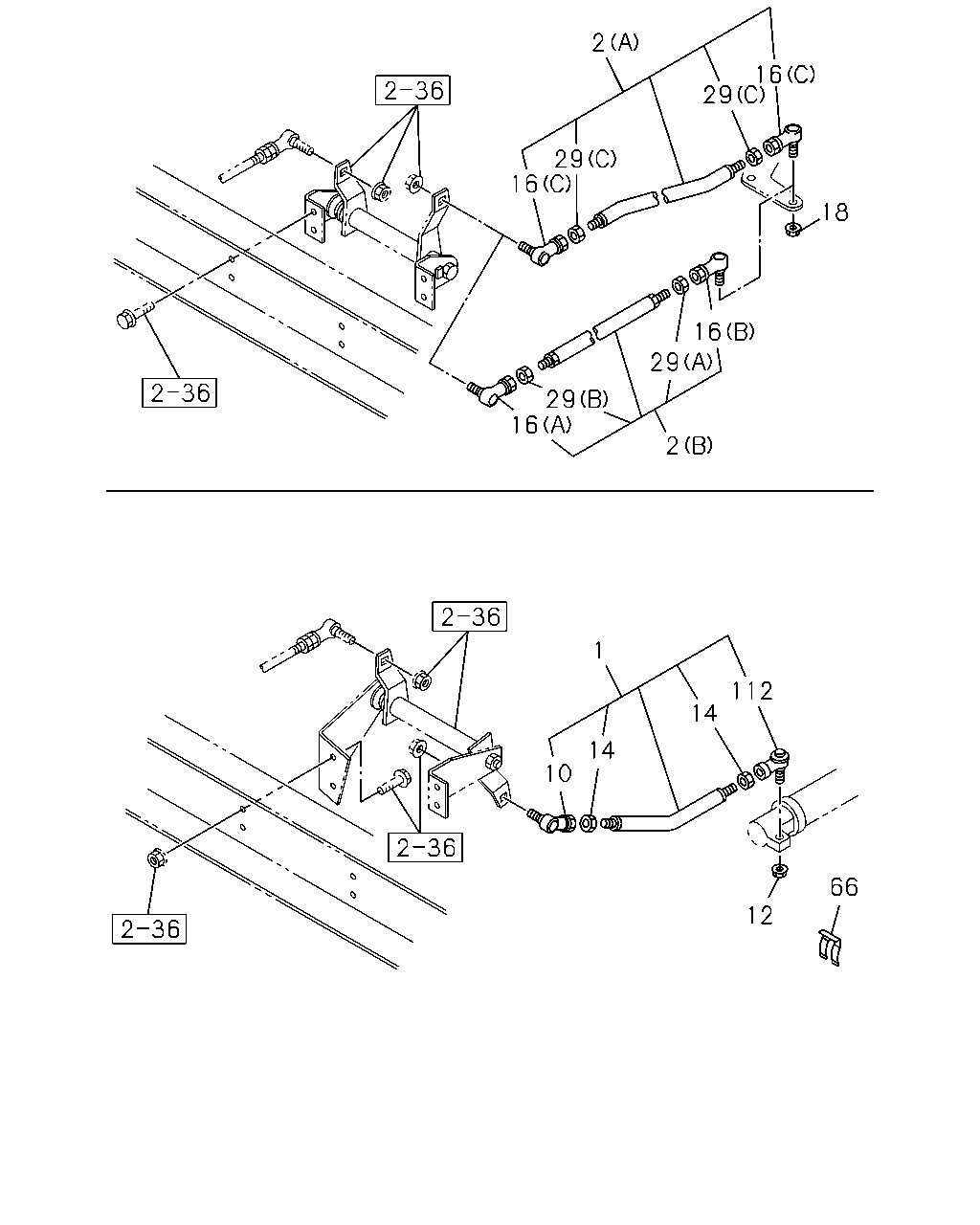

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#38825) — 18 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	59	CONNECTOR; AIR HOSE,SHIFT POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0610-

2 16 29 29 16 18 16 29 29 16 2 1 112 14 14 10 66 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT ASSISTOR SHIFT CONTROL<WX8> L=361	1-33671-738-0	01	1	0610-
1	ROD; LINK,1ST SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> L=462	1-33672-012-1	01	1	0610-
2	ROD; LINK,1ST SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33671-737-0	01	1	0610-
2	ROD; LINK,1ST SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33671-917-1	01	1	0610-
10	JOINT ASM; BALL,SELECT ROD	1-09760-124-0	01	1	0610-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0610-
14	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0610-
16	JOINT ASM; BALL,CONT ROD ASSISTOR SHIFT CONTROL<WX8> (C)	1-09760-109-0	02	1	0610-
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-09760-115-0	01	1	0610-
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09760-125-0	01	1	0610-
18	NUT; 1ST LINK ROD ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	02	1	0610-
18	NUT; 1ST LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-061-0	02	1	0610-
29	NUT; LK,RIGHT SCREW,LINK ROD ASSISTOR SHIFT CONTROL<WX8> (C) M10	0-91111-510-0	02	1	0610-
29	NUT; LK,RIGHT SCREW,LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91111-512-0	01	1	0610-
29	NUT; LK,RIGHT SCREW,LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 LH THREAD	9-09840-247-1	01	1	0610-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	01	1	0610-
112	JOINT; RUBBER	1-33660-157-2	01	1	0610-
