Sayfa 1-40 - Isuzu EPC

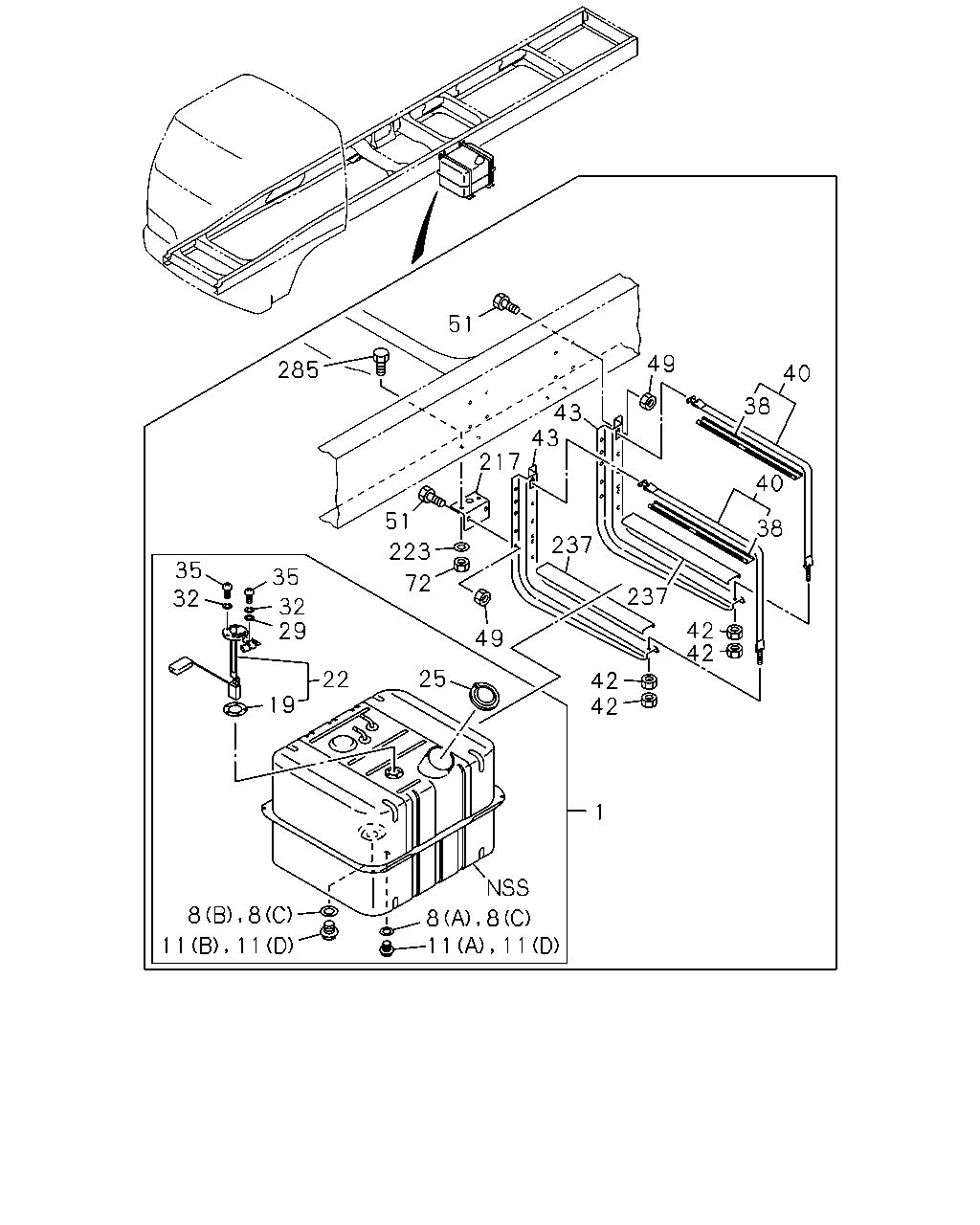

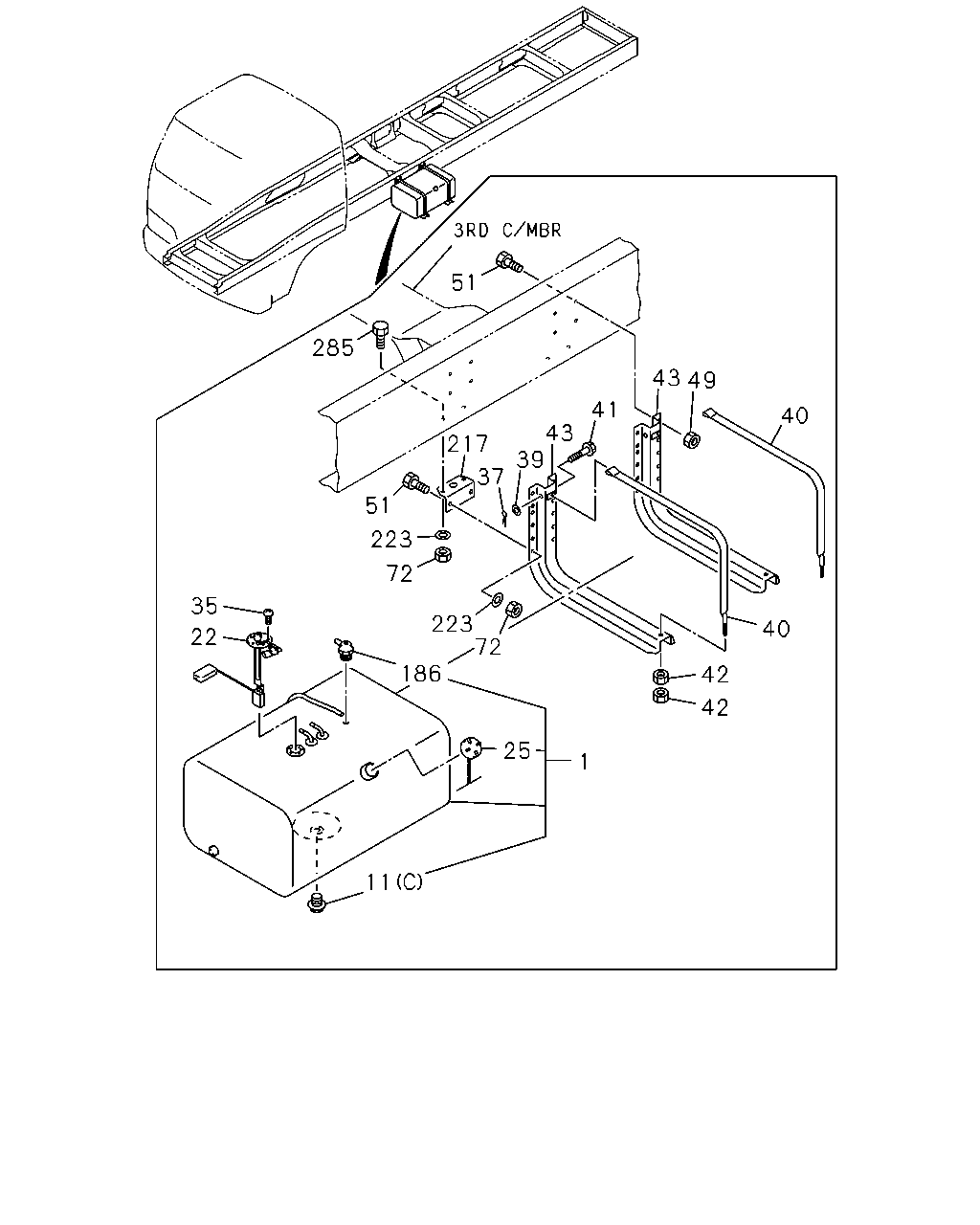

1-40 — FUEL TANK (#38824) — 293 parça

51 43 43 49 285 40 38 217 40 51 38 237 223 35 32 35 72 237 32 29 42 42 49 25 22 42 42 19 1 11 11 11 11 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9510-0004	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9510-0003	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9510-0003		●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-0	01	1	0004-0004		●	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0005-0106	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0107-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0204	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0205-0601	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0602-1505	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	9510-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9510-0004		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60	1-22416-001-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0	9-09923-030-0	01	1	9510-0004	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9510-0004		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0005-0106	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0107	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-0204	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0205-0601	●	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0602-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9510-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9510-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9510-0003		●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004		●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (D) M14X14	9-09862-156-0	02	1	0201-0204	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (D) M14X14	9-09862-156-0	02	1	0205-0601	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (D) M14X14	9-09862-156-0	02	1	0602-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9510-0004	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9510-0004		●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0107-0112	●	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0005-0106	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0107-0204	●	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0205-	●	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9510-0004	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9510-0004		●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9510-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9510-0004	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9510-0004		●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0005-0106	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0107-0204	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0205-0601	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0602-1505	●	●	●	●	●
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9510-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9510-0003	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9510-0003		●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0004-0004		●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0005-0106	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0107-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0204	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0205-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-0601	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0602-	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9510-0004	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9510-0004		●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0005-0106	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0107-0204	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0205-0601	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0602-0605	●	●	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9510-0004	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9510-0004		●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0005-0106	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0107-0204	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0205-0601	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0602-0603	●	●	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	0-91510-505-0	05	1	0604-	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9510-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9510-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9510-0004		●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0106	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0107-0204	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0205-0601	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0602-0604	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	0-34218-510-0	05	1	0605-	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	9510-0004	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9510-0004		●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0005-0106	●	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0107-0204	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0205-0601	●	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0602-	●	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9510-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9510-0004	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9510-0004		●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0106	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0107-0204	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0205-0601	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0602-	●	●	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9510-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9510-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9510-0004		●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0601	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0602-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	9510-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9510-0004	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9510-0004		●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0106	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0107-0204	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0205-0601	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0602-	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9510-9702	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-0004	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	0005-0106	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	0107-0204	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	0205-0211	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91150-212-0	11	1	0212-0602	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91180-212-0	11	1	0603-	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9510-9702	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	12	1	9703-0204	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	0205-0602	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●	●	●
51	BOLT; BRKT TO FRAME THAILAND EQUIPMENT(PM9) M12X35 FLANGE	0-28081-235-0	12	1	9602-9606	●
51	BOLT; BRKT TO FRAME THAILAND EQUIPMENT(PM9) M12X40 FLANGE	0-28681-240-0	12	1	9607-9802	●
51	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28081-230-0	12	1	9510-9601	●	●
51	BOLT; BRKT TO FRAME EXC. THAILAND EQUIPMENT(PM9) M12X30 FLANGE	0-28081-230-0	12	1	9602-9606	●
51	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28081-230-0	12	1	9602-9606		●
51	BOLT; BRKT TO FRAME EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE	0-28681-235-0	12	1	9607-9802	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9607-9802		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9803-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-0601	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0602-	●	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9510-9702	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-0004	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	0005-0106	●	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	03	1	0107-0204	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	0205-0211	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91150-212-0	03	1	0212-0602	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91180-212-0	03	1	0603-	●	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9510-9702	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9703-9802	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9803-0204	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	0205-0602	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91180-212-0	04	1	0603-	●	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	9510-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9510-0004	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9510-0004		●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0005-0106	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0107-0204	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0205-0601	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0602-	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9510-9702	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9510-0004	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9510-0004		●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0005-0106	●	●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	0107-0204	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0205-0601	●	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0602-	●	●	●	●	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9510-9606	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-0004	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0106	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0107-0204	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0205-0512	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-0601	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0602-	●	●	●	●	●

51 285 43 49 41 40 43 39 217 37 51 223 72 35 223 72 40 22 186 42 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9510-0004	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22400-996-0	01	1	9510-0003	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9510-0003		●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-0	01	1	0004-0004	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-0	01	1	0004-0004		●	●
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0005-0106	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-120-1	01	1	0107-0112	●	●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L	1-22401-192-2	01	1	0201-0204	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0205-0601	●	●	●	●
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0602-1505	●	●	●	●	●
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9510-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	9510-0003	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9510-0003		●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M36	1-09604-052-0	01	1	0004-0004	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0004		●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (D) M14X14	9-09862-156-0	02	1	0201-0204	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (D) M14X14	9-09862-156-0	02	1	0205-0601	●	●	●	●
11	PLUG; DRAIN,FUEL TANK (D) M14X14	9-09862-156-0	02	1	0602-	●	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9510-0004	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9510-0004		●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0005-0106	●	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	0107-0112	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	9510-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	9510-0004	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9510-0004		●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0005-0106	●	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0107-0204	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0205-0601	●	●	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0602-1505	●	●	●	●	●
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9510-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-033-2	01	1	9510-0003	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9510-0003		●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0004-0004	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0004-0004		●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0005-0106	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0107-0109	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-069-0	01	1	0110-0112	●	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-067-0	01	1	0201-0204	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0205-0309	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-0601	●	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0602-	●	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9510-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9510-0004	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9510-0004		●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0005-0106	●	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0107-0204	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0205-0601	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0602-0604	●	●	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	0-34218-510-0	05	1	0605-	●	●	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9510-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9510-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9510-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9510-0004	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9510-0004		●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0005-0106	●	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0107-0204	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0205-0601	●	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0602-	●	●	●	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9510-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9510-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9510-0004	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9510-0004		●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0005-0512	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-0601	●	●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0602-	●	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	9510-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	9510-0004	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9510-0004		●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0005-0106	●	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0107-0204	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0205-0601	●	●	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0602-	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	11	1	9510-9702	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9703-0004	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	0005-0106	●	●	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	11	1	0107-0204	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	0205-0211	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91150-212-0	11	1	0212-0602	●	●	●	●
49	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91180-212-0	11	1	0603-	●	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9510-9702	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	12	1	9703-0204	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	12	1	0205-0602	●	●	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●	●	●	●
51	BOLT; BRKT TO FRAME THAILAND EQUIPMENT(PM9) M12X35 FLANGE	0-28081-235-0	12	1	9602-9606	●
51	BOLT; BRKT TO FRAME THAILAND EQUIPMENT(PM9) M12X40 FLANGE	0-28681-240-0	12	1	9607-9802	●
51	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28081-230-0	12	1	9510-9601	●	●
51	BOLT; BRKT TO FRAME EXC. THAILAND EQUIPMENT(PM9) M12X30 FLANGE	0-28081-230-0	12	1	9602-9606	●
51	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28081-230-0	12	1	9602-9606		●
51	BOLT; BRKT TO FRAME EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE	0-28681-235-0	12	1	9607-9802	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9607-9802		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9803-0004	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0512	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-0601	●	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0602-	●	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12	9-99110-512-0	03	1	9510-9702	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9703-0004	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	0005-0106	●	●	●	●
72	NUT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	03	1	0107-0204	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	0205-0211	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91150-212-0	03	1	0212-0602	●	●	●	●
72	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 FLANGE	0-91180-212-0	03	1	0603-	●	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12	9-99110-512-0	04	1	9510-9702	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9703-9802	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M12 FLANGE	0-91150-212-0	04	1	9803-0204	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	0205-0602	●	●	●	●
72	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91180-212-0	04	1	0603-	●	●	●	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9510-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	9510-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	9510-0004	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9510-0004		●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0005-0106	●	●	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-283-2	02	1	0107-0204	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0205-0601	●	●	●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0602-	●	●	●	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9510-9702	●	●	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9510-9606	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-0004	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0106	●	●	●	●
285	BOLT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	04	1	0107-0204	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0205-0512	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-0601	●	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0602-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
