◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#38819) — 626 parça

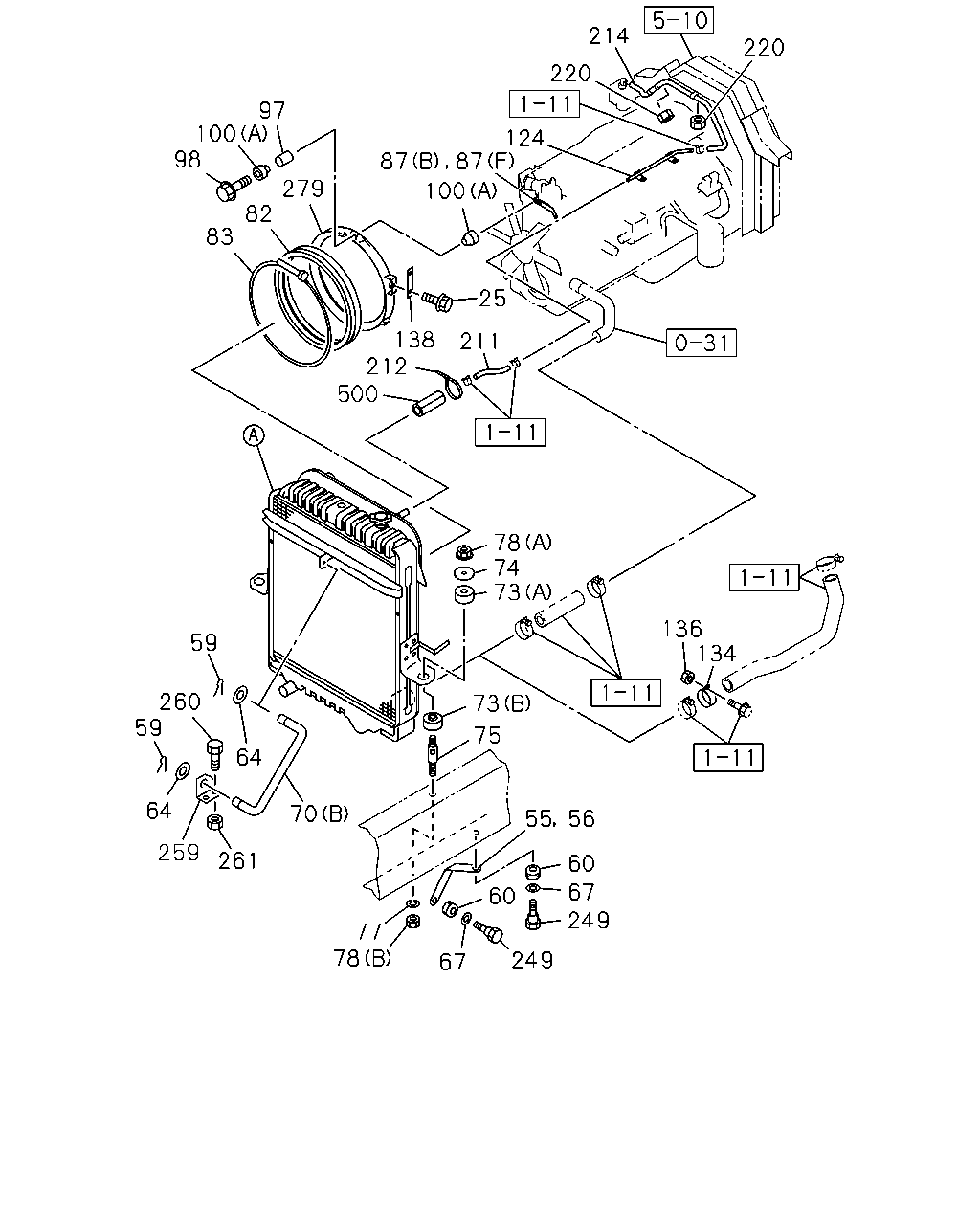

çizim 152001
214 220 220 97 100 98 124 279 100 82 83 25 138 212 500 211 78 74 73 136 134 59 260 59 73 75 64 64 70 55 56 259 261 60 67 249 60 77 78 249 67 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0603-0603 ●
25 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 08 1 0206- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-9510 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9511-9609 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9610-0004 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0206-0602 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0206-0602 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0603- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0603- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-9510 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0206-0602 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0206-0602 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0603- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0603- ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 0511- ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 0511- ●
56 STAY; RAD 1-21464-631-0 01 1 0603- ●
56 STAY; RAD 1-21464-632-0 01 1 0603- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-0004 ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005- ● ● ●
59 PIN; SNAP,STAY
EXC. EURO2 SPECIFICATION<THN> 		1-09987-158-1 02 1 0005- ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 0511-0602 ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 0603- ●
60 GROMMET 1-09332-117-0 04 1 0603- ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-0004 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ● ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 		9-09160-512-0 02 1 0005-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 0511-0602 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 0603-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0603-0605 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9510 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9511-9609 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0511 ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0512- ● ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0005- ●
73 RUBBER; CUSHION,RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21467-017-2 02 1 0206- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-0004 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206-0602 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) T=14 		1-21467-004-0 02 1 0206-0602 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0603- ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) T=14 		1-21467-004-0 02 1 0603- ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-0004 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0601 ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0602- ● ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-0004 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0601 ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0602- ● ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-0004 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0601 ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0602- ● ● ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-0004 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0601 ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0602- ● ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9510-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-0004 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ● ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 0511-0602 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 0603-0603 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0603-0603 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 0604- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-9607 ●
82 COVER; FAN,RAD
ISUZU M/T<X9A> 		1-21559-340-0 01 1 9608-0004 ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005- ● ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 9511-9607 ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 9608-9609 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9608-9609 ●
82 COVER; FAN,RAD
A/T<X9D> 		1-21559-211-0 01 1 9610-0004 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-0004 ● ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 0005-0603 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0005-0603 ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 0604- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0604- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-0004 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0601 ● ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0602- ● ● ● ● ●

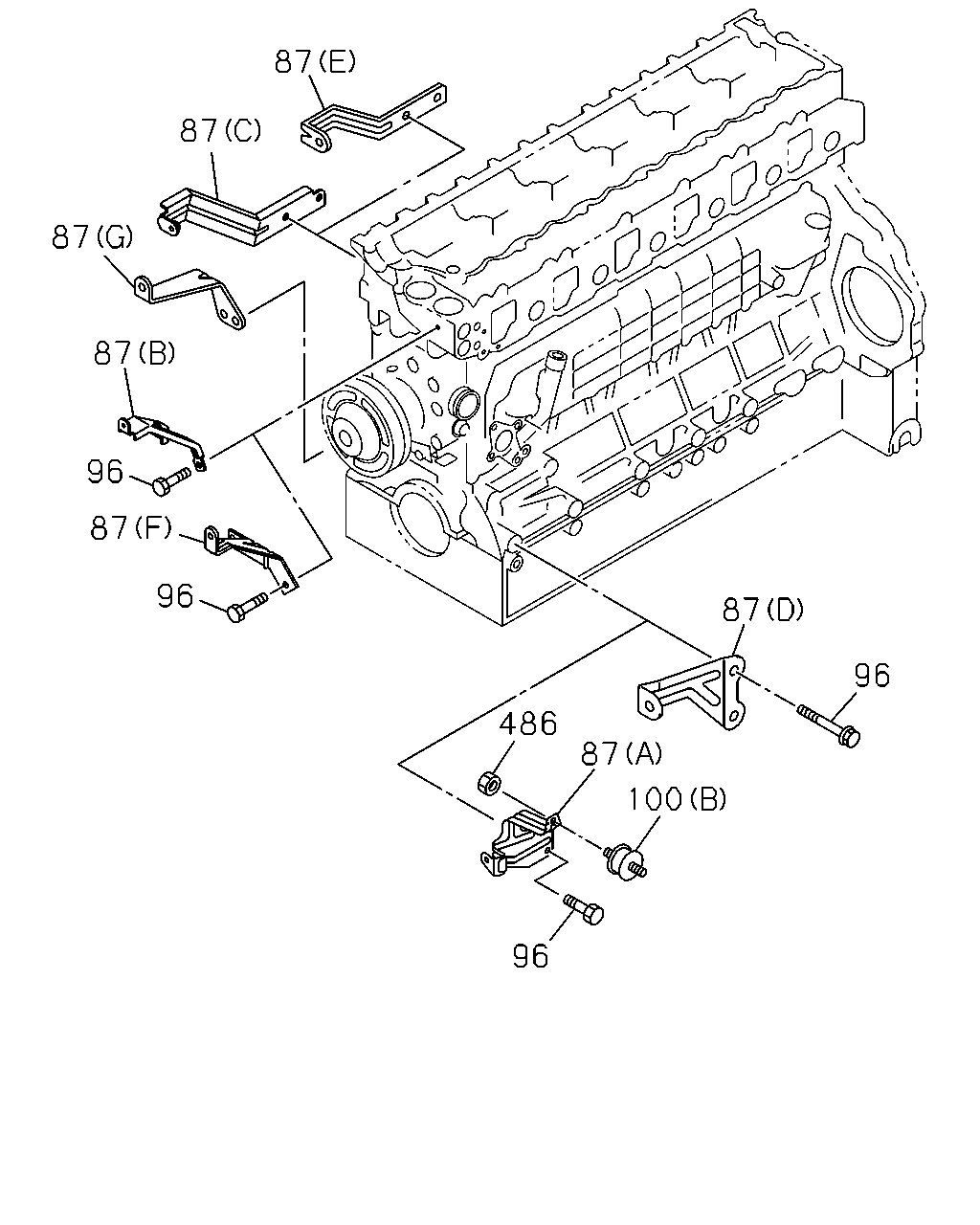

87 STAY; FAN GUIDE
(A) 		8-97602-940-0 01 1 0603- ●
87 STAY; FAN GUIDE
(G) 		8-97603-527-0 01 1 0603- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (B) 		8-94393-776-1 01 1 0511- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (A) 		8-94393-778-2 01 1 0511- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (C) 		8-97601-850-0 01 1 0511- ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (E) 		8-94394-775-0 01 1 9608-9802 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (F) 		8-94396-496-1 01 1 9608-9802 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (D) 		8-94397-395-1 01 1 9608-9802 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9612-9802 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9612-9802 ● ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9803-0004 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94393-119-2 01 1 0005- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0005- ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9803-0004 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94393-726-0 01 1 0005-0602 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0005-0602 ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94393-726-0 01 1 0603- ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0603- ● ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-2 01 1 9803-0001 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9803-0001 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0002-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-263-2 01 1 0005- ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0005- ●
87 STAY; FAN GUIDE
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (E) 		8-97601-016-0 01 1 0002-0004 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (E) 		8-94394-775-0 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (E) 		8-94394-775-0 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (F) 		8-94396-496-1 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (F) 		8-94396-496-1 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (D) 		8-94397-395-1 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (D) 		8-94397-395-1 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005-0107 ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0005-0107 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
DOUBLE CAB(FT**W*) (D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0201- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0201- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9610-9802 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9610-9611 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9610-9611 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-1 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-1 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9610-9802 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-394-0 01 1 0011- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-0004 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0601 ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0602- ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0601 ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0602- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0601 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0602- ● ● ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9511-9607 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9608-9609 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9608-9609 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9610-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9610-0001 ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0002-0602 ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0603-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0603- ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-461-4 01 1 9510-9611 ●
124 PIPE; WATER,TANK TO RAD
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-461-4 01 1 9612-9705 ●
124 PIPE; WATER,TANK TO RAD
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-461-4 01 1 9706-9802 ●
124 PIPE; WATER,TANK TO RAD
AUSTRALIA EQUIPMENT(RR3) 		8-94394-461-4 01 1 9803-0004 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-461-4 01 1 9803-0004 ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-461-4 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94396-222-1 01 1 9510-9611 ●
124 PIPE; WATER,TANK TO RAD
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94396-222-1 01 1 9612-9705 ●
124 PIPE; WATER,TANK TO RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) 		8-94396-222-1 01 1 9706-9802 ●
124 PIPE; WATER,TANK TO RAD
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-222-1 01 1 9803-0004 ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-222-2 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9511- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9610- ●
124 PIPE; WATER,TANK TO RAD
STD CAB(FT**M*) 		8-94392-986-0 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
DOUBLE CAB(FT**W*) 		8-97600-393-1 01 1 0005- ●
134 CLIP; OUTLET PIPE,RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-09700-842-1 01 1 0011-0602 ●
134 CLIP; OUTLET PIPE,RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-09700-842-1 01 1 0603- ●
134 CLIP; OUTLET PIPE,RAD 1-09700-842-1 01 1 0603- ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0603-0603 ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0603- ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9609 ●
211 HOSE; RAD TO PIPE
AUSTRALIA EQUIPMENT(RR3) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9609 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9609 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
211 HOSE; RAD TO PIPE
AUSTRALIA EQUIPMENT(RR3) L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ● ●
211 HOSE; RAD TO PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ●
211 HOSE; RAD TO PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5) L=540 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
211 HOSE; RAD TO PIPE
NEW ZEALAND EQUIPMENT(PK5) L=540 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0603- ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9510 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9510 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3) CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0011 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0012-0109 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. NEW ZEALAND EQUIPMENT(PK5) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9510 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9511-9609 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEMECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FT**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-0004 ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FT**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FT**W*) L=1800 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0109 ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0602 ●
214 HOSE; PIPE TO RESERVE TANK
NEW ZEALAND EQUIPMENT(PK5) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0603- ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0603- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9510-9604 ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9605-9606 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 		9-09110-408-0 02 1 9605-9606 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9605-9606 ● ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91180-108-0 03 1 0603-0812 ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-0812 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91180-108-0 02 1 0901- ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0901- ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9606 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9606 ● ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 		9-09110-408-0 01 1 9605-9606 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9511-9606 ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
220 NUT; CLIP
STD CAB(FT**M*) CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9610-9802 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 02 1 9610-9802 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9610-9802 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9610-9802 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-0811 ● ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 02 1 0812-0812 ●
220 NUT; CLIP
DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 03 1 0901- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 02 1 0511-0602 ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 02 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0603- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X22 		1-09009-123-0 02 1 0511-0602 ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X22 		1-09009-123-0 02 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0603- ●
259 BRACKET; RAD STAY
NEW ZEALAND EQUIPMENT(PK5) 		1-21523-025-0 01 1 0206- ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 9510-9906 ● ● ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 9907-0004 ● ● ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0005-0205 ● ● ●
259 BRACKET; RAD STAY
EXC. EURO2 SPECIFICATION<THN> 		1-21523-028-0 01 1 0005-0205 ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0206- ● ●
259 BRACKET; RAD STAY
EXC. EURO2 SPECIFICATION<THN> 		1-21523-028-0 01 1 0206- ●
259 BRACKET; RAD STAY
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-21523-028-0 01 1 0206- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0601 ● ● ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0005-0601 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0602-0602 ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
279 BELL MOUTH 8-97601-172-1 01 1 0603-0603 ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-1 01 1 0511- ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-9607 ●
279 BELL MOUTH
ISUZU M/T<X9A> 		8-94394-808-2 01 1 9608-0004 ●
279 BELL MOUTH 8-94394-808-2 01 1 0005- ● ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 9511-9607 ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 9608-9609 ●
279 BELL MOUTH 8-94394-174-1 01 1 9608-9609 ●
279 BELL MOUTH
A/T<X9D> 		8-94394-174-1 01 1 9610-0004 ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-0004 ● ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 0005-0603 ●
279 BELL MOUTH 8-94394-174-1 01 1 0005-0603 ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 0604- ●
279 BELL MOUTH 8-94394-174-1 01 1 0604- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0603- ●
çizim 152004
87 87 87 87 96 87 96 87 96 486 87 100 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
87 STAY; FAN GUIDE
(A) 		8-97602-940-0 01 1 0603- ●
87 STAY; FAN GUIDE
(G) 		8-97603-527-0 01 1 0603- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (B) 		8-94393-776-1 01 1 0511- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (A) 		8-94393-778-2 01 1 0511- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (C) 		8-97601-850-0 01 1 0511- ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (E) 		8-94394-775-0 01 1 9608-9802 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (F) 		8-94396-496-1 01 1 9608-9802 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-9607 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (D) 		8-94397-395-1 01 1 9608-9802 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9612-9802 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9612-9802 ● ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9803-0004 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94393-119-2 01 1 0005- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0005- ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9803-0004 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94393-726-0 01 1 0005-0602 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0005-0602 ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94393-726-0 01 1 0603- ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0603- ● ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-2 01 1 9803-0001 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9803-0001 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0002-0004 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-263-2 01 1 0005- ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0005- ●
87 STAY; FAN GUIDE
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (E) 		8-97601-016-0 01 1 0002-0004 ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (E) 		8-94394-775-0 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (E) 		8-94394-775-0 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (F) 		8-94396-496-1 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (F) 		8-94396-496-1 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005- ● ●
87 STAY; FAN GUIDE
ISUZU M/T<X9A> (D) 		8-94397-395-1 01 1 9803-0002 ●
87 STAY; FAN GUIDE
14" CLUTCH(WF6) (D) 		8-94397-395-1 01 1 0003-0004 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005-0107 ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0005-0107 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
DOUBLE CAB(FT**W*) (D) 		8-94397-395-1 01 1 0108-0112 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0201- ●
87 STAY; FAN GUIDE
EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0201- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (C) 		8-94393-119-2 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9610-9802 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (B) 		8-94393-726-0 01 1 9610-9611 ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9610-9611 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9511-9607 ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-1 01 1 9608-9609 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9608-9609 ●
87 STAY; FAN GUIDE
A/T<X9D> (A) 		8-94394-263-1 01 1 9610-9802 ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9610-9802 ● ●
87 STAY; FAN GUIDE
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-394-0 01 1 0011- ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28151-045-0 01 1 0603- ●
96 BOLT; STAY FIX
M10X75 FLANGE 		8-94399-669-1 01 1 0603- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-0004 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601-0602 ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0603- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005-0601 ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0602- ● ● ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9511-9607 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9608-9609 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9608-9609 ●
100 RUBBER; MTG
A/T<X9D> (B) 		8-94394-268-1 01 1 9610-0001 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9610-0001 ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0002-0602 ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0603-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9511-9607 ●
486 NUT; MTG RUBBER
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9608-9609 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9608-9609 ●
486 NUT; MTG RUBBER
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9610-0001 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9610-0001 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0002-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●

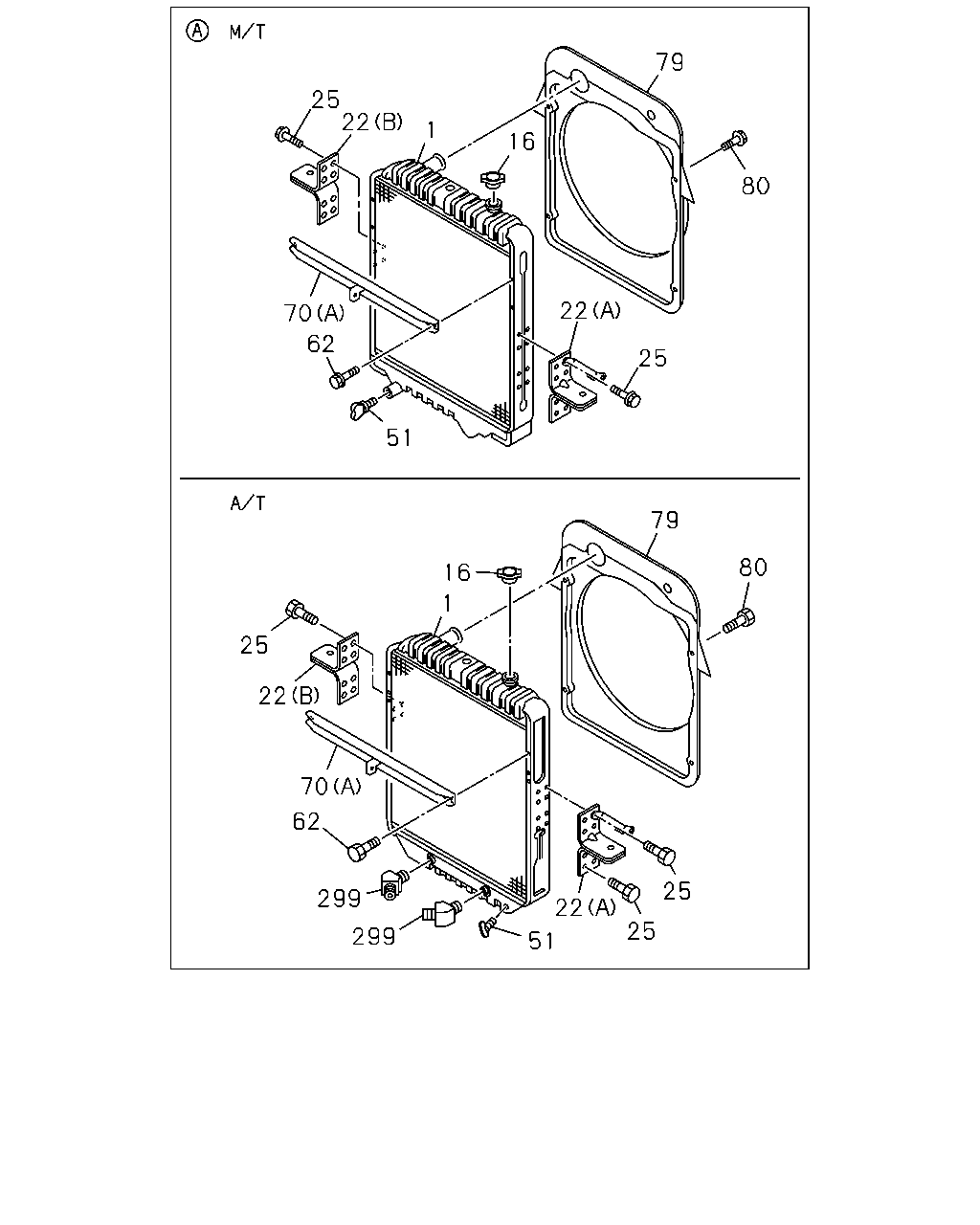

çizim 152007
79 25 22 1 16 80 22 70 62 25 51 79 80 16 1 25 22 70 62 25 299 22 25 299 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		8-98040-796-0 01 1 0512- ●
1 RADIATOR ASM 1-21410-819-0 01 1 0603- ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-733-0 01 1 0206- ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9608-0004 ●
1 RADIATOR ASM
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9510-9510 ●
1 RADIATOR ASM
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9511-9607 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9511-9607 ●
1 RADIATOR ASM
ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9608-9609 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9608-9609 ●
1 RADIATOR ASM
ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9610-9802 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9610-9802 ● ●
1 RADIATOR ASM
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9803-0004 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9803-0004 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011-0103 ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0011-0103 ●
1 RADIATOR ASM 1-21410-675-1 01 1 0011-0103 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0104-0511 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0104-0511 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0512- ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM 1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9510-9802 ●
1 RADIATOR ASM
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9803-0004 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0206-0302 ● ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-674-1 01 1 0206-0302 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303- ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303- ●
1 RADIATOR ASM
MIDDLE CHASSIS & STD CAB(FT**MF) A/T<X9D> 		1-21410-689-2 01 1 0009- ● ●
16 CAP; RAD 1-21450-097-2 01 1 0603- ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> CAUTIONS ARABIAN<WJ7> 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7> EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
EXC. A/T<X9D> 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD
EXC. NEW ZEALAND EQUIPMENT(PK5),A/T<X9D> 		1-21450-142-0 01 1 0309-0311 ●
16 CAP; RAD 1-21450-142-0 01 1 0312-0511 ● ● ●
16 CAP; RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21450-142-0 01 1 0312-0511 ●
16 CAP; RAD 1-21450-142-0 01 1 0512- ● ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9510-9510 ●
16 CAP; RAD 1-21450-053-1 01 1 9511-9609 ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-0004 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 0005-0305 ● ● ● ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> EXC. CAUTIONS ARABIAN<WJ7> 		1-21450-053-1 01 1 0306-0308 ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-1 01 1 0306-0308 ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7>,A/T<X9D> 		1-21450-053-1 01 1 0306-0308 ●
16 CAP; RAD 1-21450-053-1 01 1 0306-0308 ● ● ●
16 CAP; RAD
A/T<X9D> 		1-21450-053-2 01 1 0309-0311 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0309-0311 ● ●
16 CAP; RAD
NEW ZEALAND EQUIPMENT(PK5) 		1-21450-053-2 01 1 0309-0311 ●
16 CAP; RAD
EURO2 SPECIFICATION<THN> 		1-21450-053-1 01 1 0312-0511 ●
22 BRACKET; RAD MTG
(A) 		1-21464-737-0 01 1 0603- ●
22 BRACKET; RAD MTG
(B) 		1-21464-750-0 01 1 0603- ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21464-590-0 01 1 0206- ●
22 BRACKET; RAD MTG
(B) 		1-21464-361-0 01 1 9510-9510 ●
22 BRACKET; RAD MTG
(B) 		1-21464-361-0 01 1 9511-9609 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-361-0 01 1 9610-9906 ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 9907-0004 ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 0005-0205 ● ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 0206-0305 ● ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-673-0 01 1 0206-0305 ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 0306-0308 ● ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-673-0 01 1 0306-0308 ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 0309- ● ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-673-0 01 1 0309- ●
22 BRACKET; RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21464-673-0 01 1 0309- ●
22 BRACKET; RAD MTG
(A) 		1-21464-362-2 01 1 9510-9510 ●
22 BRACKET; RAD MTG
(A) 		1-21464-362-2 01 1 9511-9609 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-362-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(A) 		1-21464-544-0 01 1 9705-9906 ●
22 BRACKET; RAD MTG
(A) 		1-21464-674-0 01 1 9907-0004 ●
22 BRACKET; RAD MTG
A/T<X9D> (A) 		1-21464-674-0 01 1 0009-0010 ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (A) 		1-21464-674-0 01 1 0011- ● ●
22 BRACKET; RAD MTG
A/T<X9D> (A) 		1-21464-674-0 01 1 0011- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-361-0 01 1 0104- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (A) 		1-21464-548-0 01 1 0104- ●
22 BRACKET; RAD MTG
(A) 		1-21464-521-0 01 1 9610-9704 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-548-0 01 1 9705-9906 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-681-0 01 1 9907-0004 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-681-0 01 1 0005-0010 ● ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> (A) 		1-21464-681-0 01 1 0011- ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21464-681-0 01 1 0011- ●
22 BRACKET; RAD MTG
(A) 		1-21464-681-0 01 1 0011- ●
22 BRACKET; RAD MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> (A) 		1-21464-681-0 01 1 0011- ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21464-736-0 01 1 0011-0205 ●
22 BRACKET; RAD MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21464-591-0 01 1 0206- ●
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0603-0603 ●
25 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 08 1 0206- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-9510 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9511-9609 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9610-0004 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0206-0602 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0206-0602 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0603- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE 		0-28080-812-0 15 1 0603- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-9510 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0205 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0206-0602 ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0206-0602 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0603- ● ● ● ●
25 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28080-816-0 01 1 0603- ●
51 PLUG; DRAIN
NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-023-0 01 1 0206- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510-9510 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9511-9609 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-0004 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0205 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0206-0602 ● ● ●
51 PLUG; DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-009-0 01 1 0206-0602 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0603- ● ● ● ●
51 PLUG; DRAIN
EXC. NEW ZEALAND EQUIPMENT(PK5) W/GASKET 		1-09609-009-0 01 1 0603- ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510-9510 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9511-9609 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9610-0004 ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0010 ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0011-0103 ● ● ●
62 BOLT; STAY
EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 0011-0103 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0104-0511 ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0512- ● ● ●
62 BOLT; STAY
EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 0512- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9510 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9511-9609 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0511 ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0512- ● ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ● ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0005- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		8-98040-798-0 01 1 0512- ●
79 GUIDE; FAN,RAD 1-21551-468-1 01 1 0603- ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9510-9510 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9511-9609 ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9610-0004 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0005-0511 ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0512- ● ● ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21551-374-4 01 1 0512- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0603- ●
80 BOLT; FAN GUIDE
NEW ZEALAND EQUIPMENT(PK5) M6X12 FLANGE 		0-28080-612-0 04 1 0206- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510-9510 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9511-9609 ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-0004 ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0205 ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0206-0601 ● ● ●
80 BOLT; FAN GUIDE
EXC. NEW ZEALAND EQUIPMENT(PK5) M6X10 FLANGE 		0-28080-610-0 04 1 0206-0601 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0602- ● ● ● ●
299 NIPPLE; RAD
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-09660-646-0 02 1 9608-0004 ●
299 NIPPLE; RAD
MIDDLE CHASSIS & STD CAB(FT**MF) A/T<X9D> 		1-09660-646-0 02 1 0009-0203 ● ●
çizim 152432
1 528 526 529 267 232 89 529 528 527 267 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		8-98040-796-0 01 1 0512- ●
1 RADIATOR ASM 1-21410-819-0 01 1 0603- ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-733-0 01 1 0206- ●
1 RADIATOR ASM
A/T<X9D> AUSTRALIA EQUIPMENT(RR3) 		1-21410-689-1 01 1 9608-0004 ●
1 RADIATOR ASM
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9510-9510 ●
1 RADIATOR ASM
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9511-9607 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9511-9607 ●
1 RADIATOR ASM
ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9608-9609 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9608-9609 ●
1 RADIATOR ASM
ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9610-9802 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9610-9802 ● ●
1 RADIATOR ASM
ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) 		1-21410-675-1 01 1 9803-0004 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9803-0004 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011-0103 ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0011-0103 ●
1 RADIATOR ASM 1-21410-675-1 01 1 0011-0103 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0104-0511 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0104-0511 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0512- ● ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM 1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9510-9802 ●
1 RADIATOR ASM
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-21410-674-1 01 1 9803-0004 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0011-0205 ● ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0206-0302 ● ●
1 RADIATOR ASM
NEW ZEALAND EQUIPMENT(PK5) 		1-21410-674-1 01 1 0206-0302 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303- ●
1 RADIATOR ASM
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIATOR HEAVY DUTY<V05>,A/T<X9D> 		1-21410-674-1 01 1 0303- ●
1 RADIATOR ASM
MIDDLE CHASSIS & STD CAB(FT**MF) A/T<X9D> 		1-21410-689-2 01 1 0009- ● ●
89 BOLT
NEW ZEALAND EQUIPMENT(PK5) M8X25 W/PL WASHER 		1-21469-153-0 02 1 0206- ●
232 COLLAR; DIST,CUSHION RUBBER
NEW ZEALAND EQUIPMENT(PK5) 		8-98141-232-0 02 1 0206- ●
267 RUBBER; CUSHION
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-21467-020-0 02 1 0206- ●
267 RUBBER; CUSHION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-21467-023-0 02 1 0206- ●
526 TANK; UPR,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21414-032-0 01 1 0206- ●
527 TANK; LWR,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21415-032-0 01 1 0206- ●
528 PLATE; SIDE,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21416-077-0 01 1 0206- ●
528 PLATE; SIDE,RADIATOR CORE
NEW ZEALAND EQUIPMENT(PK5) 		1-21416-078-0 01 1 0206- ●
529 GASKET; CORE,RADIATOR
NEW ZEALAND EQUIPMENT(PK5) 		1-21439-122-0 02 1 0206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
