Sayfa 0-87 - Isuzu EPC

0-87 — COUPLING; INJECTION PUMP (#38817) — 276 parça

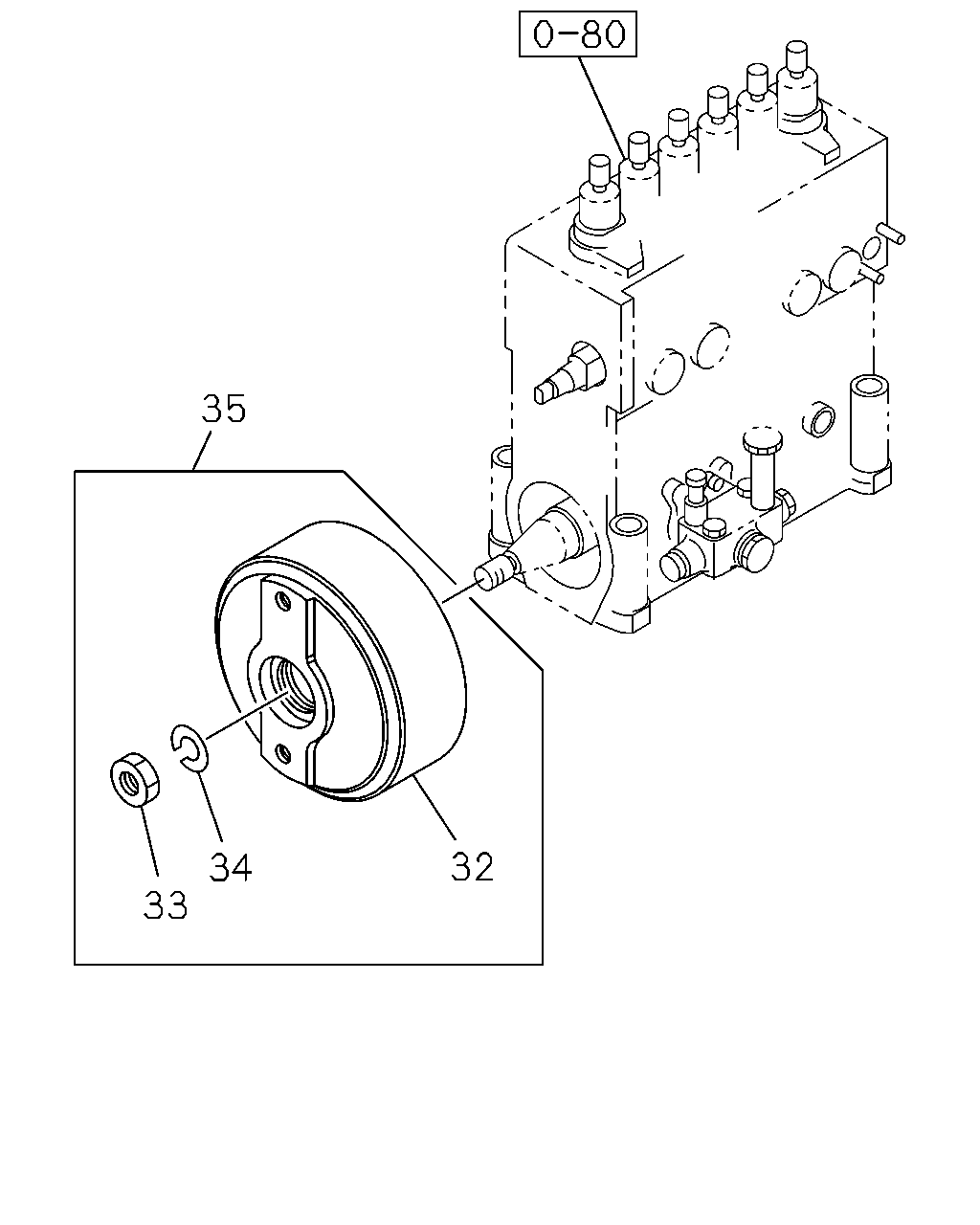

35 32 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
32	DAMPER; INJ PUMP EURO2 SPECIFICATION<THN>	8-94390-807-0	01	1	0005-0010	●
32	DAMPER; INJ PUMP	8-94390-807-0	01	1	0011-	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	0005-0010	●
33	NUT; DAMPER	1-15619-132-0	01	1	0011-	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-15619-131-0	01	1	0005-0010	●
34	WASHER; DAMPER	1-15619-131-0	01	1	0011-	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-016-0	01	1	0005-0010	●
35	DAMPER ASM; INJ PUMP	1-15744-016-0	01	1	0011-	●

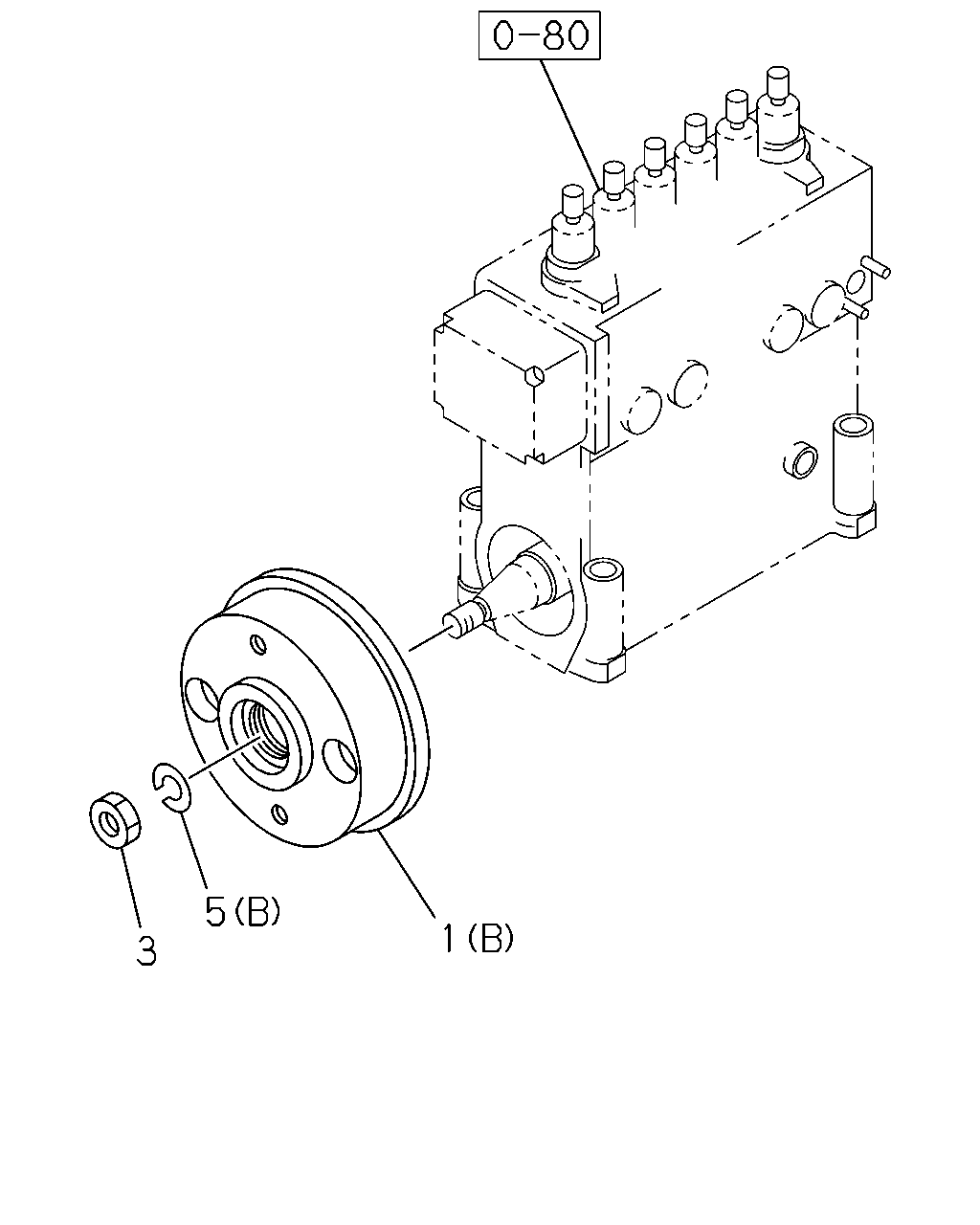

5 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9611			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9612-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9612-0210			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0211-		●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0211-			●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9612-		●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9610-0510				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0511-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0511-				●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9610-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (C)	1-15780-193-0	01	1	0005-0010	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15780-193-0	01	1	0011-	●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	9610-0510				●
3	NUT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15619-132-0	01	1	0511-			●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	0511-				●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	9610-0510				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	0511-			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0511-				●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	9610-				●

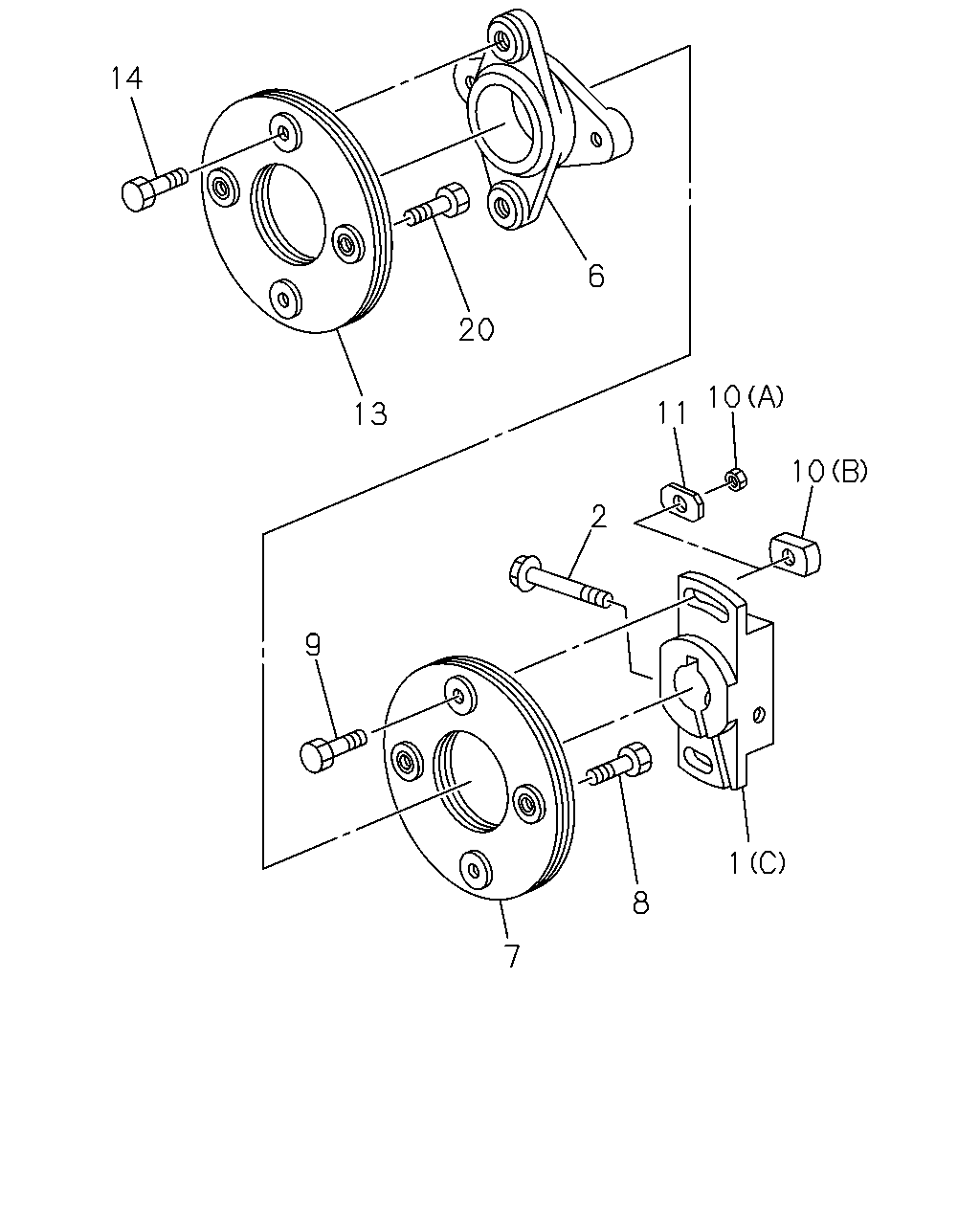

14 6 20 10 11 13 10 2 9 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9611			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9612-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9612-0210			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0211-		●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0211-			●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9612-		●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9610-0510				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0511-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0511-				●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9610-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (C)	1-15780-193-0	01	1	0005-0010	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15780-193-0	01	1	0011-	●
2	BOLT; COUPLING FIX,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-170-0	01	1	9510-9510		●
2	BOLT; COUPLING FIX,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-170-0	01	1	9511-9612		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9511-9612			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	9701-0210		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9701-0210			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0211-		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	0211-			●
2	BOLT; COUPLING FIX,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-010-0	01	1	9510-9611		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	9610-		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9610-				●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-079-0	01	1	0005-0010	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-079-0	01	1	0011-	●
6	COUPLING; CROSS,INJ PUMP DRIVE THAILAND EQUIPMENT(PM9)	1-15789-184-0	01	1	9510-9510		●
6	COUPLING; CROSS,INJ PUMP DRIVE THAILAND EQUIPMENT(PM9)	1-15789-184-0	01	1	9511-9611		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9511-9611			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	9612-0210		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9612-0210			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0211-		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	0211-			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9)	1-15789-155-0	01	1	9510-9611		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	9612-		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	9610-				●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN>	1-15789-099-0	01	1	0005-0010	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-099-0	01	1	0011-	●
7	PLATE; COUPLING,COUPLING SIDE THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9510-9510		●
7	PLATE; COUPLING,COUPLING SIDE THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9511-9611		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9511-9611			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9612-0210		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9612-0210			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0211-		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0211-			●
7	PLATE; COUPLING,COUPLING SIDE EXC. THAILAND EQUIPMENT(PM9)	1-15789-194-0	01	1	9510-9611		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9612-		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	9610-				●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN>	1-15789-204-0	01	1	0005-0010	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-204-0	01	1	0011-	●
8	BOLT; PLATE TO CROSS COUPLING THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
8	BOLT; PLATE TO CROSS COUPLING THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9511-9611			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9612-0210			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
8	BOLT; PLATE TO CROSS COUPLING EXC. THAILAND EQUIPMENT(PM9)	1-15749-501-0	02	1	9510-9611		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	9612-		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9610-				●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	0005-0010	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-098-0	02	1	0011-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-182-0	02	1	9510-9510		●
9	BOLT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-182-0	02	1	9511-9611		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9511-9611			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	9612-0210		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9612-0210			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0211-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	0211-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-122-0	02	1	9510-9611		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	9612-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9610-				●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-016-0	02	1	0005-0010	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-016-0	02	1	0011-	●
10	NUT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9) (B)	1-15789-167-0	02	1	9510-9510		●
10	NUT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9) (B)	1-15789-167-0	02	1	9511-9611		●
10	NUT; PLATE TO COUPLING,INJ PUMP (B)	1-15789-167-0	02	1	9511-9611			●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-167-0	02	1	9612-0210		●
10	NUT; PLATE TO COUPLING,INJ PUMP (B)	1-15789-167-0	02	1	9612-0210			●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-167-0	02	1	0211-		●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN> (B)	1-15789-167-0	02	1	0211-			●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. THAILAND EQUIPMENT(PM9) (B)	1-15789-066-0	02	1	9510-9611		●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15789-066-0	02	1	9612-		●
10	NUT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15789-073-0	02	1	0005-0010	●
10	NUT; PLATE TO COUPLING,INJ PUMP (A)	1-15789-073-0	02	1	0011-	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	9610-				●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-076-0	02	1	0005-0010	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-076-0	02	1	0011-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9510-9510		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9511-9611		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9511-9611			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9612-0210		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9612-0210			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0211-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0211-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-194-0	01	1	9510-9611		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9612-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	9610-				●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-204-0	01	1	0005-0010	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-204-0	01	1	0011-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9511-9611			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9612-0210			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. THAILAND EQUIPMENT(PM9)	1-15789-120-0	02	1	9510-9611		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	9612-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	9610-				●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	0005-0010	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	0011-	●
20	BOLT; COUPLING TO INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
20	BOLT; COUPLING TO INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9511-9611			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9612-0210			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
20	BOLT; COUPLING TO INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-119-0	02	1	9510-9611		●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	9612-		●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	9610-				●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-205-0	02	1	0005-0010	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-205-0	02	1	0011-	●

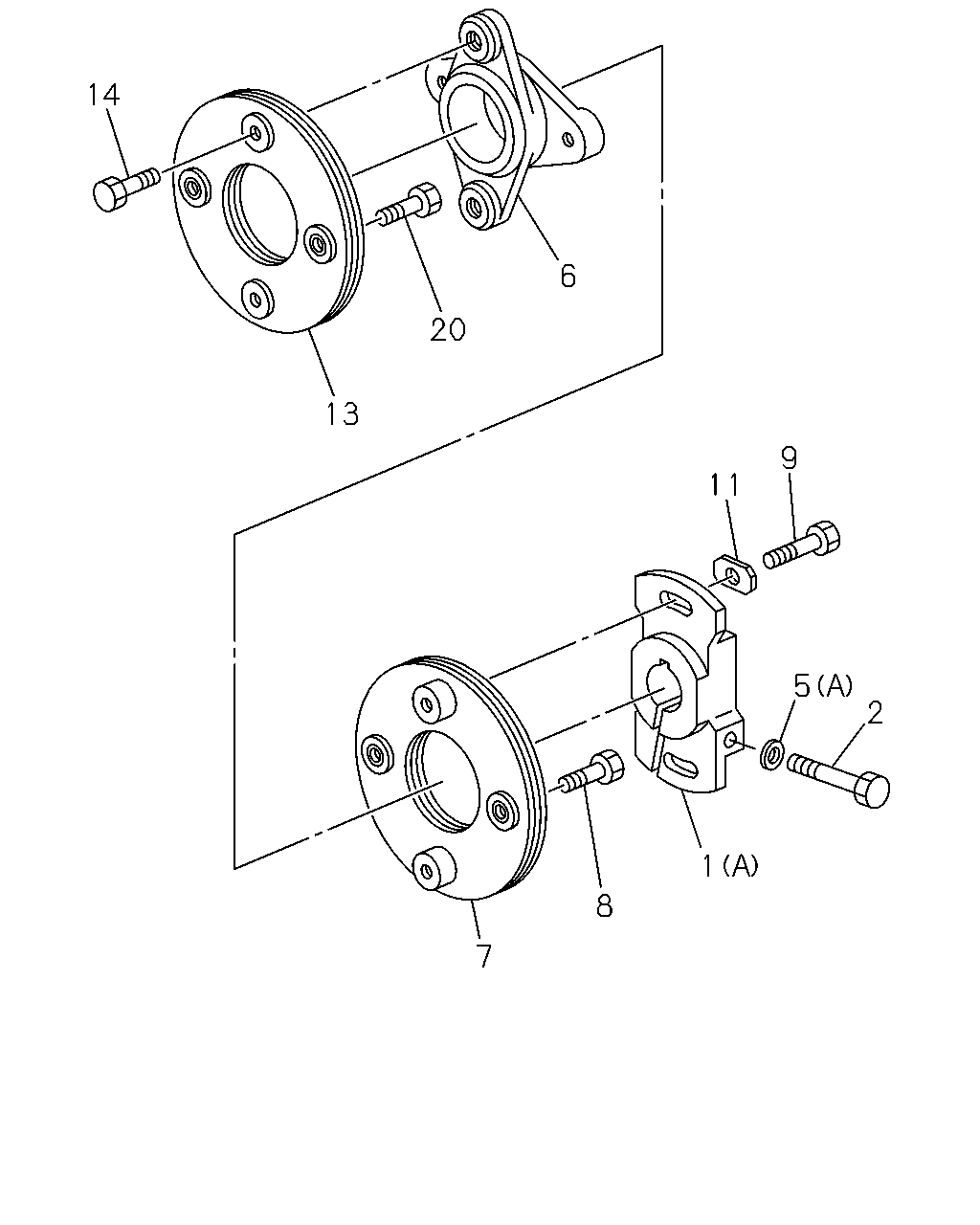

14 6 20 13 11 5 2 1 8 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE THAILAND EQUIPMENT(PM9) (C)	1-15782-019-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9511-9611			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	9612-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-019-0	01	1	9612-0210			●
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-019-0	01	1	0211-		●
1	COUPLING; INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN> (C)	1-15782-019-0	01	1	0211-			●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9510-9510		●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	1-15782-014-0	01	1	9612-		●
1	COUPLING; INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9) (C)	1-15782-014-0	01	1	9511-9611		●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	9610-0510				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (B)	1-15781-031-0	01	1	0511-			●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0511-				●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	9610-				●
1	COUPLING; INJ PUMP DRIVE EURO2 SPECIFICATION<THN> (C)	1-15780-193-0	01	1	0005-0010	●
1	COUPLING; INJ PUMP DRIVE (C)	1-15780-193-0	01	1	0011-	●
2	BOLT; COUPLING FIX,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-170-0	01	1	9510-9510		●
2	BOLT; COUPLING FIX,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-170-0	01	1	9511-9612		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9511-9612			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	9701-0210		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-170-0	01	1	9701-0210			●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-170-0	01	1	0211-		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-170-0	01	1	0211-			●
2	BOLT; COUPLING FIX,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-010-0	01	1	9510-9611		●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-010-0	01	1	9610-		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9610-				●
2	BOLT; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-079-0	01	1	0005-0010	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-079-0	01	1	0011-	●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	9610-0510				●
5	WASHER; COUPLING FIX,INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15619-131-0	01	1	0511-			●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0511-				●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	9610-				●
6	COUPLING; CROSS,INJ PUMP DRIVE THAILAND EQUIPMENT(PM9)	1-15789-184-0	01	1	9510-9510		●
6	COUPLING; CROSS,INJ PUMP DRIVE THAILAND EQUIPMENT(PM9)	1-15789-184-0	01	1	9511-9611		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9511-9611			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	9612-0210		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-184-0	01	1	9612-0210			●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-184-0	01	1	0211-		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EURO2 SPECIFICATION<THN>	1-15789-184-0	01	1	0211-			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. THAILAND EQUIPMENT(PM9)	1-15789-155-0	01	1	9510-9611		●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-155-0	01	1	9612-		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	9610-				●
6	COUPLING; CROSS,INJ PUMP DRIVE EURO2 SPECIFICATION<THN>	1-15789-099-0	01	1	0005-0010	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-099-0	01	1	0011-	●
7	PLATE; COUPLING,COUPLING SIDE THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9510-9510		●
7	PLATE; COUPLING,COUPLING SIDE THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9511-9611		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9511-9611			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9612-0210		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-199-0	01	1	9612-0210			●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0211-		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0211-			●
7	PLATE; COUPLING,COUPLING SIDE EXC. THAILAND EQUIPMENT(PM9)	1-15789-194-0	01	1	9510-9611		●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9612-		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	9610-				●
7	PLATE; COUPLING,COUPLING SIDE EURO2 SPECIFICATION<THN>	1-15789-204-0	01	1	0005-0010	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-204-0	01	1	0011-	●
8	BOLT; PLATE TO CROSS COUPLING THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
8	BOLT; PLATE TO CROSS COUPLING THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9511-9611			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-183-0	02	1	9612-0210			●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
8	BOLT; PLATE TO CROSS COUPLING EXC. THAILAND EQUIPMENT(PM9)	1-15749-501-0	02	1	9510-9611		●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15749-501-0	02	1	9612-		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9610-				●
8	BOLT; PLATE TO CROSS COUPLING EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	0005-0010	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-098-0	02	1	0011-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-182-0	02	1	9510-9510		●
9	BOLT; PLATE TO COUPLING,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-182-0	02	1	9511-9611		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9511-9611			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	9612-0210		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-182-0	02	1	9612-0210			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-182-0	02	1	0211-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-182-0	02	1	0211-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-122-0	02	1	9510-9611		●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-122-0	02	1	9612-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9610-				●
9	BOLT; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-016-0	02	1	0005-0010	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-016-0	02	1	0011-	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	9610-				●
11	WASHER; PLATE TO COUPLING,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-076-0	02	1	0005-0010	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-076-0	02	1	0011-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9510-9510		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-199-0	01	1	9511-9611		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9511-9611			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	9612-0210		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-199-0	01	1	9612-0210			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-199-0	01	1	0211-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-199-0	01	1	0211-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-194-0	01	1	9510-9611		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-194-0	01	1	9612-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	9610-				●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-204-0	01	1	0005-0010	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-204-0	01	1	0011-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9511-9611			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-183-0	02	1	9612-0210			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. THAILAND EQUIPMENT(PM9)	1-15789-120-0	02	1	9510-9611		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-120-0	02	1	9612-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	9610-				●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	0005-0010	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	0011-	●
20	BOLT; COUPLING TO INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9510-9510		●
20	BOLT; COUPLING TO INJ PUMP THAILAND EQUIPMENT(PM9)	1-15789-183-0	02	1	9511-9611		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9511-9611			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	9612-0210		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-183-0	02	1	9612-0210			●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-183-0	02	1	0211-		●
20	BOLT; COUPLING TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15789-183-0	02	1	0211-			●
20	BOLT; COUPLING TO INJ PUMP EXC. THAILAND EQUIPMENT(PM9)	1-15789-119-0	02	1	9510-9611		●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15789-119-0	02	1	9612-		●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	9610-				●
20	BOLT; COUPLING TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15789-205-0	02	1	0005-0010	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-205-0	02	1	0011-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
