◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#38813) — 64 parça

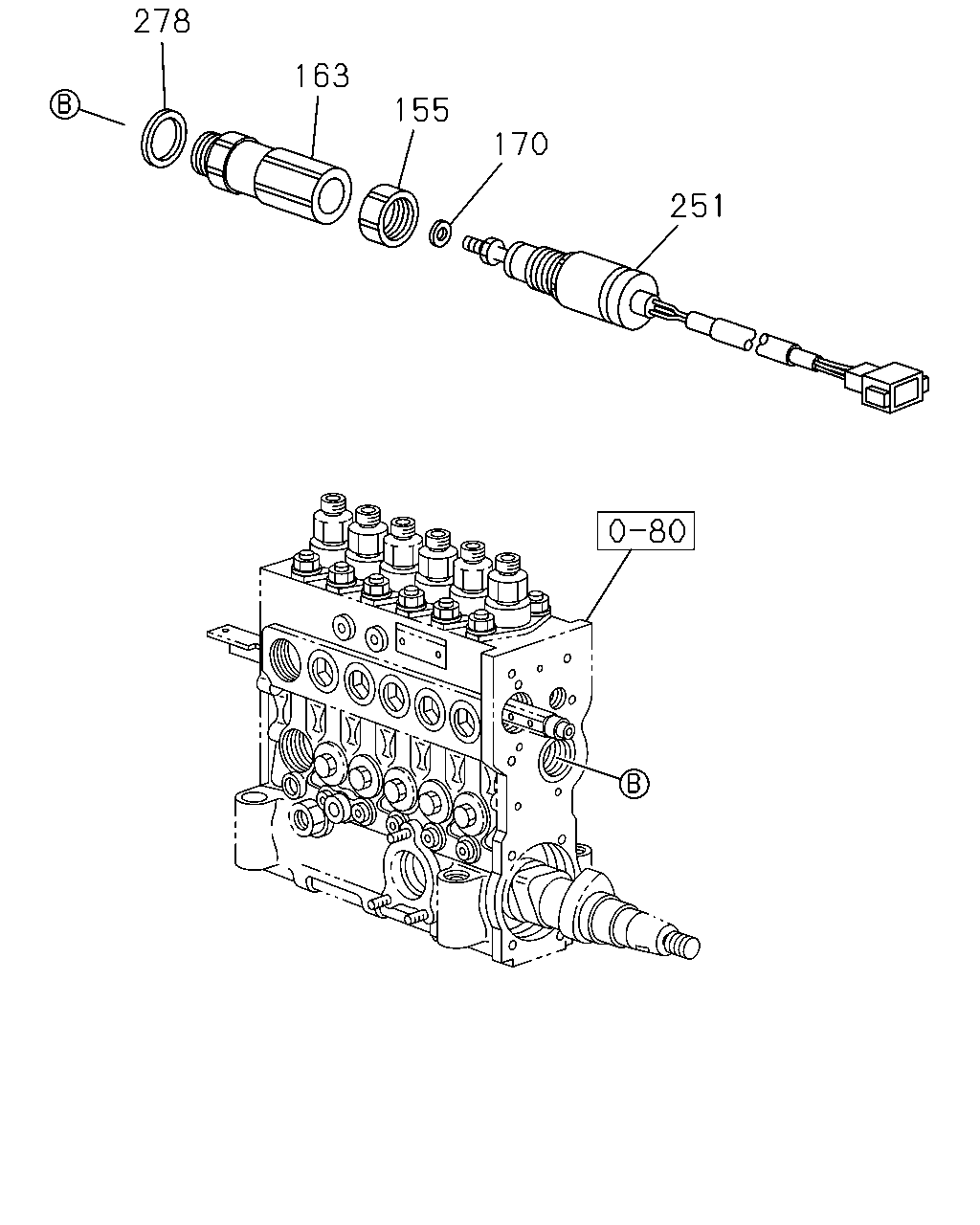

çizim 151969
278 163 155 170 251
BalonParca AdiParca NoAdetTipApplied Date
155 NUT; SENSOR
ASM PART: A = 8-94390-618-3, B = 8-94390-619-3, C = 8-94392-008-1, D = 8-94392-231-8, F = 8-97600-576-1, G = 8-97602-131-0 		1-15779-179-0 01 1 -
163 JOINT; LOAD SENSOR,SENSOR SIDE
ASM PART: A = 8-94390-618-3, B = 8-94390-619-3, C = 8-94392-008-1, D = 8-94392-231-8, F = 8-97600-576-1, G = 8-97602-131-0 		1-15779-551-0 01 1 -
170 SHIM; CONN PIN,LOAD SENSOR,GOV
ASM PART: A = 8-94390-618-3, B = 8-94390-619-3, C = 8-94392-008-1, D = 8-94392-231-8, F = 8-97600-576-1, G = 8-97602-131-0 		1-15729-673-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: B = 8-94390-619-3 		1-15637-035-0 01 1 -0007
251 SENSOR; RACK,GOV
ASM PART: F = 8-97600-576-1, G = 8-97602-131-0 		1-15637-045-2 01 1 -
251 SENSOR; RACK,GOV
ASM PART: D = 8-94392-231-8 		1-15637-046-5 01 1 -
251 SENSOR; RACK,GOV
ASM PART: A = 8-94390-618-3, C = 8-94392-008-1 		1-15637-054-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: B = 8-94390-619-3 		1-15637-054-0 01 1 0008-
278 GASKET; SENSOR
ASM PART: A = 8-94390-618-3, B = 8-94390-619-3, C = 8-94392-008-1, D = 8-94392-231-8, F = 8-97600-576-1, G = 8-97602-131-0 		9-81325-528-0 01 1 -

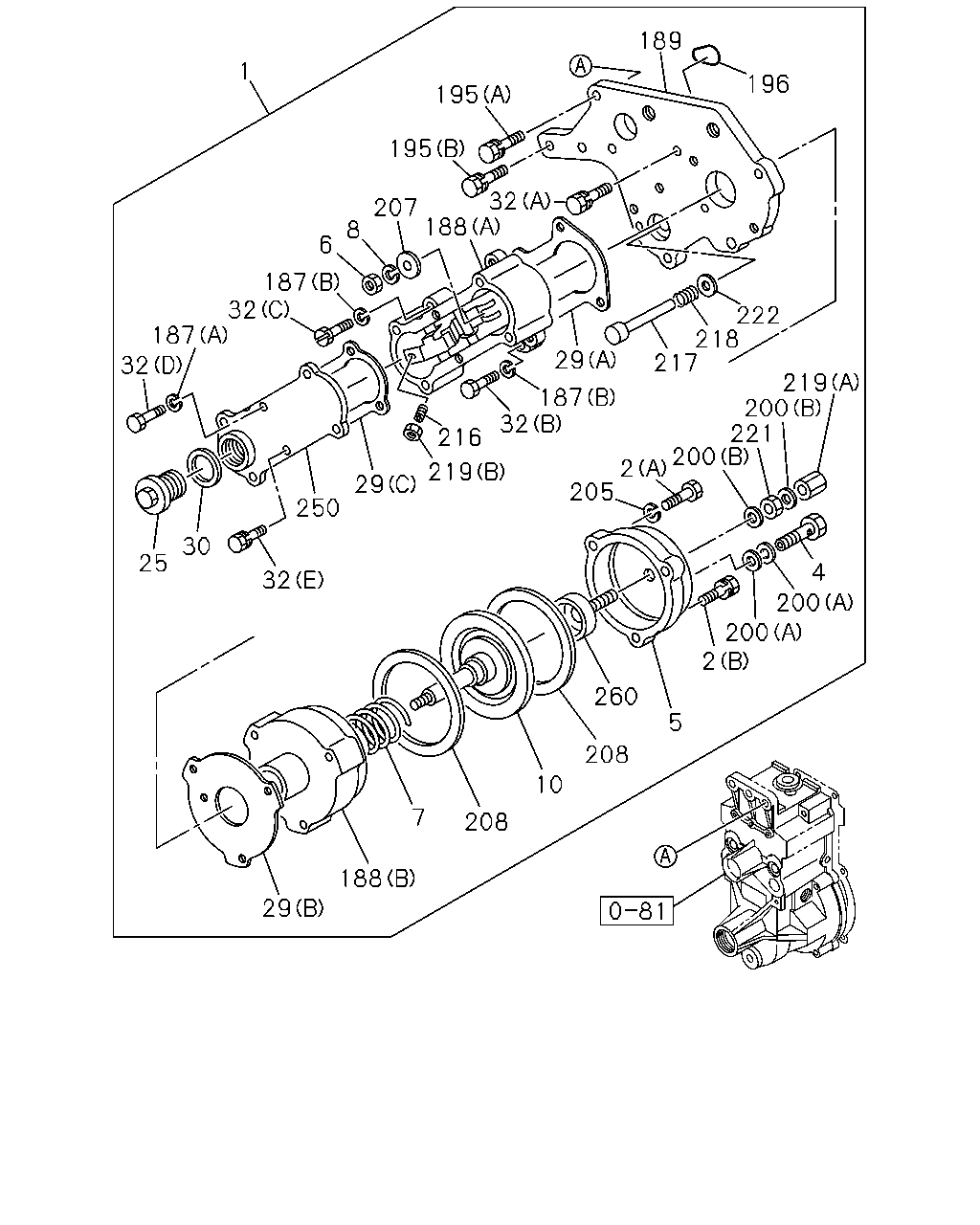

çizim 151993
189 1 196 195 195 32 207 188 8 6 187 32 222 218 217 187 32 29 219 200 221 200 187 32 216 2 205 219 29 250 30 25 4 32 200 200 2 260 5 208 10 7 208 188 29
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: E = 8-94395-921-2 		1-15728-094-1 01 1 9605-
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: E = 8-94395-921-2 		1-15728-095-0 01 1 -9604
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: E = 8-94395-921-2 		1-15779-202-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: E = 8-94395-921-2 		9-88410-094-0 02 1 -
4 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15729-325-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: E = 8-94395-921-2 		1-15619-283-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15729-249-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15713-007-0 01 1 9911-
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15723-483-0 01 1 9605-9910
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15723-504-0 01 1 -9604
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1 ASM PART: E = 8-94395-921-2 		9-09150-506-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: E = 8-94395-921-2 		1-15712-006-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15779-124-1 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
(A) ASM PART: E = 8-94395-921-2 		1-15779-122-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
(B) ASM PART: E = 8-94395-921-2 		1-15779-123-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
(C) ASM PART: E = 8-94395-921-2 		1-15779-126-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		9-19139-024-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B) ASM PART: E = 8-94395-921-2 		1-15619-217-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(D) ASM PART: E = 8-94395-921-2 		1-15729-413-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(C) ASM PART: E = 8-94395-921-2 		1-15779-202-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: E = 8-94395-921-2 		9-88410-094-0 05 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(E) ASM PART: E = 8-94395-921-2 		9-92040-612-0 04 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
(A) ASM PART: E = 8-94395-921-2 		1-83539-044-0 05 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
(B) ASM PART: E = 8-94395-921-2 		9-09150-506-0 02 1 -
188 HOUSING; BOOST COMPENSATOR,INJ PUMP
(A) ASM PART: E = 8-94395-921-2 		1-15721-279-0 01 1 -
188 HOUSING; BOOST COMPENSATOR,INJ PUMP
(B) ASM PART: E = 8-94395-921-2 		1-15721-280-0 01 1 -
189 SPACER; BOOST COMPENSATOR HSG
ASM PART: E = 8-94395-921-2 		1-15779-109-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(B) ASM PART: E = 8-94395-921-2 		1-15729-243-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(A) ASM PART: E = 8-94395-921-2 		9-81325-187-0 03 1 -
196 GASKET; SPACER,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		8-94424-220-0 01 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(A) ASM PART: E = 8-94395-921-2 		1-15729-849-0 02 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(B) ASM PART: E = 8-94395-921-2 		1-15729-868-0 02 1 -
205 WASHER; LK,COVER FIX,BOOST COMPENSATOR
ID=6.1 ASM PART: E = 8-94395-921-2 		9-09150-506-0 01 1 -
207 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15779-121-0 01 1 -
208 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-15779-129-0 02 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		8-94171-179-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=108.5 ASM PART: E = 8-94395-921-2 		1-15779-110-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=109.5 ASM PART: E = 8-94395-921-2 		1-15779-111-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=110.5 ASM PART: E = 8-94395-921-2 		1-15779-112-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=111.5 ASM PART: E = 8-94395-921-2 		1-15779-113-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=112.5 ASM PART: E = 8-94395-921-2 		1-15779-114-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=113.5 ASM PART: E = 8-94395-921-2 		1-15779-115-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=114.5 ASM PART: E = 8-94395-921-2 		1-15779-116-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=115.5 ASM PART: E = 8-94395-921-2 		1-15779-117-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=116.5 ASM PART: E = 8-94395-921-2 		1-15779-118-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=117.5 ASM PART: E = 8-94395-921-2 		1-15779-119-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=118.5 ASM PART: E = 8-94395-921-2 		1-15779-120-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=119.5 ASM PART: E = 8-94395-921-2 		8-94172-290-0 01 1 -
218 SPRING; PUSH ROD,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		8-94171-176-0 01 1 -
219 NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
(A) ASM PART: E = 8-94395-921-2 		1-15729-093-0 01 1 -
219 NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
(B) ASM PART: E = 8-94395-921-2 		9-88410-525-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		9-88410-525-0 01 1 -
222 WASHER; PUSH ROD,BOOST COMPENSATOR
ASM PART: E = 8-94395-921-2 		1-83539-045-0 01 1 -
250 COVER; HSG
ASM PART: E = 8-94395-921-2 		1-15721-281-0 01 1 -
260 SCREW; DIAPHRAGM
ASM PART: E = 8-94395-921-2 		1-15729-386-0 01 1 -
