Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#38805) — 587 parça

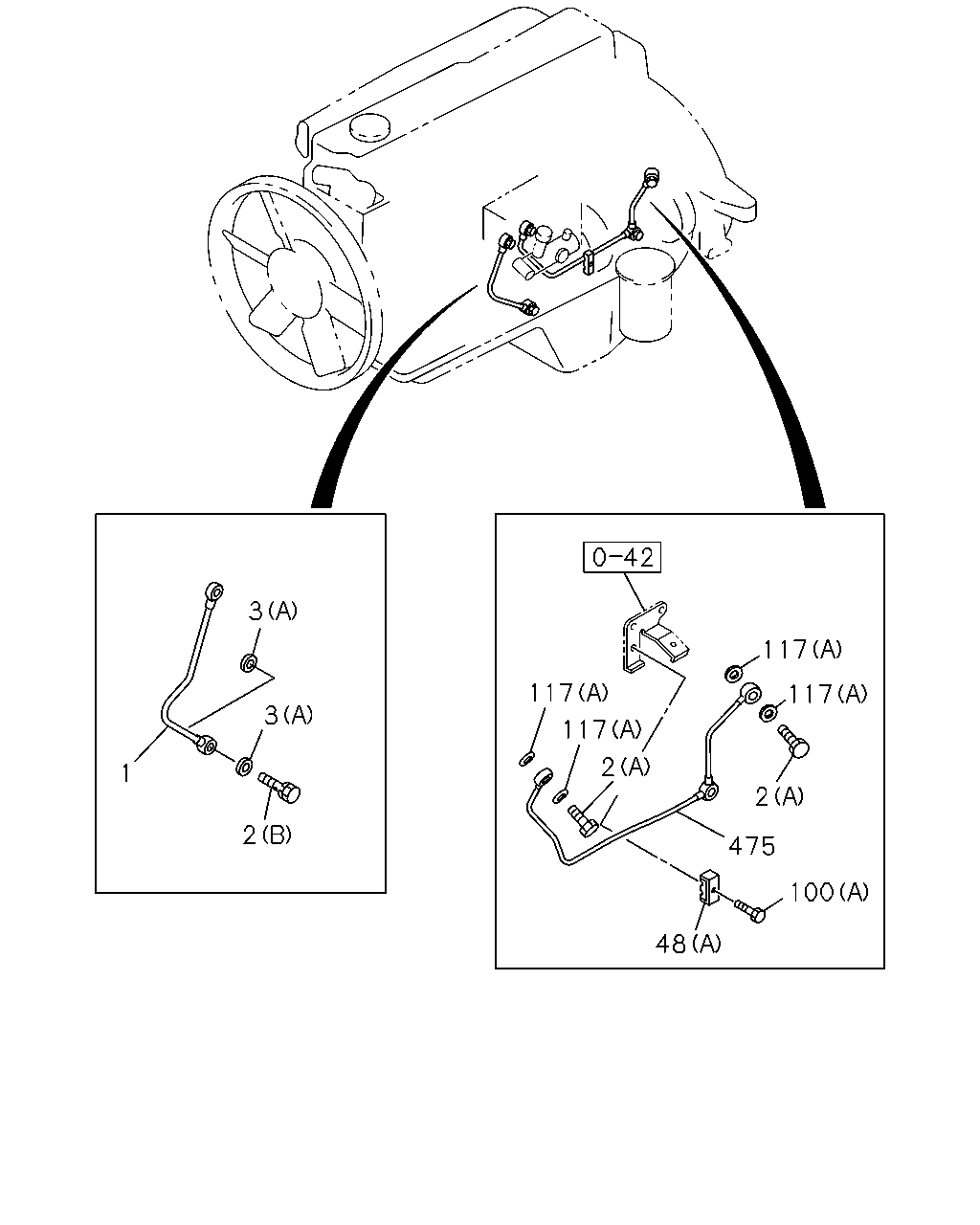

3 117 117 117 3 117 2 1 2 2 475 100 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0603-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-9510		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9511-0504		●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0505-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0505-			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9610-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94392-964-0	01	1	0005-0010					●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94392-964-0	01	1	0011-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0603-	●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0603-	●
48	CLIP; OIL PIPE (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-			●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9610-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9610-				●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	9610-0512				●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	9610-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0602		●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0603-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2	1-09630-084-0	01	1	0005-0010					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	01	1	0011-1312					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	01	1	1401-					●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-94390-488-0	01	1	9610-9906				●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	9907-				●

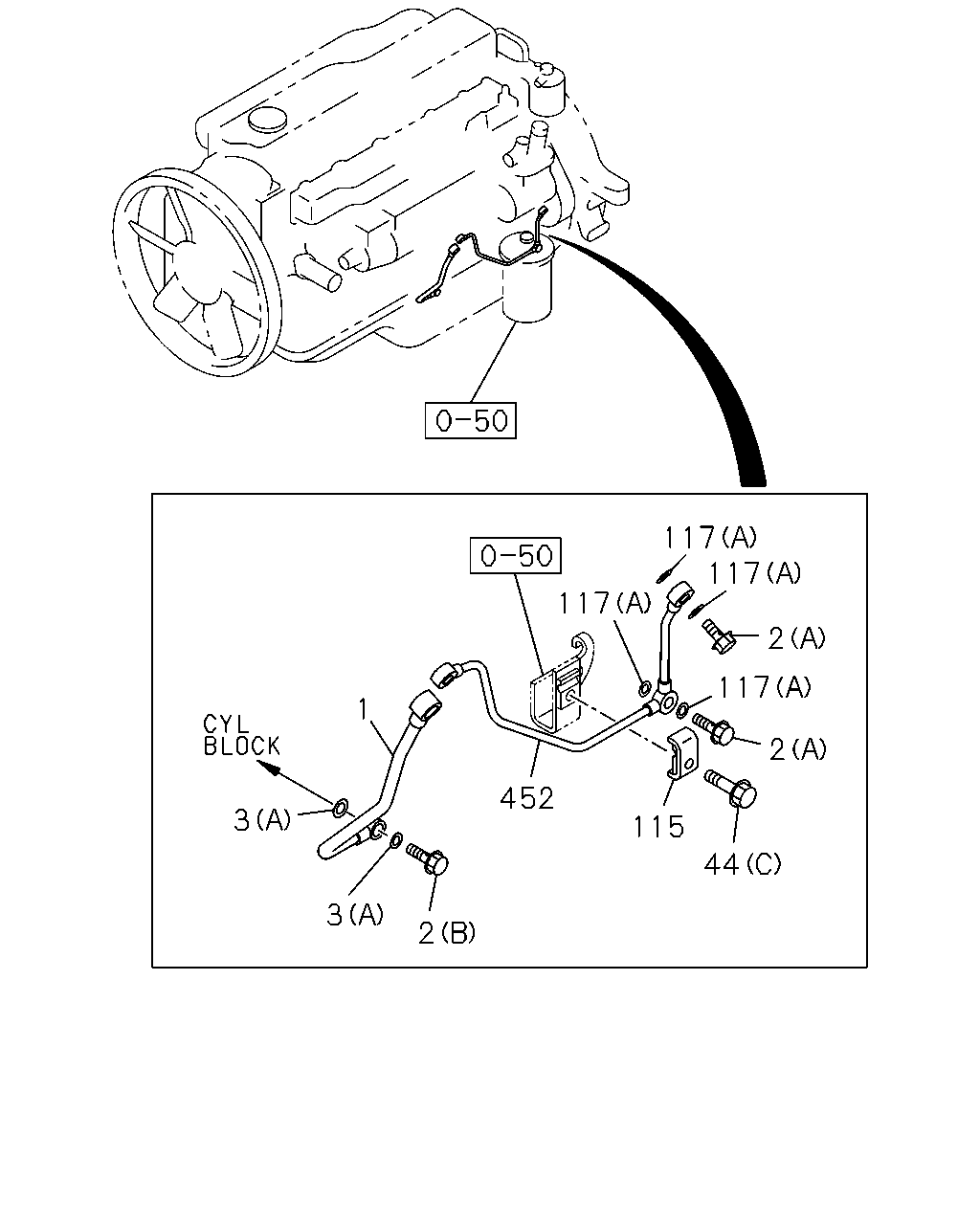

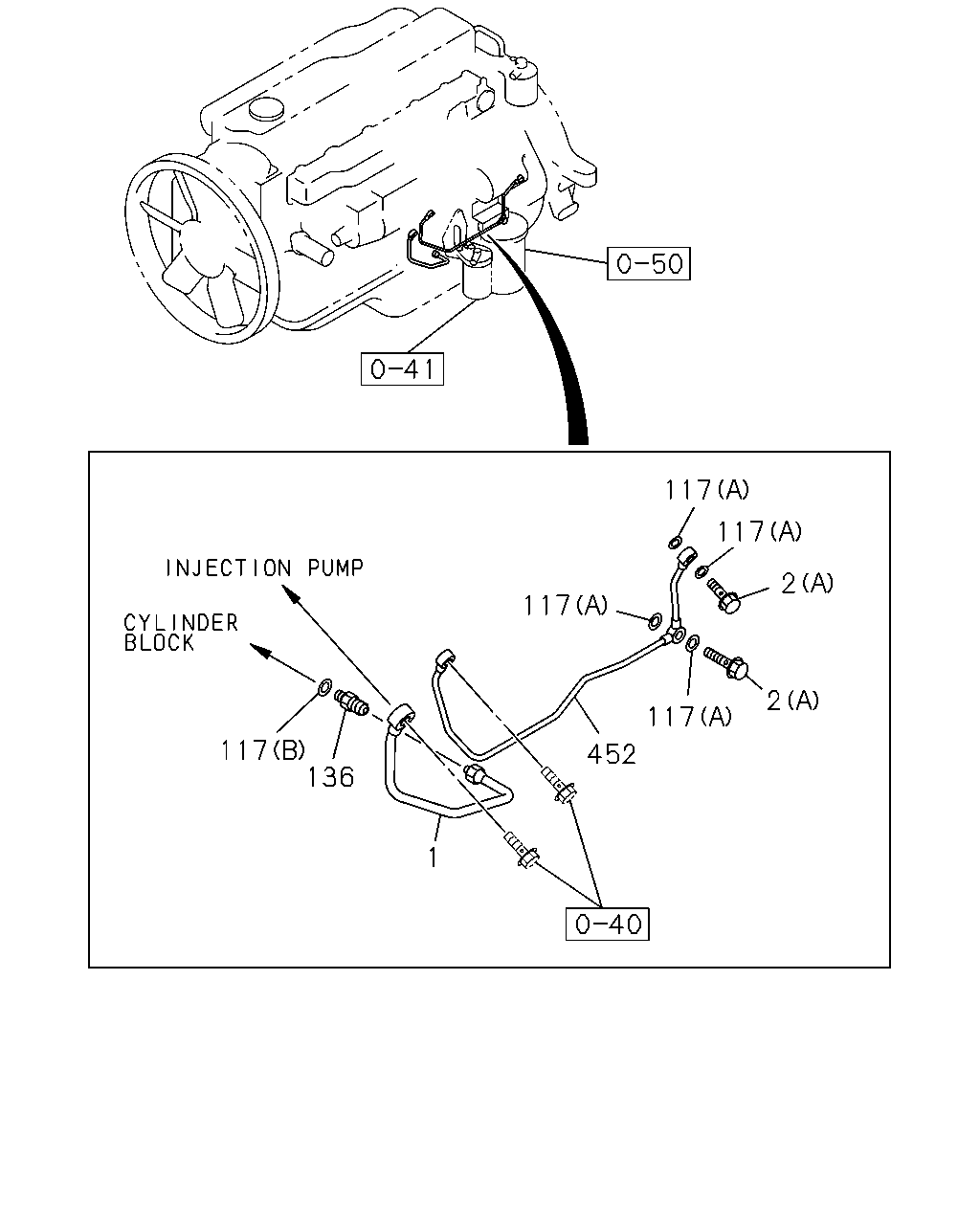

117 117 2 117 2 117 117 136 452 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0603-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-9510		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9511-0504		●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0505-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0505-			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9610-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94392-964-0	01	1	0005-0010					●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94392-964-0	01	1	0011-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0602		●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0603-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2	1-09630-084-0	01	1	0005-0010					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	01	1	0011-1312					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	01	1	1401-					●
136	UNION EURO2 SPECIFICATION<THN>	8-94392-422-0	01	1	0005-0010					●
136	UNION	8-94392-422-0	01	1	0011-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0603-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-0012		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0101-0112		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0201-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9906		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-0010		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0108-0504		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0108-0504			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0505-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	0505-			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN>	8-97600-571-0	01	1	0005-0010					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-571-0	01	1	0011-					●

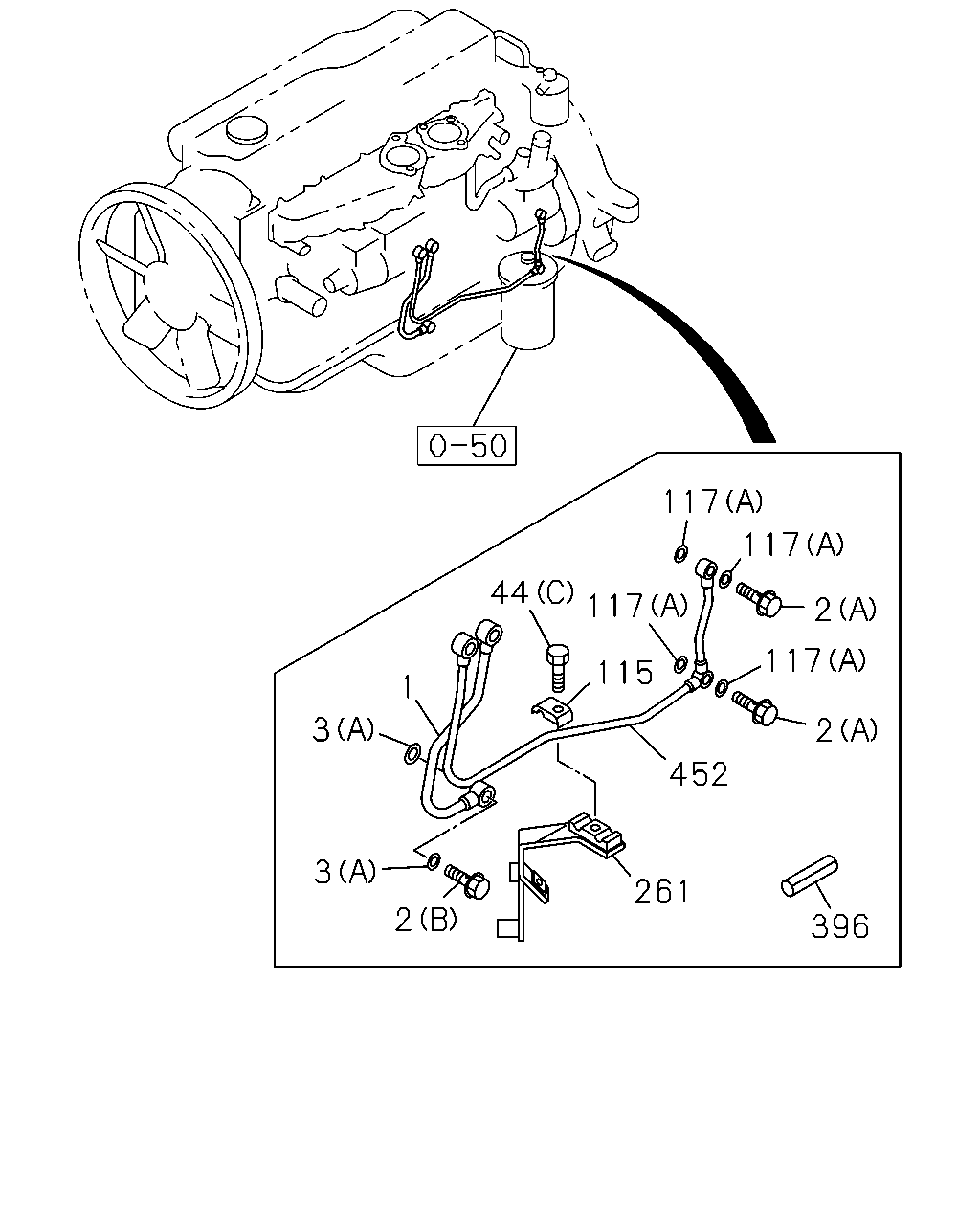

117 117 44 117 2 117 115 1 3 2 452 3 261 2 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0603-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-9510		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9511-0504		●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0505-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0505-			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9610-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94392-964-0	01	1	0005-0010					●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94392-964-0	01	1	0011-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-9510		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9511-0504		●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605			●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9609			●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9812			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9610-9812			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9812				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9510-9510		●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9511-0504		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0505-0605		●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0505-0605			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0606-	●	●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0606-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0602		●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0603-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2	1-09630-084-0	01	1	0005-0010					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	01	1	0011-1312					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	01	1	1401-					●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	9510-9510		●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	9511-0010		●	●
261	BRACKET; CLIP,OIL PIPE TACHOMETER<UD7>	8-94394-410-3	01	1	0011-0012		●	●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	0101-0504		●	●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	0505-		●
261	BRACKET; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-410-3	01	1	0505-			●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0002-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0603-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-0012		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0101-0112		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0201-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9906		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-0010		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0108-0504		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0108-0504			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0505-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	0505-			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN>	8-97600-571-0	01	1	0005-0010					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-571-0	01	1	0011-					●

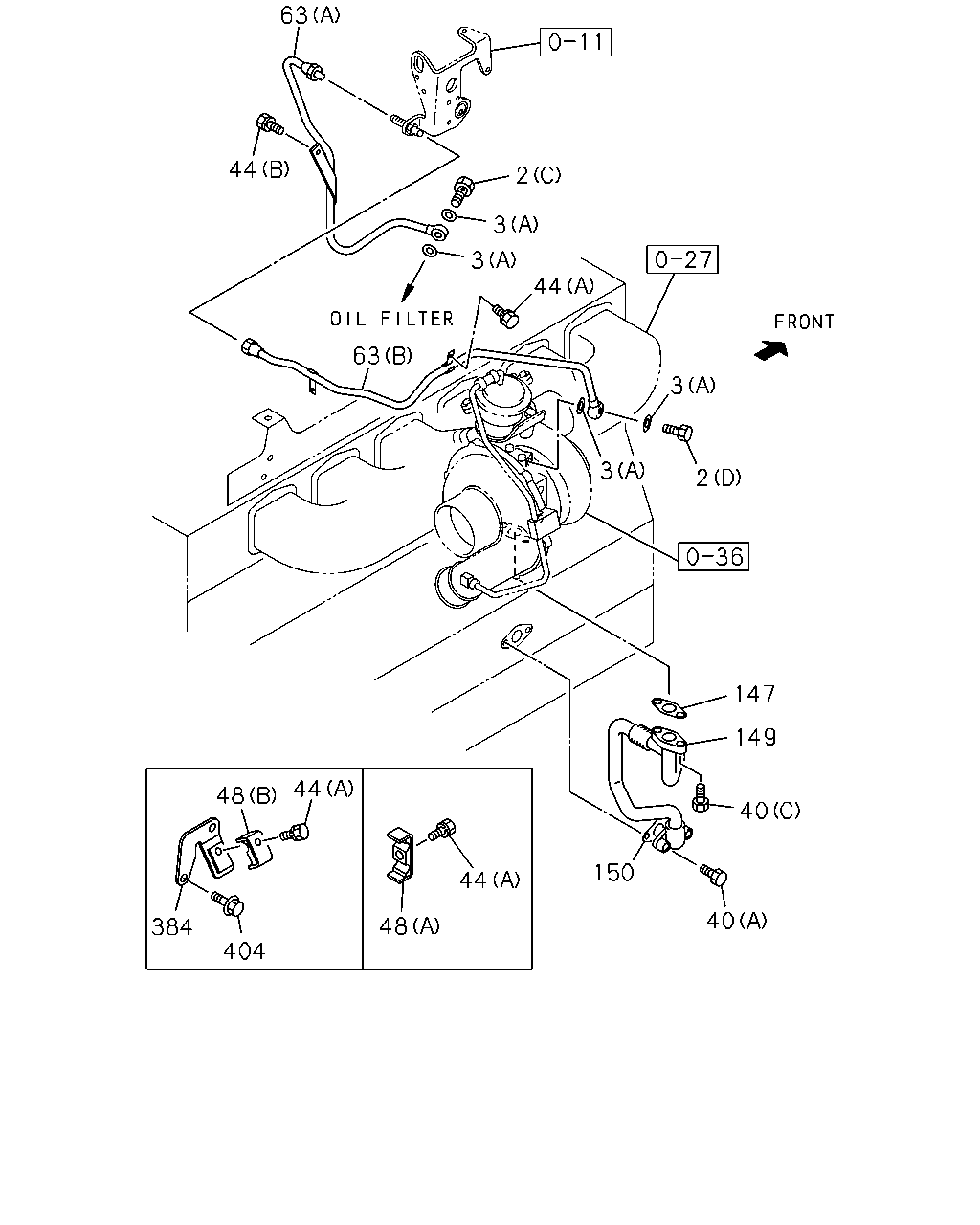

63 44 2 3 3 44 63 3 3 2 147 149 44 48 40 150 44 40 48 384 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-			●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-	●			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9610-0512			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0602			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●		●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9610-			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0602				●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0603-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9610-0004				●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-9510		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9511-0504		●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605			●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9609			●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9812			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9610-9812			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9812				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0603-	●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0603-	●
48	CLIP; OIL PIPE (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-			●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9610-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9610-				●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0603-	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9812			●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-			●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-			●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9610-9808				●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9511-9609			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9610-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0603-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9703-9808				●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-				●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-9609			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9610-0602			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0603-	●		●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0603-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	8-97600-199-0	01	1	9901-			●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0603-	●
404	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9901-0512			●
404	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●

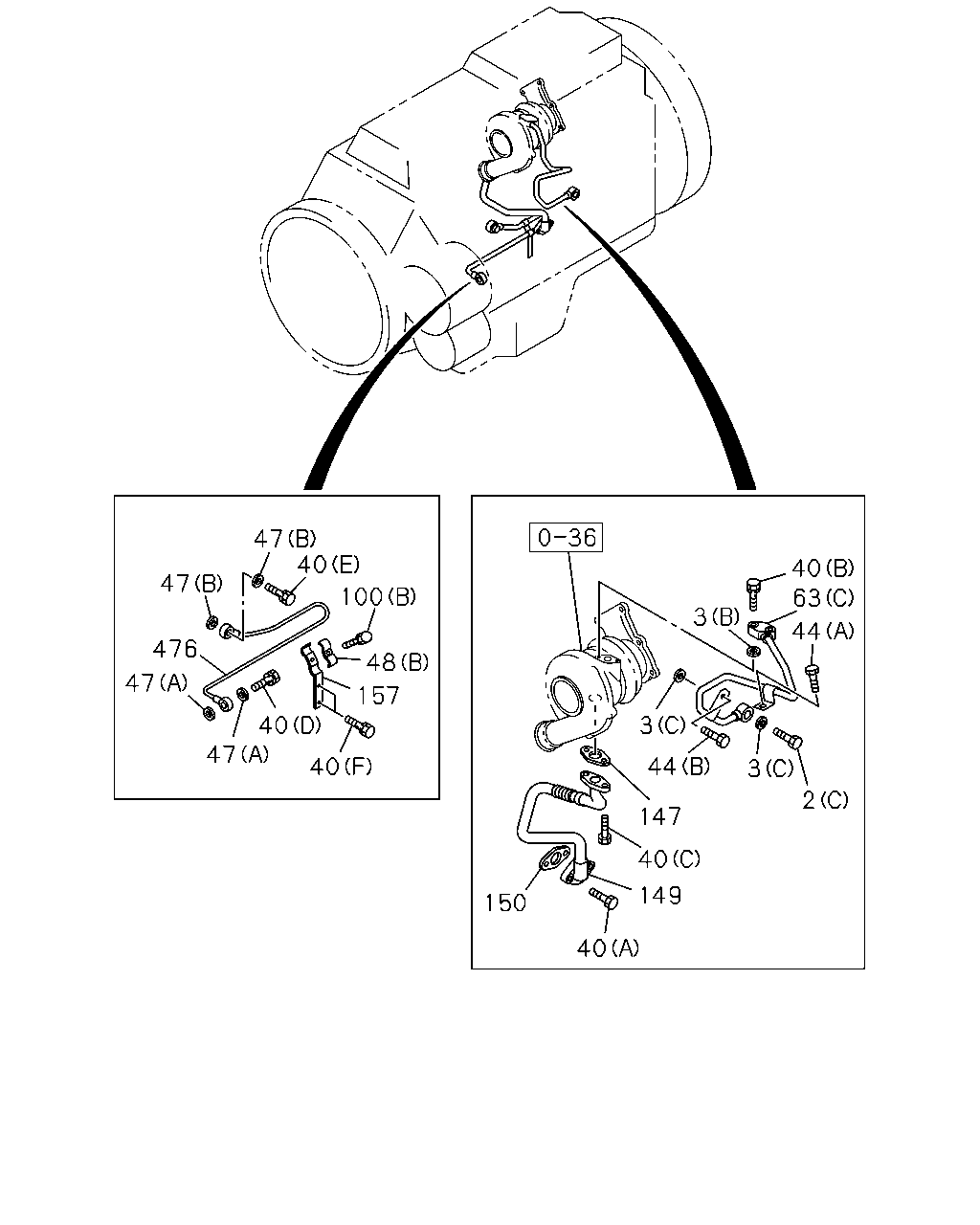

47 40 40 63 47 100 3 44 476 48 47 157 3 40 47 44 40 3 2 147 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-			●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-	●			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9610-0512			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0602			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●		●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9610-			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0602				●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0603-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9610-0004				●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-9510		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9511-0504		●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605			●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9609			●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9812			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9610-9812			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9812				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9610-				●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-1312				●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0603-	●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0603-	●
48	CLIP; OIL PIPE (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-			●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9610-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9610-				●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0603-	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9812			●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-			●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-			●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9610-9808				●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-				●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	9610-0512				●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	9610-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9511-9609			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9610-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0603-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9703-9808				●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-				●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-9609			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9610-0602			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0603-	●		●	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9610-				●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9610-				●

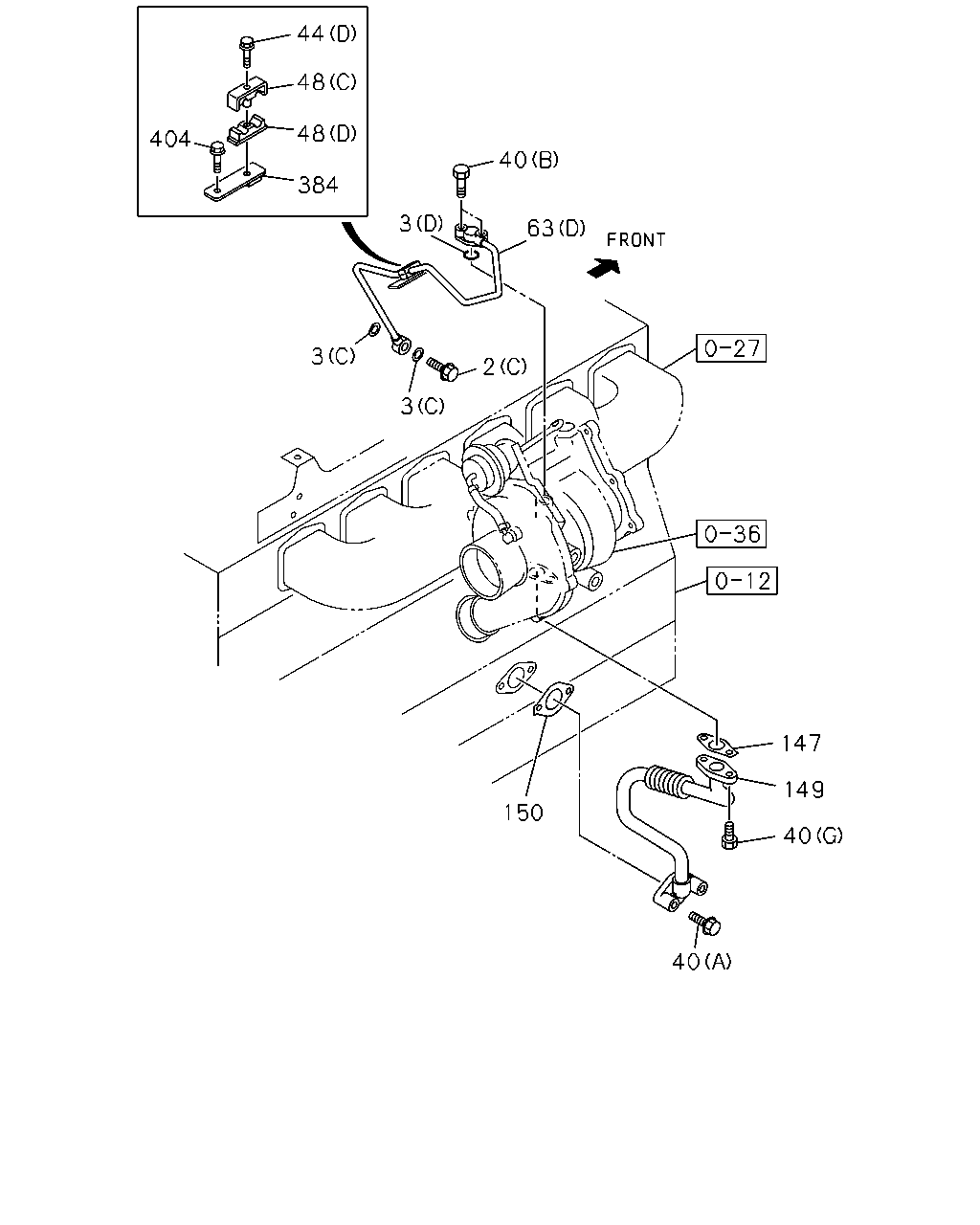

44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-			●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0603-	●			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9610-0512			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0602			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●		●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-9609			●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9610-			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0602				●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0603-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9610-0512				●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9610-0004				●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-9510		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9511-0504		●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605			●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9609			●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9812			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9610-9812			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9812				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0603-	●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0603-	●
48	CLIP; OIL PIPE (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-			●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-			●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9610-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9610-				●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0603-	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9812			●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-			●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-			●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9610-9808				●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-				●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9511-9609			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9610-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0603-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9703-9808				●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-				●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-9609			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9610-0602			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0603-	●		●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0603-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	8-97600-199-0	01	1	9901-			●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0603-	●
404	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9901-0512			●
404	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-			●

117 117 117 2 117 1 2 452 3 115 44 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0603-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-9510		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9511-0504		●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0505-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0505-			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9610-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94392-964-0	01	1	0005-0010					●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94392-964-0	01	1	0011-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-0004		●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●	●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0107		●	●		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X21 FLANGE	1-09675-077-0	02	1	0108-0108					●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602		●
2	BOLT; EYE,OIL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE DOUBLE CAB(FT*W) (A) M10X21 FLANGE	1-09675-077-0	02	1	0109-0602					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0603-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●	●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-0602		●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0603-	●	●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-			●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9610-0004				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-0602		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	04	1	9511-1312			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	04	1	1401-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9610-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0602				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0603-	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-9510		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9511-0504		●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0505-0605			●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0606-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9609			●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9812			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9610-9812			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9610-9812				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9510-9510		●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9511-0504		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0505-0605		●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0505-0605			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0606-	●	●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0606-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0602		●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0603-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (B) ID=12.2	1-09630-084-0	01	1	0005-0010					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	01	1	0011-1312					●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	01	1	1401-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0603-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-0012		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0101-0112		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	0201-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9906		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-0010		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0011-0107			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR STD CAB(FT*M) PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0108-0504		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0108-0504			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	0505-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	0505-			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN>	8-97600-571-0	01	1	0005-0010					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-571-0	01	1	0011-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
