Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#38802) — 582 parça

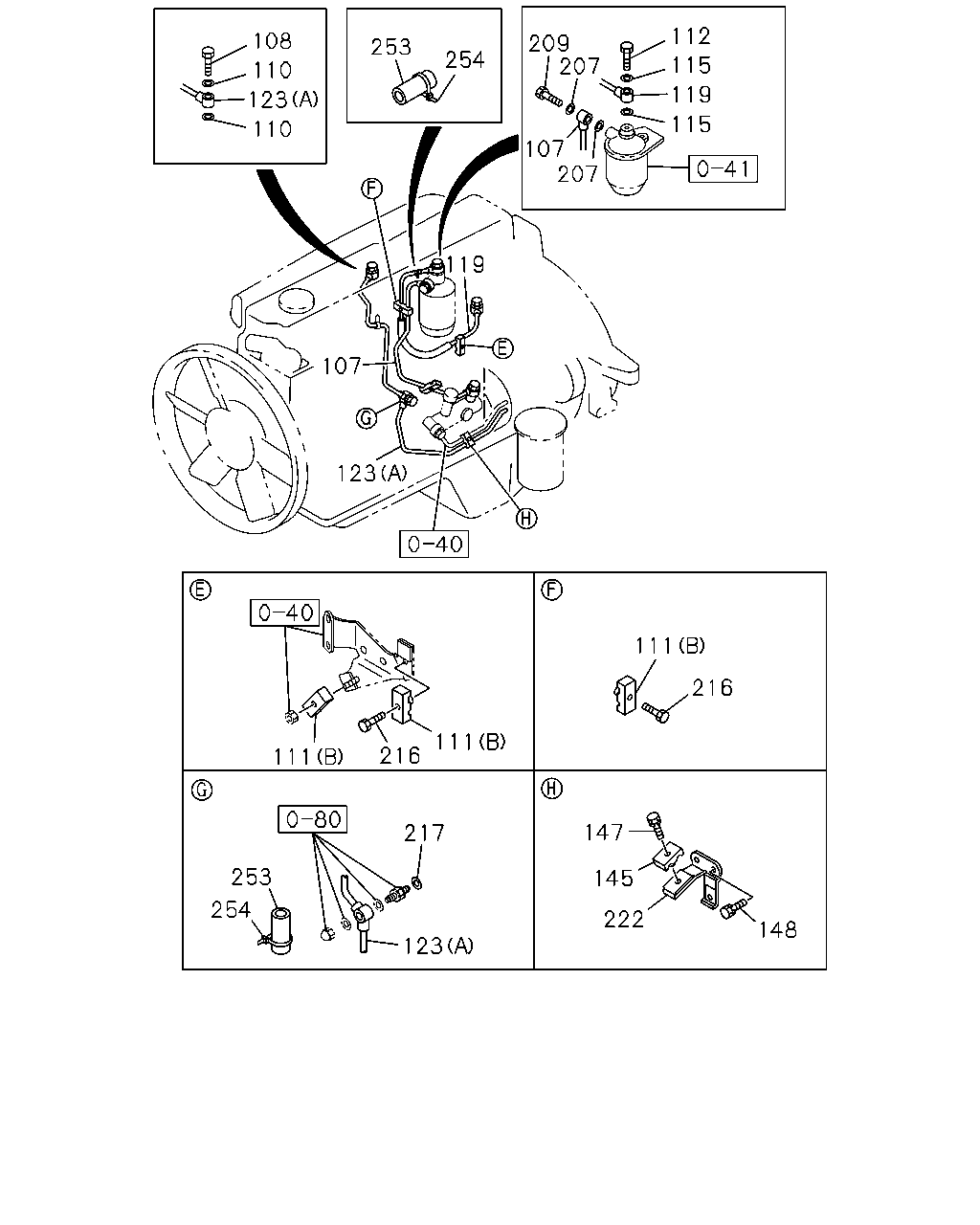

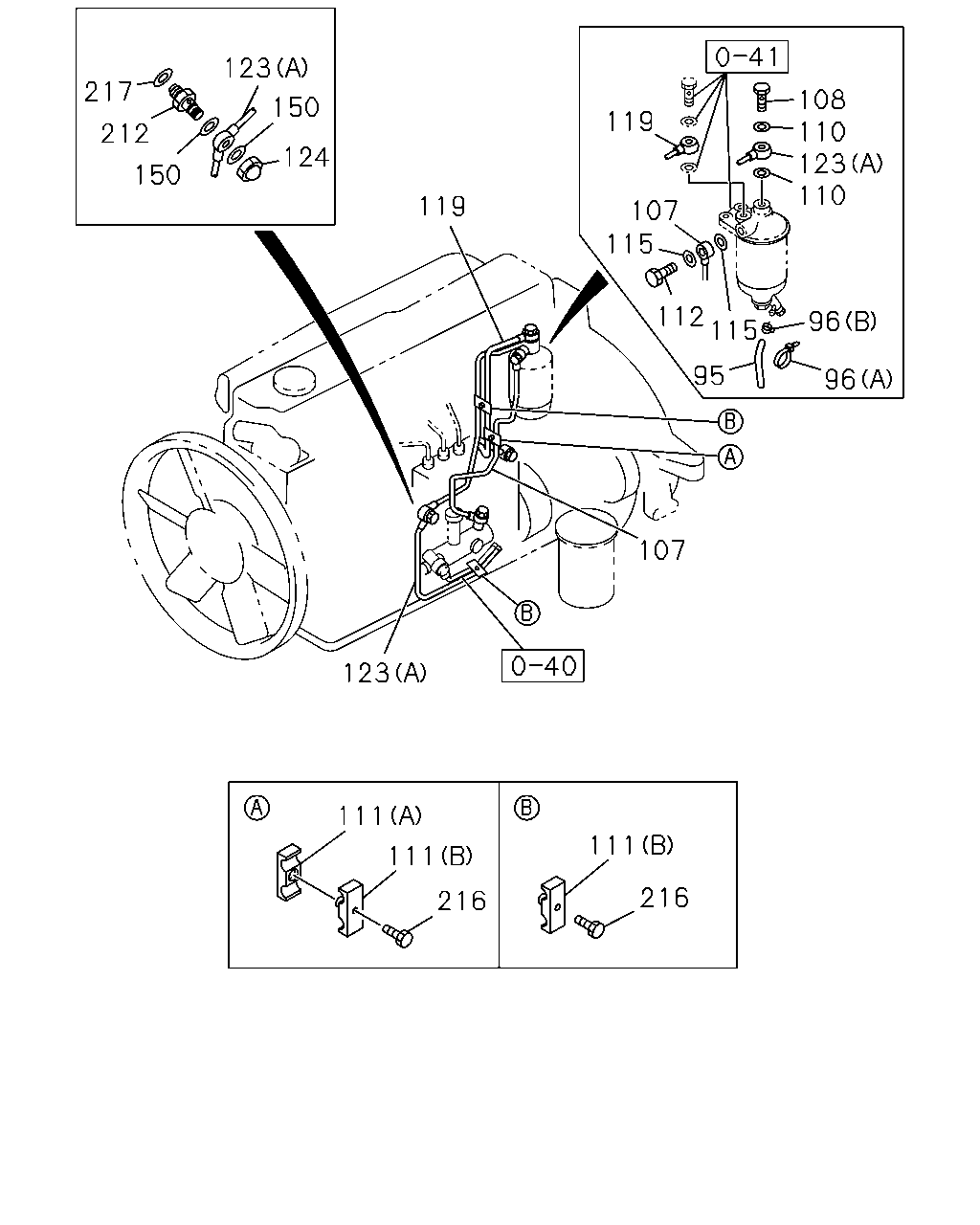

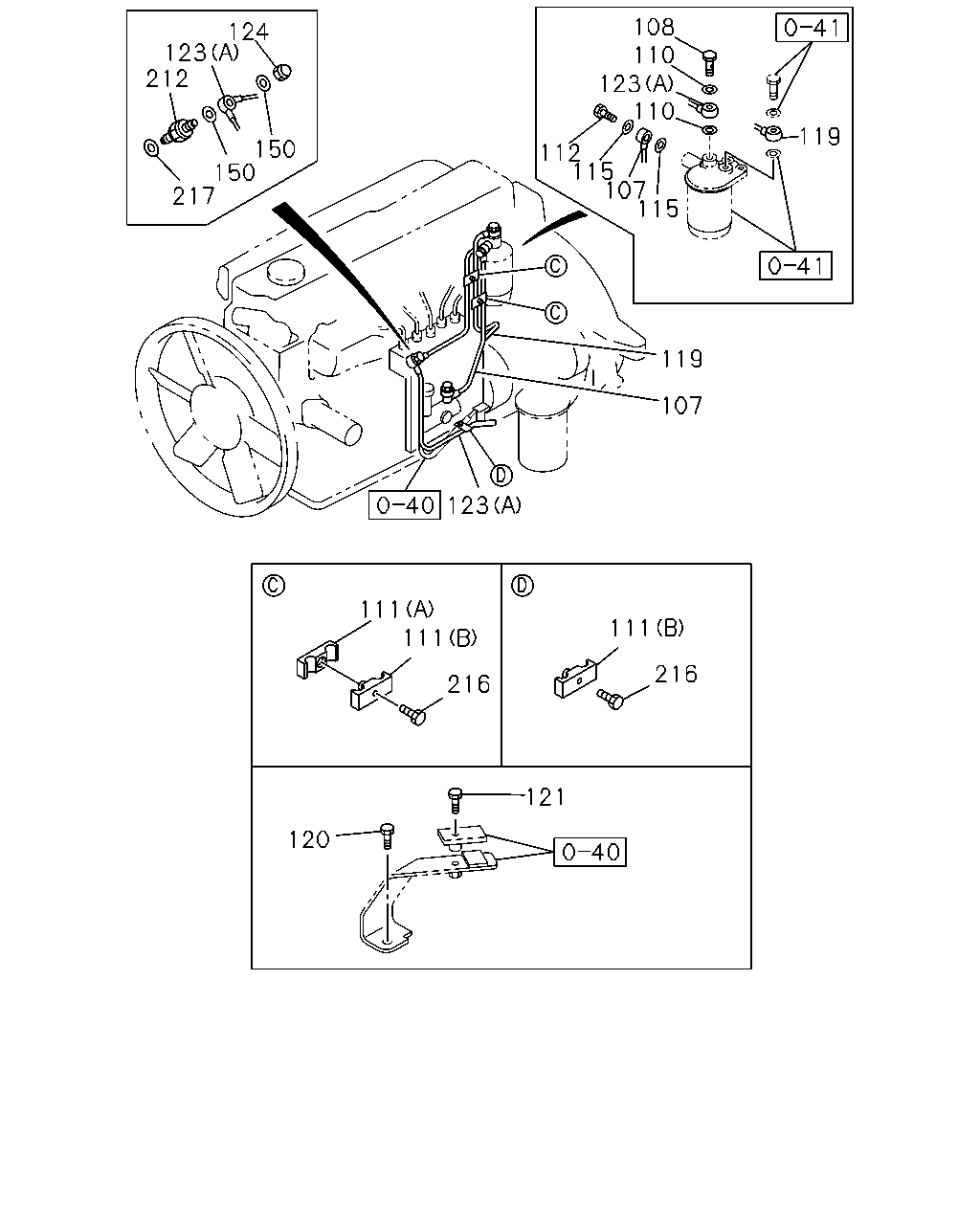

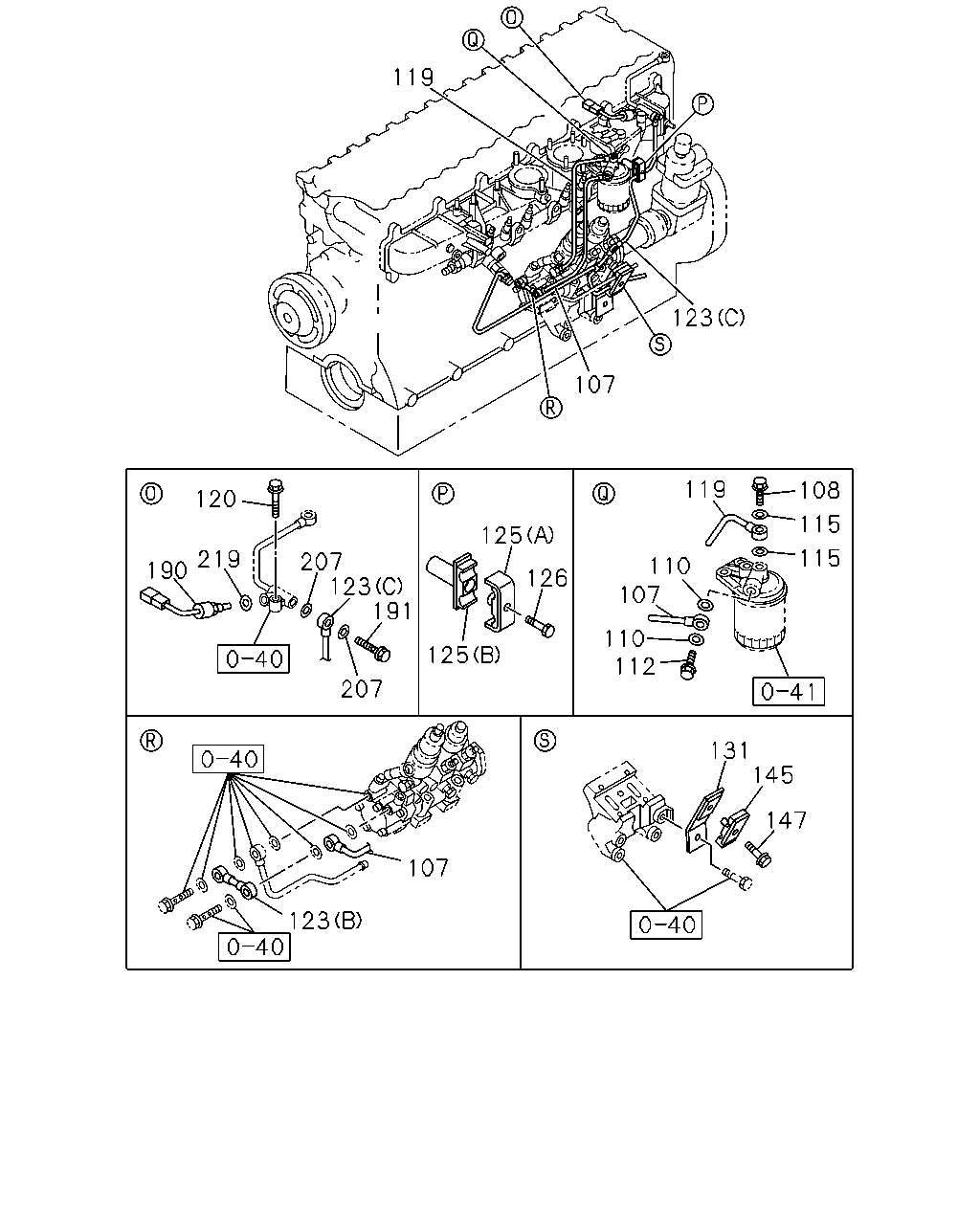

108 110 123 110 124 123 212 119 150 150 217 112 115 107 115 119 107 123 111 111 111 216 216 121 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9511-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0005-0010					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-					●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0602		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0602		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-0010		●	●	●
111	CLIP; FUEL PIPE STD CAB(FT*M) (B) L=48	5-09709-103-0	03	1	0011-0112		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0011-0112			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0201-		●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9511-			●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0005-0010					●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-					●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0005-0010					●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-					●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0602		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9612-0004		●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0602		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0603-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9511-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0005-0010					●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-					●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0603-	●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9511-0512			●
120	BOLT; STAY M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9511-0512			●
121	BOLT; CLIP M6X25 FLANGE	0-28050-625-0	01	1	0601-			●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0005-0010					●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	03	1	0011-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9510-9607		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9608-9802		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (A)	8-94394-571-1	01	1	9608-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9803-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-409-1	01	1	9511-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	9610-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94392-333-4	01	1	0011-					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9510		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-0004		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-0010		●	●		●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0011-0011		●			●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0011-0011		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0011-0011					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-0107		●	●		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0108-0108		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0109-0602		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0603-		●			●
124	NUT; CAP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0603-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9510		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9511-0004		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0107		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9510-9510		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9511-0504		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0505-		●
212	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	8-94399-087-0	01	1	0505-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9510		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9511-0010		●	●
216	BOLT; CLIP,FUEL PIPE TACHOMETER<UD7> M6X30 W/LK WASHER	0-50040-630-0	03	1	0011-0012		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0101-0504		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0108				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0004				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0010				●	●
216	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510		●			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510				●
216	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510					●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512				●	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-1312		●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●	●	●

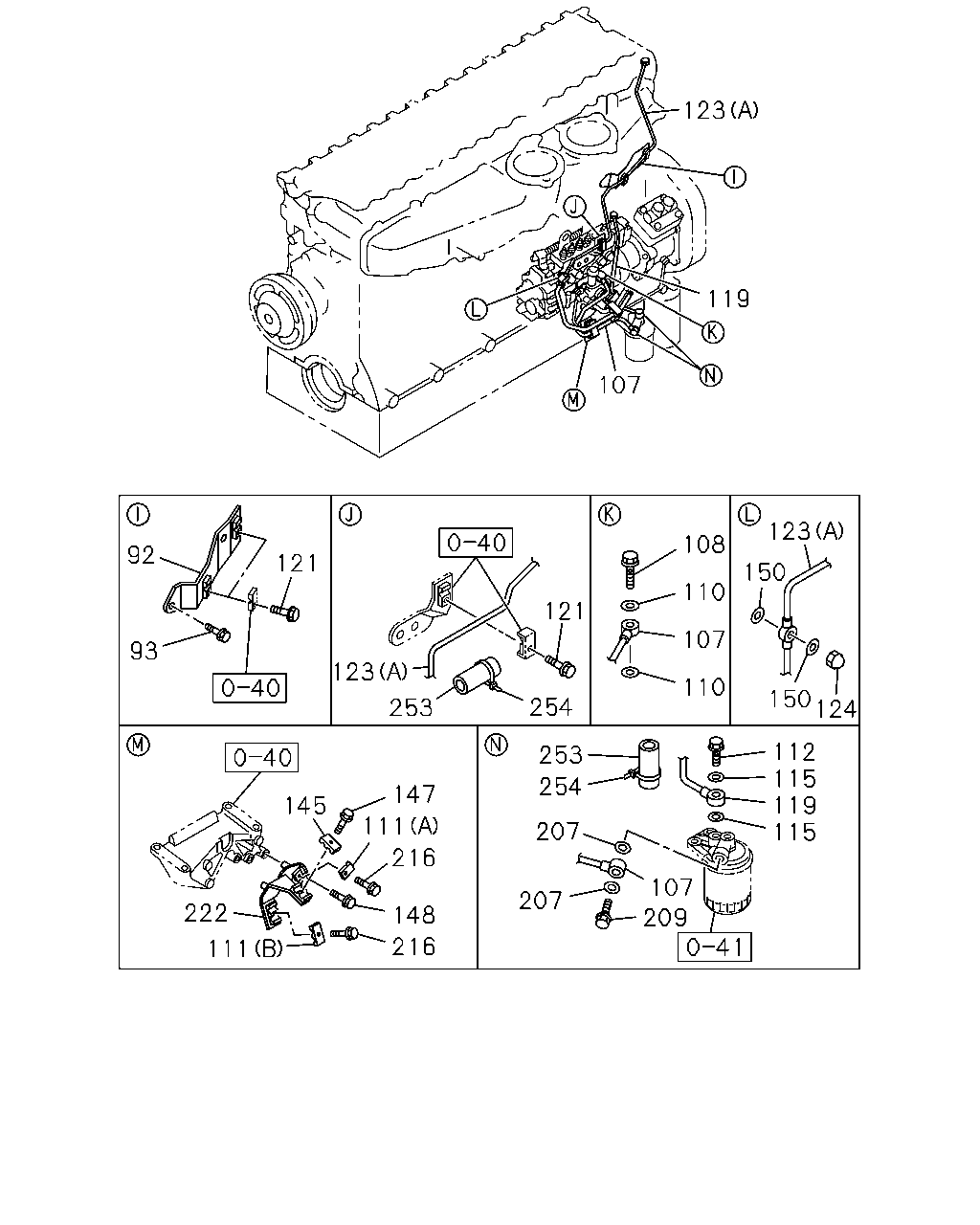

123 119 107 123 108 92 121 150 110 121 107 93 123 110 150 124 254 253 112 115 119 115 253 254 147 145 111 207 216 107 209 222 148 216 111 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN>	8-94391-980-0	01	1	0005-					●
92	BRACKET; FUEL PIPE EXC. EURO2 SPECIFICATION<THN>	8-94392-321-1	01	1	0011-					●
93	BOLT; PIPE BRKT EURO2 SPECIFICATION<THN> M8X14 FLANGE	0-28080-814-0	02	1	0005-0010					●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	0011-					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9511-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0005-0010					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-					●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0602		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0602		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-0010		●	●	●
111	CLIP; FUEL PIPE STD CAB(FT*M) (B) L=48	5-09709-103-0	03	1	0011-0112		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0011-0112			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0201-		●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9511-			●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0005-0010					●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-					●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0005-0010					●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-					●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0602		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9612-0004		●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0602		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0603-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9511-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0005-0010					●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-					●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9511-0512			●
121	BOLT; CLIP M6X25 FLANGE	0-28050-625-0	01	1	0601-			●
121	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X22 FLANGE	0-28080-622-0	03	1	0005-0010					●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	03	1	0011-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9510-9607		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9608-9802		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (A)	8-94394-571-1	01	1	9608-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9803-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-409-1	01	1	9511-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	9610-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94392-333-4	01	1	0011-					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9510		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-0004		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-0010		●	●		●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0011-0011		●			●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0011-0011		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0011-0011					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-0107		●	●		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0108-0108		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0109-0602		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0603-		●			●
124	NUT; CAP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0603-			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0603-	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9610-0004				●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0005-0010				●	●
145	CLIP; FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) L=48	5-09709-103-0	01	1	0011-0510		●			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-0510				●
145	CLIP; FUEL PIPE STD CAB(FT*M) L=48	5-09709-103-0	01	1	0011-0510					●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0511-			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0511-				●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0603-	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9610-0004				●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0010				●	●
147	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510		●			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510				●
147	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510					●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512				●	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-				●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0512				●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	0005-0010					●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0011-0512					●
148	BOLT; BRKT M8X50 FLANGE	0-28050-850-0	02	1	0601-					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9510		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9511-0004		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0107		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0004				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010				●	●
207	GASKET; EYE BOLT DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112				●	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9610-0004				●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0005-0010				●	●
209	BOLT; EYE,FUEL FILTER DOUBLE CAB(FT*W)	1-15619-310-0	01	1	0011-0112		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0011-0112				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9510		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9511-0010		●	●
216	BOLT; CLIP,FUEL PIPE TACHOMETER<UD7> M6X30 W/LK WASHER	0-50040-630-0	03	1	0011-0012		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0101-0504		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0108				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0004				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0010				●	●
216	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510		●			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510				●
216	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510					●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512				●	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-				●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	9610-				●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-0	01	1	0005-0010					●
222	BRACKET; CLIP	8-94392-071-1	01	1	0011-					●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0001-0004				●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0005-0010				●	●
253	COVER; RUBBER DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510		●			●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510				●
253	COVER; RUBBER STD CAB(FT*M) ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510					●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0511-			●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0511-				●	●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0001-0004				●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0005-0005				●	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0006-0010					●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0011-					●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-				●
254	CLIP L=250	5-09707-030-1	02	1	0001-0004				●
254	CLIP L=250	5-09707-030-1	02	1	0005-0005				●	●
254	CLIP EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0006-1205					●
254	CLIP EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	02	1	1206-					●
254	CLIP EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	0011-1205					●
254	CLIP EXC. EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	01	1	1206-					●

123 217 108 110 123 110 150 119 212 124 150 119 107 115 112 115 96 95 96 107 123 111 111 111 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
95	PIPE; VINYL PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	9510-0012		●
95	PIPE; VINYL STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	0101-0112		●
95	PIPE; VINYL PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	0201-		●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	9510-0012		●
96	CLIP; VINYL PIPE STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	0101-0112		●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	5-09707-036-1	01	1	0201-1205		●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) L=100	8-98216-432-0	01	1	1206-		●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	9510-0012		●
96	CLIP; VINYL PIPE STD CAB(FT*M) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	0101-0112		●
96	CLIP; VINYL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=8	8-94107-762-0	01	1	0201-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9511-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0005-0010					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-					●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0602		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0602		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-0010		●	●	●
111	CLIP; FUEL PIPE STD CAB(FT*M) (B) L=48	5-09709-103-0	03	1	0011-0112		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0011-0112			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0201-		●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9511-			●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0005-0010					●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-					●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0005-0010					●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-					●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0602		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9612-0004		●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0602		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0603-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9511-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0005-0010					●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9510-9607		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9608-9802		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (A)	8-94394-571-1	01	1	9608-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9803-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-409-1	01	1	9511-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	9610-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94392-333-4	01	1	0011-					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9510-9510		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-0004		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-0010		●	●		●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0011-0011		●			●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0011-0011		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0011-0011					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-0107		●	●		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0108-0108		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M14	1-09468-002-1	01	1	0108-0108					●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) M14	1-09468-002-1	01	1	0109-0602		●
124	NUT; CAP,FUEL PIPE STD CAB(FT*M) EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE DOUBLE CAB(FT*W) M14	1-09468-002-1	01	1	0109-0602					●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0603-		●			●
124	NUT; CAP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M14	1-09468-002-1	01	1	0603-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9510		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9511-0004		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0011					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0107		●	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-0108					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD CAB(FT*M) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-0602					●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9510-9510		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9511-0504		●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0505-		●
212	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	8-94399-087-0	01	1	0505-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9510		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9511-0010		●	●
216	BOLT; CLIP,FUEL PIPE TACHOMETER<UD7> M6X30 W/LK WASHER	0-50040-630-0	03	1	0011-0012		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0101-0504		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0108				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0004				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0010				●	●
216	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510		●			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510				●
216	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510					●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512				●	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-1312		●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●	●	●

112 108 209 207 253 254 115 110 119 123 115 110 107 207 119 107 123 111 216 111 216 111 147 217 253 145 254 222 148 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9511-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0005-0010					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-					●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0602		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0602		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9510-		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9510-0010		●	●	●
111	CLIP; FUEL PIPE STD CAB(FT*M) (B) L=48	5-09709-103-0	03	1	0011-0112		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0011-0112			●	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0201-		●	●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9511-			●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-215-1	01	1	0005-0010					●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-					●
111	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0005-0010					●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-					●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0602		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9612-0004		●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0602		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0603-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9511-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0005-0010					●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9510-9607		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9608-9802		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (A)	8-94394-571-1	01	1	9608-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9803-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-409-1	01	1	9511-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	9610-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94392-333-4	01	1	0011-					●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0603-	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9610-0004				●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0005-0010				●	●
145	CLIP; FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) L=48	5-09709-103-0	01	1	0011-0510		●			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-0510				●
145	CLIP; FUEL PIPE STD CAB(FT*M) L=48	5-09709-103-0	01	1	0011-0510					●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0511-			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0511-				●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0603-	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9610-0004				●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0010				●	●
147	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510		●			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510				●
147	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510					●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512				●	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-				●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0512				●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
148	BOLT; BRKT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	0005-0010					●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0011-0512					●
148	BOLT; BRKT M8X50 FLANGE	0-28050-850-0	02	1	0601-					●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0004				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010				●	●
207	GASKET; EYE BOLT DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112				●	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9610-0004				●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0005-0010				●	●
209	BOLT; EYE,FUEL FILTER DOUBLE CAB(FT*W)	1-15619-310-0	01	1	0011-0112		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0011-0112				●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9510-9510		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9511-0010		●	●
216	BOLT; CLIP,FUEL PIPE TACHOMETER<UD7> M6X30 W/LK WASHER	0-50040-630-0	03	1	0011-0012		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0101-0504		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	03	1	0505-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-		●
216	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0108				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0004				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0010				●	●
216	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510		●			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510				●
216	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-0510					●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0511-0512				●	●
216	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-				●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9510-1312		●	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●	●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	9610-				●
222	BRACKET; CLIP EURO2 SPECIFICATION<THN>	8-94392-071-0	01	1	0005-0010					●
222	BRACKET; CLIP	8-94392-071-1	01	1	0011-					●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0001-0004				●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0005-0010				●	●
253	COVER; RUBBER DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510		●			●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510				●
253	COVER; RUBBER STD CAB(FT*M) ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-0510					●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=6 OD=10 L=70	1-09376-512-0	01	1	0511-			●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0511-				●	●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0001-0004				●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0005-0005				●	●
253	COVER; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	01	1	0006-0010					●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0011-					●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-				●
254	CLIP L=250	5-09707-030-1	02	1	0001-0004				●
254	CLIP L=250	5-09707-030-1	02	1	0005-0005				●	●
254	CLIP EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0006-1205					●
254	CLIP EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	02	1	1206-					●
254	CLIP EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	0011-1205					●
254	CLIP EXC. EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	01	1	1206-					●

119 123 107 119 108 120 115 125 115 219 190 207 123 191 110 107 126 110 112 125 207 131 145 147 107 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9510-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9511-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-				●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	8-94392-069-0	01	1	0005-0010					●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-					●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0602		●	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0004		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0602		●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9510-0004		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0602		●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9612-0004		●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0602		●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0603-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9510-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9511-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94392-959-0	01	1	0005-0010					●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-					●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0603-	●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9511-0512			●
120	BOLT; STAY M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	9510-9607		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9608-9802		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (A)	8-94394-571-1	01	1	9608-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN> (A)	8-94392-617-1	01	1	0005-					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> (A)	8-94394-556-1	01	1	9803-0004		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-556-1	01	1	0005-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94394-409-1	01	1	9511-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	9610-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN> (A)	8-94392-333-4	01	1	0011-					●
125	CLIP; FUEL PIPE (A)	1-09701-172-3	01	1	0603-	●
125	CLIP; FUEL PIPE (B)	8-94391-370-1	01	1	0603-	●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28050-660-0	01	1	0603-	●
131	BRACKET; FUEL PIPE CLIP	8-94390-958-0	01	1	0603-	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0603-	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9610-0004				●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0005-0010				●	●
145	CLIP; FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) L=48	5-09709-103-0	01	1	0011-0510		●			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-0510				●
145	CLIP; FUEL PIPE STD CAB(FT*M) L=48	5-09709-103-0	01	1	0011-0510					●
145	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> L=48	5-09709-103-0	01	1	0511-			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0511-				●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0603-	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9610-0004				●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0010				●	●
147	BOLT; CLIP,FUEL PIPE DOUBLE CAB(FT*W) INJ PUMP Q SET SPECIAL +5%Q(T1A) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510		●			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510				●
147	BOLT; CLIP,FUEL PIPE STD CAB(FT*M) M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-0510					●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0511-0512				●	●
147	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<THN> M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-				●	●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0603-	●
191	BOLT; EYE,FUEL PIPE M10X21 FLANGE	8-94396-711-0	01	1	0603-	●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0004				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0010				●	●
207	GASKET; EYE BOLT DOUBLE CAB(FT*W) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112				●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0603-1312	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
