4-42 — POWER STEERING OIL PUMP (#388) — 29 parça

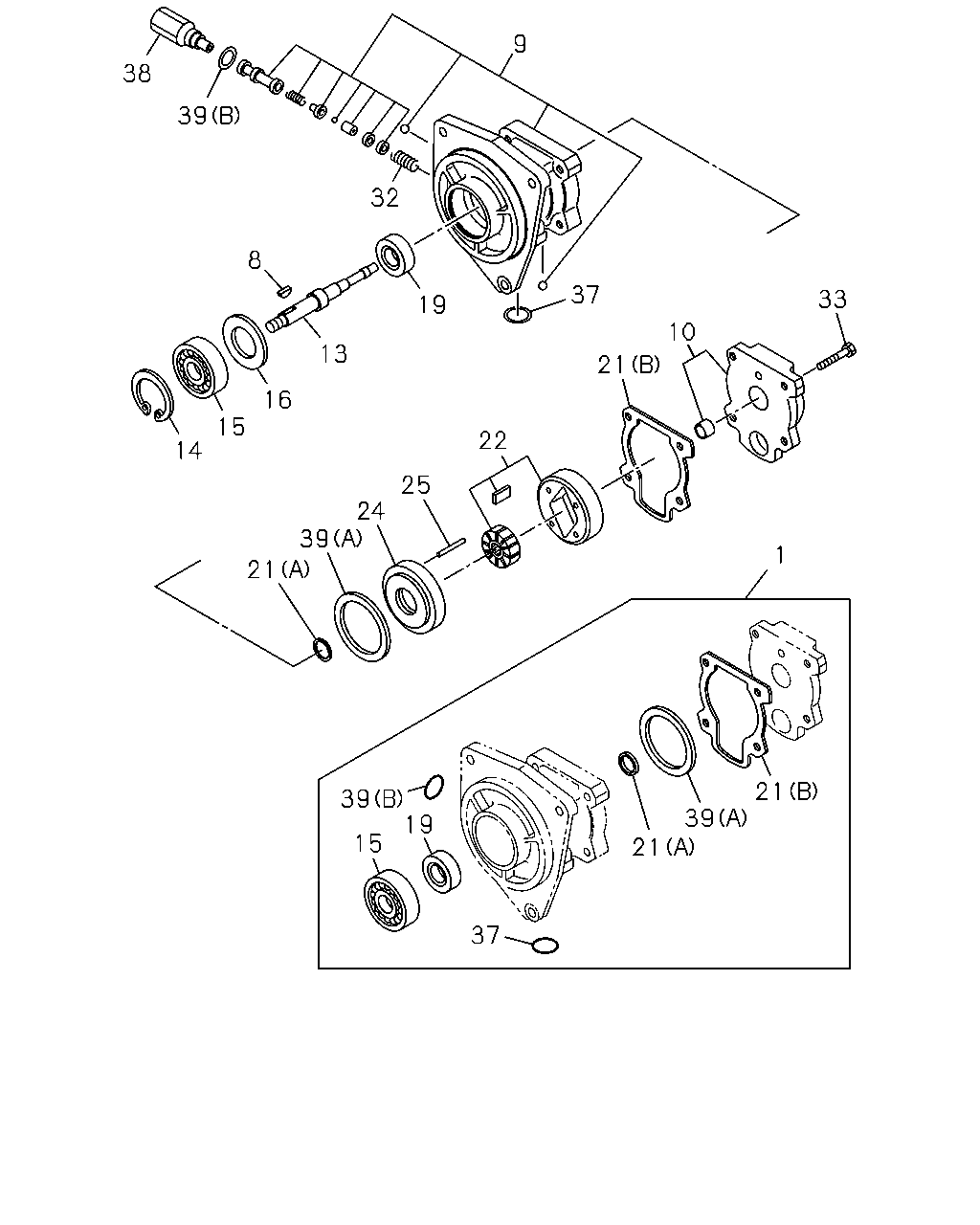

çizim 94544
9 38 39 32 8 37 33 19 10 13 21 16 15 22 14 25 24 39 1 21 21 39 19 39 15 21 37
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-85574-025-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-432-1 		1-19511-101-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-412-4 		1-19511-103-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: D = 1-19500-456-0 		1-19511-121-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: C = 1-19500-454-0 		1-19511-122-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19511-102-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19521-030-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19519-258-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		8-94475-378-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		8-94475-380-1 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-412-4 		1-19519-253-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: B = 1-19500-432-1 		1-19519-254-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: D = 1-19500-456-0 		1-19519-303-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: C = 1-19500-454-0 		1-19519-304-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1 		1-19515-011-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: C = 1-19500-454-0, D = 1-19500-456-0 		1-19515-012-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-412-4, D = 1-19500-456-0 		1-33739-271-0 02 1 -
25 PIN; HSG,P/S
ASM PART: B = 1-19500-432-1, C = 1-19500-454-0 		1-33739-345-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-48119-054-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 1-19500-412-4, D = 1-19500-456-0 		1-19519-269-2 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: B = 1-19500-432-1, C = 1-19500-454-0 		1-19519-279-1 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-412-4, B = 1-19500-432-1, C = 1-19500-454-0, D = 1-19500-456-0 		9-48429-028-0 01 1 -
